ZEVNI A04695 Stan 29.1-in 4-Light Black-Brass Transitional Vanity Light

Item Number: A04695
WARNING (To reduce the risk of fire, electric shock, or personal injury):

1. We suggest installation by a licensed electrician.
2. Please read the instruction carefully and save it as you may need it at a later time.
3. Before you start, NEVER attempt any work without shutting off the electricity until the work is done.
   • Go to the main fuse, or circuit breaker, box in your home.
     Place the main power switch in the “OFF” position.
   • Place the wall switch in the “OFF” position.
4. Mounting surface should be clean, dry, flat, strong enough and 1/4” larger than the canopy on all sides.
   Any gaps between the mounting surface and canopy exceeding 3/16” should be corrected as required.
5. Make sure that the ceiling or wall can stand the weight of the lamp before installation.
6. Make sure the voltage you are using is 120V. The maximum wattage is 60W per bulb.
7. Keep the lamp away from acidic and alkaline substances in case of damaging the surface of the lamp.
8. When replacing bulbs, you should turn off or unplug the lamp and you must wait until it is cool as bulbs get hot quickly.
9. The safety instructions appearing in this manual are not meant to cover all possible conditions that may occur. It must be understood that common sense, caution and care must be used with any electrical products.

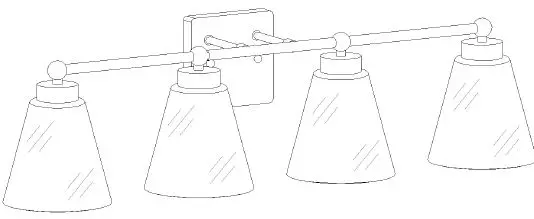

IMAGE FOR FINISHED PRODUCT

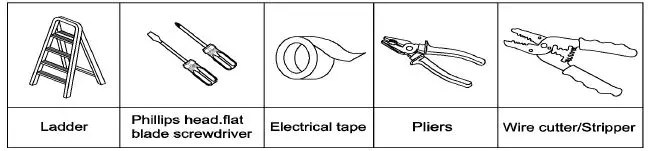

TOOLS REQUIRED (NOT INCLUDED):
Before starting assembly and installation please prepare the needed tools as below picture

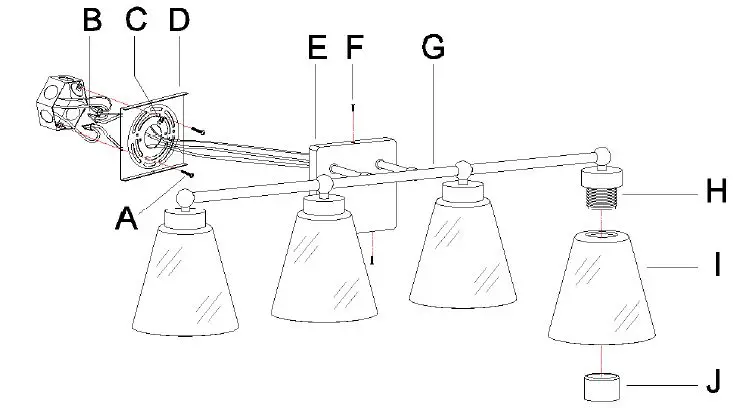

PARTS INCLUDING

• (C) Green ground screw (1)
• (D) Mounting plate (1)
• (E) Back plate (1)
• (F) Screw (2)
  (G) Arm (1)
• (H) Socket (4)
• (I) Glass shade (4)
• (J) Socket ring (4)
  ACCESSORIES ENCLOSED:
• (A) Mounting screw (2)
• (B) Plastic wire connector (3)

ASSEMBLY & INSTALLATION INSTRUCTIONS

1. Carefully remove the fixture from the carton and check that all parts and accessories are included as shown in the above illustration.
2. Turn off power
   Before you start the installation, NEVER attempt any work without shutting off the electricity until the work is done.
   • Go to the main fuse, or circuit breaker, box in your home.
     Place the main power switch in the “OFF” position.
   • Place the wall switch in the “OFF” position.

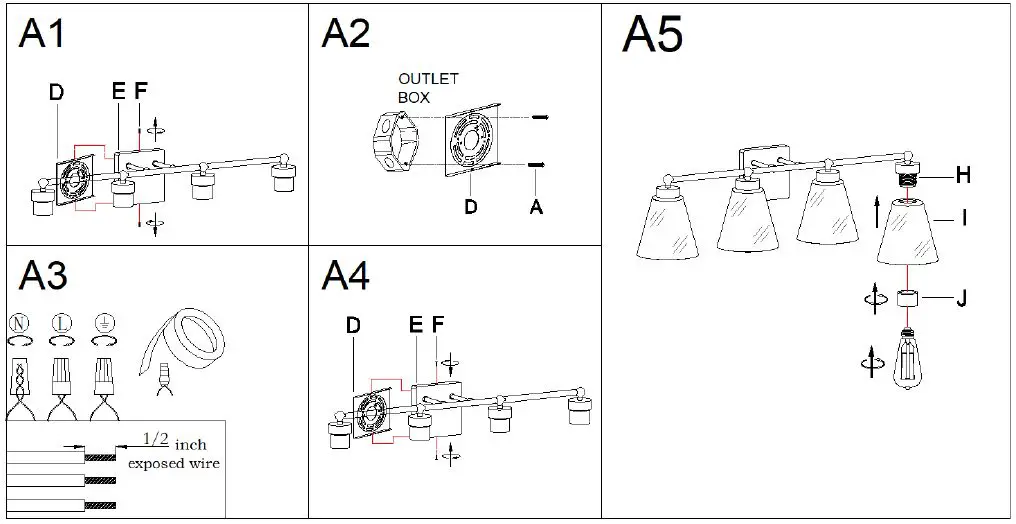

3. Make assembly

Step A1: Unscrew screws (F) from back plate (E), then set them aside for later installation.
Step A2: Carefully pass the supply wires from the outlet box through mounting plate (D).
Secure mounting plate (D) to the outlet box with mounting screws (A).

Step A3: Make wire connections
Connect wires as below wires connection shown. PLEASE NOTE THAT GROUND WIRE IS BARE COPPER WIRE, NEVER CONNECT OTHER WIRES TO GROUND WIRES.

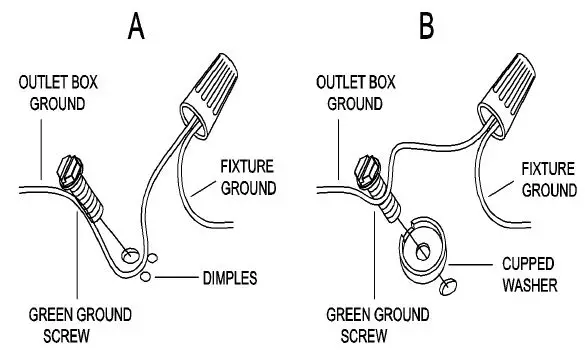

Connect ground wires according to the below chart

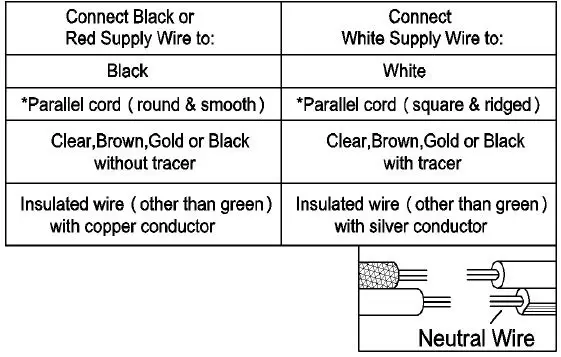

Connect wires according to the below chart

Note: When parallel wires (SPT 1& SPT ) are used. The neutral wire is square shaped or ridged and the other wire will be round in shape or smooth (see illus.)

1. Unscrew socket rings (J) from sockets (H).
   Place glass shades (I) on sockets (H) and secure them with socket rings (J).
2. Install bulbs (Not included) (Please do not exceed the maximum wattage recommended on the socket.)

CLEANING

ORDERING PARTS
