Vantage City Group VAN-W4F-5W2 Vantage Wireless Charger
MOUNTING INSTRUCTION “CONCEALED FURNITURE”

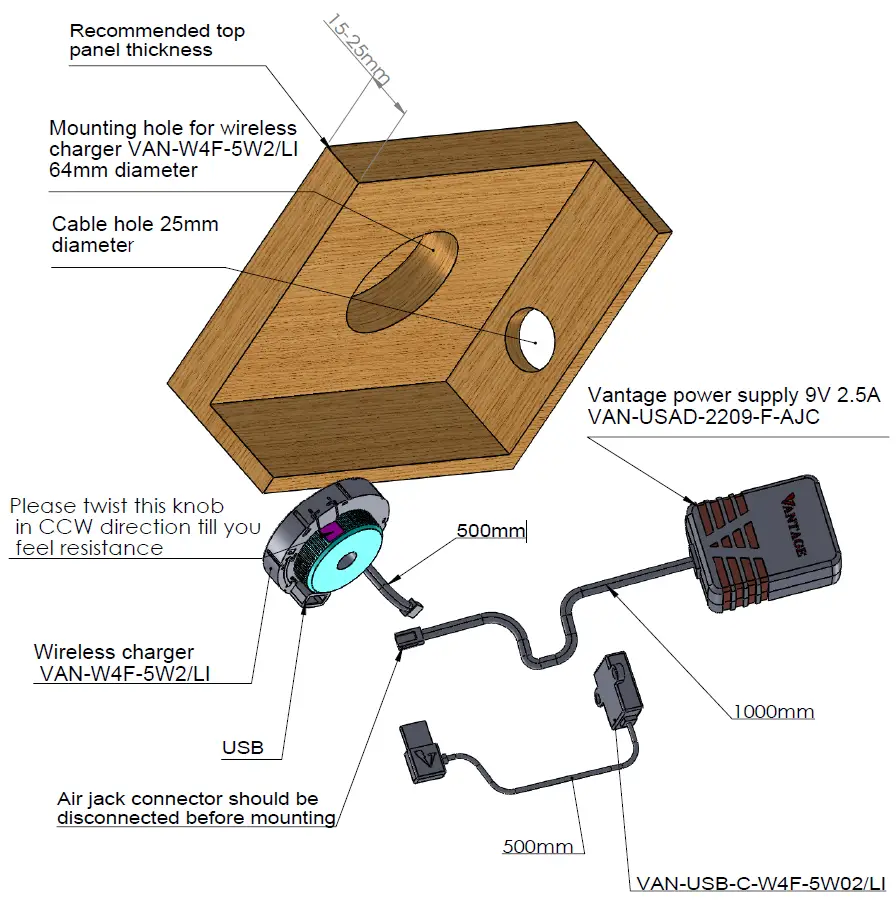

Step1

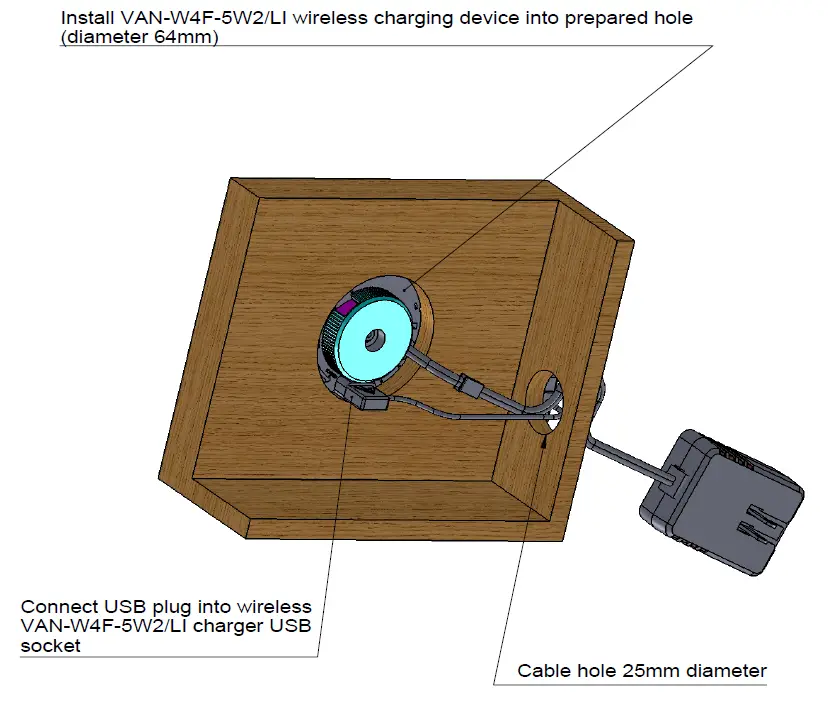

Step 2

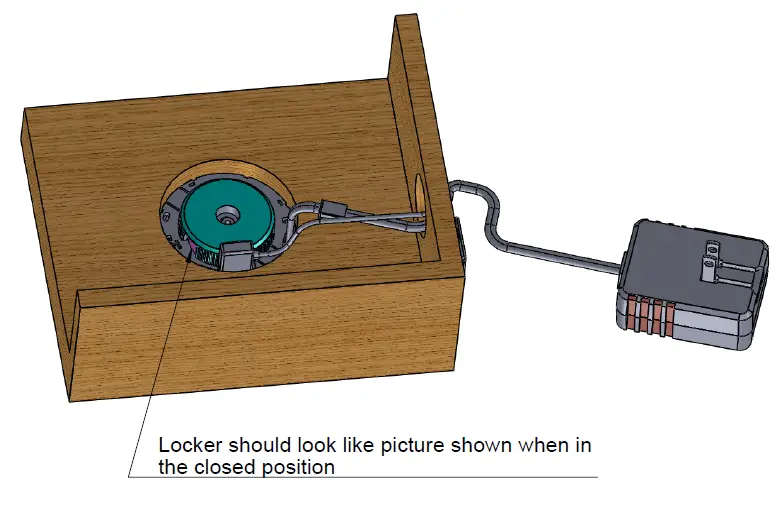

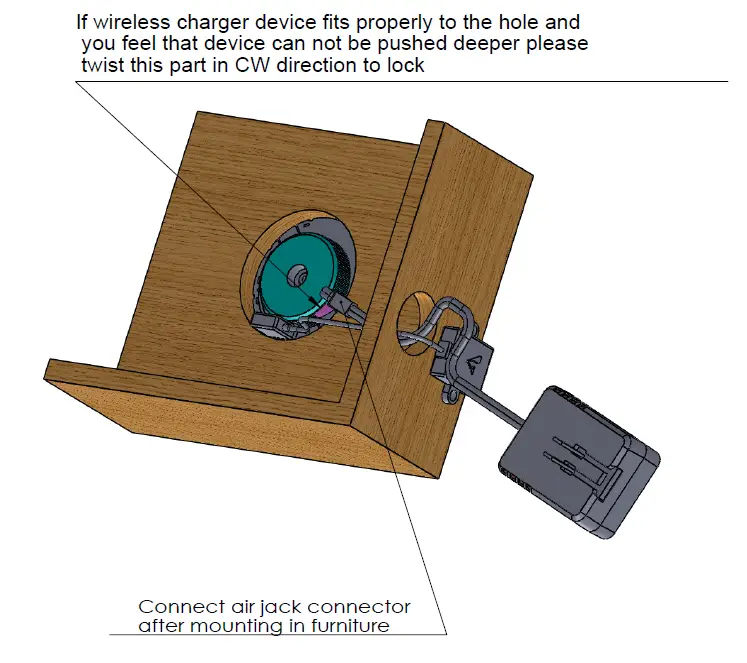

Step 3

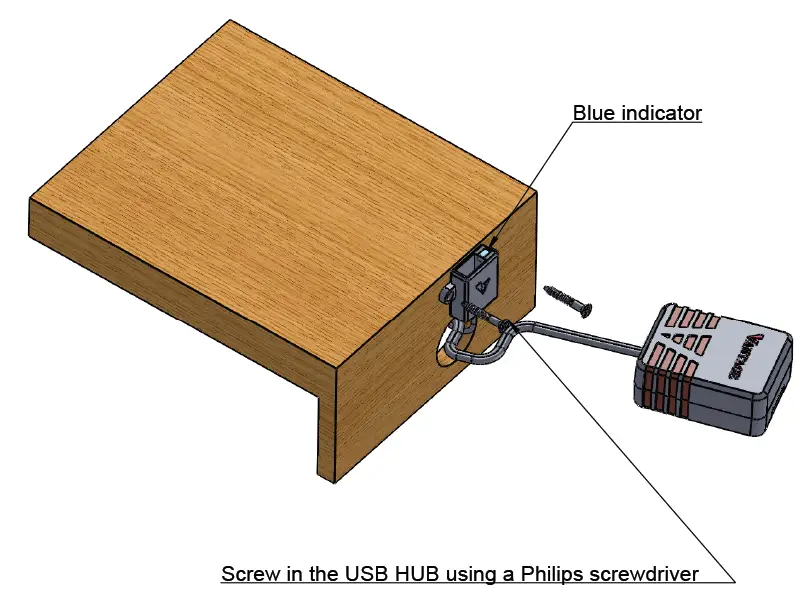

Step 4
Light description
- One blink at power on
- Constant lighting when wireless charger is charging phone
- The blue light disappears when phone is charged fully
- Constant blinking-error

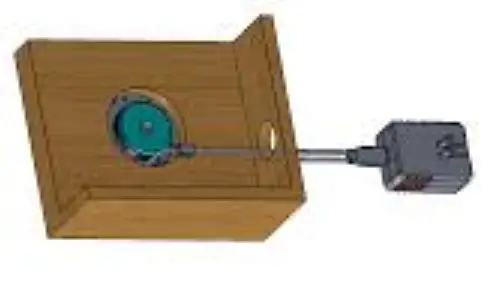

Mounted properly Vantage wireless charger VAN-W4F-5W2/LI
FCC Statment
This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
