Through the Wall
Air Conditioners Cool Only
Cool Only Through-the-Wall
Air Conditioners

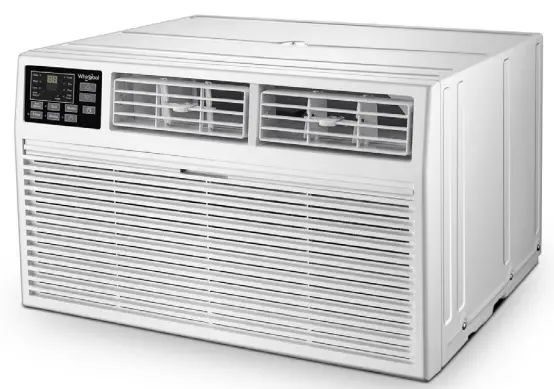

WHAT121-1 Wall Air Conditioner
Whirlpool takes comfort and caring to the next level. Our line of home comfort products keeps the climate inside your home just right – making the air comfortable, clean, and fresh. Whirlpool’s throughthe-wall air conditioners are compatible with standard wall sleeves and offer a permanent cooling solution for areas of your home that are not connected to a central cooling system, saving you the hassle of summer installation then winter storage season after season. Trust Whirlpool to help you care for your family and make your life easier.
MODEL
PERFORMANCE
| WHAT081-1AW | WHAT101-1AW | WHAT102-2AW | WHAT121-1AW | WHAT122-2AW | WHAT142-2AW | |
| BTUs | 8,000 | 10,000 | 10,000 | 12,000 | 12,000 | 14,000 |
| Cooling Range (Sq. Ft.) | 300-350 | 400-450 | 400-450 | 450-550 | 450-550 | 550-700 |
| Control Type | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic |
| EER | 10.7 | 10.7 | 10.7 | 10.6 | 10.6 | 9.4 |
| ENERGY STAR | Yes | Yes | No | Yes | Yes | No |
| Dehumidification | 0.8 | 1.2 | 1.2 | 1.7 | 1.7 | 2.1 |
| Air Flow (CFM) (High/Med/Low) | 247/229/212 | 265/247/229 | 265/247/229 | 276/259/241 | 276/259/241 | 265/247/229 |
| Refrigerant Type | R410A | R410A | R410A | R410A | R410A | R410A |
ELECTRICAL RATINGS
| Voltage (V) / Frequency (Hz) | 115v / 60Hz | 115v / 60Hz | 230/208v / 60Hz | 115v / 60Hz | 230v/208v /60Hz | 230v/208v / 60Hz |
| Cooling Amps | 6.9 | 8.3 | 4.2/4.5 | 10.1 | 5.1/5.4 | 6.7/7.2 |
| Cooling Watts | 755 | 940 | 940/920 | 1130 | 1130/1090 | 1490/1450 |
FEATURES
| Air Directioin | 8-way | 8-way | 8-way | 8-way | 8-way | 8-way |
| Cooling Speeds | High, Medium, Low | High, Medium, Low | High, Medium, Low | High, Medium , Low | High, Medium , Low | High, Medium , Low |
| Remote Control | Yes | Yes | Yes | Yes | Yes | Yes |
| Power Failure Auto Restart | Yes | Yes | Yes | Yes | Yes | Yes |
| Power Saver Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Programmable Timer | Yes | Yes | Yes | Yes | Yes | Yes |
| Fan Only Option | Yes | Yes | Yes | Yes | Yes | Yes |
| Sleep Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Reusable Filter | Yes | Yes | Yes | Yes | Yes | Yes |
| Filter Alert | Yes | Yes | Yes | Yes | Yes | Yes |
DIMENSIONS / WEIGHT
| Product Dimensions (in.) LxWxH | 20.3×24.2×14.5 | 20.3×24.2×14.5 | 20.3×24.2×14.5 | 20.3×24.2×14.5 | 20.3×24.2×14.5 | 20.3×24.2×14.5 |
| Product Weight (lb.) | 63.93 | 73.85 | 73.85 | 74.96 | 74.96 | 76.06 |
| Warranty | 1 Year Replacement | 1 Year Replacement | 1 Year Replacement | 1 Year Replacement | 1 Year Replacement | 1 Year Replacement |
| UPC Code | 192487079461 | 192487079478 | 192487079485 | 192487079492 | 192487079508 | 192487079515 |
Through the Wall
Air Conditioners
Heat & Cool
Heat & Cool Through-the-Wall
Air Conditioners
Trust Whirlpool to help you care for your family and make your life easier. Our line of home comfort products keeps the climate inside your home just right – making the air comfortable, clean, and fresh. Whirlpool’s through-the-wall air conditioners are compatible with standard wall sleeves and offer a permanent cooling solution for areas of your home that are not connected to a central cooling system, saving you the hassle of summer installation then winter storage season after season. In addition, our heat/cool units provide supplemental heating to warm up the room on those unexpected chilly nights without heating the entire house. Take comfort and caring to the next level with Whirlpool.
MODEL
PERFORMANCE
| WHAT081-HAW | WHAT101-HAW | WHAT121-HAW | WHAT141-HAW | |
| BTUs (Cool/Heat) | 8,000/4,200 | 10,000/10,600 | 12,000/10,600 | 14,000/10,600 |
| Cooling Range (Sq. Ft.) | 300-350 | 400-450 | 450-550 | 550-700 |
| Control Type | Electronic | Electronic | Electronic | Electronic |
| EER | 9.7 | 9.7 | 9.7 | 9.4 |
| ENERGY STAR | No | No | No | No |
| Dehumidification | 0.7 | 1.2 | 1.6 | 2.1 |
| Air Flow (CFM) | 247/229/212 | 265/247/229 | 276/259/241 | 265/247/229 |
| Refrigerant Type | R410A | R410A | R410A | R410A |
ELECTRICAL RATINGS
| Voltage (V) / Frequency (Hz) | 115v / 60Hz | 230v/208v / 60Hz | 230v/208v / 60Hz | 230v/208v / 60Hz |
| Cooling Amps | 7.2 | 4.6/4.9 | 5.5/5.9 | 6.7/7.2 |
| Cooling Watts | 810 | 1030/1000 | 1230/1190 | 1490/1450 |
| Heating Amps | 12.5 | 15/13.5 | 15/13.6 | 15/13.7 |
| Heating Watts | 1450 | 3450/2850 | 3450/2851 | 3450/2852 |
FEATURES
| Air Directioin | 8-way | 8-way | 8-way | 8-way |
| Cooling Speeds | High, Medium , Low | High, Medium , Low | High, Medium , Low | High, Medium , Low |
| Heating Speeds | High, Medium , Low | High, Medium , Low | High, Medium , Low | High, Medium , Low |
| Remote Control | Yes | Yes | Yes | Yes |
| Power Failure Auto Restart | Yes | Yes | Yes | Yes |
| Power Saver Mode | Yes | Yes | Yes | Yes |
| Programmable Timer | Yes | Yes | Yes | Yes |
| Fan Only Option | Yes | Yes | Yes | Yes |
| Sleep Mode | Yes | Yes | Yes | Yes |
| Reusable Filter | Yes | Yes | Yes | Yes |
| Filter Alert | Yes | Yes | Yes | Yes |
DIMENSIONS / WEIGHT
| Product Dimensions (in.) LxWxH | 20.3×24.2×14.5 | 20.3×24.2×14.5 | 20.3×24.2×14.5 | 20.3×24.2×14.5 |
| Product Weight (lb.) | 66.14 | 75 | 76.06 | 77.16 |
| Warranty | 1 Year Limited | 1 Year Limited | 1 Year Limited | 1 Year Limited |
| UPC Code | 192487130865 | 192487130858 | 192487130872 | 192487130889 |
The Comfort of Whirlpool
