Dyson Tp-09-1 Purifier Cool Formaldehyde Instruction Manual

TP-09-1 Purifier Cool Formaldehyde
Instruction Manual

TP-09-1 Purifier Cool Formaldehyde

Thank you for purchasing our products.
In order to make better use of our products, please read the instructions carefully before using them and keep them properly for your reference.

Leafless air purifier

voltage: 220V
rated frequency: 50Hz
rated power: 45W
head angle: 120°

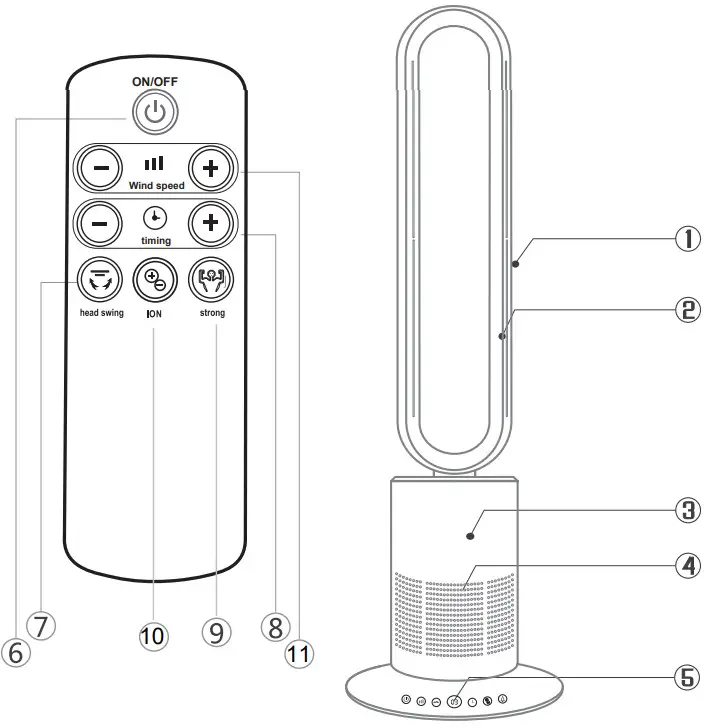

1. Output channels
2. Outlet circle
3. Main body
4. Input channels
5. View screen
6. ON/OFF
7. Switch
8. Timing
9. Strong
10. Ion
11. Speed

Air quality monitoring lamp

• Positive and negative oxygen ion mode: the warm wind mode automatically shuts down the positive and negative oxygen ion.

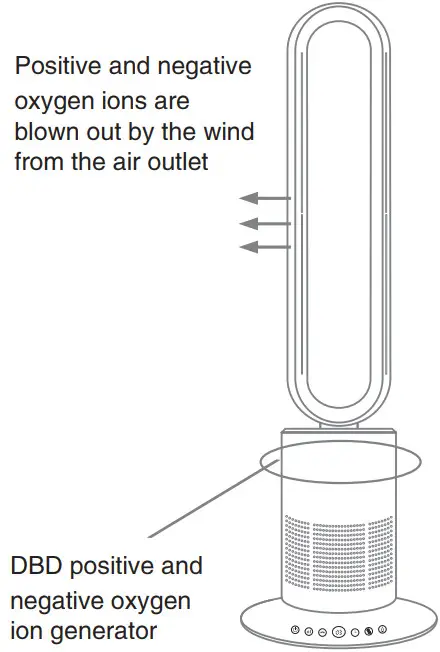

Positive and negative oxygen ions

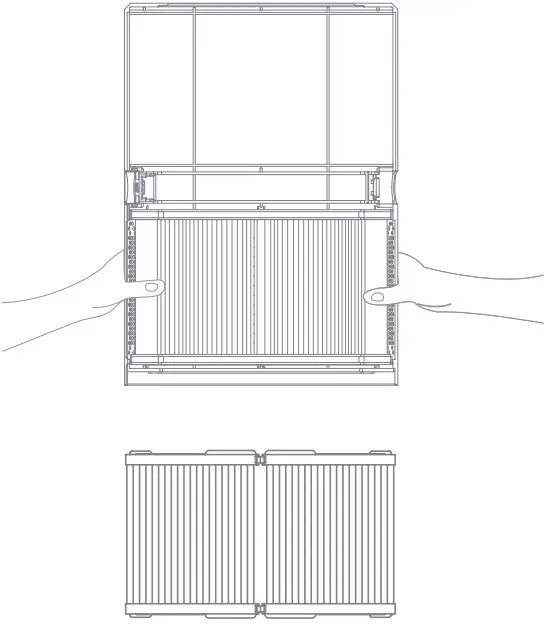

loading and unloading
Remove: pull out the front hands outwards.
Installation: align the filter screen with the groove and press it inside.

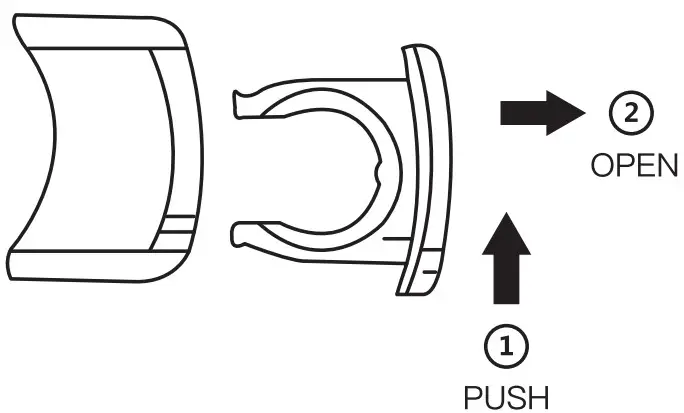

Replace the battery

The remote control is powered by a lithium Button Cell Battery (CR2025L). Should the remote become unresponsive, replace the battery follows the instructions below:
Turn over the remote ‘ and then follow the steps in images 1, and 2, take apart the battery tray ‘replace the battery with the same type ‘ and pay attention to the positive and negative poles.

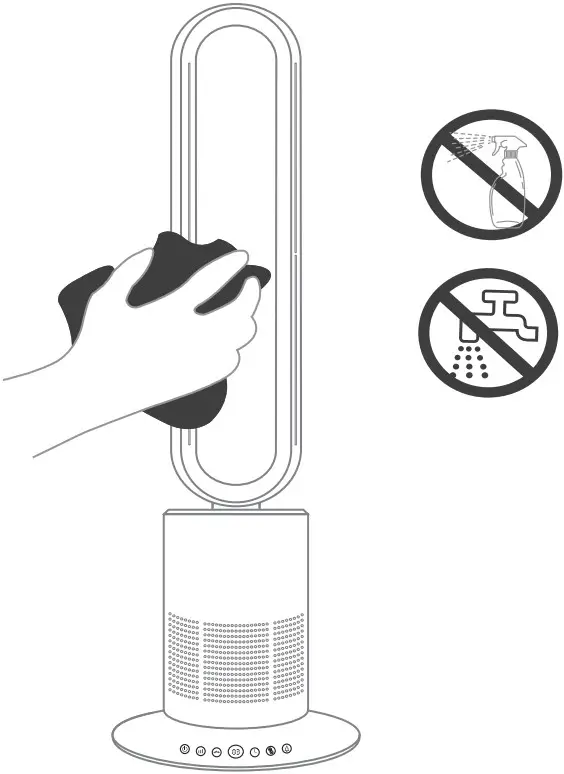

Cleaning

Turn off the power, unplug the plug and wipe it with a clean and wet cloth. Do not use detergent or polishing agent.

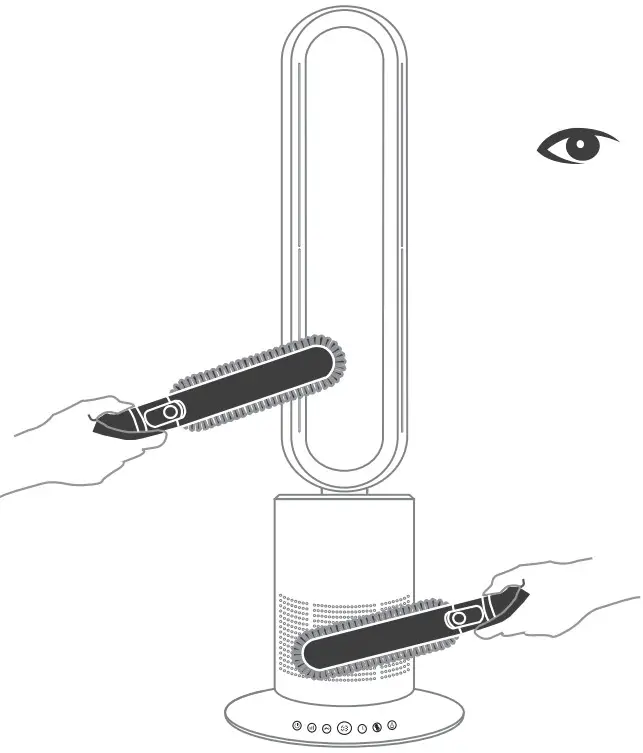

Remove the plug hole

First, turn off the power supply and unplug the plug, visually observe whether there is dust at the air outlet and air inlet, and then use a soft brush to remove the dust

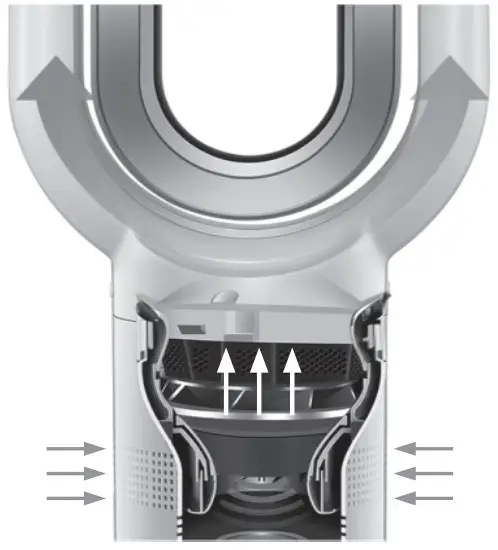

Principle of the air outlet.

TP series leafless fan is different from the traditional fan that produces natural air through cutting air, but draws air through the bottom air inlet and generates strong kinetic energy through the high-speed operation of the motor and turbocharging, thus forming a stable and strong high-speed airflow

Safety

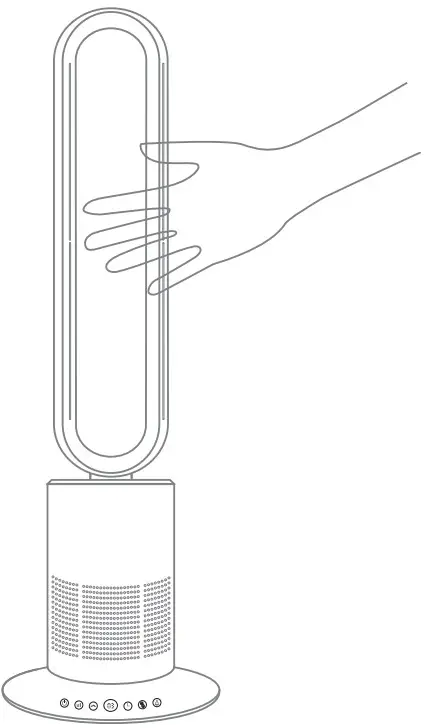

The principle of the leafless fan is turbocharging. It’s a leafless fan. You don’t need to worry about touching the fan again

Comfortable

The first choice for the elderly and children is a fan, which is safe and comfortable, with gentle wind and no headache for a long time

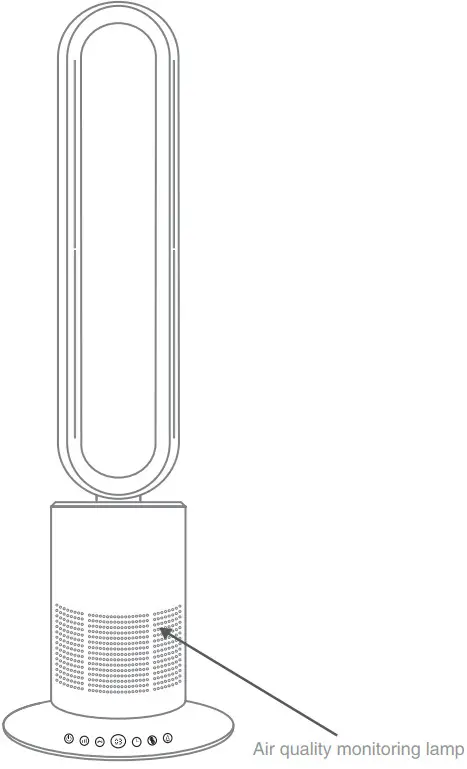

Air quality monitoring lamp

1. When the red light is on, the air quality is poor.
2. When the blue light is on, the air quality is very good.
3. When the green light is on, the air quality is excellent.

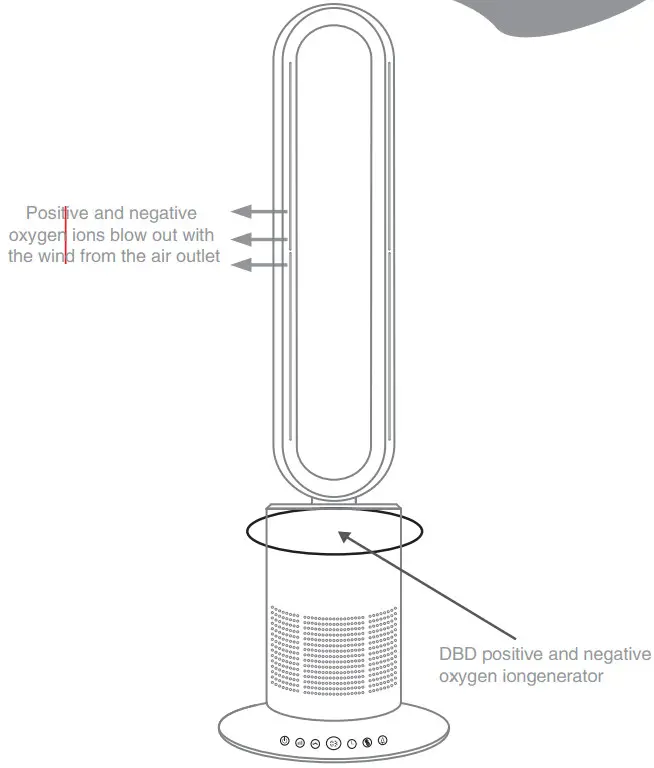

Original German DBD patented technology, the air outlet releases positive and negative oxygen ions.

Guarantee

Thank you very much for using our vaneless fan products with a guarantee period of one year.
This invoice will take effect from the date of purchase.
All maintenance products will be the responsibility of the manufacturer or its authorized agent.
Replacement of parts is the responsibility of the manufacturer. Repair or exchange of products does not extend the warranty time.
Purchase invoices are considered a warranty, so please be careful to retain invoices.
This product is a type Y connection, if the power supply soft wire is damaged, in order to avoid danger, it must be replaced by the manufacturer, its maintenance department, or similar Department professionals.
The scope of a warranty.
One year from the date of purchase, the buyer can enjoy free maintenance of materials and technical problems including faults.
A free warranty will not be granted in the following cases.

1. Failure to comply with the requirements of the operating manual.
2. Loss caused by high voltage.
3. After purchasing, there are damage or traces on the fuselage shell of the product.
4. Losses caused by improper use of user methods.

Reminder

If the instructions do not conform to the product, please refer to the actual operation.
All rights of interpretation of this product belong to Akila – 179 boulevard Malesherbes – 75017 Pari -France
Name and content description of harmful substances in products

• This product meets the requirements of the 《Regulations on the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products》
• During the period of environmental protection use, consumers will not have harmful substance leakage and precipitation during normal use, which will affect consumers’ health. We can rest assured that
• The environmental protection service life of our products will be 10 years. Only when this product is used under the normal conditions described in this specification can the” environmental protection service life” be effective.

Name and content identification of toxic and harmful substances or elements

This form is compiled in accordance with SJ/11364.
O: Indicates that the content of the toxic and harmful substance in all homogeneous materials of the component is below the limit specified in GB/T26572.
X: Indicates that the content of the toxic and harmful substance in at least one homogeneous material of the part exceeds the limit specified in GBT26572.
Note: Some of the parts marked “x” above contain harmful substances which exceed the standard due to the limitation of the current industry technology level, and it is difficult to achieve substitution or reduction for the time being.
