Smeg Fab10hrdit5 One Door Free Standing Refrigerator Instruction Manual

Smeg Fab10hrdit5 One Door Free Standing Refrigerator Instruction Manual

smeg logo

FAB10HRDIT5

Refrigerator, 50’s Style , One Door, Free Standing, Hinge position: Right, Decorated / Special, A++

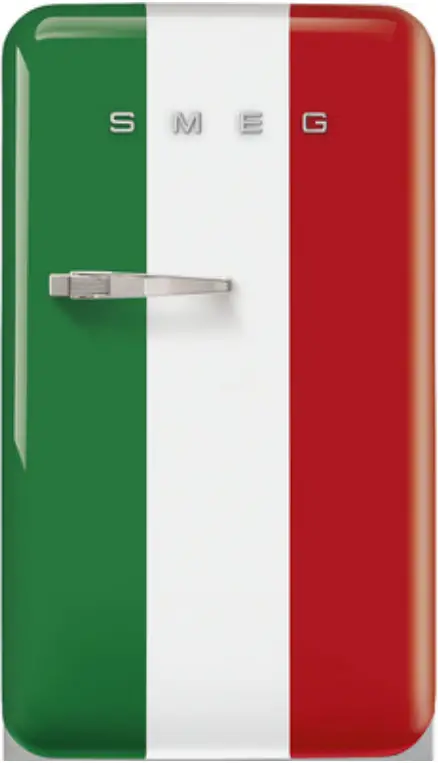

smeg FAB10HRDIT5 One Door Free Standing Refrigerator

smeg Cirti

TYPE

Product Family: Refrigerator • Installation: Free Standing • Category: One Door • Cooling type: Static • Defrost: Automatic • Hinge position: Right • Hinge type: Standard • EAN code: 8017709297947

AESTHETICS

Colour: Decorated / Special • Decoration / Special colour: Italia flag • Finishing: Glossy • Aesthetics: 50’s Style • Design: Rounded • Material: Heat-moulded • Handle type: Fixed • Handle: External • Handle colour: Chrome • Side material: Steel • Side colour: Decorated / Special

REFRIGERATOR COMPARTMENT FEATURES

No. of adjustable shelves: 2 • Type of adjustable shelves: Glass • Internal light in fridge: Yes • Type of internal light (fridge): LED

REFRIGERATOR INNER DOOR

Number of adjustable door shelves: 2 • No. of bottle shelves: 1

OTHER REFRIGERATOR FEATURES
FREEZER COMPARTMENT FEATURES
OTHER TECHNICAL FEATURES

Antibacterial Gasket: Yes • Type of temperature control: Electro-mechanical • No. of compressors: 1 • Type of compressor: Standard

TECHNICAL FEATURES
PERFORMANCE / ENERGY LABEL NEW

Annual energy consumption: 88 kWh/a • Energy efficiency class: E • Total volume: 135 l • Sum of the volumes of the chill compartment(s) and the unfrozen compartment(s): 135 l • Airborne acoustical noise emission class: B • Climatic class: SN, N, ST, T • EEI: 96 % • Noise level: 35 dB(A) re 1pW

ELECTRICAL CONNECTION

Voltage (V): 220-240 V • Frequency (Hz): 50 Hz • Power supply cable length: 150 cm

OPTIONAL ACCESSORIES
ALSO AVAILABLE
LOGISTIC INFORMATION

Dimensions: 970x545x659 mm • Width: 545 mm • Product width with maximum doors opening: 842 mm • Height max: 970 mm • Depth without handle: 659 mm • Product depth with handle: 701 mm • Product depth with doors open at 90°: 1085 mm • Gross weight (kg): 53.000 kg • Net weight (kg): 43.000 kg

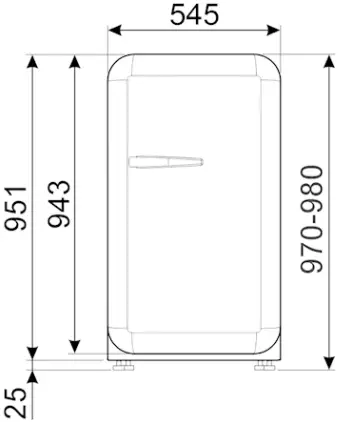

smeg One Door Free Standing Refrigerator 01smeg One Door Free Standing Refrigerator 02

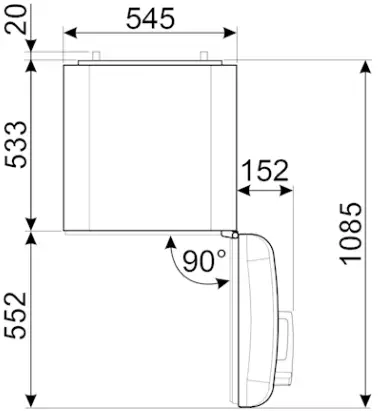

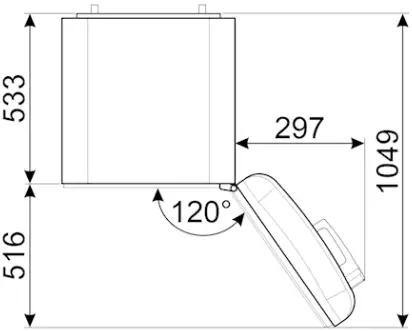

smeg One Door Free Standing Refrigerator 04smeg One Door Free Standing Refrigerator 05

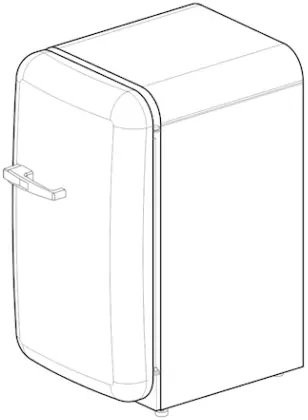

smeg One Door Free Standing Refrigerator 03

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019
