QUICK REFERENCE GUIDE

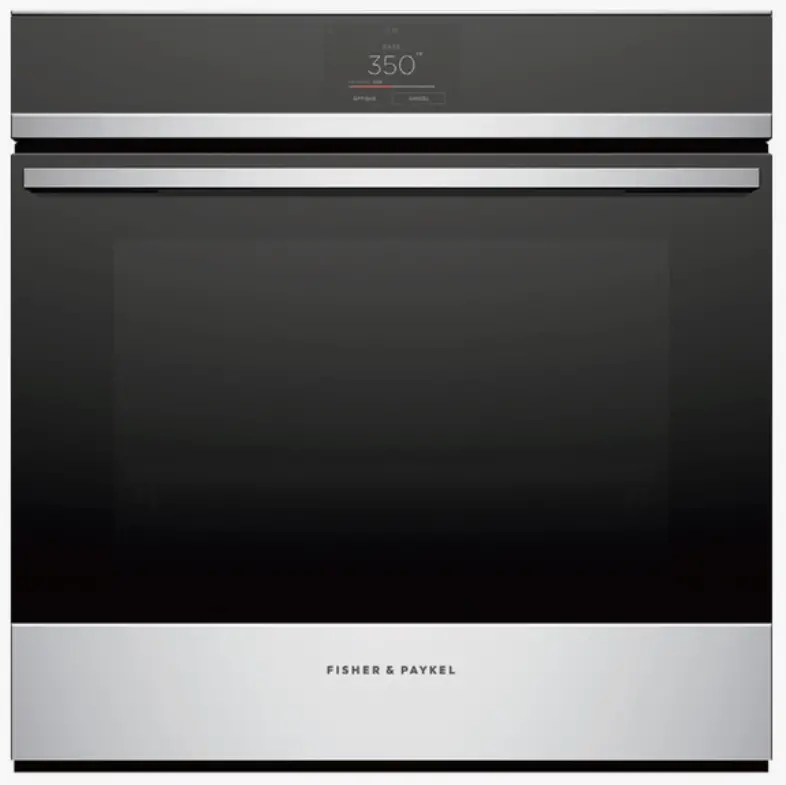

OB24SDPTX1
Oven, 24″, 16 Function, Self-cleaning
Series 9 | Contemporary
Stainless Steel
With beautiful contemporary styling, advanced cook functions, and touchscreen, this built-in oven is a highlight of our collection.
- Guided cooking using your touchscreen makes it simple to cook by food, function, or recipe
- 3 cu ft total capacity, with 16 oven functions including Pastry Bake and Roast, Air Fry and Dehydrate
- Moisture control and even heat distribution thanks to ActiveVent™ and AeroTech technology
- Non-tip, full-extension sliding shelves for safe removal of hot dishes
DIMENSIONS
| Height | 23 9/16” |
| Width | 23½” |
| Depth | 22¼” |
FEATURES & BENEFITS
Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe.
Generous capacity
With its market-leading 3 cu ft total capacity, you can create several perfectly cooked dishes at once using multiple shelves.
Multi-function flexibility
The cooking functions have each been tailored, tested, tweaked, and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. A food probe precisely monitors cooking in real-time, giving you complete control.
Exceptional performance
Our unique cooking technologies were developed to deliver perfect results. ActiveVent ensures optimized moisture levels, while AeroTech™ circulates heat evenly for a consistent temperature.
Self-cleaning
Our self-clean technology breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel-coated side racks don’t need to be removed when using this function.
Design freedom
Available in an elegant black or a stylish black with stainless steel, this oven is designed to fit seamlessly into your kitchen. Premium materials and detailing to support a cohesive, considered kitchen design.
SPECIFICATIONS
| Accessories | Capacity | ||
| Food probe | • | Shelf positions | 6 |
| Full Extension Telescopic | 1 set | Total | 3 cu ft |
| Full extension sliding shelves | 1 set | Usable capacity | 2.5 cu ft |
| Grill rack | 1 | Cleaning | |
| Optional Accessory round | Part 81645 | Acid resistant graphite enamel | • |
| Roasting dish | 1 | Removable oven door | • |
| Self cleaning side runners | 1 set | Removable oven door inner | • |
| Smokeless grill tray | 1 | Removable shelf runners | • |
| Step down wire shelf | 1 | Self-clean | Standard and light cycles |
| Controls | Performance | ||
| Adjustable audio and display | • | AeroTech™ technology | • |
| Automatic cooking/minute | • | Automatic rapid pre-heat | • |
| Automatic pre-set | • | Broil power | 3200W |
| Automatic rapid pre-heat | • | Broil width | 15″ |
| Celsius/Fahrenheit | • | CoolTouch door | • |
| Connected Fisher and Paykel | • | Soft open and close door | • |
| Electronic clock | • | Whisper quiet cooking | • |
| Electronic oven control | • | Power requirements | |
| Food probe | • | Amperage | 16.6 – 19.4A |
| Guided cooking by food type | • | Supply voltage | 208 – 240V |
| Interior light | 2 x 25W halogen | Product dimensions | |
| Intuitive touchscreen display | • | Depth | 22¼” |
| Precise electronic temperature | • | Height | 23 9/16” |
| Functions | Width | 23½” | |
| Aero Broil | • | Safety | |
| AeroTech™ technology | • | Advanced cooling system | • |
| Aero™ Bake | • | Balanced oven door | • |
| Air fry | • | Catalytic venting system | • |
| Bake | • | Control panel key lock | • |
| Classic bake | • | CoolTouch door | • |
| Dehydrate | • | Full extension sliding shelves | • |
| Maxi Broil | • | Non-tip shelves | • |
| Number of functions | 16 | SKU | 81777 |
| Pastry Bake | • | ||
| Pizza bake | • | ||
| Rapid proof | • | ||
| Roast | • | ||
| Self-clean function | • | ||
| Slow cook | • | ||
| Vent bake | • | ||
| Warm | • | ||
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. © Fisher & Paykel Appliances Ltd 2019.
