Pawever Pets Ppdogtrambl Dog Trampoline Bed User Guide

Pawever Pets PPDOGTRAMBL Dog Trampoline Bed

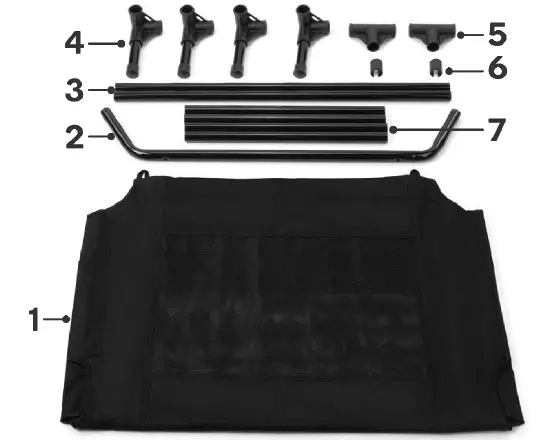

Components

1. Canvas (xl)
2. Support Bar (xl)
3. Long rails (x2)
4. Legs I Corner Pieces (x4)
5. T-joints (x2)
6. Protective grips (x2)
7. Short rails (x4)

ASSEMBLY

1. Lay all the components out to ensure you have all the pieces. Do not discard of any packaging until you have confirmed. Screws and spanners are not needed during the installation.
2. Lay the canvas flat.
3. Align all the poles into the correct positions, with the long rails positioned along the short sides of the canvas, and the short rails in the opposite direction.

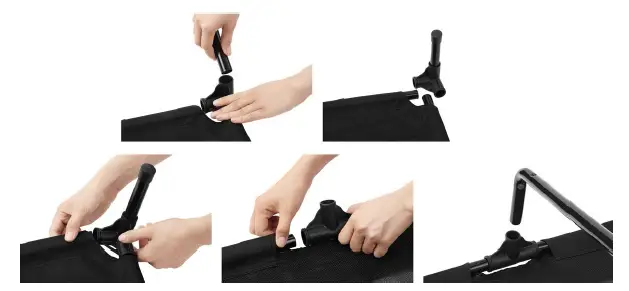

4. Insert all the poles into the canvas, following the openings at each corner.
5. Install the plastic T-joints between each join of short rails.
6. Install all four plastic corners pieces and legs.

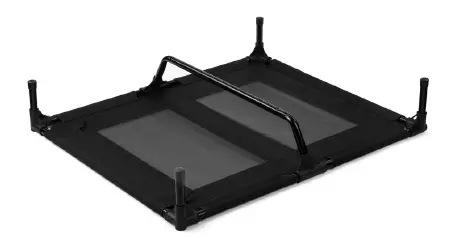

7. Install the support bar, inserting it into the T-joints.
8. Place the protective grips onto the support bar. This is to protect your floors from scuff-marks.

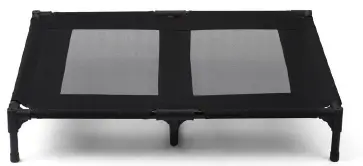

9. Check all parts are properly installed. Assembly is now complete.

SPECIFICATIONS

• Dimensions: 91 x 76 x 16cm
• Weight: 3kg
• Maximum Load Capacity: 40kg

Nead more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
