The BEL CHIM range includes various models: BEL CHIM 603PYR, BEL CHIM 603T, BEL CHIM 803T, BEL CHIM 603ANG, and BEL CANOPY 603INT. These products are manufactured by Glen Dimplex Home Appliances and are designed for use in Great Britain, the Netherlands, Germany, Austria, France, Poland, Sweden, and the Republic of Ireland. Glen Dimplex Benelux B.V., Glen Dimplex France, Dimpco, and Glen Dimplex Ireland are the authorized distributors of these products in their respective regions.

Product Usage Instructions

1. Before installation and use, carefully read the user manual to ensure safety and correct operation of the appliance.
2. Always keep the user manual with the appliance, even if you move or sell it.
3. Ensure that a specialized technician handles the wire connection.
4. The minimum safety distance between the hob and the suction hood is 650 mm. Some models may have a lower height requirement, so refer to the working dimensions and installation section for specific details.
5. Check that the mains voltage corresponds to the one indicated on the rating label affixed inside the hood.
6. Ensure that means for disconnection are incorporated in the fixed wiring according to wiring rules.
7. For Class I appliances, ensure that the domestic power supply is adequately earthed.
8. Connect the hood to the exhaust flue using a pipe with a minimum diameter of 120 mm. The flue route should be as short as possible.
9. Comply with all air venting regulations to prevent any buildup of combustion fumes.
10. If the hood is used in conjunction with non-electric appliances (e.g. gas), ensure sufficient aeration in the room to prevent exhaust backflow. The negative pressure in the room should not exceed 0.04 mbar to prevent fumes from being drawn back into the room by the hood.
11. Avoid discharging the air into a flue that is…

Note: The remaining text seems to be cut off and does not provide complete information.

Warranty

• Your new appliance comes with our 24-month guarantee, protecting you against electrical and mechanical breakdown.
• Register online or by phone.
• For full terms & conditions of the manufacturer’s guarantee, please refer to the website above.
• Our policy is one of the constant development and improvement, therefore we cannot guarantee the strict accuracy of all our illustrations and specifications.
• Changes may have been made after publishing.

SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance

• The wire connection has to be done by specialised technician.
• The manufacturer shall not be held liable for any injury or damage caused by improper installation or use
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installa- tion of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains voltage corresponds to the one indicated on the rating label affixed inside the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply is adequately earthed.
• Connect the hood to the exhaust flue using a pipe with a minimum diameter of 120 mm. The route of the flue must be as short as possible.
• All the air venting regulations must be complied with.
• Do not connect the hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the hood is used in con-junction with non electric appliances (e.g. gas), a sufficient degree of aeration must be guaranteed in the room to prevent any exhaust backflow. The negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is dam-aged, it must be replaced by the manufacturer or its service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.
• As regards the technical and safety measures to be taken for fume discharging, it is important that the regulations set by local authorities must be complied with.
• CAUTION: remove the protective films before in- stalling the hood.
• Only use screws and hardware of a sort suitable for the hood.
• CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.
• Do not look directly at the light through optical devices (binoculars, magnifying glasses…)
• Do not flambé food under the hood: you might cause a fire.
• This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with in-sufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves.
• Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.
• Supervise children, to make sure they do not play with the appliance.
• The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.
• Accessible parts may become extremely hot during the use of cooking appliances.
• Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.
• The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).
• The symbol on the product or on its packaging indicates that the product must not be treated as household waste. Disposed of at a specialist recycling centre for electrical and electronic components. By making sure that this product is correctly disposed, you will help prevent potential negative consequences for the environment and human health that might result from its improper disposal. For more detailed information on how to recycle this product, please contact your local council offices, local waste disposal service or the shop in which the product was purchased.

CONTROLS

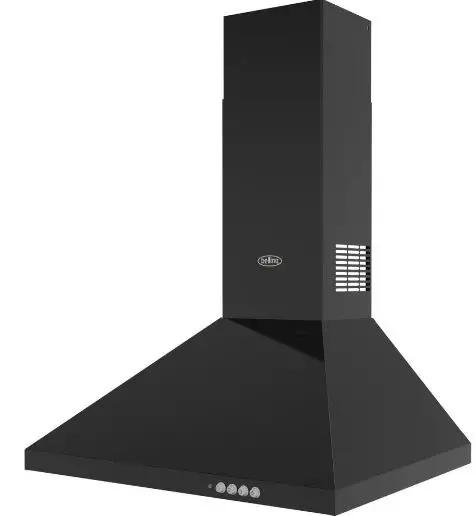

• BEL CHIM 603PYR
• BEL CHIM 603T
• BEL CHIM 803T

BUTTON	LED	FUNCTIONS
	On	Starts the motor at speed one
	–	Stops the motor
2	On	Starts the motor at speed two
3	On	Starts the motor at speed three
	–	Turns the lighting system on and off

Warning: Button T1 will switch the motor to speed 1 before stopping it.

BEL CHIM 603ANG

Icon	FUNCTIONS
	Touch to turn the lighting system on and off.
	Delay: Suitable to complete elimination of residual odours. Long touch to activate automatic switch off with a 5 minutes delay. It can be activated any any time. When active the icon of the speed is blinking. Touch the blinking speed to disable.
1	Touch to start or stop the motor at speed one
2	Touch to start or stop the motor at speed two
3i	Touch to start the motor at speed three. Touch a second time to activate boost which will run for 6 minutes, after which the hood will turn off automatically. This function is suitable to dealing with maximum levels of cooking fumes. To disable, touch icon again.

BEL CANOPY 603INT

USE

• The extractor hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave naked flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not engulf the sides.
• Deep-fryers must be kept under constant supervision when in use: overheated oil may catch fire.

CLEANING AND MAINTENANCE

The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or less in the case of intensive use. See below diagrams on how to install the charcoal filters.

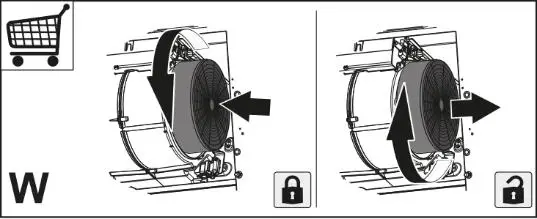

• (W): BEL CHIM 603PYR / 603ANG

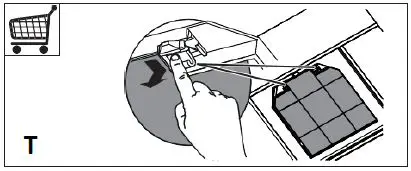

• (T): BEL CHIM 603T / 803T

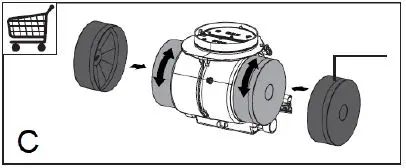

• (C): BEL CANOPY 603INT

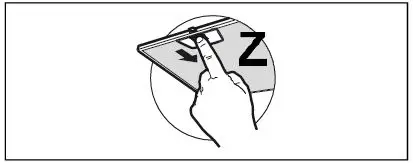

• The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and neutral liquid detergent

LIGHTING

• Replacement parts can be optained from our Customer Care (details at the beginning of the handbook)
• Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and in exempt from risk group under IEC/ EN62471 at a distance of 30cm.

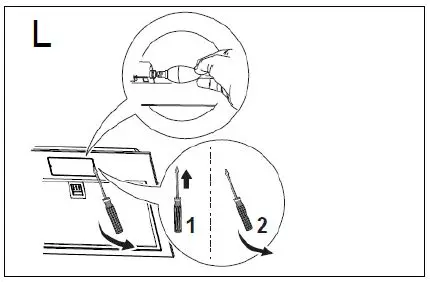

• BEL CHIM 603PYR: refer to (L) to remove cover that protects the lamp.
• Be careful of sharp edges when changing the light bulb.


TECHNICAL DATA

• The carbon filters are available as spare parts. Please contact our after sales team for more details.
