BOE BM231A-A01 Shelf Edge Android Bar Display
Key Feature
- 1920*158 Resolution
- 400nits Brightness
- Android 7.1
- Quad-Core SoC
- Suitable for Shelf Installation
- Industrial Slim design
- Full Metal Shell
Specification
Display
| Model | BM231A-A01 |
| Screen Size | 23.1 inch |
| Resolution | 1920 × 158 |
| Display Colors | 16.7M |
| Brightness | 400 nits |
| Contrast Ratio | 3000:1 |
| Viewing Angle(H/V) | 178°/178° |
| Backlight Unit | LED |
| Life Time(BLU) | 30000 Hrs |
Internal Player | |
| OS | Android 7.1 |
| CPU | Allwinner A40i, Quad-core Cortex A7, Up to 1.2GHz |
| RAM | 1GB |
| ROM | 8GB |
| Network | Wi-Fi / BT4.0 |
| I/O Interface | Micro USB × 1(OTG)，TF card slot × 1, USB Type C × 1 |
Power | |
| Power supply | DC 12V, 2A (AC Adaptor, USB Type-C) |
| Power consumption | 20W |
Environment | |
| Operation temperature | 0℃~40℃ |
| Operation humidity | 20%~80% RH |
Physical | |
| Frame | SECC BLACK |
| Back cover | SECC BLACK |
| Body Dimension (WxHxD) | 597.4 × 60.4 × 15 mm |
| Set Weight | 0.64 Kg |
| Packaging Dimension | 680 × 320 × 160 mm |
| Packaged Weight | 1.22 Kg |
| Mounting Interface | Mounting Plate |

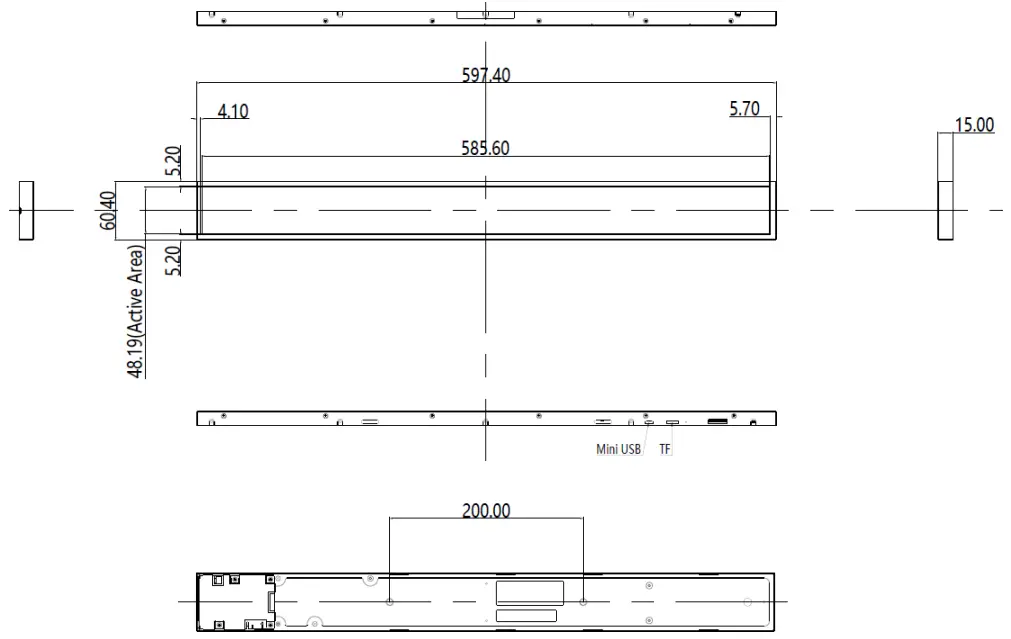

Dimension Drawing
