Nox-crete Pps-p Pail Version Perfect Power Sprayer User Guide

chemical solutions to concrete problems

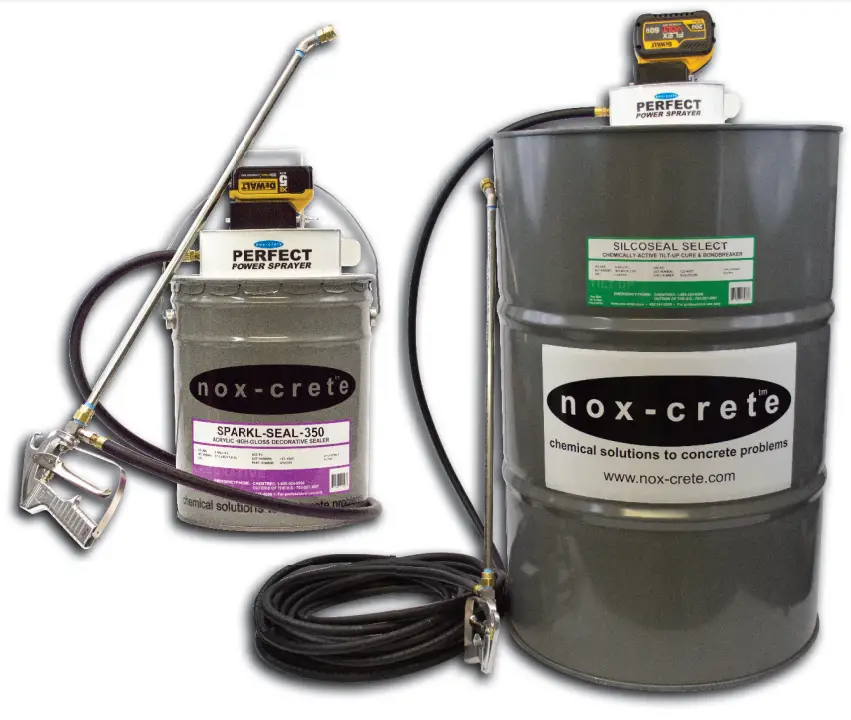

PERFECT POWER SPRAYER
User Guide and Parts List
Model:
PPS-P – Pail Version
PPS-D – Drum Version
PPS-T – Tote Version

* Batteries not included
www.nox-crete.com

INTRODUCTION

You have purchased a quality Nox-Crete sprayer, proudly made in the USA. If you use and maintain your sprayer properly, you will enjoy many years of safe, reliable service.
The Nox-Crete Perfect Power Sprayer utilizes a magnetically coupled gear pump and 1 DeWalt® Lithium Ion 20V, 4Ah or greater battery. Also works with DeWalt Flexvolt 20Volt / 60 volt, 6,9 or 12Ah batteries.

SAFETY INFORMATION

INTRODUCTION
This Safety Alert Symbol is used to call attention to items or operations which may be dangerous to those operating or working with this sprayer. The symbol can be found throughout this manual. Please read these warnings and cautions carefully before attempting to operate the unit. Make sure every individual who operates or works with this sprayer is familiar with all safety precautions.

WARNING

GENERAL WARNING: Indicates information important to the proper operation of the sprayer. Failure to observe may result in damage to the sprayer and/ or severe bodily injury or death.

CAUTION

GENERAL CAUTION: Indicates information important to the proper operation of the equipment. Failure to observe may result in damage to the equipment. REFERENCES: For details on safety rules and regulations in the United States, contact your local Occupational Safety and Health Administration (OSHA) offi ce. Equipment
operated in other countries must be operated and serviced in accordance and compliance with any and all safety requirements of that country. The publication of these safety precautions is done for your information. Nox-Crete does not by the publication of these precautions imply or in any way represent that these are the sum of all dangers present near Nox-Crete equipment. If you are operating Nox-Crete equipment, it is your responsibility to insure that such operation is in full accordance with all applicable safety requirements and codes. All requirements of the United States Federal Occupational Safety and Health Administration Act must be met when operated in areas that are under the jurisdiction of the United States Department.

WARNING

Before attempting to operate the sprayer, read and understand all safety precautions and warnings.
Do not use the sprayer when tired, ill, or under the infl uence of alcohol, drugs, or medication.
Inspect sprayer before each use for loose, broken, cracked, split, or damaged parts. Do not operate the sprayer with loose or damaged component parts.
Always wear safety glasses or goggles that are marked with ANSI Z87
Use only in daylight or good artifi cial light.
Never use a sprayer without the proper factory-authorized accessories attached. When using the sprayer, ensure that the sprayer discharge hose is securely attached.
Do not modify the sprayer.

CAUTION

IT IS YOUR RESPONSIBILITY TO ENSURE THAT THE MATERIAL YOU ARE SPRAYING IS COMPATIBLE WITH THE SPRAYER.

CAUTION

If the product being sprayed is intended to cure or set up after application, the Sprayer must be cleaned. Flush with cleaning solvent recommended for specifi c Nox-Crete product for 60 seconds or more. Leave cleaning solvent in the pump until the next use. If the cleaning solvent is water protects the pump from freezing or replace the water with RV antifreeze.  Failure to clean the unit after using these types of materials will result in failure of the unit and loss of warranty coverage.

Do not use abrasives
Never use without Intake Filter
Attempting to spray Nox-Crete products below Nox-Crete’s recommended temperatures may aff ect the sprayer’s ability to adequately perform.
Low temperatures may aff ect product viscosity.
Do not submerge or expose to excessive moisture
Do not spray products with solids above 25% or with abrasive additives as this will destroy the pump’s gears and will void the warranty. This Sprayer is intended for use with specifi c Nox-Crete products. If you are unsure of the suitability of the product you want to spray contact Nox- Crete at 402-341-2080 for assistance.

WARRANTY

CAUTION

DO NOT ATTEMPT TO SERVICE THE UNIT BY REMOVING
THE COVER. REMOVAL OF THE UNIT COVER WILL VOID
THE WARRANTY. CONTACT NOX-CRETE FOR SERVICE
INFORMATION

Nox-Crete warrants this product to be free from material or workmanship defects for a period of 60 days from the date of purchase.
Warranty does not apply when:

• Product is not used within the guidelines of this manual.
• Repairs are made outside of Nox-Crete authorized service center.
• Incompatible fluids are used.
• Misuse or Abuse.
• Improper or inadequate cleaning of the unit after use.

In the event you need to utilize this warranty, the product or part must be returned for examination, postage prepaid, and direct to the Nox-Crete service center as instructed by Nox-Crete. Proof of purchase date and an explanation of the claim must accompany the merchandise. If inspection discloses a defect, NoxCrete will either repair or replace the product with like equipment at Nox-Crete’s expense. If no defect is found during the inspection, or if the defect resulted from causes not within the scope of Nox-Crete’s limited warranty, then the user must assume all costs incurred returning and/or storing the product.
All products and parts will be tested using Nox-Crete testing criteria. Units found to be damaged, altered or otherwise mistreated will not be covered under this warranty. Units found not to be defective are subject to charges to be paid by the returnee.
Nox-Crete shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages of any kind by the reason of use or sale of any defective product or part. This limited warranty covers units distributed in the United States of America and Canada only.
This limited warranty is in lieu of all other warranties, expressed or implied, and no other person is authorized to give any other warranty or assume obligation or liability on behalf of Nox-Crete Inc.
Products and parts must be fl ushed free of all fluids prior to returning to NoxCrete for warranty inspection.

PROOF OF PURCHASE

Please retain your dated sales receipt as proof of purchase to validate the warranty period.

SPECIFICATIONS

OPERATION

WARNING

Carefully read through this entire manual before attempting to use your new product. Pay close attention to the safety alerts symbols, warnings, and cautions.

CONTENTS OF CARTON

Contents of Carton include:

1. Cordless sprayer assembly
2. Spray gun
3. 24 Inch angled wand
4. 5 Ft. or 50 Ft. spray hose assembly
5. Intake line for a 5-gallon pail or 55-gallon drum
6. 2 spray tips
7. Blue 50 mesh strainer wand
8. Plastic tip retainer cap
9. Operator’s safety and service manual

Battery and battery charger not included.
Examine all parts to ensure that everything is accounted for and no damage has occurred during shipment.

ASSEMBLY

To prepare the unit for operation, assemble the sprayer as follows:

1. Spray tip & wand strainer
   a. Attach one of two supplied spray tips and wand check valve/filter to the end of a wand
2. Assemble spray hose
   a. Attach spray hose to the spray gun and sprayer unit. Both ends are the same.
3. Attach intake line
4. Position the sprayer and intake tube over the opening in a 5-gallon pail or 55-gallon drum.
5. Set the sprayer unit on top of the container by guiding the inlet tube into the hole at the top of the container.
6. Set the power switch to the off position
7. Slide the battery into the receptacle, DO NOT FORCE. When properly aligned it will slide in easily. When fully inserted you will hear a click.
8. Check the sprayer trigger handle to make sure the lever is not locked in the open/on position.

SPRAYER STARTUP

Keeping all safety and operating measures in mind you are now ready to begin
spraying.
4. Prime the Sprayer
a. Turn the power switch to the on position.
b. Squeeze the spray gun handle.
c. The pump is self-priming and should begin spraying in a few seconds.
d. If the pump does not prime within 10-15 seconds it will shut down. Check to see that all fittings are tight and the intake fi lter is not clogged. Turn the pump off then back on or remove and replace the battery to restart.
e. After the liquid is flowing and all air is purged from the lines, release the handle and the sprayer will turn off.
The pump is designed for continuous duty when proper operating criteria are met.

CAUTION

BEFORE REMOVING THE SPRAY HOSE, TURN THE POWER OFF AND RELIEVE ANY PRESSURE IN THE SPRAY HOSE BY SQUEEZING THE SPRAY HANDLE.

CLEAN UP

CAUTION

As with any type of sprayer, this sprayer will not function satisfactorily if it is not kept clean. If the product being sprayed is intended to cure or harden after application, the Sprayer must be cleaned and fl ushed after EACH use. Flush sprayer with cleaning solvent specifi cally recommended for Nox-Crete products used in a sprayer for 60 seconds or more (see recommended Nox-Crete cleaning product chart on page 17). Leave cleaning solvent in the pump until next use.
Failure to clean the unit after using these types of materials will result in the failure of the unit and loss of warranty coverage.
The sprayer is programmed to stop running 10-15 seconds after it runs out of material from the pail or drum.
DO NOT USE THE SPRAYER PUMP TO PURGE THE PICKUP TUBE OR DISCHARGE HOSE. Running the Pump dry will destroy the gears and void the warranty. Disconnect the pick-up tube and discharge hose on each end and drain manually.

CHEMICAL COMPATIBILITY

The magnetically coupled gear pump used in the sprayer has no seals or gaskets in the fluid path and therefore will not leak. The only surfaces in the pump that come in contact with the fluid being sprayed are stainless steel, ceramic, and PEEK (polyetheretherketone). The gears in the pump are made out of PEEK and are resistant to all Nox-Crete products suitable for use with this sprayer.

TROUBLESHOOTING

SPRAYER WILL NOT START
✓ If battery is not properly seated and fully charged
✓ If On/Off switch is in the off position
SPRAYER WILL NOT PRIME
✓ If the intake tube or discharge hose is restricted
✓ If the spray tip or fi lter on the end of the wand is plugged
✓ If you are out of product
✓ If battery is not properly charged
✓ If there is a crack, split, or another leak in the suction tube
SPRAYER OUTPUT VOLUME REDUCED
✓ If the pickup tube or discharge hose has restrictions such as a dirty inlet or outlet filters
✓ If the spray tip is dirty or partially plugged
✓ If the viscosity of the material being sprayed exceeds the pumping capability of the sprayer
✓ If the material being sprayed is too cold
ALARM SOUNDS
✓ The sprayer pump ran dry for 15 seconds. Turn the pump on and then on again, or remove and reinstall the battery to terminate the alarm and reset the pump.

MAINTENANCE

No Routine Maintenance is required.
Thoroughly clean the entire unit by flushing the internal components and wiping the exterior surface with Nox-Crete recommended cleaning solvent for Nox-Crete products used in a sprayer. See Nox-Crete product literature for specifi cleaning solvent recommendations or pages 15 & 16 of this manual.

SERVICE

CAUTION

Service on this unit both within and after the warranty period should be performed only by Nox-Crete or an authorized service center. For more information contact Nox-Crete customer service at 402-341-2080 or customer [email protected].

REPLACEMENT PARTS
For replaceable parts, please contact Nox-Crete customer service at 402-3412080, or customer [email protected].

SPRAY TIP CHART

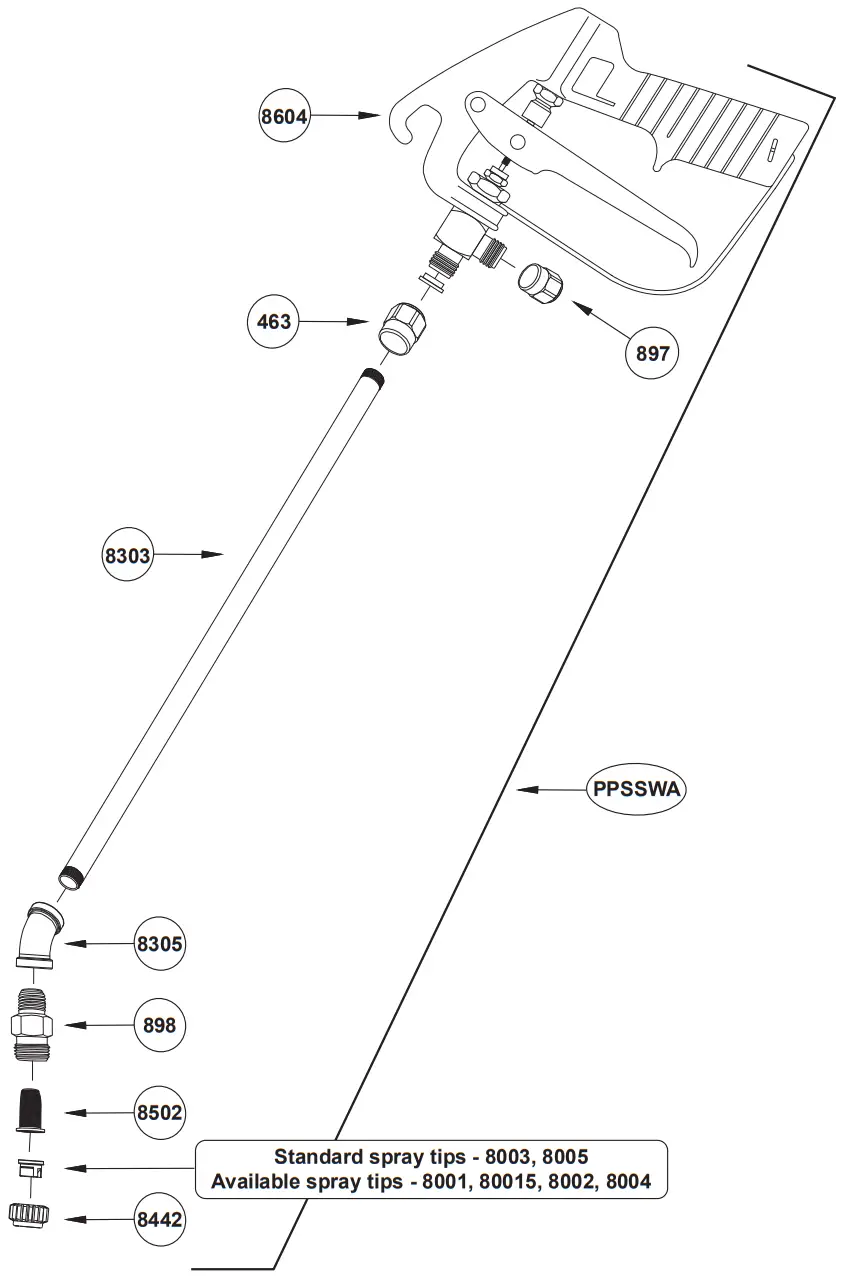

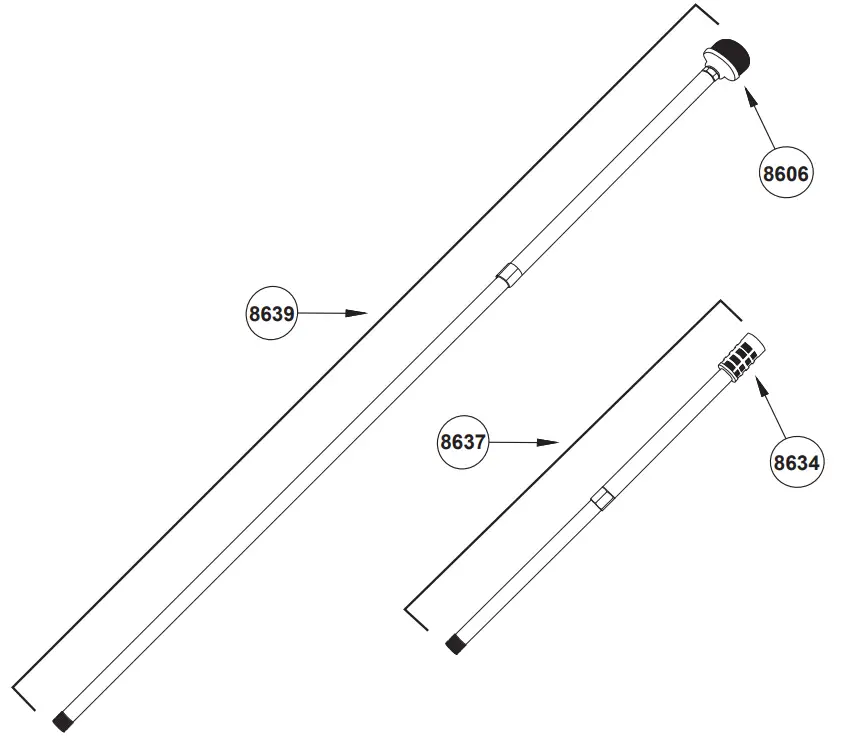

PPS Shut-Off , Wand Assembly, and Intake Tube Parts List

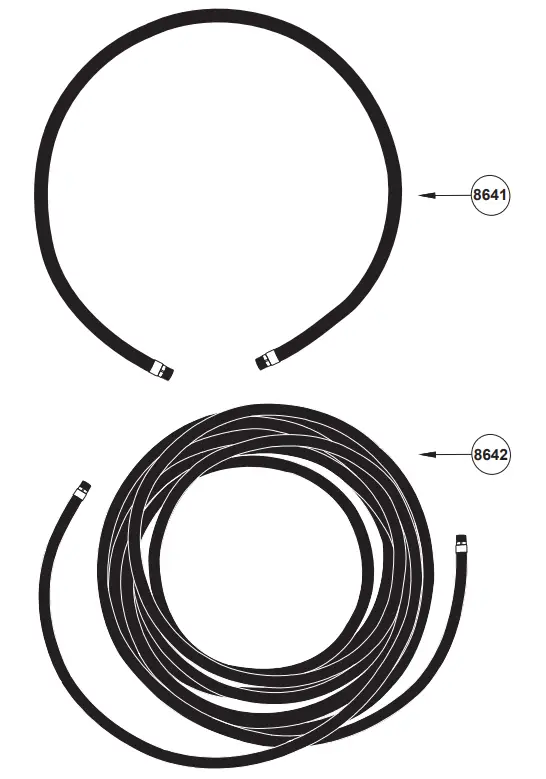

PPS and Spray Hose Parts List

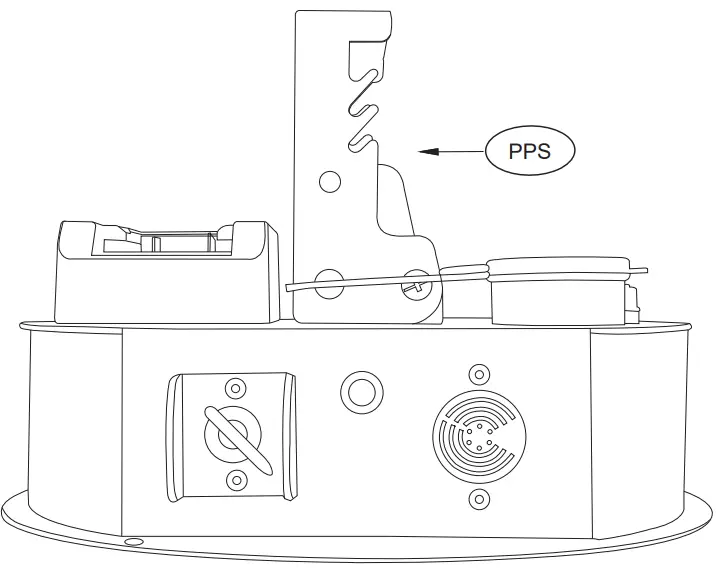

Perfect Power Sprayer (excludes parts 8637, 8639, PPSSWA, 8641, 8642)

RECOMMENDED NOX-CRETE CLEANING PRODUCTS

Nox-Crete Inc.
1444 S. 20th St., PO Box 8102 Omaha, NE 68108 USA
Offi ce: 402-341-2080 l 800-669-2738 l Fax: 402-341-9752
[email protected] l www.nox-crete.com
