WiZARD 320
Full Face Mask Assembling Guide

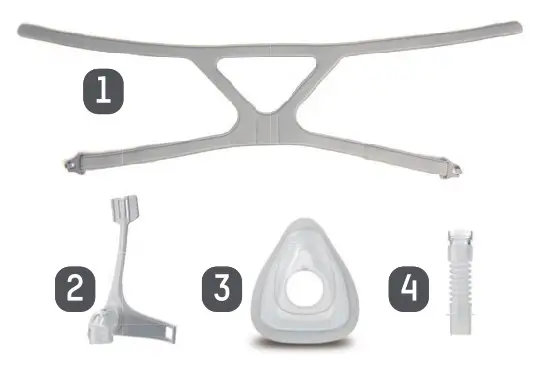

Component
- WiZARD 310/320 Headgear with Buckles
- WiZARD 320 Elbow Connector with frame
- WiZARD 320 Full Face Mask Cushion, Large
- WiZARD 320 Full Face Mask Cushion, Medium
- WiZARD 320 Full Face Mask Cushion, Small
- Silicon Tubing
Caution!
Please confirm that all the components belong to WiZARD 320 Full Face Mask by checking the reference number before assembling.
 |  |

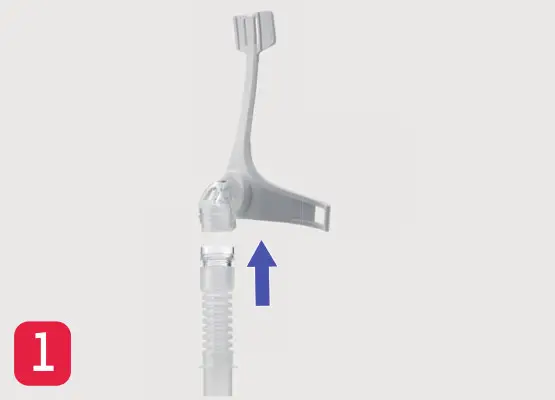

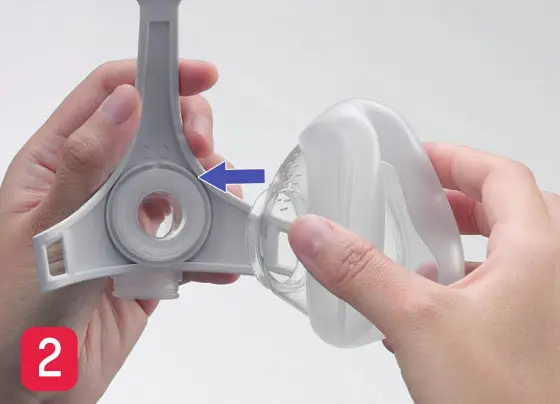

| Connect the silicon tube to the frame directly | Align the arrow on cushion to the groove on frame and assemble them together directly |
 |  |

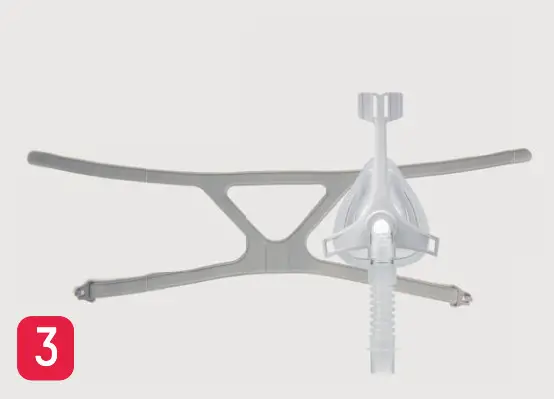

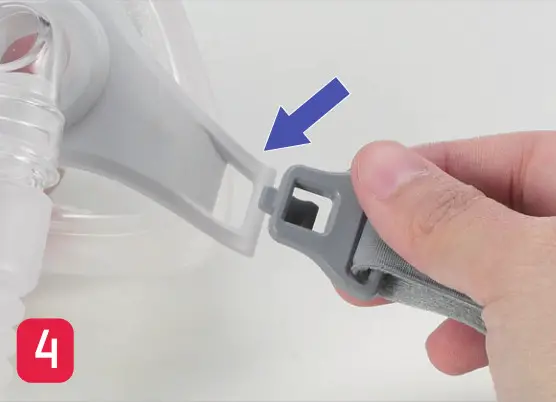

| Lay flat the headgear with WiZARD label downwards | Place the frame on the center of headgear and hook on the buckles |
 |  |

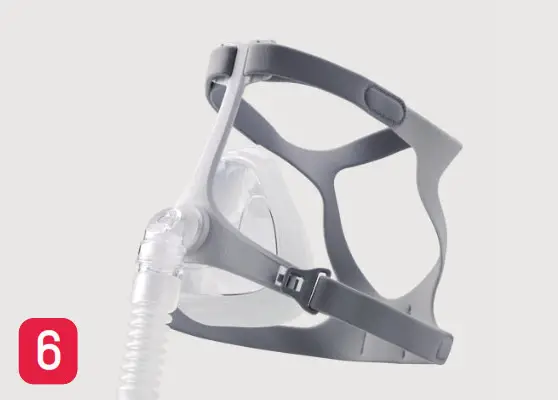

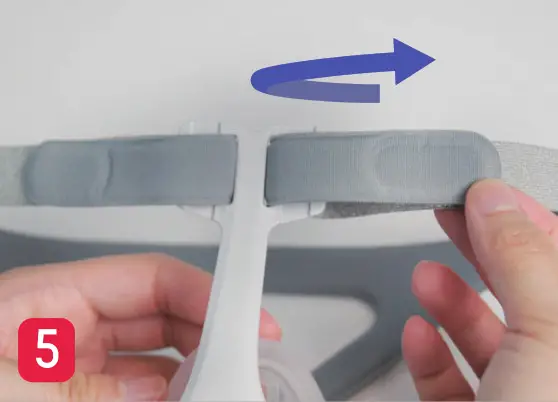

| Assemble the upper straps through the holes infront of forehead pad and attach the velcros | Assembly completed. (The WiZARD logo should be outwards on the back of headgear) |
