Hanwha Techwin Smt-2212 Security Global Leader User Guide

Techwin SMT-2212 Security Global Leader
User Guide

Package Content

1. Monitor
2. Power Cable
3. Power Adapter
4. Quick Start Guide
5. HDMI Cable
6. Pedestal

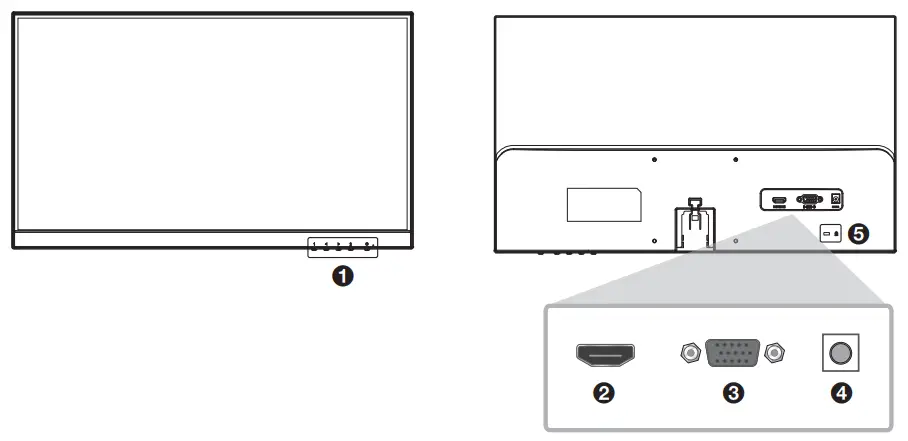

Names and functions of each part

a Panel tests
b HDMI
c VGA
d Current
e Anti-theft lock

Connecting external devices

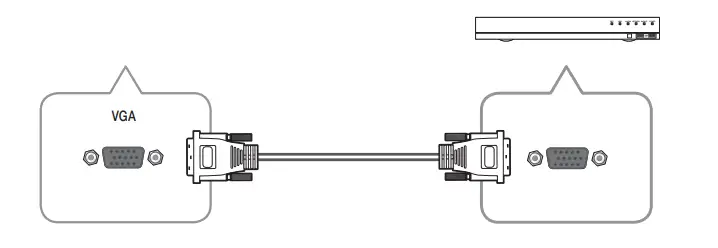

• Connecting the VGA (D-SUB) cable

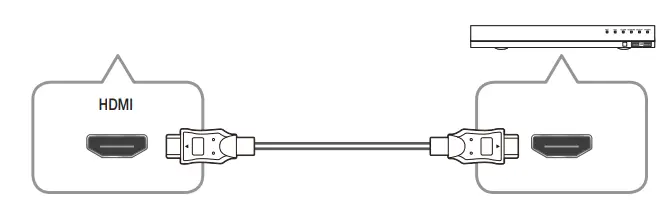

• Connecting the HDMI cable
