KIRBY 211203 Drop In Packaged Refrigeration Units
Introduction
The Kirby® Drop-in unit range will make it easier for you to install and complete your job. These ‘plug and play’, feature-packed systems are supplied complete – ready to run and easy to install.
It means the hard work is taken out of the job, so you can be on your way, sooner. Now supplied with a Dixell control installed as standard on all models.
Features & Benefits
The Kirby® Drop-In Packaged Refrigeration Units offer:
- Evaporator coil corrosion protection, liquid line dryer, capillary tube refrigerant control, pressure control & Dixell electronic control on all units
- Medium Temperature Units feature off cycle defrost only
- Low Temperature Units feature electric defrost with temperature switch termination and a pressure safety switch
- Fully wired with 3-pin domestic cable plug for all units
- All models use CFC-free foam insulation
- New and improved, slimline electrical box
- Units are ready to install straight from the box
- Encapsulated pressure controls
- 3 different temperature probes (one for the evaporator coil, one for the condenser coil, and one for the room temperature)
- All tubes in the top half of the drop-in units have been modified and re-modelled
- Tube support and saddles for the drier to reduce vibration and noise
- All low temperature units are fitted with a suction accumulator
- All models come with a high efficiency internal float oil separator

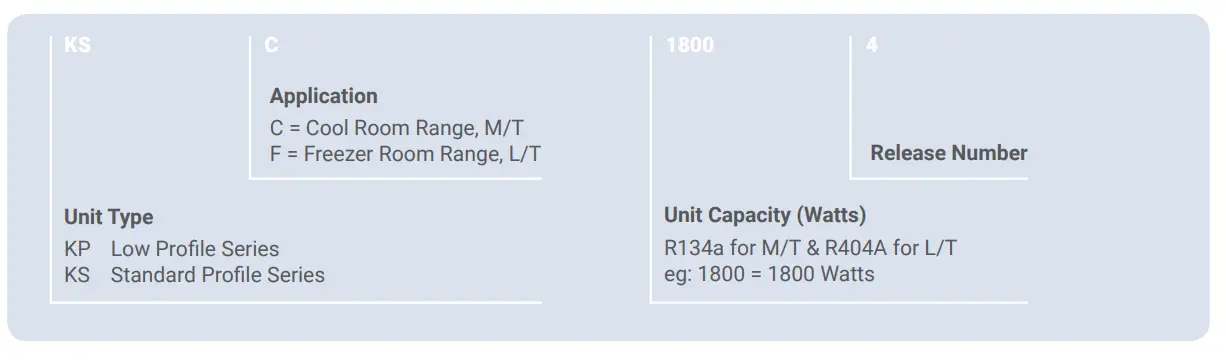

Kirby® Drop-In Packaged Refrigeration Units – Nomenclature
R134a Medium Temperature Performance Data
| PRODUCT NUMBER | AMBIENT TEMP. (°C) | CAPACITY (W) | REFRIGER- ANT CHARGE (gm) | AIR FLOW (l/s) | HORSE- POWER | |||||
| AIR ON TEMPERATURE | ||||||||||
| 0 | 2 | 4 | 6 | 8 | 10 | |||||
| MEDIUM TEMPERATURE APPLICATION – LOW PROFILE | ||||||||||
| KPC800-6 | 35 | 690 | 750 | 810 | 870 | 940 | 1,010 | 910 | 165 | 1/3 |
| 45 | 570 | 630 | 680 | 740 | 800 | 870 | ||||
| KPC1000-6 | 35 | 920 | 990 | 1,080 | 1,160 | 1,260 | 1,360 | 1,000 | 235 | 3/8 |
| 45 | 760 | 840 | 920 | 1,000 | 1,090 | 1,180 | ||||
| KPC1400-6 | 35 | 1,270 | 1,370 | 1,480 | 1,590 | 1,710 | 1,830 | 1,190 | 270 | 5/8 |
| 45 | 1,090 | 1,180 | 1,280 | 1,380 | 1,490 | 1,600 | ||||
| KPC1700-6 | 35 | 1,470 | 1,570 | 1,690 | 1,810 | 1,950 | 2,090 | 1,190 | 270 | 3/4 |
| 45 | 1,260 | 1,360 | 1,460 | 1,570 | 1,700 | 1,820 | ||||
| MEDIUM TEMPERATURE APPLICATION – STANDARD | ||||||||||
| KSC2000-6 | 35 | 1,870 | 2,010 | 2,170 | 2,310 | 2,500 | 2,690 | 1,710 | 388 | 1 |
| 45 | 1,600 | 1,740 | 1,890 | 2,050 | 2,210 | 2,380 | ||||
| KSC2700-6 | 35 | 2,380 | 2,580 | 2,800 | 3,030 | 3,260 | 3,510 | 1,990 | 750 | 1-1/4 |
| 45 | 1,980 | 2,170 | 2,380 | 2,590 | 2,810 | 3,040 | ||||
| KSC3500-6 | 35 | 3,030 | 3,290 | 3,550 | 3,830 | 4,120 | 4,420 | 2,420 | 760 | 1-1/2 |
| 45 | 2,570 | 2,800 | 3,040 | 3,300 | 3,580 | 3,860 | ||||
R404A Low Temperature Low Profile Performance Data
| PRODUCT NUMBER | AMBIENT TEMPERATIRE (°C) | CAPACITY (W) | REFRIGERANT CHARGE (gm) | AIR FLOW (l/s) | HORSE- POWER | |||
| AIR ON TEMPERATURE | ||||||||
| -25 | -20 | -15 | -10 | |||||
| LOW TEMPERATURE APPLICATION – LOW PROFILE | ||||||||
| KPF1000-4 | 35 | 455 | 645 | 870 | 1,060 | 975 | 235 | 3/4 |
| 43 | 290 | 460 | 680 | 905 | ||||
| KPF1200-4 | 35 | 555 | 790 | 1,065 | 1,295 | 820 | 235 | 1 |
| 43 | 355 | 565 | 830 | 1,110 | ||||
| KSF1500-4 | 35 | 735 | 1,050 | 1,410 | 1,720 | 1,450 | 530 | 1-1/4 |
| 43 | 470 | 745 | 1,100 | 1,470 | ||||
| KSF2000-4 | 35 | 950 | 1,355 | 1,820 | 2,220 | 1,500 | 750 | 1-1/2 |
| 43 | 610 | 965 | 1,420 | 1,900 | ||||
Technical Data
| PRODUCT NUMBER | ELECTRICAL DATA | DIMENSIONS | WEIGHT (kg) | |||||
| SUPPLY | LRA | RLA | MCC | HEIGHT | WIDTH | DEPTH | ||
| (V/Ph) | (A/Ph) | (A/Ph) | (A/Ph) | (mm) | ||||
| MEDIUM TEMPERATURE – LOW PROFILE | ||||||||
| KPC800-6 | 240 / 1 | 13.9 | 3.9 | 4.9 | 500 | 890 | 500 | 35 |
| KPC1000-6 | 240 / 1 | 14.4 | 4.4 | 5.4 | 577 | 1,117 | 507 | 50 |
| KPC1400-6 | 240 / 1 | 31.9 | 4.6 | 5.5 | 577 | 1,117 | 507 | 65 |
| KPC1700-6 | 240 / 1 | 35.9 | 6.4 | 8 | 577 | 1,117 | 507 | 65 |
| MEDIUM TEMPERATURE – STANDARD | ||||||||
| KSC2000-6 | 240 / 1 | 35.8 | 5.8 | 7.5 | 950 | 705 | 595 | 112 |
| KSC2700-6 | 240 / 1 | 44.8 | 8.7 | 11.2 | 996 | 1,150 | 730 | 145 |
| KSC3500-6 | 240 / 1 | 44.8 | 9.7 | 12.5 | 1,057 | 1,150 | 730 | 177 |
| LOW TEMPERATURE – LOW PROFILE | ||||||||
| KPF1000-4 | 240 / 1 | 30.0 | 4.2 | 7.7 | 577 | 1,117 | 507 | 48 |
| KPF1200-4 | 240 / 1 | 36.0 | 6.7 | 8.9 | 577 | 1,117 | 507 | 60 |
| KSF1500-4 | 240 / 1 | 43.0 | 7.9 | 10.9 | 964 | 705 | 595 | 108 |
| KSF2000-4 | 240 / 1 | 43.0 | 10.6 | 14.1 | 996 | 1,150 | 730 | 155 |

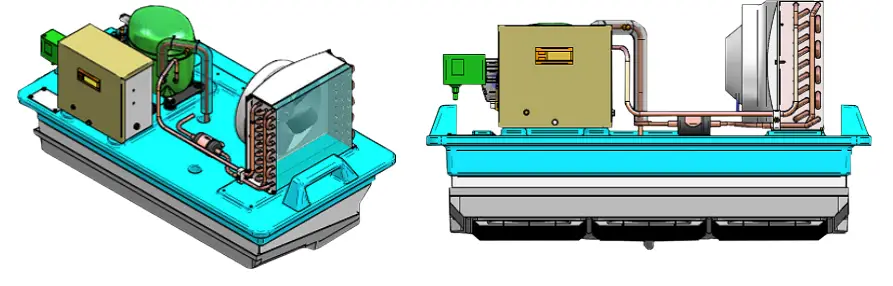

Physical Data
| PRODUCT NUMBER | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | K (mm) |
| MEDIUM TEMPERATURE | |||||||||
| KPC800-6 | 810 | 420 | 890 | 500 | 290 | 210 | 60 | 500 | 20 |
| KPC1000-6 | 1,030 | 420 | 1,117 | 507 | 351 | 226 | 35 | 577 | 33 |
| KPC1400-6 | 1,030 | 420 | 1,117 | 507 | 351 | 226 | 35 | 577 | 33 |
| KPC1700-6 | 1,030 | 420 | 1,117 | 507 | 351 | 226 | 35 | 577 | 33 |
| KSC2000-6 | 645 | 535 | 705 | 595 | 436 | 566 | 105 | 1,013 | 20 |
| KSC2700-6 | 1,070 | 645 | 1,150 | 730 | 420 | 576 | 130 | 996 | 25 |
| KSC3500-6 | 1,070 | 645 | 1,150 | 730 | 420 | 637 | 130 | 1,057 | 25 |
| LOW TEMPERATURE | |||||||||
| KPF1000-4 | 1,030 | 420 | 1,117 | 507 | 351 | 226 | 35 | 577 | 33 |
| KPF1200-4 | 1,030 | 420 | 1,117 | 507 | 351 | 226 | 35 | 577 | 33 |
| KSF1500-4 | 645 | 535 | 705 | 595 | 385 | 579 | 105 | 964 | 20 |
| KSF2000-4 | 1,070 | 645 | 1,150 | 730 | 420 | 576 | 130 | 996 | 25 |
| KSFT2600-4 | 1,070 | 645 | 1,150 | 730 | 430 | 637 | 130 | 1,067 | 25 |

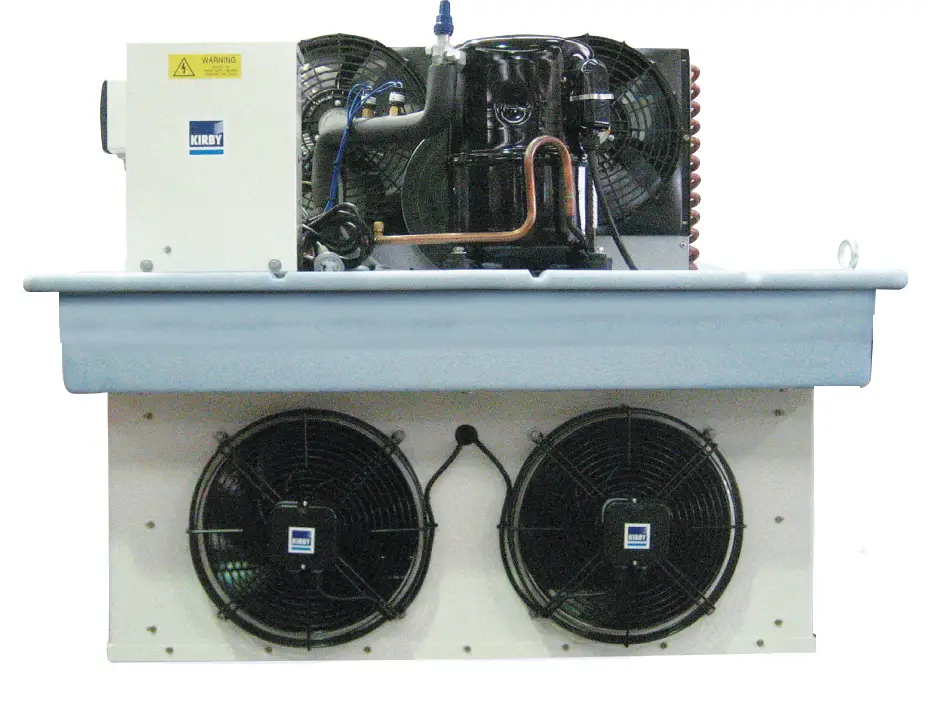

Standard

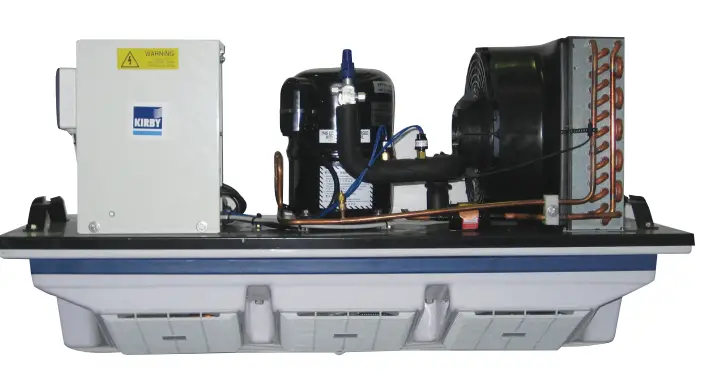

Low Profile
The contents of this brochure are copyright protected and may not be reproduced in any form without the written consent of Kirby HVAC&R Pty Ltd (T/A Kirby). Recommendations and advice regarding the use of the products described in this publication are to be taken as a guide only and are given without liability on the part of the company or its employees. As Kirby continually improves its product range and processes, Kirby reserves the right to change product specifications without any prior notification. Please refer to the kirbyhvacr.com.au website for the latest version of this publication. The purchaser should independently determine the suitability of the product for the intended use and application and that the product complies with relevant standards. Kirby accepts no responsibility for loss or damage (direct or indirect and including consequential loss, loss of profits or opportunity and economic loss) however arising which results from any errors or omissions in the information contained in this publication or arising from the use or application of the information contained herein.
© Copyright 2021 Kirby HVAC&R Pty Ltd
