INSTRUCTIONS FOR USE
(original) revision 1.0
EE25-A6M

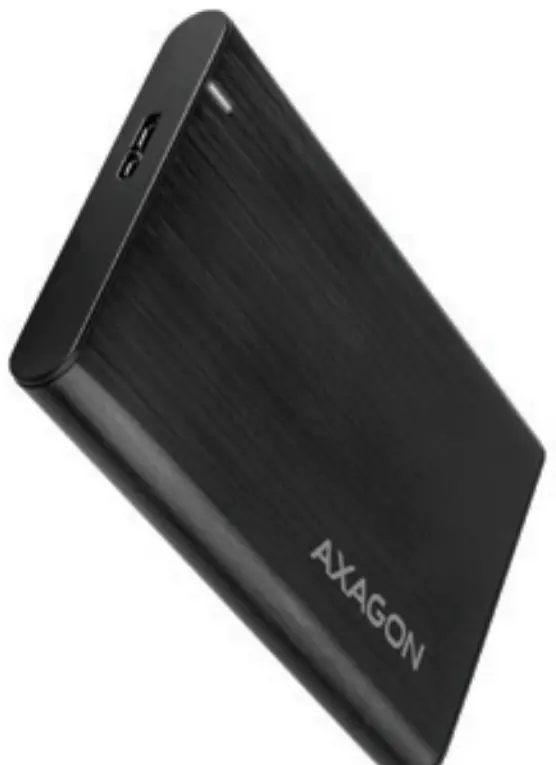

SUPERSPEED USB RAW BOX for 2.5″ SSD/HDD
Mount disk to the box. 091-3 at mime)
Turn on the computer.
Plug the box to the the-USB port of the computer.
An automatic installation will be performed.
No need to install any external drivers.
The external disk is ready to use.
In the Device Manager, please check the successful installation. os In the Disk manager, please initialize the new disk and format It. 0901

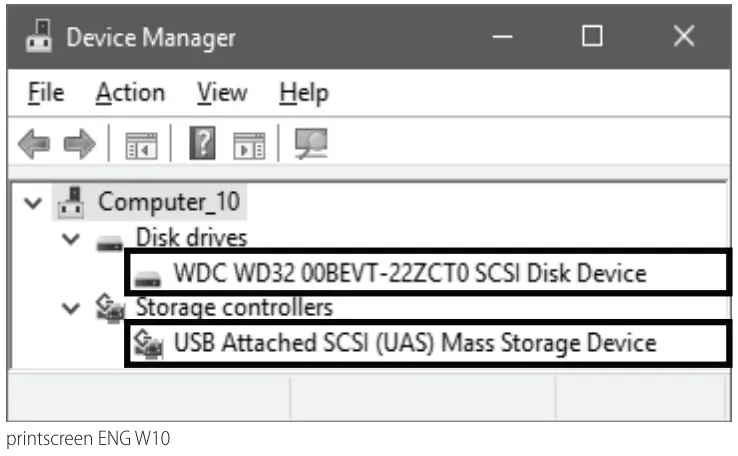

FIGURE A
CHECK CORRECT INSTALLATION IN THE DEVICE MANAGER
Only devices which are added to the Device Manager when installing the case and the hard drive are displayed.

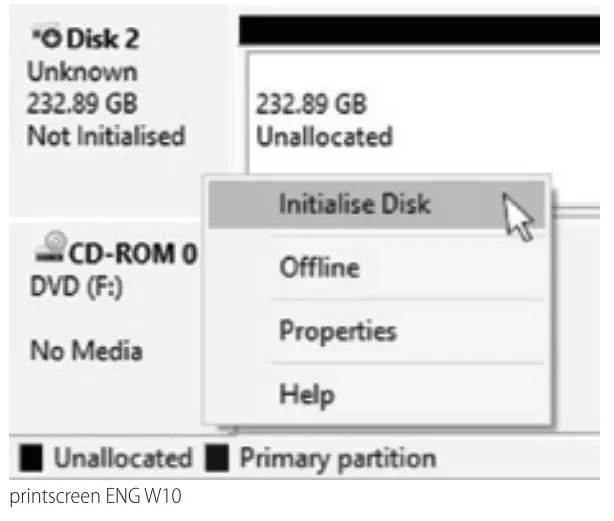

FIGURE B
INITIALIZE THE NEW DISK AND FORMAT IT IN DISK MANAGEMENT

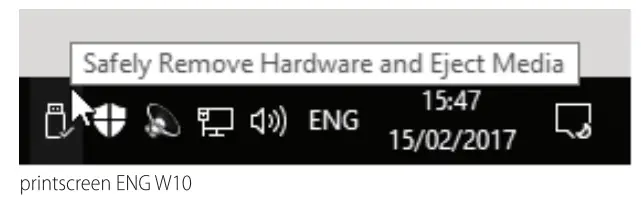

SAFE DISCONNECTION OF EXTERNAL BOX
The safest method for removing from the computer is the utilization of the Safely Remove Hardware function in the Windows operating system.

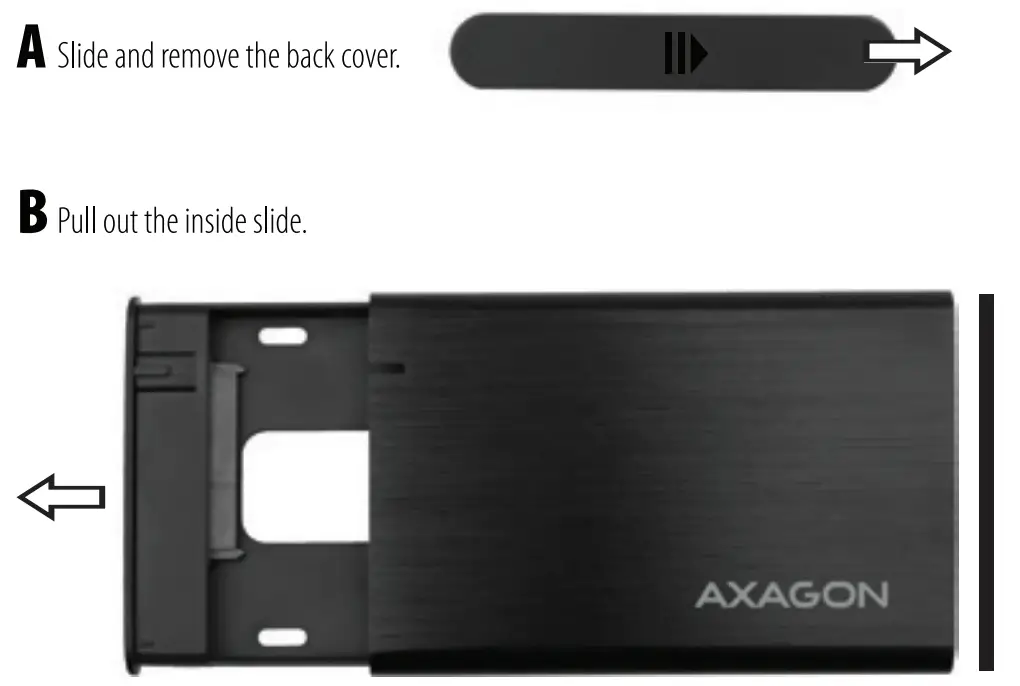

OPEN THE BOX

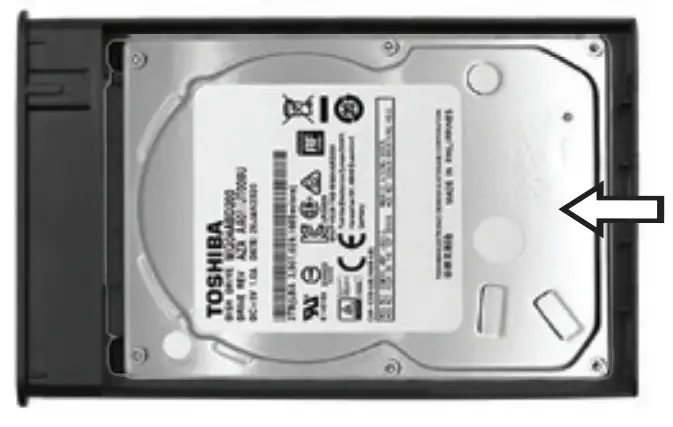

INSERT 2.5″ HDD/SSD DISK

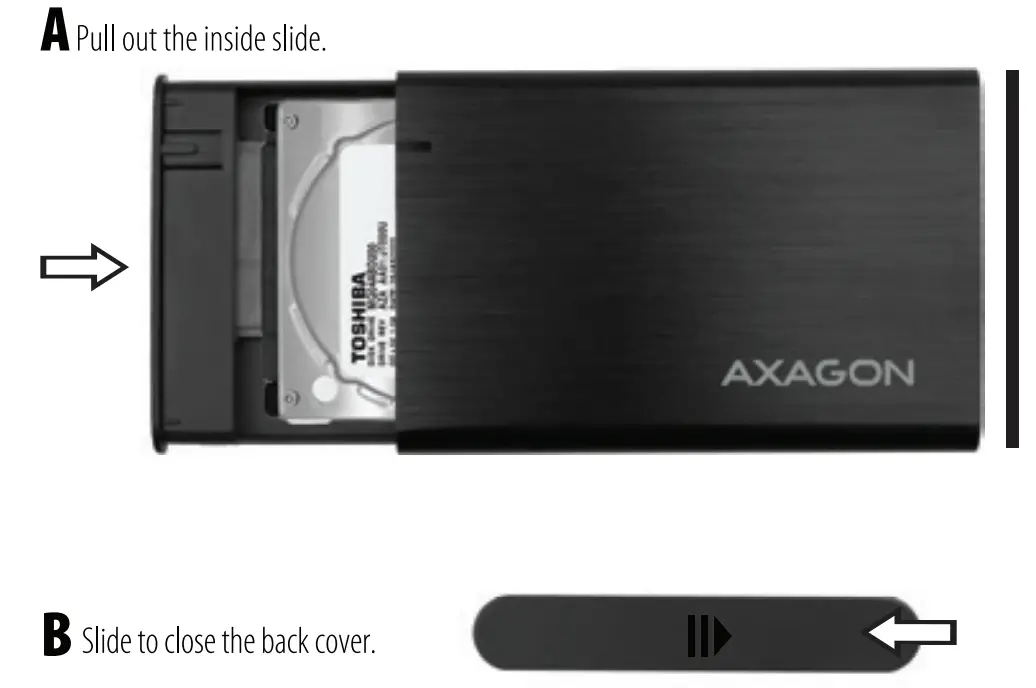

CLOSING OF THE BOX
TECHNICAL SPECIFICATIONS
INPUT INTERFACE
USB 3.2 Gen 1 (USB 3.0) • USB 2.0
5000 • 480 Mbit/s (SuperSpeed USB • High Speed)
USB Micro-B female connector
UASP USB Attached SCSI Protocol Rev. 1.0
OUTPUT INTERFACE
SERIAL ATA specification revision 3.0
6.3.1.5 Gbit/s (SATA/600 • SATA/300 • SATA/150)
2.5″ SATA III / II / I HDD supported max 9.5 mm with all capacities
POWER SUPPLY
USB BUS POWER
power supply via USB 3.2 Gen 1 is fully sufficient in all cases
LED INDICATION
DISCREET GREEN LED
glare-free & soft shine indicates USB connection & data transfer
OTHER FEATURES
Automatic installation
Plug & Play • Hot Plug
TRIM • S.M.A.R.T.
Auto Spindown • HDD Turn Off
OS SUPPORTED
Windows • macOS • Linux
OPERATING CONDITIONS
0 ∼ +40°C
20 ∼ 85% humidity
TECHNICAL SUPPORT: More information, FAQs, manuals and drivers can be found on the product page in the PRODUCT SUPPORT tab at www.axagon.eu. Nothing helped? Write to our technical support: [email protected].
At the end of its service life, do not throw the product into household waste; take it to a collection point for electrical equipment recycling. For information about collection and recycling programs in your country, contact your local authorities or the retailer who sold you the product.
EU declaration of conformity: The device complies with the harmonization legislation of the European Union 2014/30/EU (EMC) and 2011/65/EU (RoHS). The complete EU declaration of conformity is available from the manufacturer.
Before using the product, the user is obliged to read the user’s instructions. The manufacturer disclaims any liability for damage that may occur due to improper use of the product or failure to follow the instructions contained herein. Product use other than specified must be consulted with the manufacturer.
Do not use the product in humid or explosive environments and near flammable substances.
PRODUCT SUPPORT LINK
SuperSpeed USB external enclosure for 2.5″ disks
http://www.axagon.eu/produkty/ee25-a6m#supportLinkGoal
© 2021 AXAGON Wrobce/ Manufacturer: Rea IQ s.r.o. – 2elezna 5, 619 00 Brno, Czech Republic All rights reserved. All text and pictorial materials contained in this document are protected by Copyright Act. All marks indicated here are the registered trademarks of their appropriate owners. Specifications are subject to change without prior notice. Made in CHINA for Axagon.
