Thule Smart Panels:

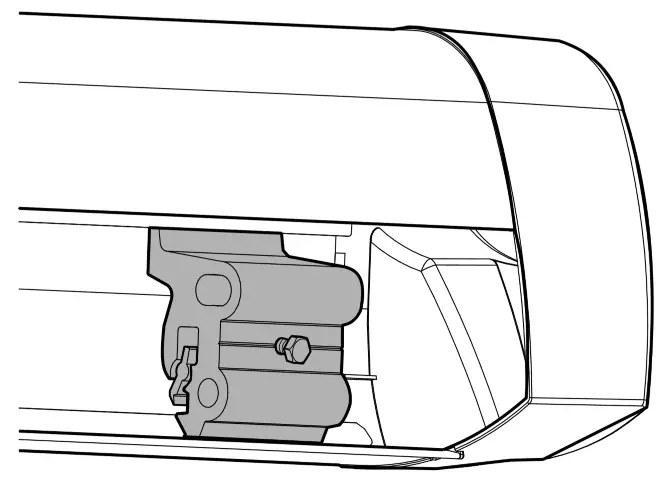

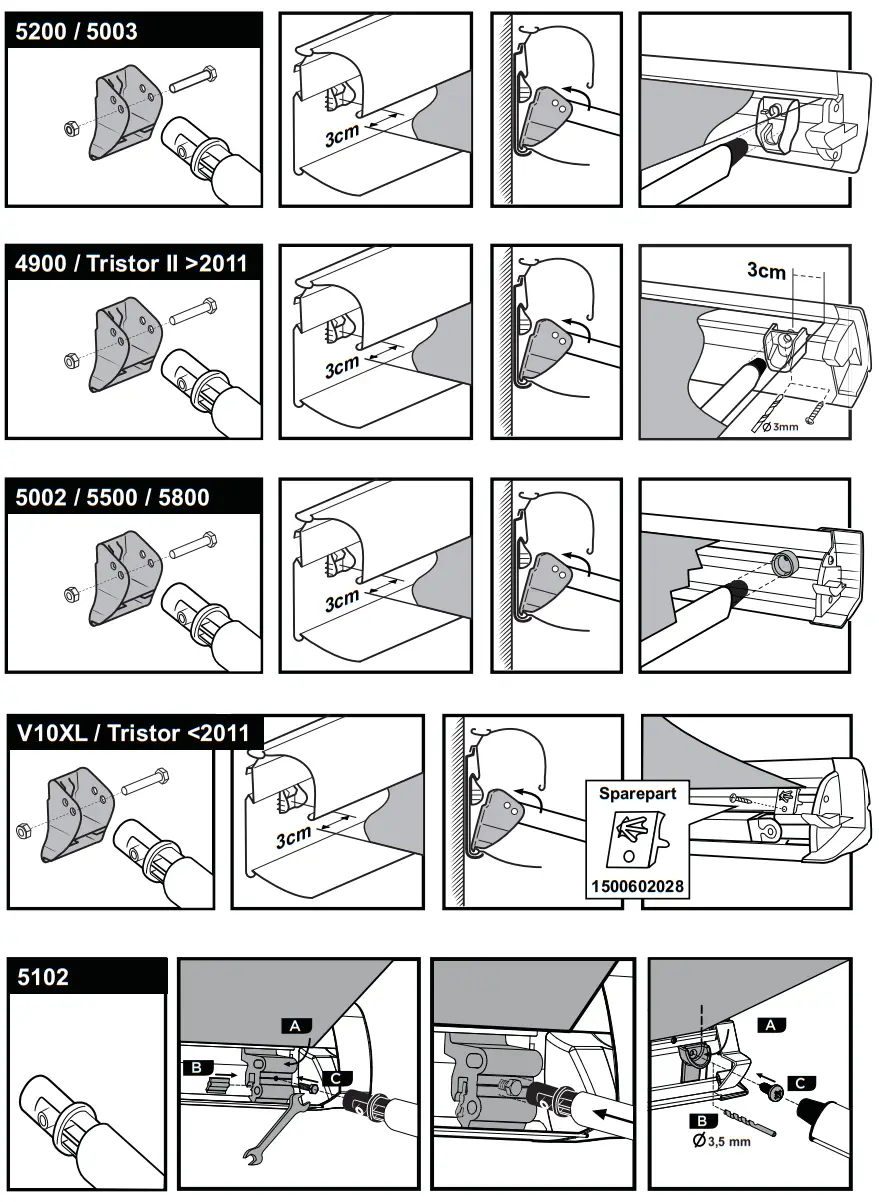

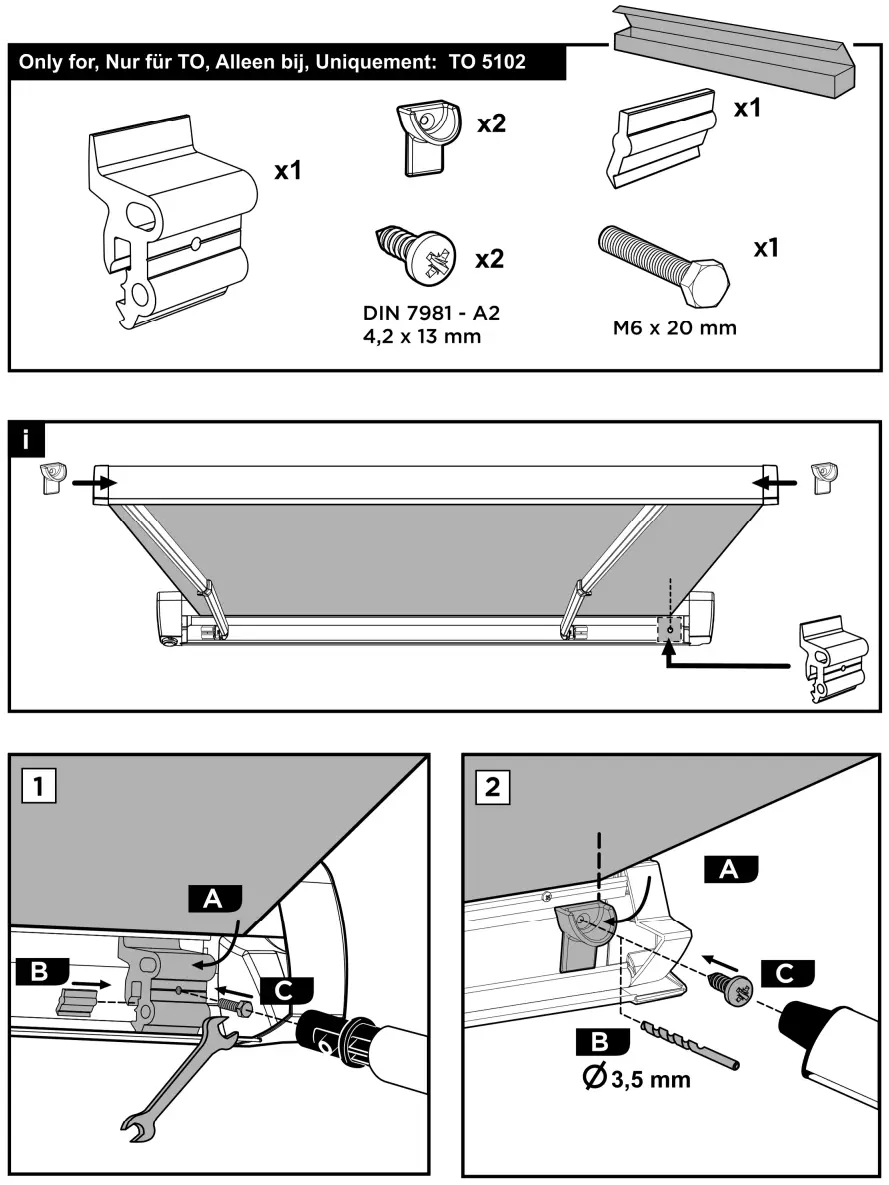

Installation Kit for TO 5102
306515 Rain Blocker G2 Side
306515 Rain Blocker G2 Side

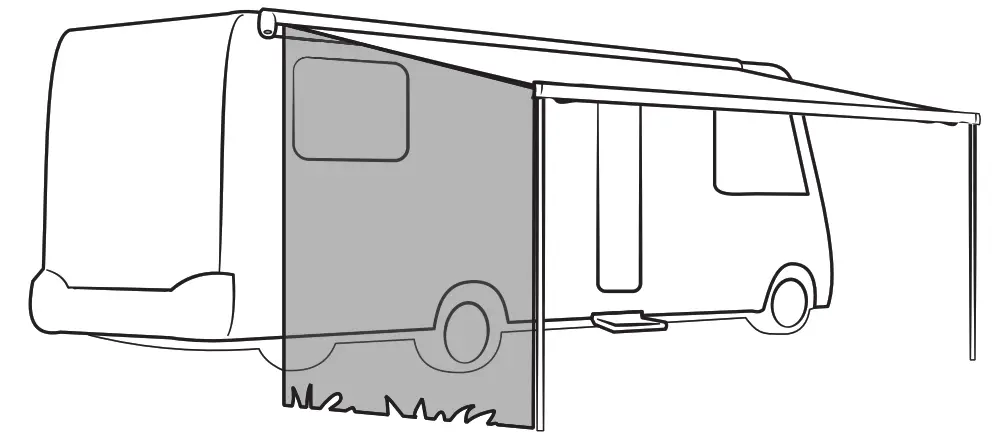

Thule Smart Panels

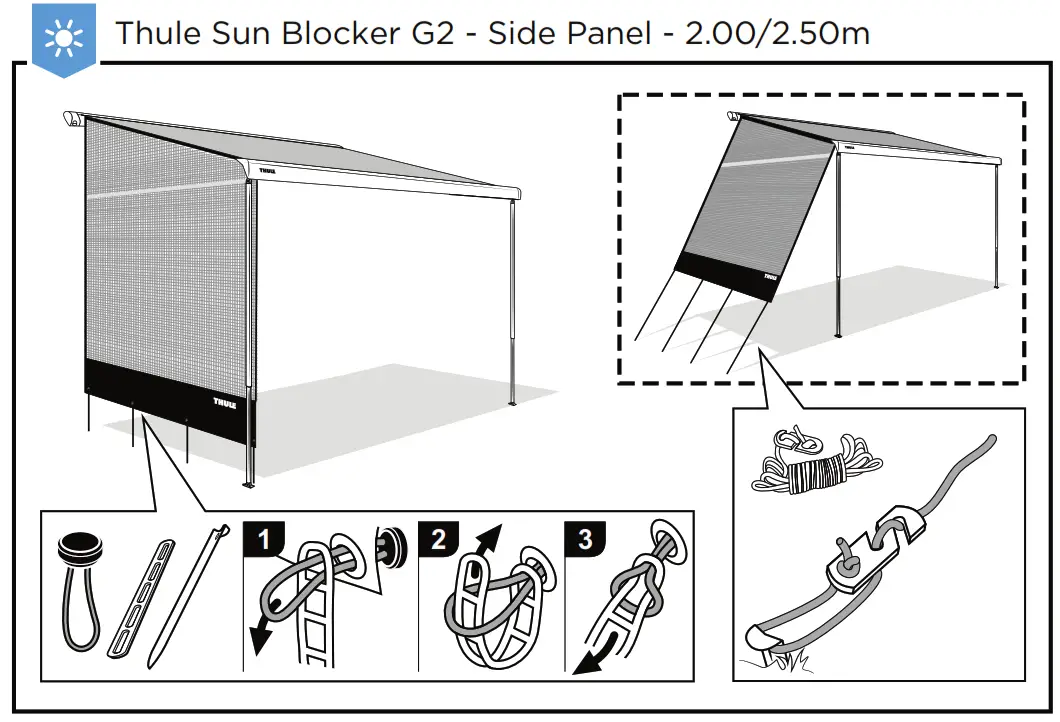

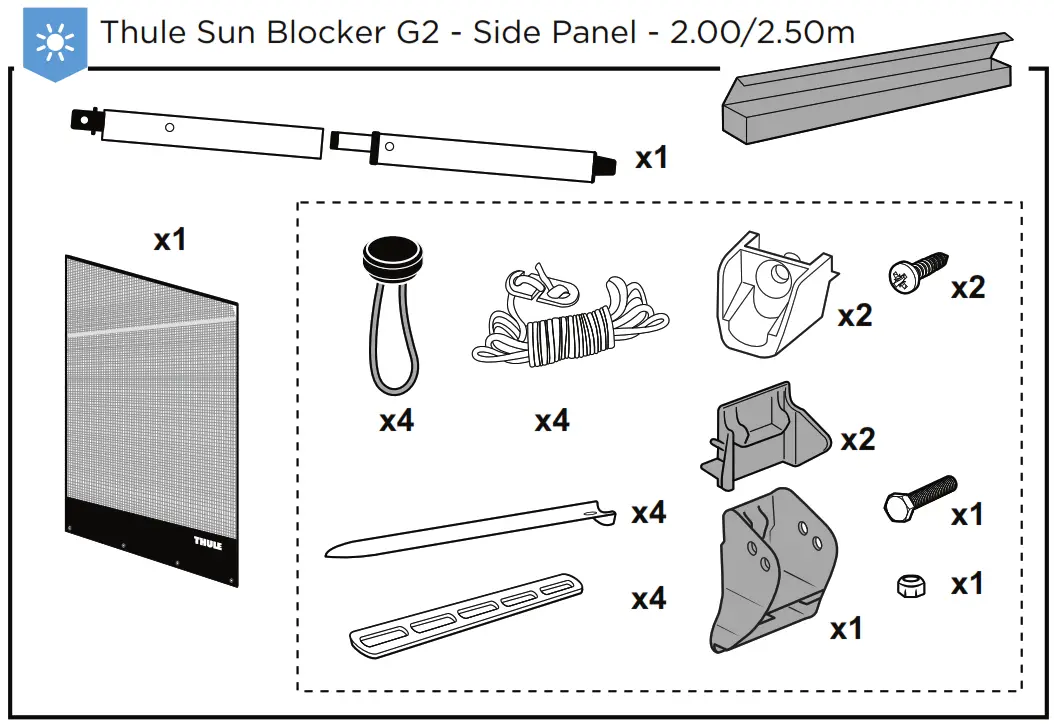

Thule Sun Blocker G2 – Side Panel – 2.00/2.50m

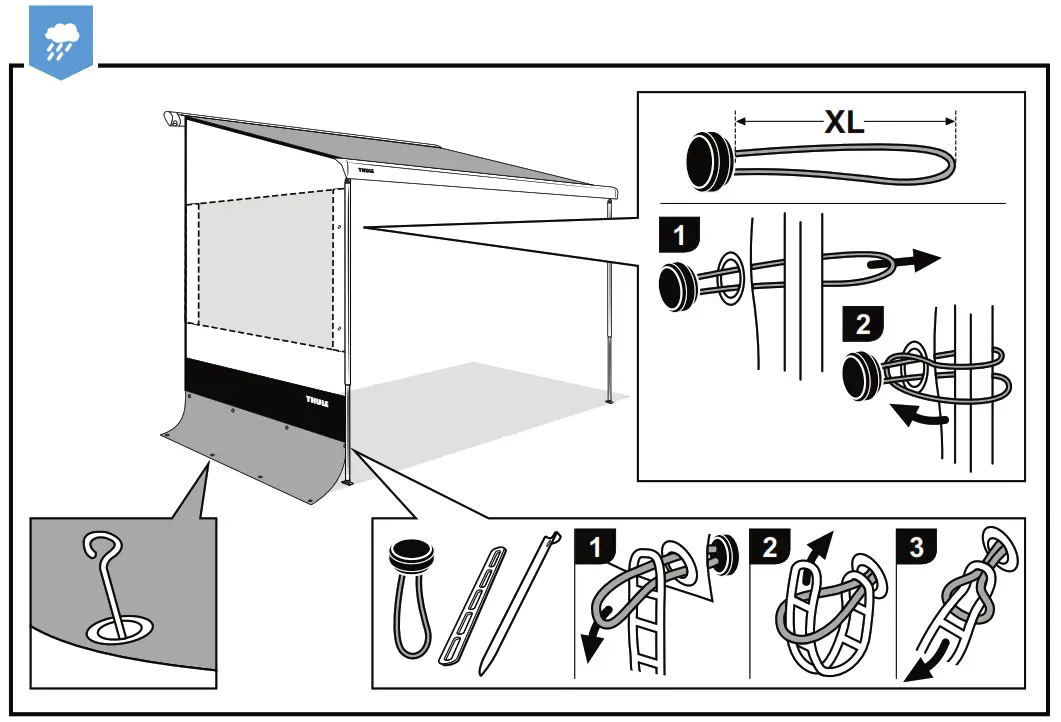

Thule Rain Blocker G2 – Side Panel – 2.00/2.50m
Thule View Blocker G2 – Side Panel – 2.50m
Thule Rain Blocker G2 – Side Panel – Minivan
VW California T5/T6 > 2003

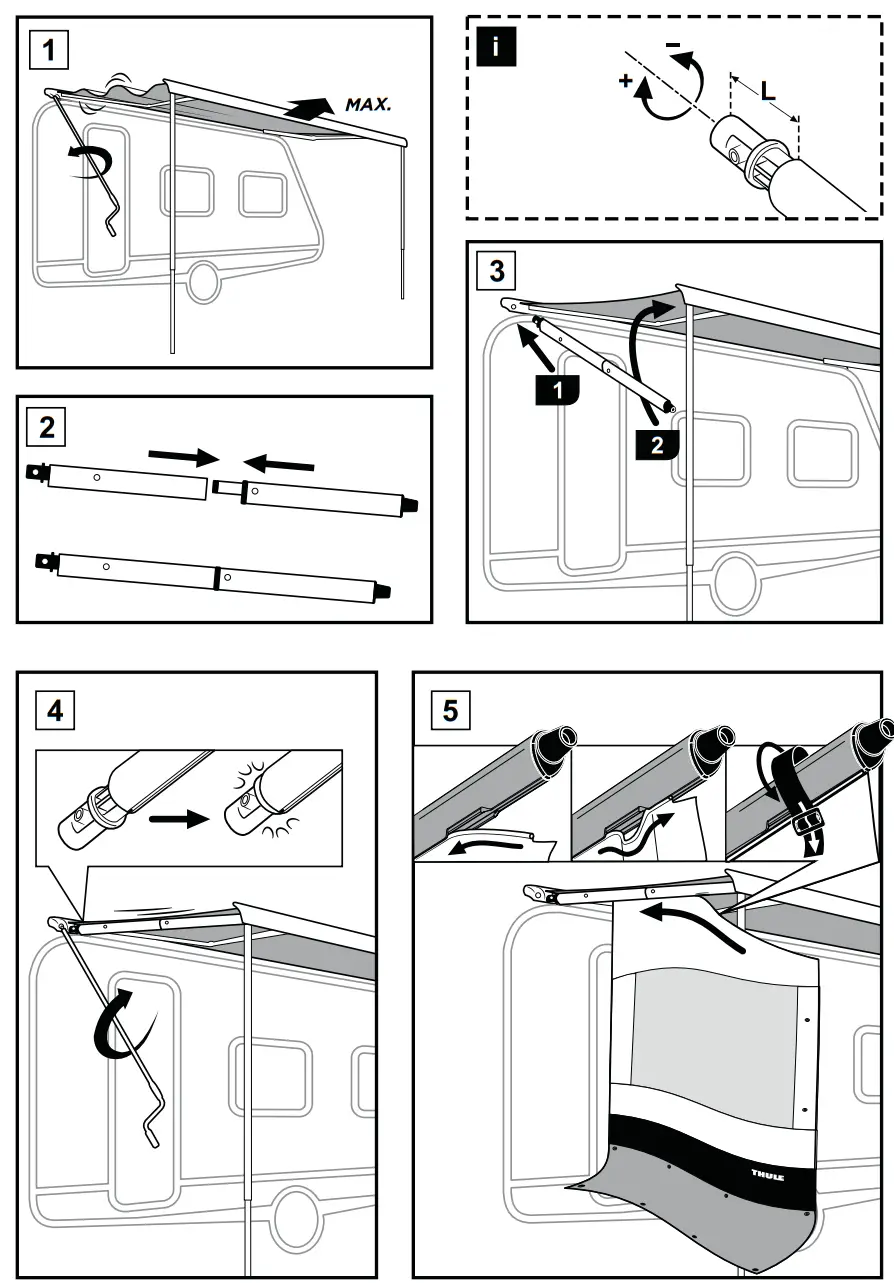

Instructions
Thule Rain Blocker G2 – Side Panel – 2.00/2.50m
Thule View Blocker G2 – Side Panel – 2.50m
Thule Rain Blocker G2 – Side Panel – Minivan

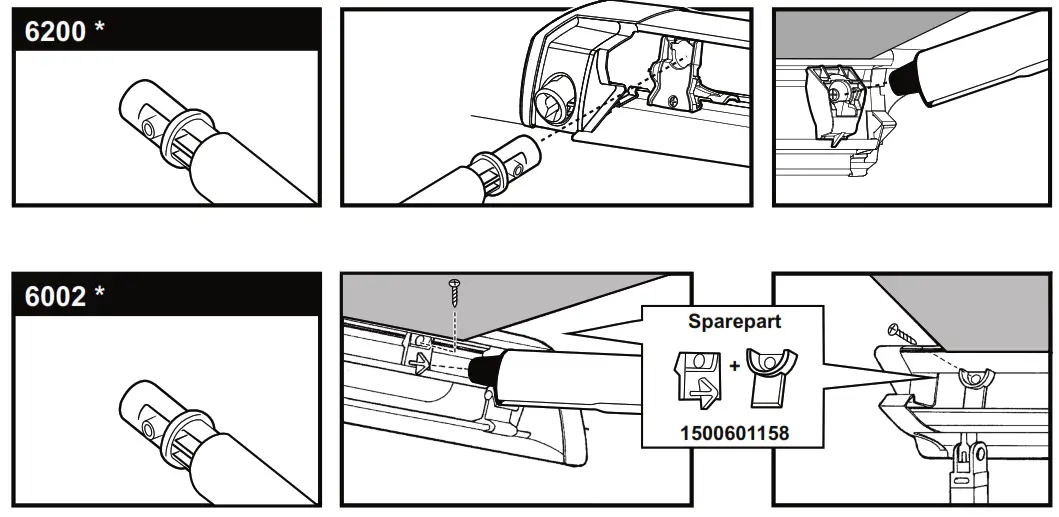

Older awnings: see spare part list
Thule Rain Blocker G2 – Side Panel – 2.00/2.50m
Thule View Blocker G2 – Side Panel – 2.50m
Thule Rain Blocker G2 – Side Panel – Minivan

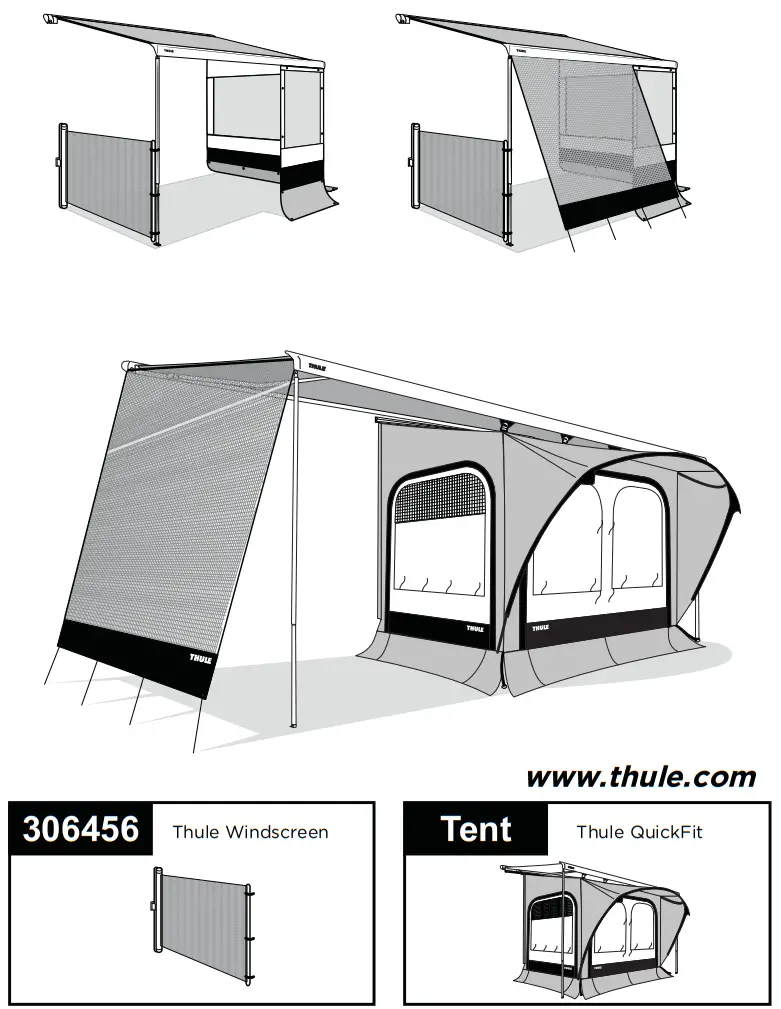

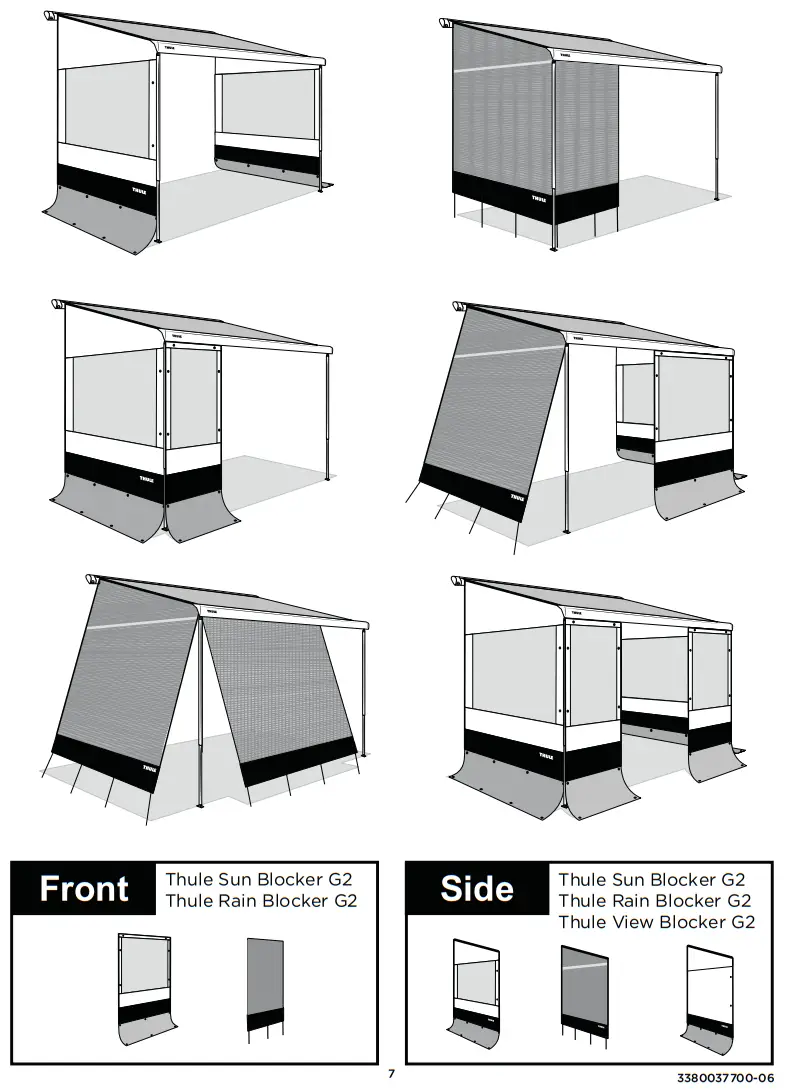

Smart Panels: some possible combinations
Read the instructions carefully. The wrong installation, use, or repair voided warranty. If recovery is needed, consult a dealer.
General remarks
- Check if the supplied product suits the type, height, and projection of the canopy.
- When attaching the positioning pieces in the main housing of the awning, respect the following rules:
The surface has to be dry and clean, with no dust, and no grease. Press well. Please wait for 72h before usage! - The sun can affect colors depending on usage.
- When it rains, put one side of the awning lower so that the water can drain.
- When the wind reaches 6 Bft. please store the panels and close the awning.
- Don’t place heat sources near the walls or the roof.
Maintenance
- Ensure that there are no hard objects on the window during folding. This is to prevent impressions.
- Let the panel dry thoroughly before long time storage.
- Use pure water or a dry brush to clean the panel.
