RF610ADX5 Freestanding French Door Refrigerator Freezer
User Guide
Series 7 | Contemporary
Stainless Steel | French hinge

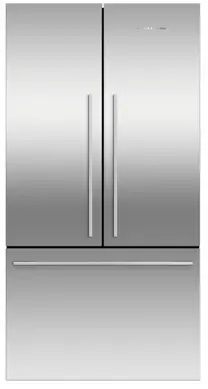

RF610ADX5 Freestanding French Door Refrigerator Freezer
Our largest capacity French Door model has intuitive, flexible storage space, with a stylish stainless steel finish.
- Active Smart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods.

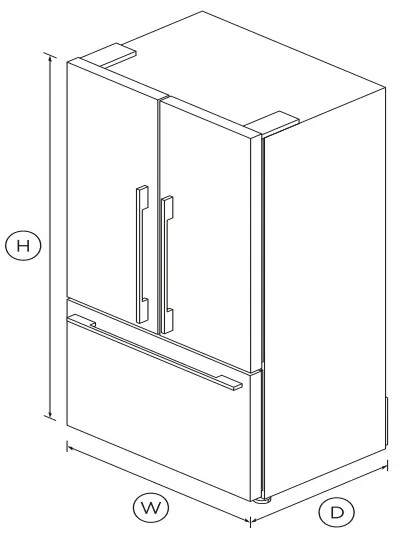

DIMENSIONS
| Height | 1790 mm |
| Width | 900 mm |
| Depth | 695 mm |
FEATURES & BENEFITS
ACTIVE SMART™ FOOD CARE
Active Smart™ Food care learns how you live. It’s the technology that understands how you use your fridge and adjusts the temperature, airflow and humidity inside to help keep food fresher for longer.
HUMIDITY CONTROL
Your fruit and veges need different environments. The humidity control slides in each storage bin create a micro climate that helps keep food fresher for longer.
EASY CLEANING
Spill-safe secure glass shelves easily capture any drips or leaks and prevent them from falling on items below.
CLEVER ENERGY
Your fridge adapts to daily use by cooling and defrosting only when needed. This means your fridge uses the energy it needs without compromising on food care.
SIMPLE STORAGE
This fridge is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
SPECIFICATIONS
| Capacity | |
| Volume | 569L |
| Volume freezer | 152L |
| Volume refrigerator | 417L |
| Consumption | |
| Energy rating | 3.5 star |
| Energy usage | 448kWh/year |
| Features | |
| Adjustable glass shelves | 2 |
| Adjustable half width door | 4 |
| Covered door shelves | 2 |
| Deli storage bins | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Freezer Features | |
| Bottle chill | • |
| Fast freeze | • |
| Freezer bins | 3 |
| Ice trays | 1 |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| R600a refrigerant | • |
| Sabbath mode | • |
| Product dimensions | |
| Depth | 695mm |
| Height | 1790mm |
| Height to top of cabinet | 1790mm |
| Width | 900mm |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
| SKU | 26504 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
