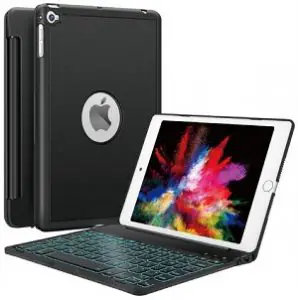

earto iPad Mini 5 Keyboard Case iPad Mini 4 Keyboard Case User Manual
Load/Upload Your iPad
- Removing back protective piece: hold iPad on both sides and use thumbs to gently push off the back cover (see photo.) Cover is held in place by two tabs.
- Proceed to “peel” cover away from iPad.
- Take iPad out.
- Take iPad out upwards.
Pairing Steps
- Power on keyboard, then press
keys, the keyboard will stay on searching state within 3 minutes
.
- On your iPad, Select ” Setting – Bluetooth – On “.
- Open your Bluetooth signal, keep the Bluetooth showing “on” search state.
- Select “iPad Keyboard” on the iPad, the indicator will be off after connection is successful.
keys, the keyboard will stay on searching state within 3 minutes
Note:
- No any button pressed within 10 seconds, the backlight will go out.
- No any button pressed within 10 minute, the keyboard will enter sleep mode. In this case, you just need to press any key and wait for 3 seconds to reconnect.
- If the connection fails, delete all pairing records from your device and try the above steps again.
- When the battery is below 20%, Bluetooth will be unstable.
WARNING:
Please do not unfold the case more than 135 degree angle, or else the spiale easyto be broken.
Keyboard Overview
| 1 |  | Bluetooth connection |
| 2 |  | Switch input language |
| 3 |  | Brighter Press once to turn on the back lit |
| 4 |  | Darker The fourth time will turn off the back lit） |
| 5 |  | Switch back light color |
| 6 |  | Caps Lock &tabulator key |
| 7 |  | Cut |
| 8 |  | Paste |
| 9 |  | Select All |
| 10 | | Copy |
| 11 |  | Type the words in cyan area, Like”=” |
| 12 |  | Type the words in green area, Like”+” |
Specification
Operating Distance: | <10 meter | Modulation System: | GFSK |
| Working voltage: | 3.0-4. 2v | Working Current: | 0.7-4 mA |
| Sleep Current: | <60μA | Charging Current: | 7160 mA |
| Standby Time: | 150 days | Charging Current: | 108H(without backlight |
| Charging Time: | <2 hours | Lithium battery capacity: | 270mAh |
| Lithium battery Life: | 3 years | Key life: | 5 million strokes |
| Operating temperature: | -10±55 °C | ||
Light Indication
| Power indicator | Three indicator lights will flash 3 seconds |
| Bluetooth indicator | Press “fn + C” keys to enter pairing mode |
| Caps lock indicator | White light is on. |
| Charging indicator | Stably on in red color. Fully Charged – turns green. Low battery indicator – Flash in red color to remind you to charge it. |
Trouble Shooting
If the keyboard fails to work, please check if:
- The battery is too low. Fully charge the keyboard (no less than 2 hours) for the first time to extend battery life.
- The keyboard is located within 33 feet from your iPad.
- The Bluetooth function on the iPad is enabled.
I can’t get my Bluetooth Connected:
Step 1: Switch ON/OFF to ON.
Step 2: Press “fn + C” ( Note: Paring indicator light will begin blinking)
Step 3: Toggle Bluetooth On in the Settings app on your iPad.
Step 4: Tap ” iPad Keyboard ” under “MY DEVICES” in the Settings.
For the coming use, you just need to open the keyboard and tablet power, press any key on the keyboard.Then it will automatically connect. ( No need to click “fn + C” and pair it. Otherwise, it will show not connected.)
Can pair before but failed to pair this time:
Step 1: Delete all the Bluetooth devices on the iPad. (include our keyboard)
Step 2: Switch off the Bluetooth function and reboot the iPad.
Step 3: Switch the keyboard off and on.
Step 4: Reconnect the keyboard. (Repeat the above “Pairing Steps” ) ([email protected])
Caution
If you have problems with keyboard usage or improvement suggestions, please do not hesitate to contact us by email. We will help you solve the problem. Thank you!!
