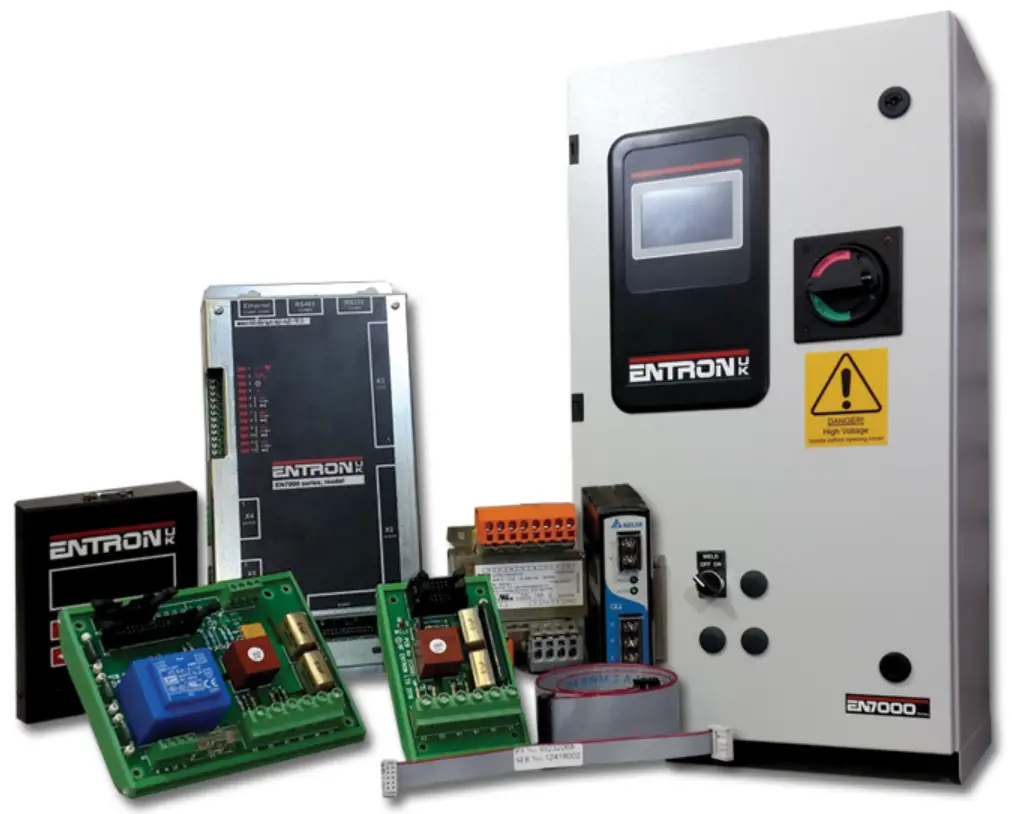

ENTRON EN7000 Constant Current AC Controls
AC Controls: EN7000 and EN6001

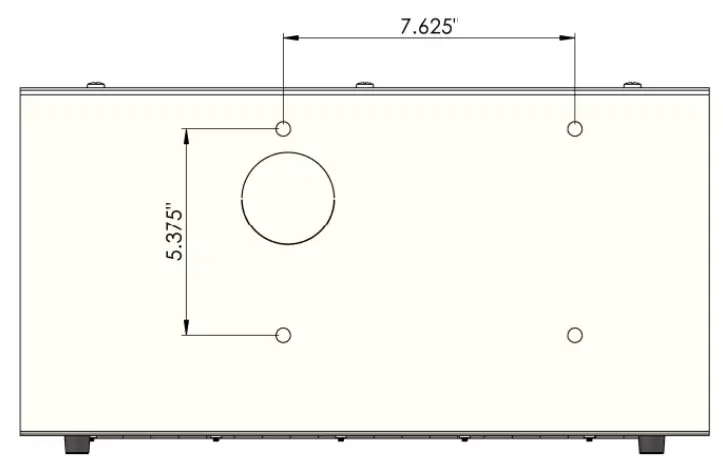

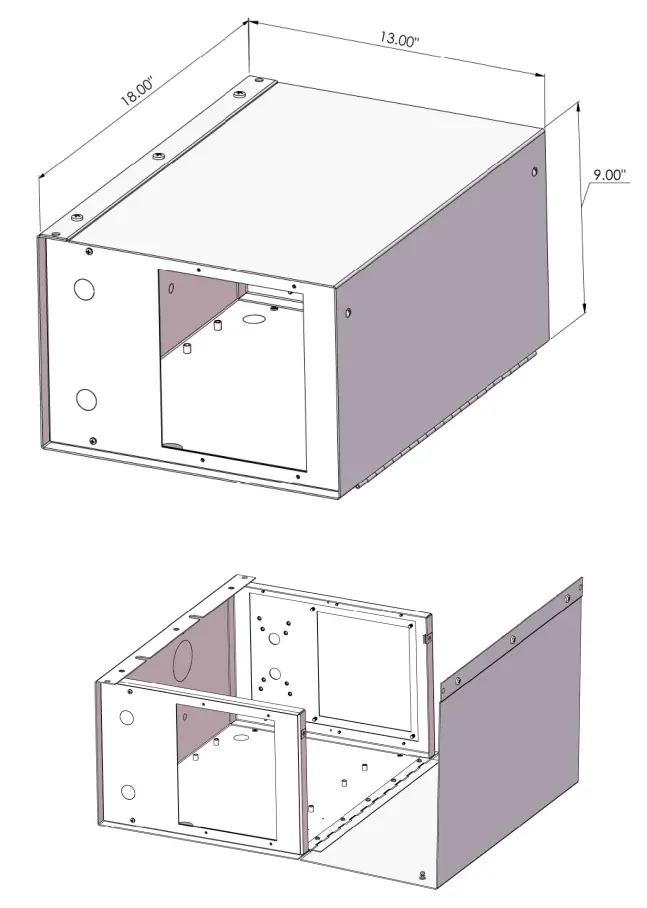

Cabinet Dimension
S+ Cabinet
Controls:
Front (Reversable Door) – EN6001
SCR:
- 300A Air-Cooled
- 1200A Water-Cooled Module
- 1800A Water-Cooled Module
Options:
- Program Lockout Switch
- Error Reset Switch
- Weld/ No Weld Switch

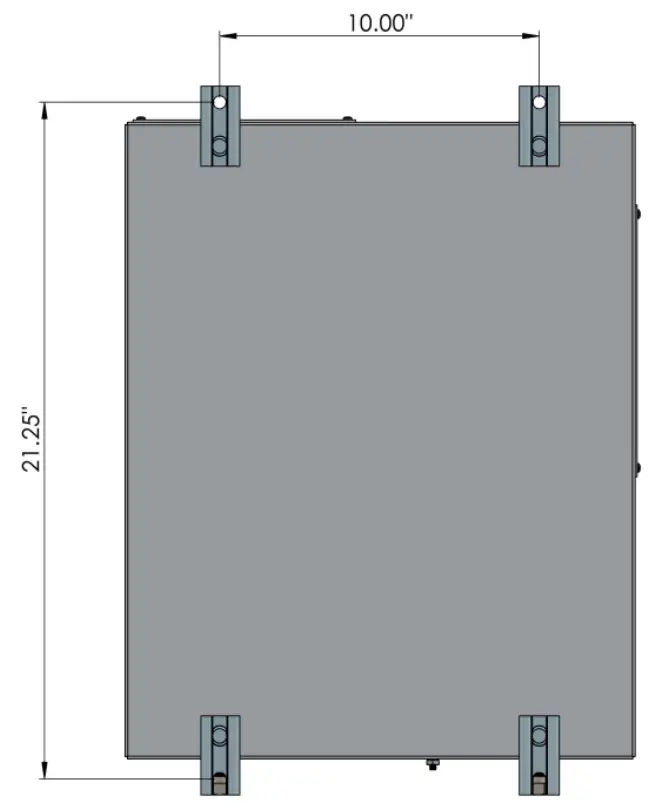

C Cabinet
Controls:
Front
- EN6001, EN7000
Side
- EN6001
Breaker:
- 100A 3 Pole Eaton MCCB
- 200A 3 Pole Eaton MCCB
SCR:
- 300A Air-Cooled
- 1200A Water-Cooled Module
- 1800A Water-Cooled Module
Options:
- Program Lockout Switch
- Error Reset Switch
- Weld/ No Weld Switch

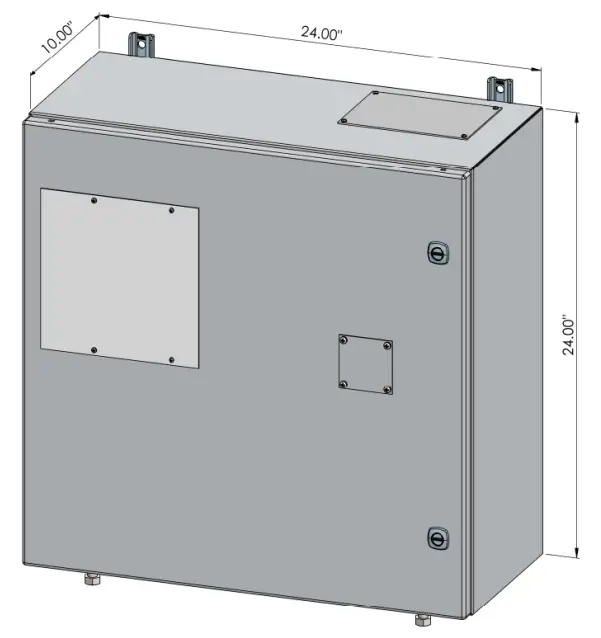

D Cabinet
Controls:
Front
- EN6001, EN7000,
EN6001 Ground Fault
Side
- EN6001
Breaker:
- 100A 3 Pole Eaton Power Defense
- 200A 3 Pole Eaton Power Defense
- 250A 3 Pole Eaton Power Defense
- 400A 3 Pole Eaton Power Defense
- 600A 3 Pole Eaton Power Defense
Options:
- Program Lockout Switch
- Error Reset Switch
- Weld/ No Weld Switch

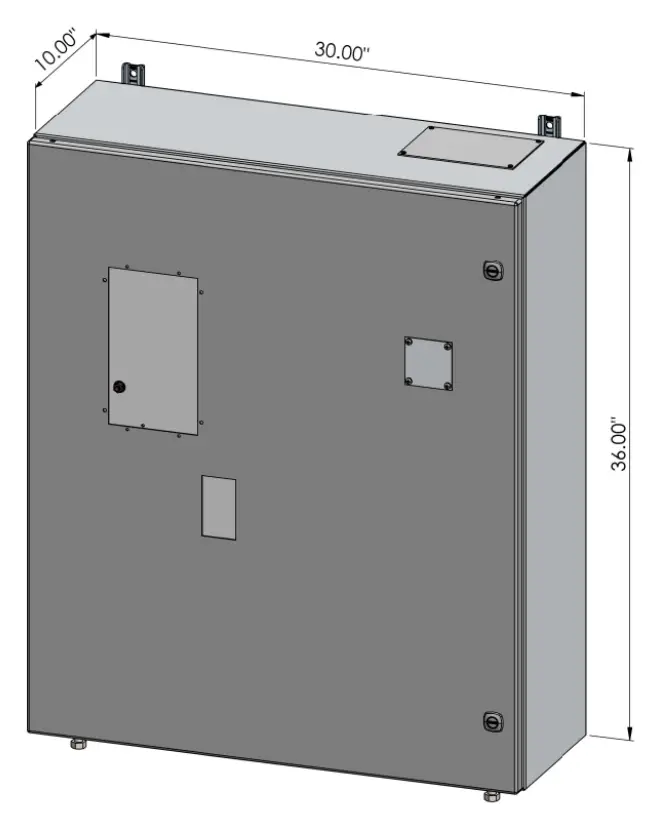

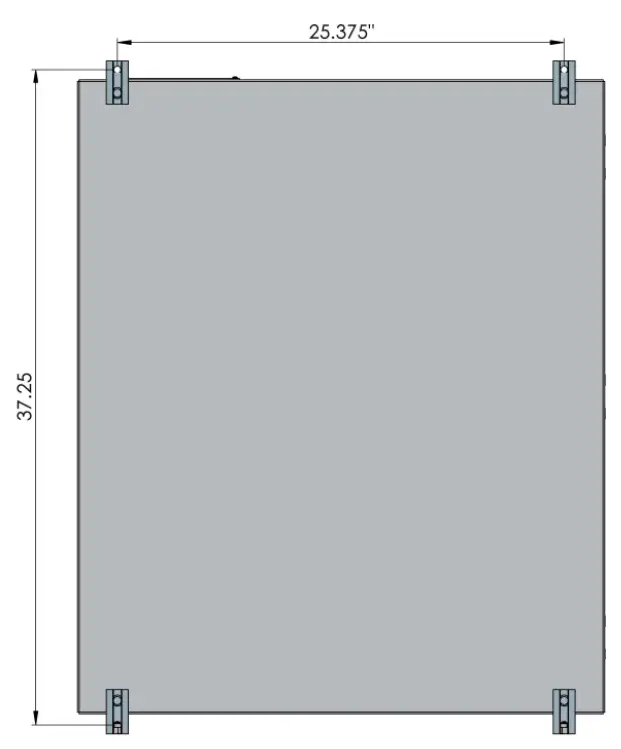

L Cabinet
Controls:
Front
- EN6001, EN7000
Side
- EN6001
Breaker:
- 100A 3 Pole Eaton Power Defense
- 200A 3 Pole Eaton Power Defense
- 250A 3 Pole Eaton Power Defense
- 400A 3 Pole Eaton Power Defense
- 600A 3 Pole Eaton Power Defense
SCR:
- 300A Air-Cooled
- 1200A Water-Cooled Module
- 1800A Water-Cooled Module
- 2200A Water-Cooled Direct
- 3200A Water-Cooled Direct
Options:
- Program Lockout Switch
- Error Reset Switch
- Weld/ No Weld Switch

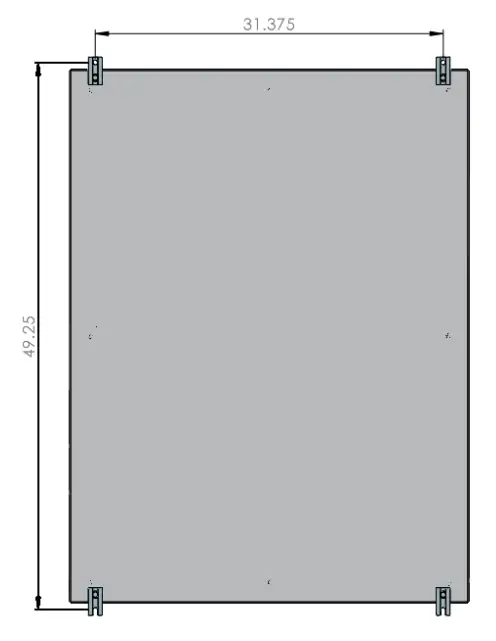

G Cabinet
Controls:
Front
- EN6001 3-4 Multiple
Breaker:
- 100A 3 Pole Eaton Power Defense
- 200A 3 Pole Eaton Power Defense
- 250A 3 Pole Eaton Power Defense
- 400A 3 Pole Eaton Power Defense
- 600A 3 Pole Eaton Power Defense
SCR:
- 1200A Water-Cooled Module
- 1800A Water-Cooled Module

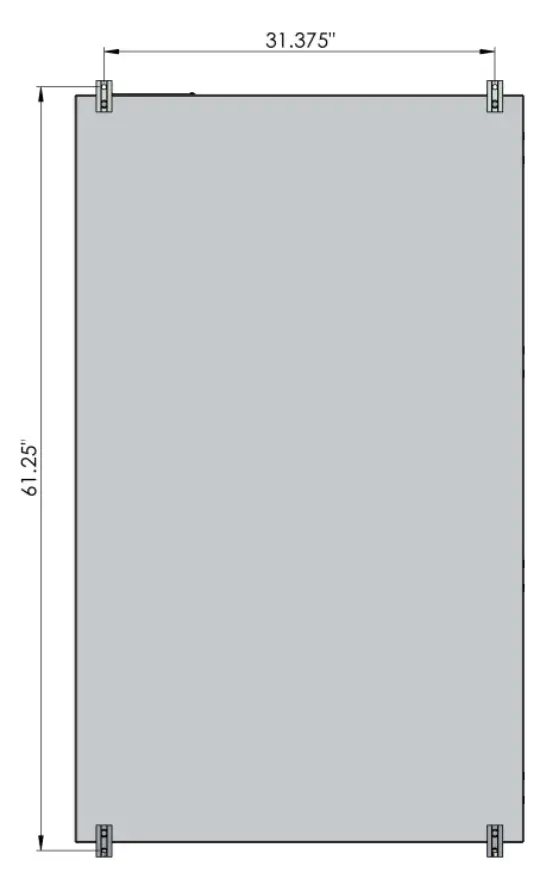

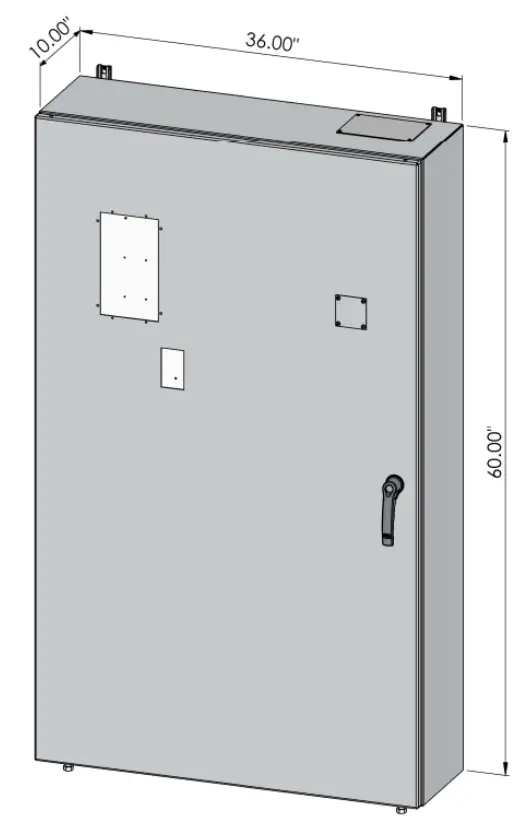

U Cabinet
Controls:
Front
- EN6001, EN7000
Side
- EN6001
Breaker:
- 100A 3 Pole Eaton Power Defense
- 200A 3 Pole Eaton Power Defense
- 250A 3 Pole Eaton Power Defense
- 400A 3 Pole Eaton Power Defense
- 600A 3 Pole Eaton Power Defense
SCR:
- 300A Air-Cooled
- 1200A Water-Cooled Module
- 1800A Water-Cooled Module
- 2200A Water-Cooled Direct
- 3200A Water-Cooled Direct
Options:
- Program Lockout Switch
- Error Reset Switch
- Weld/ No Weld Switch
* All Cabinets are purchased as CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66\
Large Assemblies

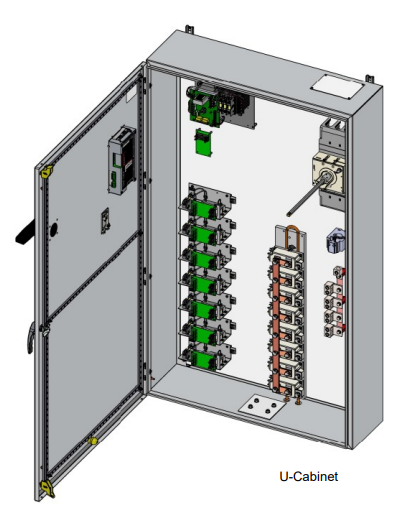

EN7000 Cascade (Standard)
- D Cabinet 2
Cascade - L Cabinet 3-4
Cascade - U Cabinet 5-8
Cascade
*Recommendations based on 1200/1800A SCRs

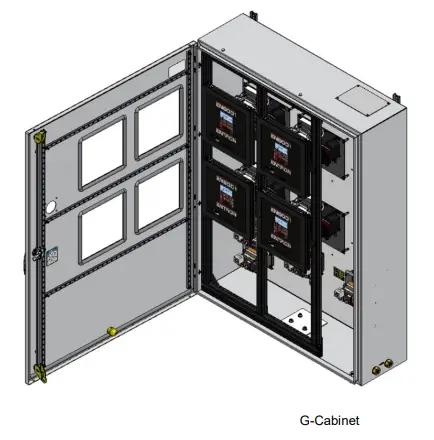

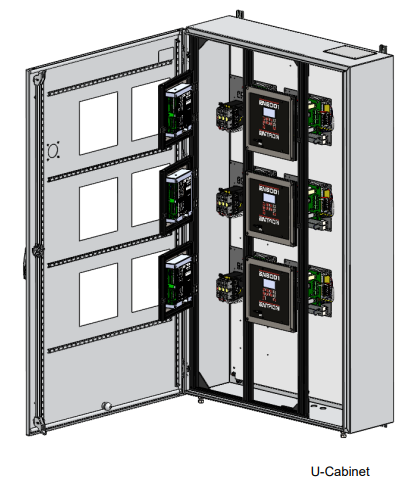

EN(6)6001 Multiple (Special)
EN(4)6001 Multiple (Special)
- L Cabinet 2
Multiple - G Cabinet 3-4
Multiple - U Cabinet 5-6
Multiple - W Cabinet 7-8
Multiple
* Recommendations based on 1200/1800A SCRs

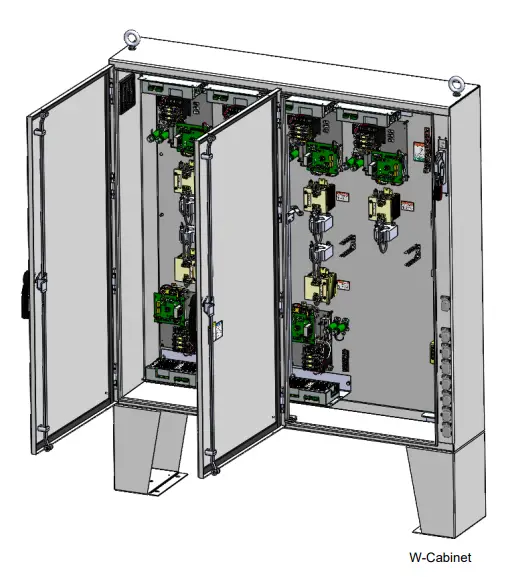

EN(7)7000 Multiple (Special)
*Control assemblies shown on this page should be used for reference Contact your local Entron Controls sales representative for more Information.

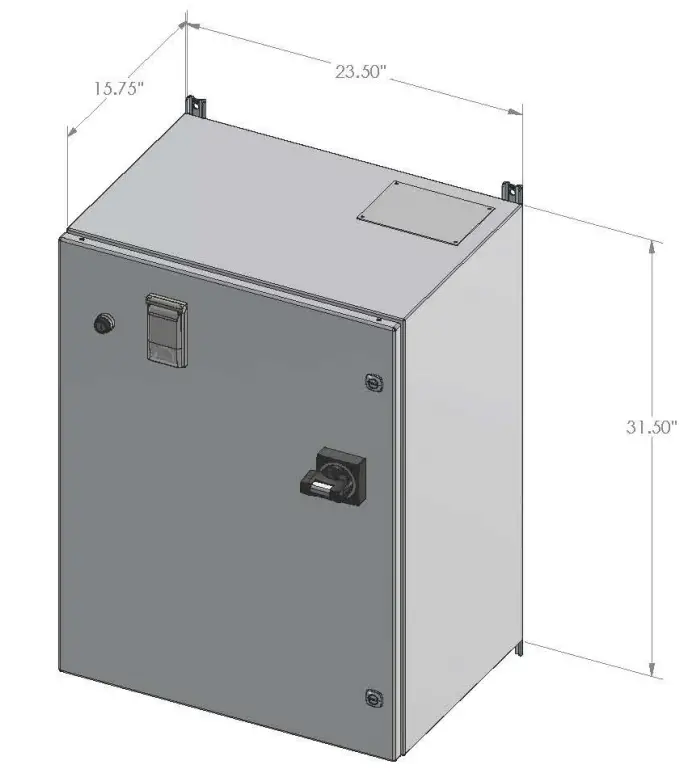

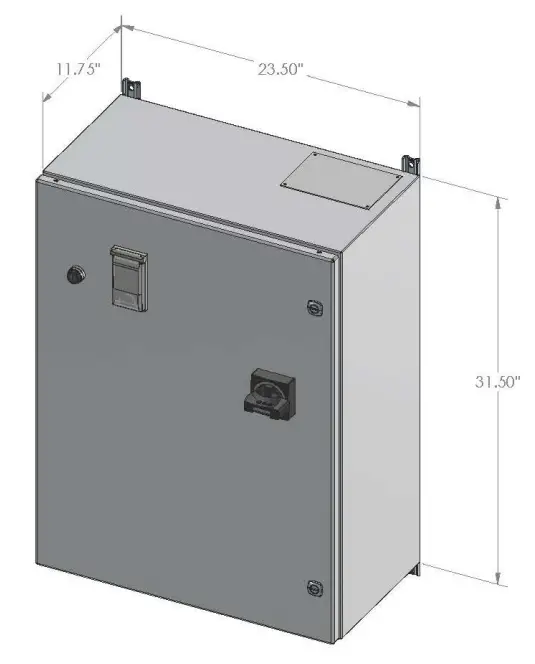

ENTRON IPAK 2 BCM
MFDC CONTROLS
Standard
- 360A
- 600A
*For more information see https://www.entroncontrols.com/products/inverter.html

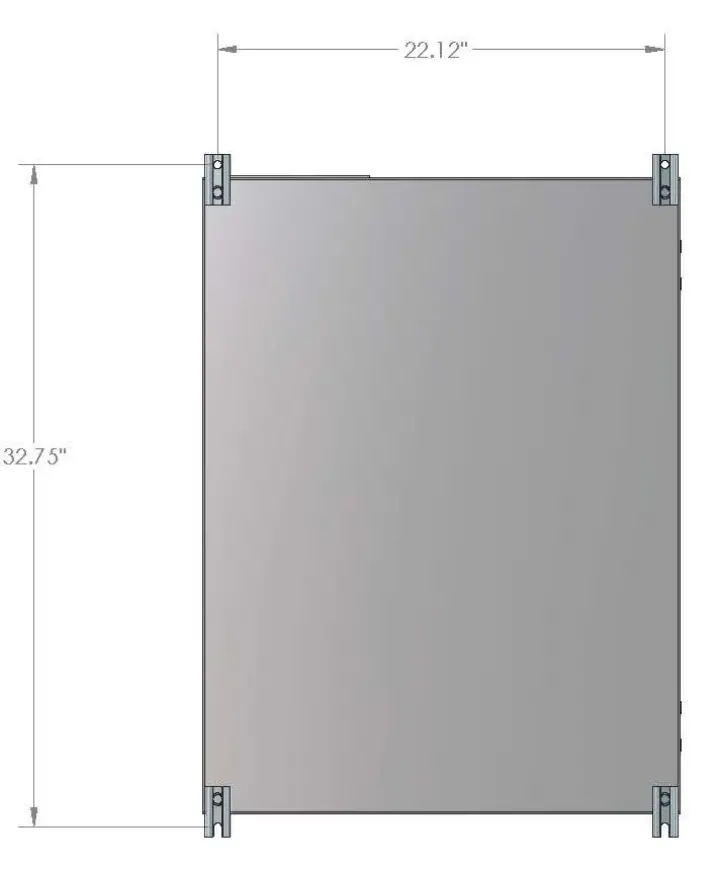

Standard IPAK 360-600 Cabinet
Breakers
- 125A
- 175A
Options
- OMS
Standard IPAK 360-600 Cabinet

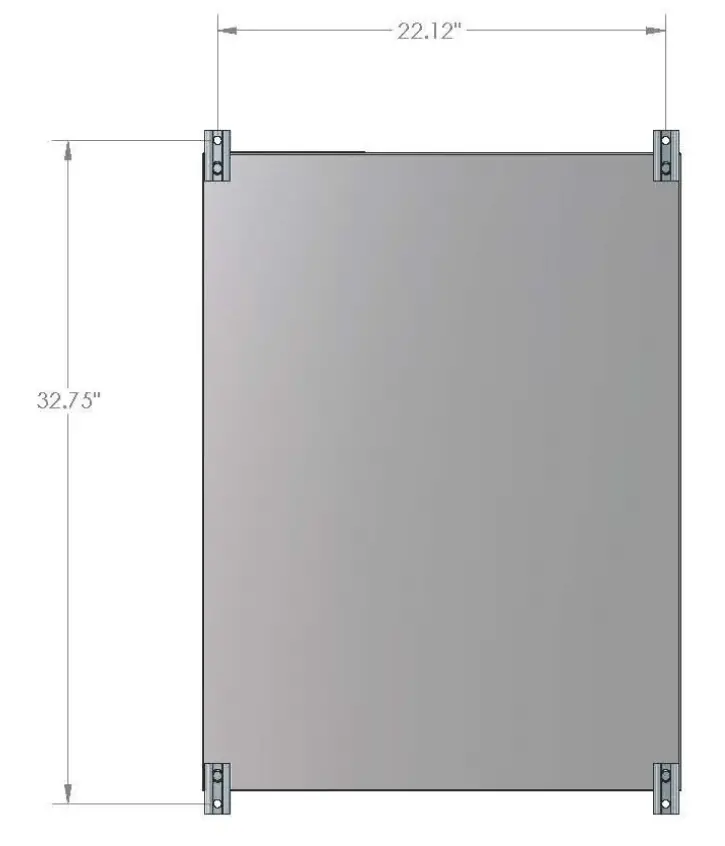

ENTRON IPAK 2 BCM
MFDC CONTROLS
Standard
- 1000A
*For more information see https://www.entroncontrols.com/products/inverter.html
Standard IPAK 1000 Cabinet
Breakers
- 125A
- 175A
Options
- OMS
Standard IPAK 360-600 Cabinet
Customer Support
Contact us with your special request.
[email protected]
[email protected]
864-416-0190
ENTRON CONTROLS, LLC
1402 S Batesville Rd.
Greer, SC 29650
United States
ENTRON PN: 780054-0720
MFDC Inverter - Entron Controls
