Winix Azpu370-iwe Air Purifier User Manual

User Manual
WINIX AIR PURIFIER

Model
ZERO Pro (AZPU370-IWE)

Use & Care Guide

• Please read and follow all safety rules and instructions in this manual before operating.
• The product warranty is printed on the back of this guide, so please keep it in a safe place for future use.

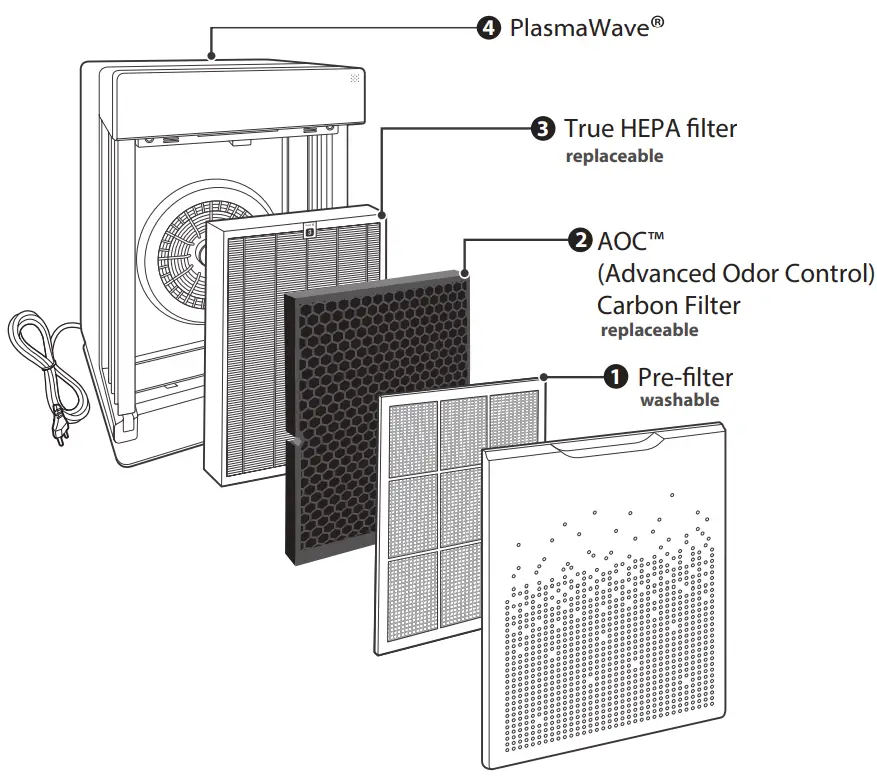

STAGE AIR PURIFICATION

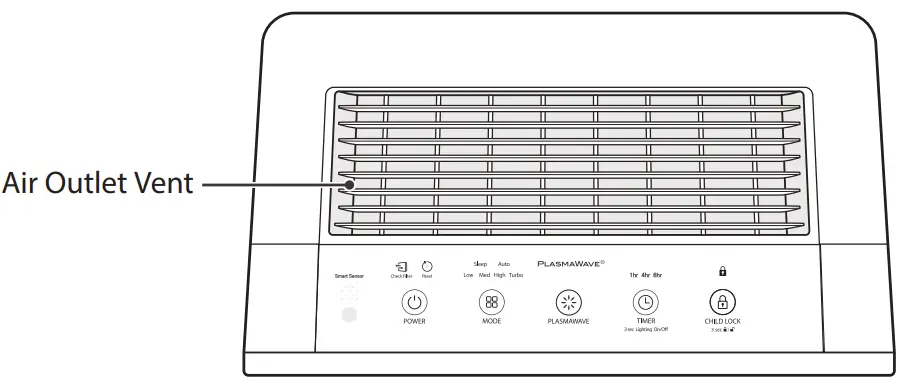

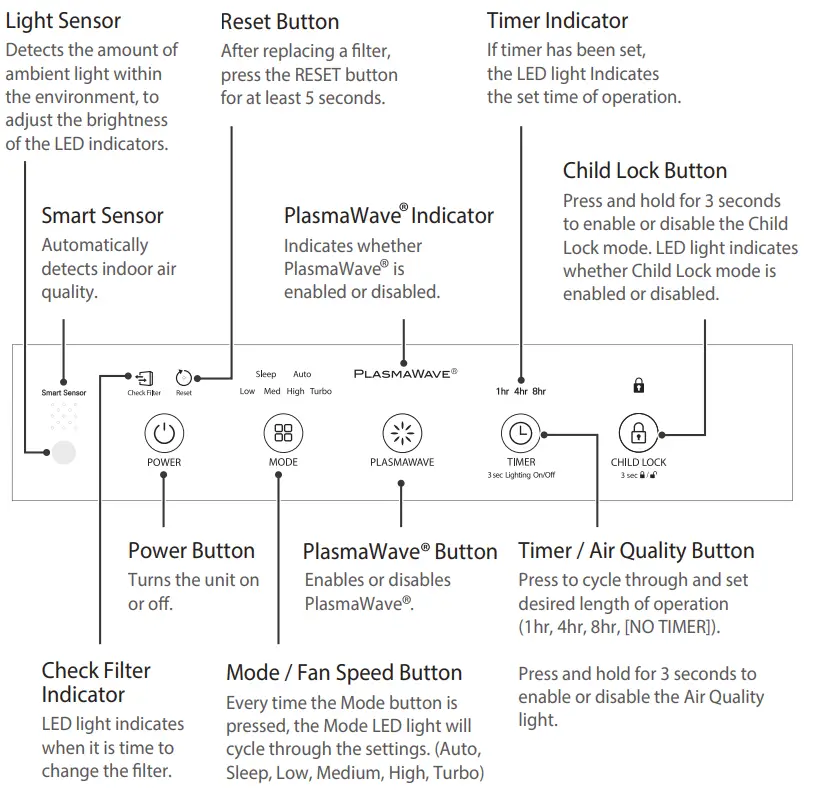

CONTROLS

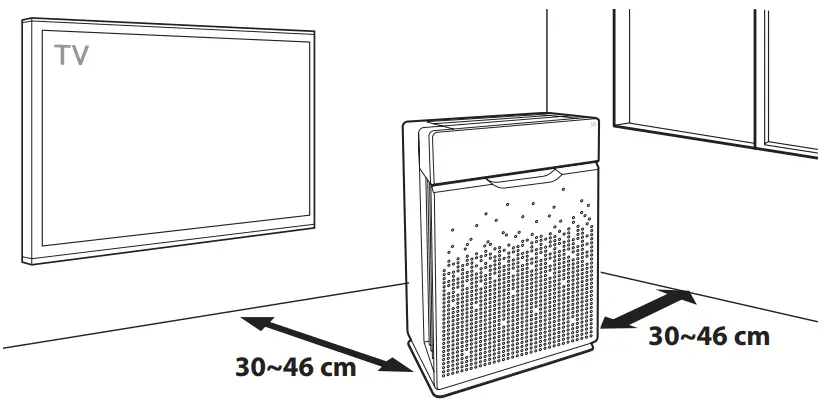

WHERE TO USE

Allow 30 ~ 46 cm. of space between TVs, radios, and other electronic products electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sunlight direct exposure may cause product malfunction or failure.
The only place on hard, flat surfaces flimsy or slanted surfaces may result in abnormal noise and vibrations.

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce the risk of damaging the unit.

	Do not use around mist or fumes from industrial oil or around large quantities of metallic dust.		Do not place around heating elements.
	Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.).		Do not place in an area with excessive amounts of noxious gases.
	Do not place near any flammable materials  (aerosols, fuel, gases, etc.).		Do not have unit facing into wind or draft.
	Do not place below any electrical outlet.		Do not place in excessively humid areas where the unit may become wet.

This unit is not intended to be used to preserve documents or in art conservation.

INSTALLING THE FILTERS

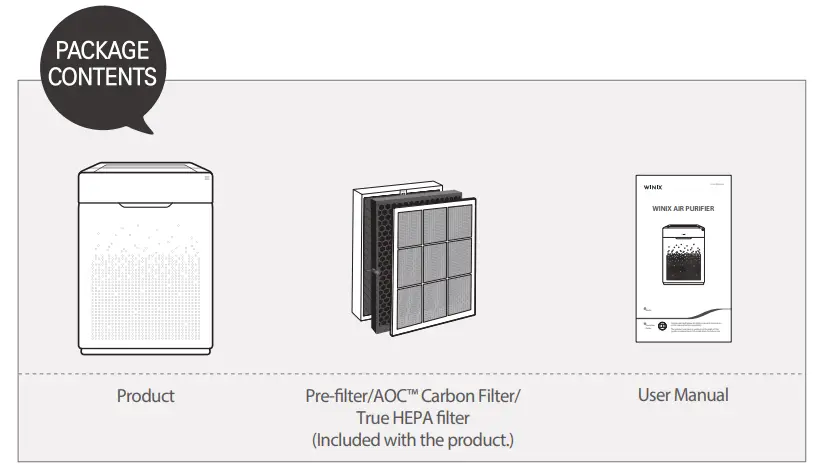

This product comes with all of the required filters. The protective plastic wrap must be removed from the filters before use.

• Operating the unit without removing the plastic wrap may result in product failure.
• Unplug and make sure the unit is turned off before installing filters.
• The unit will automatically power off when the front panel is opened.

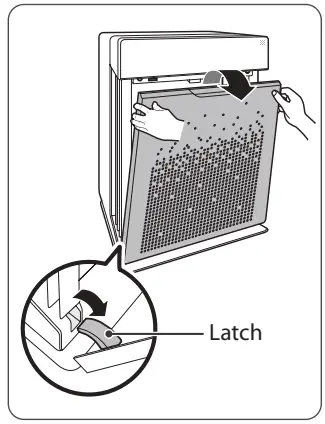

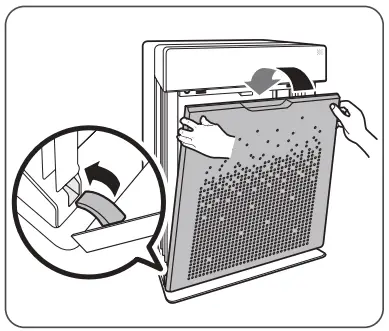

1. Remove the front panel by grasping its upper edge and gently pulling towards yourself.
   To remove the front panel, the latch at the lower edge of the panel must be released from its position.

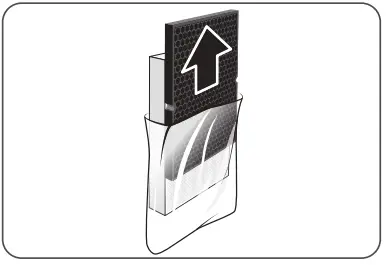

2. Remove the filters from the unit, they are protected inside a plastic wrap.
3. Remove filters from protective plastic wrap.
   Operating the unit without removing filters from plastic may cause abnormal noise, deformation, or fire as a result of overheating.
   NOTE
   Refer to pages 15 – 18 for detailed information on filter care and how to replace them.

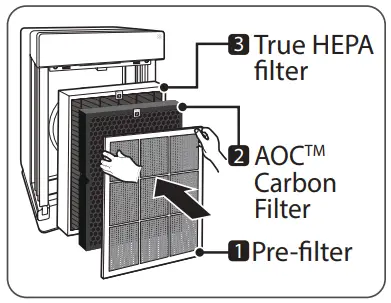

4. Install the filters until they fit securely in place.
   Filters must be installed in this order:
   True HEPA filter (rear)
   AOC™ Carbon Filter (middle)
   Pre-filter (front)
   To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place.
5. Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.
6. When to service and replace filters:

Filter	Indicator Light	When to service	When to replace
Pre-filter	none	Clean once every 14 days	Permanent
ATM Carbon Filter	Check Filter	Clean once every 3 months	Lasts up to 6,-12 months
True HEPA filter		Can NOT be WASHED

• Intervals between filter replacements may vary depending on the environment.
• For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of other filters.

SAFETY AND CAUTIONS

Before operating this equipment, carefully read and follow these safety cautions and instructions to avoid damage and ensure safe use.
Ensure filters are inserted before running unit without filters can shorten the units life and cause electric shock or injury
Be sure foreign objects are NOT inserted into the vents on the unit objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked blockage may lead to increased internal temperatures causing product failure and deformation.
Do not use the unit as a step stool or place heavy objects on it personal injury may occur or product failure and deformation.

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce the risk of damaging the unit.

	Do not pull on the power cord when unplugging the unit.		Do not tie or knot the power cord when the unit is in operation.
	If the unit becomes submerged in water, unplug it and contact customer service.		Do not unplug or move the unit while in operation.
	Do not plug additional appliances into the same outlet or power supply.		Do not touch the plug with wet hands.
	Unplug the unit when not in operation for extended periods of time.		The cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching, or placing heavy objects on it.

• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards.
• Children should be supervised to ensure that they do not play with the appliance.

INITIAL OPERATION

1. Insert the unit plug into an electrical outlet.
   The Control Panel lights will turn on and off.

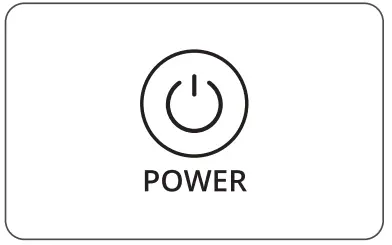

2. Press the ‘Power’ button.
   NOTE
   During the first 4 minutes of power-up, the Air Quality light will flash as the Smart Sensors measure the air quality in the environment, after which normal operation will begin.

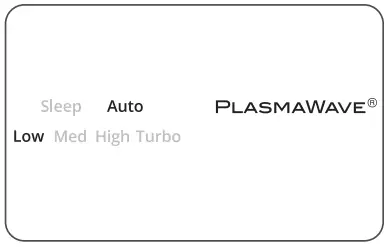

3. By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave enabled.

• When in Auto Mode the fan speed will ® be automatically adjusted according to the environment’s air quality.
• PlasmaWave works to remove harmful airborne contaminants.

NOTE

• In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.
• When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave, it is normal and does not signify product failure. To disable PlasmaWave ®, see page 11.

AUTO AND SLEEP

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

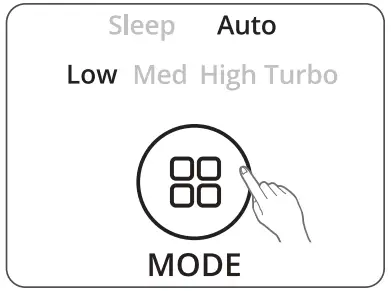

1. Auto Mode
Enables Auto operation based on the unit’s air quality Smart Sensors.

1. Press the Mode button to select Auto mode.
   The mode LED light will indicate when ‘Auto’ mode has been selected, and operation will begin.
   Each time the Mode button is pressed, the modes will be cycled. (Auto, Sleep, Low, Medium, High, Turbo).

NOTE

• When in Auto Mode the fan speed is automatically adjusted according to the indoor air quality. As the indoor air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases the fan speed will automatically be increased.
• When the unit is first started, Auto Mode is enabled and set to Low fan speed.

2. Sleep Mode

1. Press the Mode button to select Sleep mode.
   The mode LED light will indicate when ‘Sleep’ mode has been selected, and operation in that mode will begin.

NOTE

• When Sleep mode is selected, the fan speed is automatically set to Low. Fan speed can be changed by pressing the Fan Speed (Mode) Button.
• When Sleep Mode is enabled, the Air Quality light is disabled.

MANUAL MODE, TIMER, AND PLASMAWAVE®

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

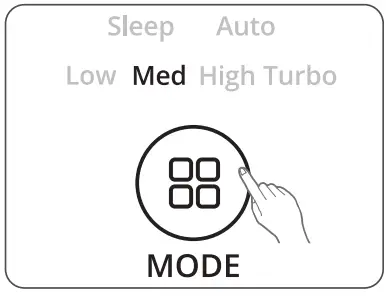

3. Manual Mode (setting fan speed)
Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.

1. Press the Mode button to select the desired fan speed.
   The mode LED light will indicate the selected fan speed, and operation will begin.

NOTE

• When Manual Mode is in use, Auto and Sleep modes are automatically disabled.

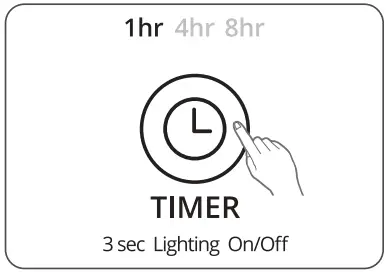

4. Timer
The timer can be set for when you want the unit to run for a specified period of time.

1.  Select the desired period by pressing the Timer button.
   The Timer LED light will indicate the selected length of operation.
   Every time the Timer button is pressed the Timer LED light will cycle through the settings. (1hr, 4hr, 8hr, [NO TIMER]).

NOTE

• The WINIX SMART app will display how much time is remaining on the timer.

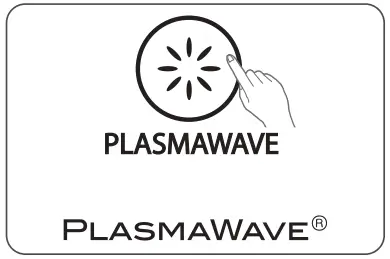

5. PlasmaWave®
By default, PlasmaWave® is enabled whenever the unit is powered on.

1. Press the PLASMA WAVE button when the power is on to enable or disable this feature.

CHILD LOCK, AIR QUALITY LED

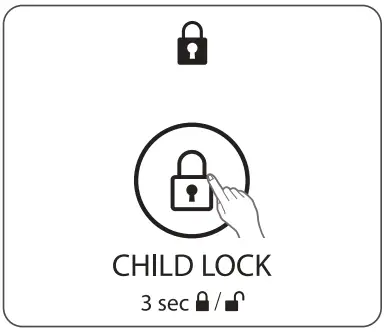

6. Child Lock
This feature prevents children from tampering with the control panel.

1. Press and hold the Child Lock button for 3 seconds to enable or disable the feature.

• When the Child Lock indicator is lit, the feature is enabled.
• When Child Lock is enabled, the control panel is locked and the settings can not be changed.
• To disable, press and hold the Child Lock button again for 3 seconds.

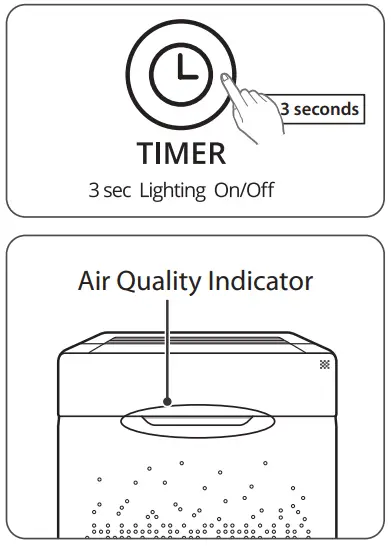

7. Air Quality LED Light
The Air Quality LED light may be turned on or off.

1. To turn the Air Quality LED light on or off, press and hold the Timer button for 3 seconds.
   When on, the LED light will indicate the current indoor air quality according to four levels BLUE (good), GREEN (average), AMBER (fair), RED (poor).

NOTE

• When Auto Mode is enabled the Air Quality LED light may or may not be on, depending on the amount of ambient light in the room.
• When Sleep Mode is activated, the Air Quality Indicator light is turned off.

FILTER CARE

1. Changing Filters
When the Check Filter indicator LED is on, it is time to replace both the True HEPA filter and AOC™ Carbon filters.

Filter	Indicator Light	When to service	When to replace
Pre-filter	none	Clean once every 14 days	Permanent
ATM Carbon Filter	Check Filter	Clean once every 3 months	Lasts up to 6-12 months
True HEPA filter		Can NOT be WASHED

•  Intervals between filter replacement may vary depending on the environment.
• For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of other filters.

Removing Filters
Ensure the unit is turned off and unplugged before removing filters.

•  The unit will automatically power off when the front panel is opened.

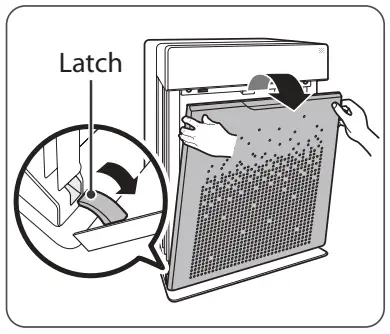

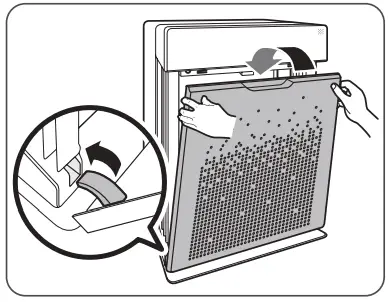

1. Remove the front panel by grasping its upper edge and gently pulling towards
   To remove the front panel, the latch at the lower edge of the panel must be released from its position.

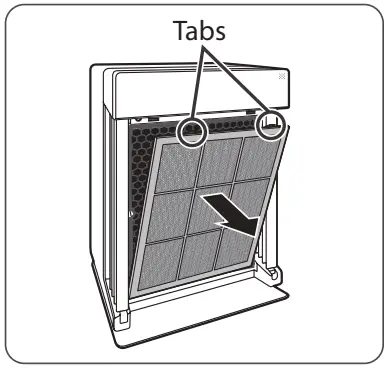

2.  Press the tabs on the top edge to remove the El Pre-filter.

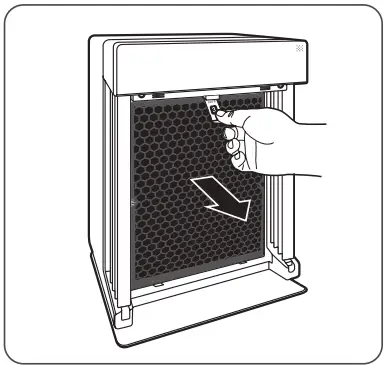

3. First, remove the El AOC” Carbon Filter and then the [Prue HEPA filter by pulling on the numbered tags at the top of each

NOTICE

• For optimal performance, only genuine Winix filters should be used with this unit.

Filter Assembly and Replacement
Filters should be re-installed in the reverse order of their removal.

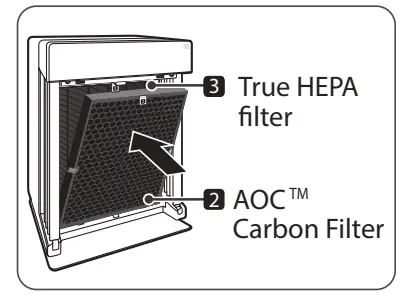

1. Insert the replacement
   True HEPA filter (rear)
   AOC” Carbon Filter (middle)
   Remove the protective plastic wrap from new filters. Operating the unit without removing the protective plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating.

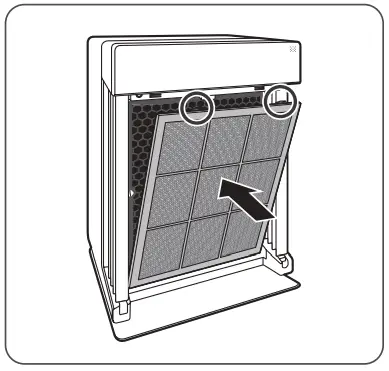

2. Insert the El Pre-filter (front)
   To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place.
3. Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.

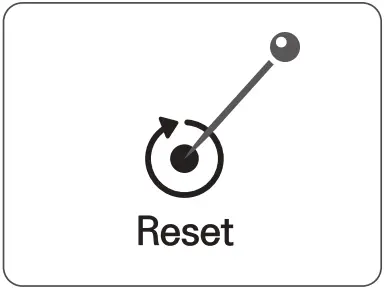

4. After replacing the filters, turn the power back on and then use a thin object, such as a paper clip, to press the RESET switch for 5 seconds.

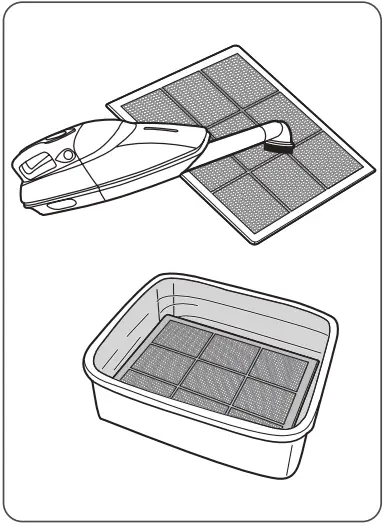

4. Cleaning the Pre-filter
Intervals between filter cleanings may vary depending on the air quality.

1. Use a vacuum cleaner or soft brush to clean the Pre-filter. If it is excessively dirty, wash with room temperature water.
   Use only water, do not use volatile substances such as alcohol or acetone.

• If the pre-filter becomes damaged or in any way needs replacement:
  Please contact your local dealer

NOTICE

• Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
• The Pre-filter is reusable after cleaning.
• Do not use hot water over 40°C or volatile fluids such as paint thinner.
• After washing the pre-filter, allow it to dry completely in a well-ventilated area. Otherwise, it may develop a bad odor.

PARTICLE SENSOR CARE

Particle Sensors Care
For optimal performance of the Particle Sensor, which detects airborne dust and ultrafine particles, clean it every two months. Clean it more frequently when the unit is running in a place with high dust levels.

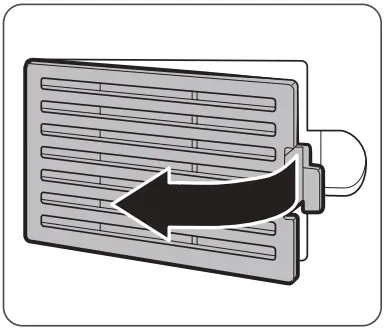

1. Open the Particle Sensor cover.

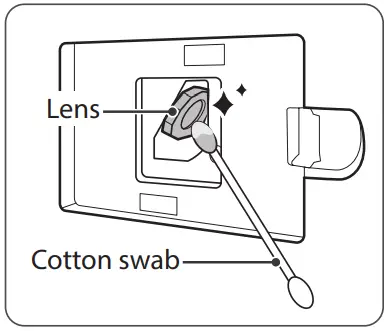

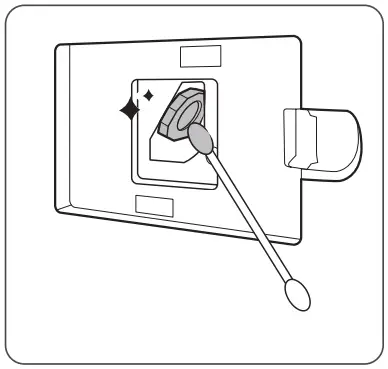

2. Use a damp cotton swab to wipe the lens and intake area of the Particle Sensor.
   To clean the sensor area, use only water Do not use volatile substances such as alcohol or acetone.
3. Wipe away any remaining moisture with a dry cotton swab.

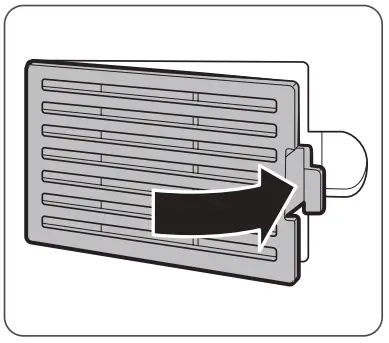

4. Close the Particle Sensor cover.
   The Particle Sensor cover may be cleaned using a vacuum cleaner.

CLEANING CARE

Cleaning the exterior and interior

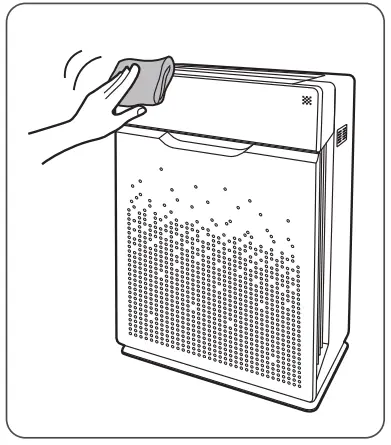

Cleaning the exteriorWipe with a soft damp cloth using room temperature water. Afterward, wipe it down with a clean dry cloth.

• For optimal performance, clean the front panel 1-2 times a month.

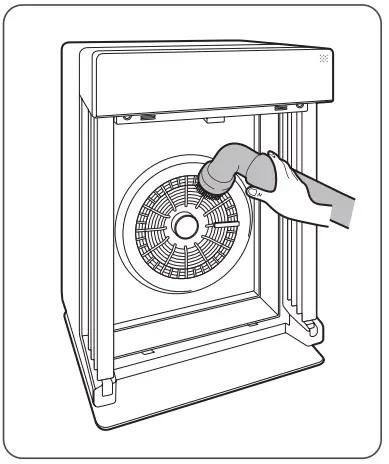

Cleaning the interior

Open the front panel and clean the interior with a vacuum cleaner.

• For optimal performance, clean the interior 1 to 2 times a month.

NOTICE

• When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled off.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid
• Do not allow children to clean or maintain the unit
• Before cleaning or maintaining, ensure the unit is off and unplugged

FREQUENTLY ASKED QUESTIONS

UNIT SPECIFICATIONS

• The exterior, design, and product specifications may be changed to improve product performance without prior notice.

PRODUCT WARRANTY

The terms of the warranty are as follows.

1. This product is manufactured under stringent quality control and inspections.
2. Warranty void if the product failure is a result of negligence or misuse by the consumer, shipping, and service fees may be incurred even during the warranty period.
3. The warranty must be presented upon bringing the product for service.
4. Store the warranty in a safe place, as it cannot be reissued.
5. This warranty is valid only in Europe.

• After purchase, be sure to complete all of the above information.

Contact your local dealer for product-related inquiries and customer service
www.winixeurope.eu
2610-0239-00 Rev. 04
