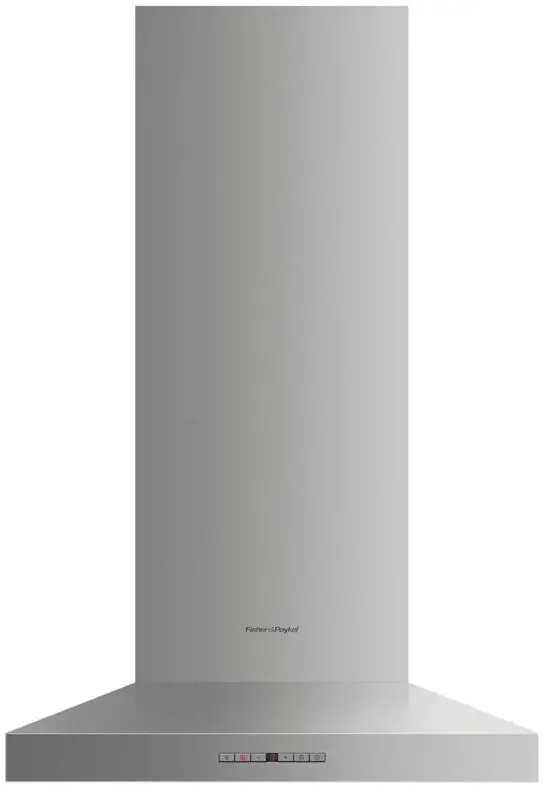

FISHER PAYKEL HC24PHTX1 N 24 Inch Wall Range Hood
Product Information
The HC24PHTX1 N is a wall range hood from Fisher & Paykel’s Pyramid Chimney Series 7. It features a contemporary stainless steel design, making it a stylish addition to any modern kitchen. This range hood effectively extracts steam, grease, and cooking odors while operating quietly and efficiently. With four fan speeds, you can select the perfect extraction rate for your cooking needs. The powerful 600CFM maximum airflow ensures fast and thorough extraction.
The dimensions of the range hood are as follows:
- Height: 25 13/16″ – 43 1/16″
- Width: 23 9/16″
- Depth: 19 11/16″
The HC24PHTX1 N is designed to be easy to install and can be either externally ducted or internally recirculated, making it suitable for apartments. It comes with two dishwasher-safe filters that effectively trap grease particles during extraction. The filters can also be cleaned by hand in hot soapy water. The sleek stainless steel finish of this wall chimney ventilation hood complements contemporary kitchens and matches other Fisher & Paykel kitchen appliances.
Additional product information can be found in the user guide, service and warranty guide, installation guide, and data sheet available for download on the Fisher & Paykel website.
The product is backed by a warranty of 2 years for both parts and labor
Product Usage Instructions
Installation:
- Ensure that the range hood is compatible with your cooktop and kitchen setup.
- Choose between external ducting or internal recirculation based on your requirements.
- Follow the instructions provided in the installation guide for proper installation of the range hood.
Cleaning:
- Regularly clean the filters to maintain optimal performance.
- To clean the filters, remove them from the range hood.
- Place the filters in a dishwasher or clean them by hand in hot soapy water.
- Once cleaned, ensure the filters are completely dry before reattaching them to the range hood.
Operation:
- Use the soft-touch control type on the range hood to adjust settings.
- Select the desired fan speed from the four available options based on your cooking needs.
- The range hood can also be used to provide additional lighting in your kitchen.
- Refer to the user guide for detailed instructions on using the timer function, if available.
Note: For any changes to the dimensions and specifications of the product, it is recommended to contact Fisher & Paykel’s Customer Care Centre.
Stainless Steel
This wall chimney range hood has a contemporary styling, extracting steam, grease and cooking odors quietly and efficiently.
- With four fan speeds, select the perfect extraction rate for your cooking
- Edge-to-edge extraction for increased performance
- Powerful 600CFM maximum airflow

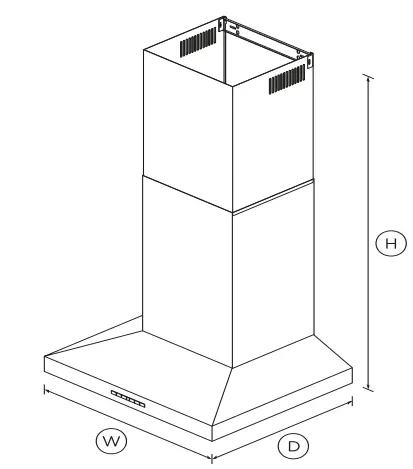

DIMENSIONS
- Height: 25 13/16 – 43 1/16″
- Width: 23 9/16″
- Depth: 19 11/16″
FEATURES & BENEFITS
QUIET AND EFFECTIVE
Odors can linger in the kitchen well after cooking is finished. This vent hood offers four fan speeds for powerful extraction to ensure steam and smells are quickly removed.
EASY INSTALLATION
This wall chimney vent hood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.
SIMPLE TO CLEAN
Two filters effectively trap grease particles during extraction. They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
COMPLEMENTARY DESIGN
This wall chimney ventilation hood’s sleek stainless steel finish will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
Accessories (sold separately)
| Ducting solution | • |
| Recirculation diverter | • |
Fan ratings
| Maximum air movement | 600CFM |
| Maximum sound rating | 67dBA |
Installation and cleaning
| Air outlet size | 6″ |
| Dishwasher safe filters | 2 |
| Stainless steel filter cover | • |
| Two piece height adjustable | • |
Performance
| Extraction type | Surface |
| Fan speeds | 4 |
| Filter type | Mesh |
Power requirements
| Rated current | 5.2A |
| Supply voltage | 120VV |
Product dimensions
| Depth | 19 11/16″ |
| Height | 25 13/16 – 43 1/16″ |
| Width | 23 9/16″ |
Product information
| Control type | Soft-touch |
Ventilation features
| Light type | LED |
| Timer function | • |
Warranty
| Parts and labour | 2 years |
| SKU | 50132 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User Guide
Guide d’utilisation FR
Service & Warranty
Installation Guide
Guide d’installation FR
Data Sheet Wall Range Hood
