Oe Electrics Qikpac Mobile Power Charger Instruction Manual

QIKPAC & QF5 TUF-R HP Removal instructions
INSTR1288
www.oeelectrics.com

QIKPAC Mobile Power Charger

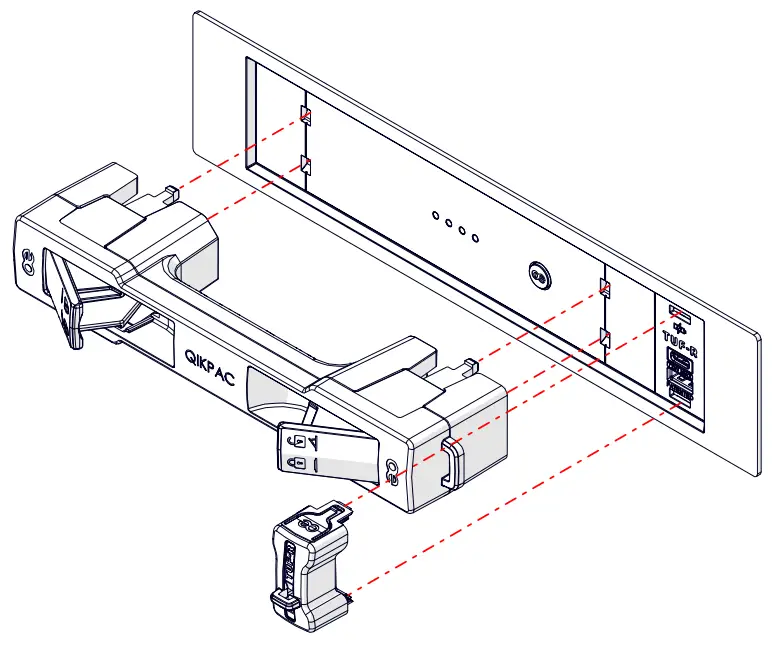

1. To remove align QikPAC and QF5 TUF-R HP removal tools with modules. QF5 removal tool slots into place next to QikPAC removal tool

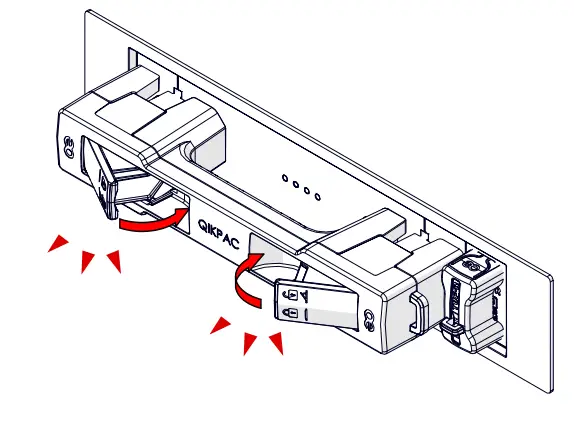

2. Push in clips on QikPAC removal tool until the click is heard

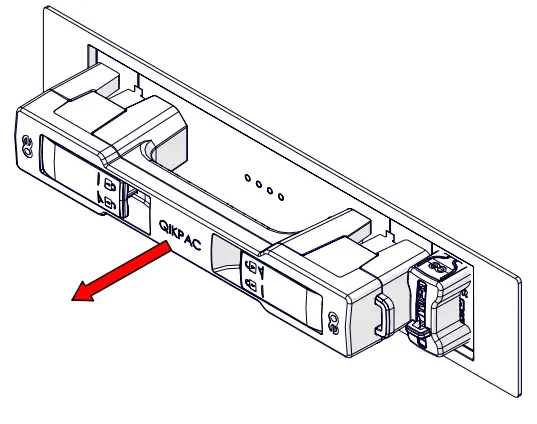

3. Pull QikPAC removal tool to remove both modules together

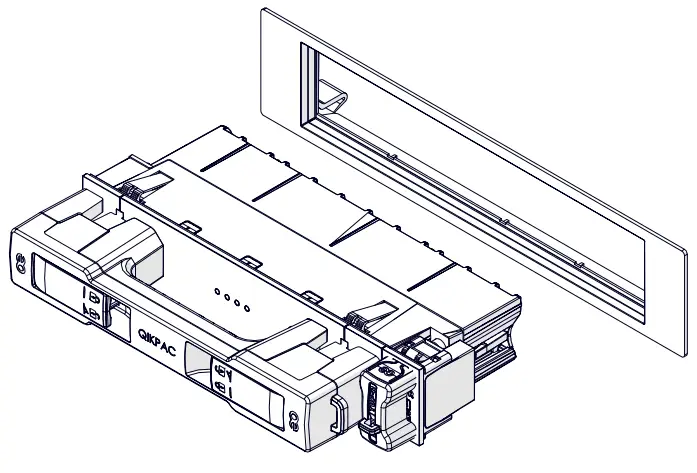

4.

Removing the tools

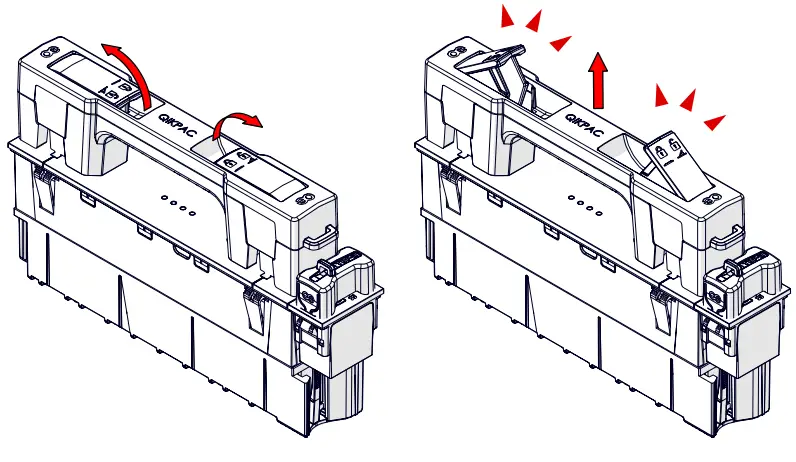

1. Raise clips on QikPAC removal tool until double click is heard and pull to remove

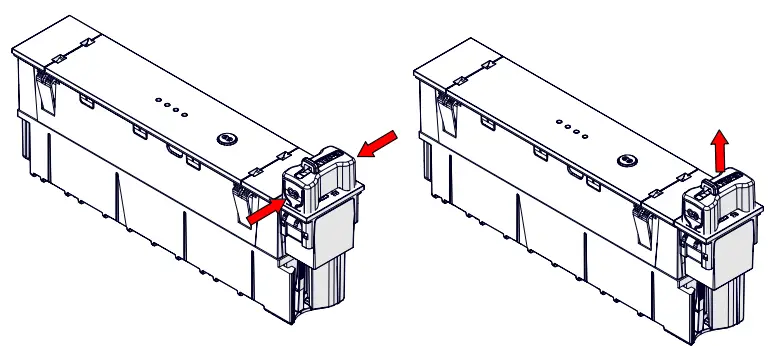

2. Squeeze top and bottom of QF5 removal tool and pull to remove


Release QF5 TUF HP from QikPac

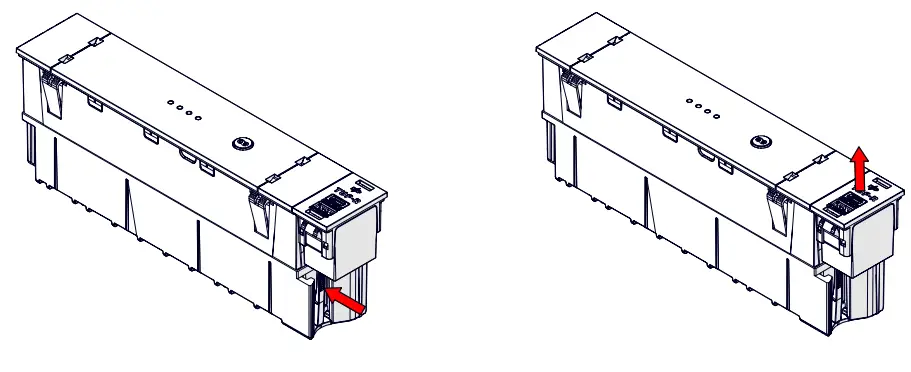

1. Press the spring lock on the right-hand side of QikPac and slide QF5 TUF HP up
