Hon Lin Technology T21B BLE Badge
Product Introduction

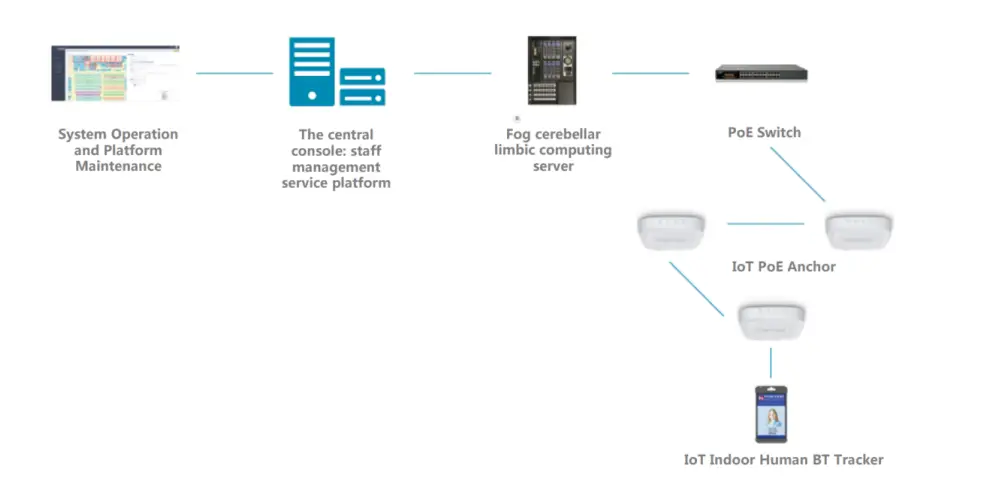

Support BLE 4.0（Bluetooth Low Energy） wireless communication protocol。 The BT Tracker is a sample, sensitive and convenient can be used for indoor locations and intelligent factories. The effective transmission distance of indoor BT human tracker is 10m.
Hardware Specifications
| Item | Technical Information |
| BLE4.0 Frequency Band | 2.4Ghz |
| BLE4.0 Transmission Power | <=4dBm |
| G-Sensor | 3-Axis |
| Button | 1 SOS Button |
| Battery | 3V/500mAh |
| RFID Tag Frequency band | 13.56Mhz |
| LED | Green |
| Level of Protection | IPX3 |
| BLE Antenna | 1 chip Antenna 0.5dBi |
| Dimensions | 111.33 mm (w) x 63.34 mm (l) x 6.3 mm (h) |
| Weight | <39g |
Installation guide
Wear the Ble_Badge on your chest
Software setup
System website: http://10.116.24.152/FIIpmsys Open the IoT positioning system, select Staff/Equipment Management to add Tag， input Mac and corresponding information.As shown in the figure

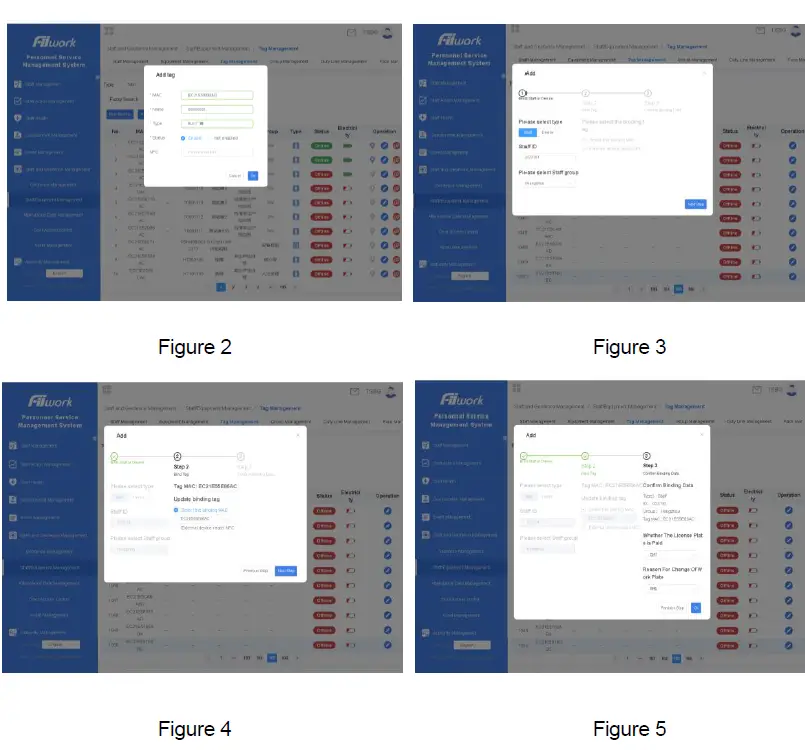

Click Edit to modify the device label information. As shown in figure 3、4、5 below, Modify tag binding personnel.

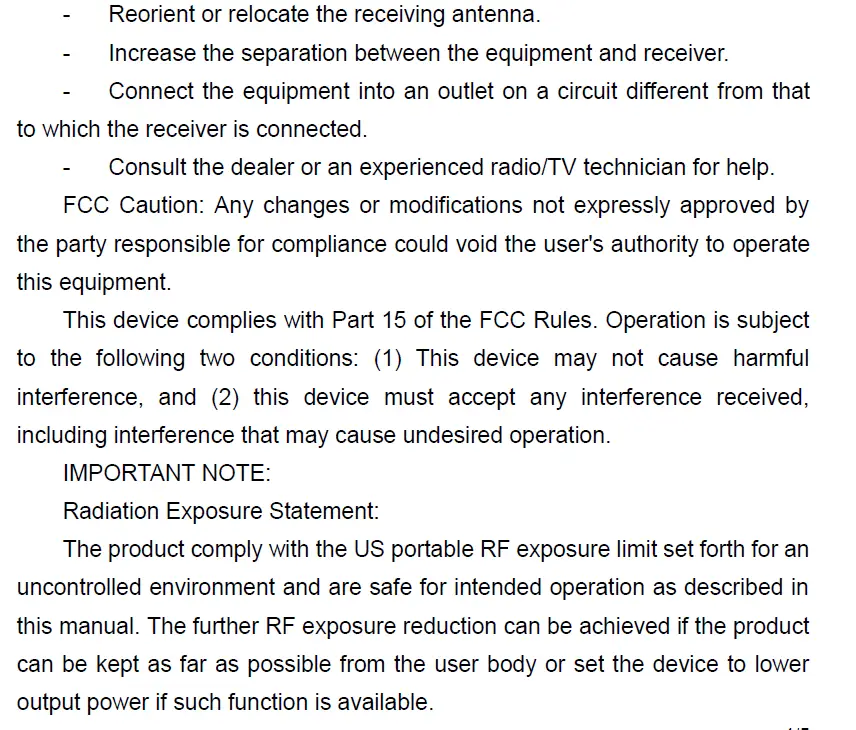

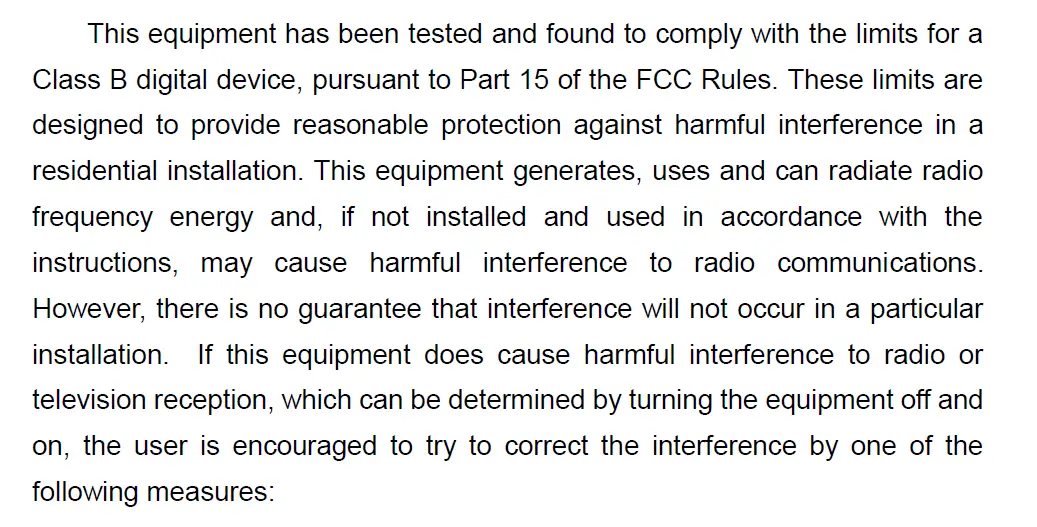

Federal Communication Commission Interference Statement
