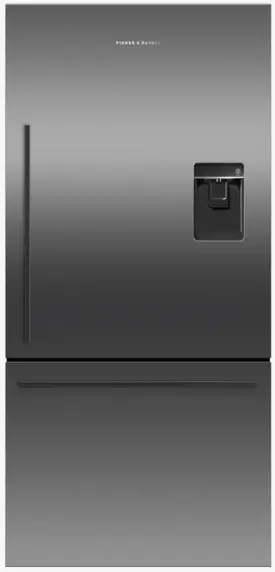

RF170WDRUB5 Freestanding Refrigerator
User Guide
QUICK REFERENCE GUIDE > RF170WDRUB5
Freestanding Refrigerator Freezer, 32″, 17.1 cu ft, Ice & Water
Series 5 | Contemporary Black ”
Stainless Steel | Right HingeSleek black stainless steel design, bringing a contemporary feel to your kitchen.
- Brushed metal handles
- ActiveSmartTM Foodcare helps keep food fresher for longer
- Bottom freezer drawer
- EZKleen anti-fingerprint coating

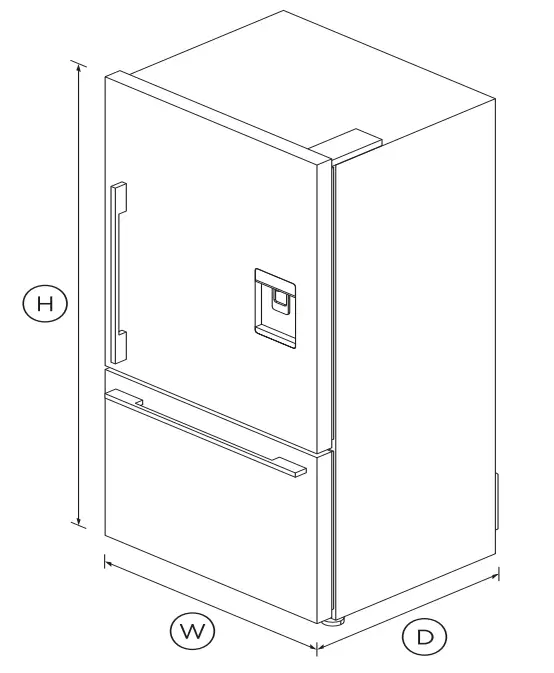

DIMENSIONS
| Height | 67 1/2″ |
| Width | 31 3/32″ |
| Depth | 27 3/8″ |
FEATURES & BENEFITS
ActiveSmartTM Foodcare
ActiveSmartTM technology understands that the refrigerator door is the most open in the house. It constantly adjusts the temperature, airflow, and humidity, maintaining an optimum environment and helping keep food fresher for longer.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Easy to clean
No more dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating lets you simply wipe clean any finger marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Design quality
Our refrigerators are designed and built using robust, quality materials, with stainless steel exteriors and solid glass for the interior shelving.
Humidity control Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
Ice maker
The internal ice maker delivers fresh ice to a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times boost ice production by up to 30%.
Ultra slim water dispenser
The slimline water dispenser is easy to use. The angled water delivery means that almost any size or shape of vessel can be filled while taking up no storage space in your refrigerator door.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | 25379 |
| Matching Replacement Water | 847200 |
| Capacity | |
| Volume freezer | 4.8cu ft |
| Volume refrigerator | 12.3cu ft |
| Consumption | |
| Energy usage | 535kWh/year |
| Features | |
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front leveling feet | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| Rear rollers | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| Large plastic bins | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Power requirements | |
| Amperage | 3.5A |
| Product dimensions | |
| Depth | 27 3/8″ |
| Height | 67 1/2″ |
| Width | 31 3/32″ |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 25952 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
 | User Guide |
| Service & Warranty |
| FP-InstallGuide-RF170WDRUB5-FreestandingFridgeFreezer-CA-US-847798B.pdf (fisherpaykel.com) |
