HOME APPLIANCES
LG LAUNDRY
DLE3600_ / DLG3601_

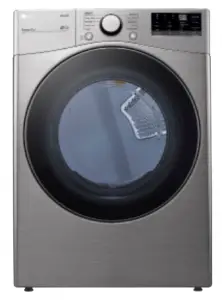

7.4 cu.ft. Front Load Dryer with Built-In Intelligence
7.4 cu. ft. Ultra Large Capacity
AI Fabric Sensor/ Smart Pairing™
LG ThinQ® Technology / Proactive Customer Care Tempered Glass Door
FlowSense™ Duct Clogging and Lint Filter Indicators ENERGY STAR® Certified Closet Depth
LoDecibel™ Quiet Operation Reversible Door
Wrinkle Care Option
AVAILABLE COLORS
- White
- Graphite Steel
Enjoy new ways to control your home with LG smart appliances
- Use the ThinQ® app to start the laundry while you’re out
- Get alerts when the cycle is finished
- With Smart Pairing™, the washer can tell the dryer to select a compatible drying cycle.
SUMMARY
| Type | Front Load Dryer |
| Capacity | 7.4 cu. ft. |
| Matching Washer | WM3600HWA, WM3600HVA |
| Sensor Dry | Yes |
| Color | White (W), Graphite Steel (V) |
APPEARANCE
| Intelligent Electronic Controls with LED Display | Yes |
| Dial-A-Cycle™ | Yes |
| Touch Buttons | Yes |
DRYER PROGRAMS
| No. of Programs | 10 |
| Programs (Sensor Dry) | Normal, Heavy Duty, Bedding, Small Load, Perm Press, Delicates, Towels, Speed Dry (Manual Dry), Air Dry (Manual Dry), Downloaded |
| No. of Options | 9 |
| Options | More Time, Less Time, Damp Dry Signal, Wrinkle Care, Control Lock, Wi-Fi, Energy Saver, Remote Start, Signal |
| Temperature Settings | High, Med.High, Medium, Low, Ultra Low |
| Drying Levels | Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry |
| Manual Dry Times | 60 min., 40 min., 30 min., 20 min., More Time/Less Time |
FABRIC CARE FEATURES
| A.I Dry | Yes |
| Sensor Dry | Yes |
| Precise Temperature Control with Variable Heater | Yes |
CONVENIENCE FEATURES
| 3 Minute Installation Check | Yes |
| LoDecibel™ Quiet Operation | Yes |
| End of Cycle Signal | Yes |
| Drum Light | Yes |
| Reversible Door | Yes |
| FlowSense™ Duct Clogging Indicator | Yes |
| Wrinkle Care Option | Yes |
| Child Lock | Yes |
| Venting Option | Electric: 4 Way Venting / Gas: 3 Way Venting |
| 4 Adjustable Legs | Yes |
| Remaining Time Display/Status Indicator(s) | Yes |
ThinQ® TECHNOLOGY | |
| SmartDiagnosis™ (v3.0) | Yes |
| Wi-Fi | Yes |
| Remote Start and Cycle Monitor | Yes |
| Energy Monitoring | Yes (Wi-Fi) |
ENERGY
| ENERGY STAR® Certified | Yes |
| CEF | 3.94 (Electric), 3.49 (Gas) |
MATERIALS AND FINISHES
| Aluminized Alloy Steel Drum | Yes |
| Tub Rear | Painted |
| Cabinet | Painted Steel |
| Door | Tempered Glass Door |
| All Available Colors | White (W), Graphite Steel (V) |
POWER SOURCE
| Ratings | CSA Listed |
| Electrical Requirements | 120V, 15 Amps (Gas) / 240V 30 Amps (Electric) |
| Type | Electric, Gas |
| BTU Rating | 10,000 Feet |
OPTIONS
| LP Conversion Kit | 383EEL3002D |
| Side Venting Kit | 383EEL9001 B |
| Pedestal | WDP4W, WDP4V |
| Pedestal (WxHxD) | 27 x 14 1/8 x 30 3/4 (50 1/2 D with door open) |
DIMENSIONS (ELECTRIC)
| Product (WxHxD) | 27″ x 39″ x 30 1/8″ |
| Depth with Door Open | 51 3/8″ |
| Carton (WxHxD) | 29 1/2″ x 42 1/4″ x 31 1/4″ |
| Weight (Product) | 121.9 lbs. |
| Weight (Carton) | 140.2 lbs |
DIMENSIONS (GAS)
| Product (WxHxD) | 27″ x 39″ x 30 1/8″ |
| Depth with Door Open | 51 3/8″ |
| Carton (WxHxD) | 29 1/2″ x 42 1/4″ x 31 1/4″ |
| Weight (Product) | 136.03 lbs |
| Weight (Carton) | 151.7 lbs |
LIMITED WARRANTY
| Parts & Labor | 1 Year |
| Drum | 3 Years |
UPC CODES
| DLE3600W (White) | 048231028332 |
| DLG3601W (White) | 048231028349 |
| WM3600HWA (White) | 048231028264 |
| DLE3600V (Graphite Steel) | 048231028318 |
| DLG3601V (Graphite Steel) | 048231028325 |
| WM3600HVA (Graphite Steel) | 048231028257 |
