LG Digital Signage
(MONITOR SIGNAGE)
65TR3DJ-E 65TR3DJ-B 65TR3DJ-I
75TR3DJ-E 75TR3DJ-B 75TR3DJ-I
86TR3DJ-E 86TR3DJ-B 86TR3DJ-I
Installation Guide
Please read this manual carefully before operating your set and retain it for future reference.

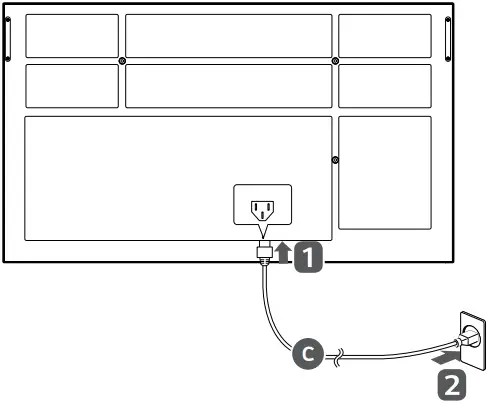

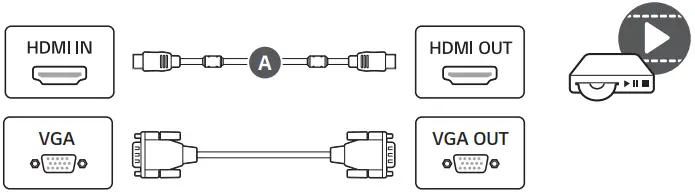

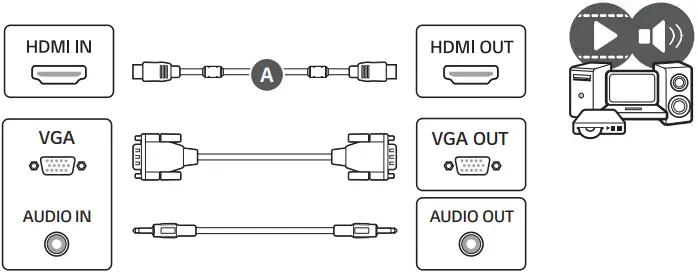

A

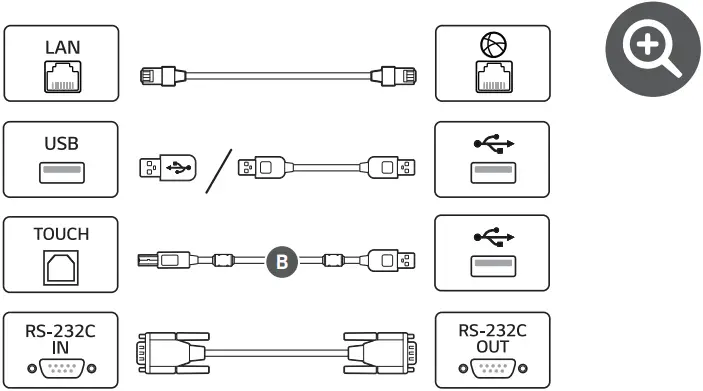

B
C
Printed in Korea
You can download more detailed information on our website by searching the model number provided on the cover page.
| Dimensions (Width x Height x Depth) / Weight | 65TR3DJ-B 65TR3DJ-I 65TR3DJ-E | 1,489 mm x 897 mm x 87 mm / 38.75 kg (58.6 inches x 35.3 inches x 3.4 inches / 85.4 lbs) |
| 75TR3DJ-B 75TR3DJ-I 75TR3DJ-E | 1,710 mm x 1,020 mm x 87 mm / 53.1 kg (67.3 inches x 40.1 inches x 3.4 inches / 117.0 lbs) | |
| 86TR3DJ-B 86TR3DJ-I 86TR3DJ-E | 1,957 mm x 1,160 mm x 87 mm / 67.45 kg (77.0 inches x 45.6 inches x 3.4 inches / 148.7 lbs) |

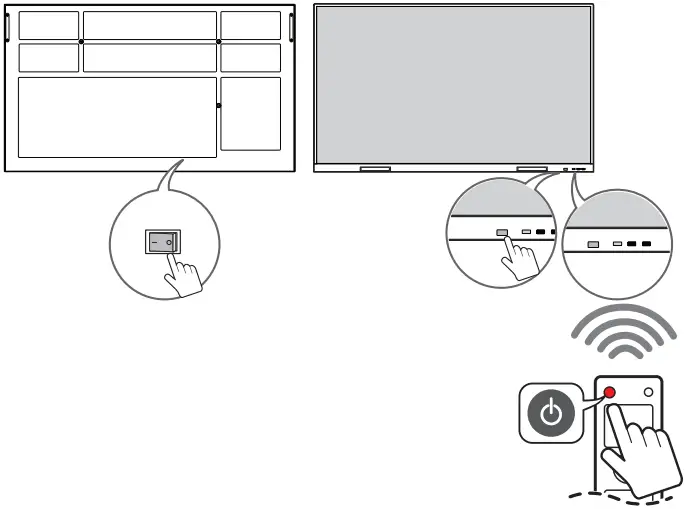

1 2
3 4
(2112-REV04)
