QUICK REFERENCE GUIDE > TDS1-20
Tower Drawer Single
Stainless Steel

Contents hide

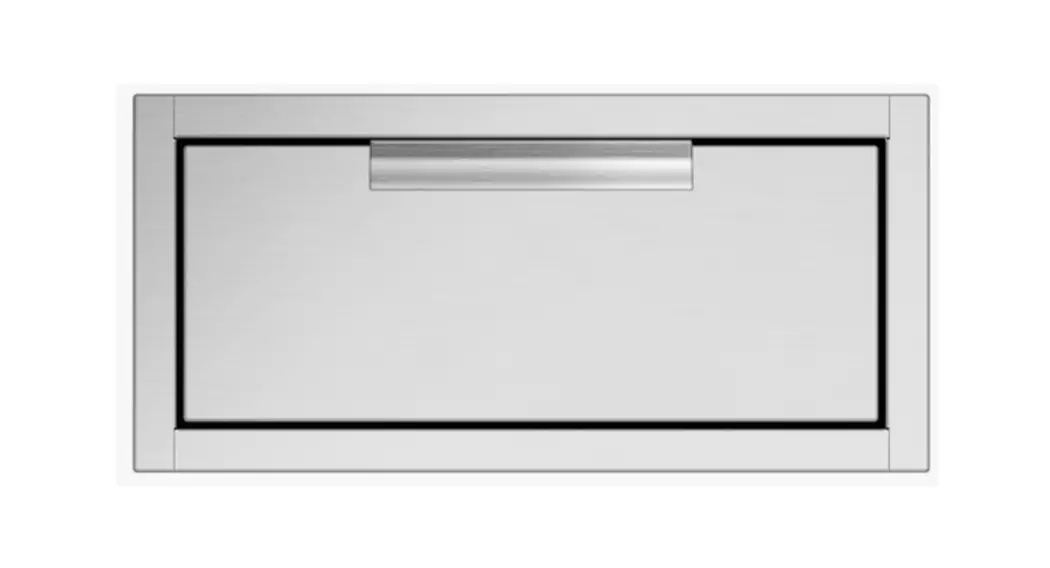

TDS1-20 Tower Drawer Single

DCS Tower Drawers offer a convenient storage solution. Weather resistant and durable, the drawers are designed to store everything from tools to condiments and serveware. Understanding that outdoor kitchen designs require the same level of functionality as indoor ones, DCS Tower Drawers can be installed in many configurations.

DIMENSIONS

Height	9 5⁄8 “
Width	20 1⁄3 “
Depth	25 “

SPECIFICATIONS

Finish

Built-in installation	•
Material	304-grade stainless steel
Weather resistant	•

Install dimensions

Cutout depth (flush)	26 “
Cutout depth (proud)	24 “
Cutout height (flush)	9 13⁄16 “
Cutout height (proud)	8 7⁄16 “
Cutout width (flush)	18 7⁄8 “
Cutout width (proud)	18 7⁄8 “

Performance

Commercial quality material	•
Complementing handle design	•
Flush or proud mount	•
Full extension slides	•
Insulated solid doors	•
Soft close drawers	•

Product dimensions

Depth	25 “
Drawer weight-rating	75lbs “
Height	9 5⁄8 “
Internal drawer depth	21 1⁄2 “
Internal drawer height	5 “
Internal drawer width	15 5⁄16 “
Width	20 1⁄3 “

Shipping Information

Packaged weight

38lbs

Warranty

Parts and labor	2 years
Stainless steel assemblies	5 years
SKU	71496

TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? DCS by Fisher & Paykel Appliances Limited 2020
