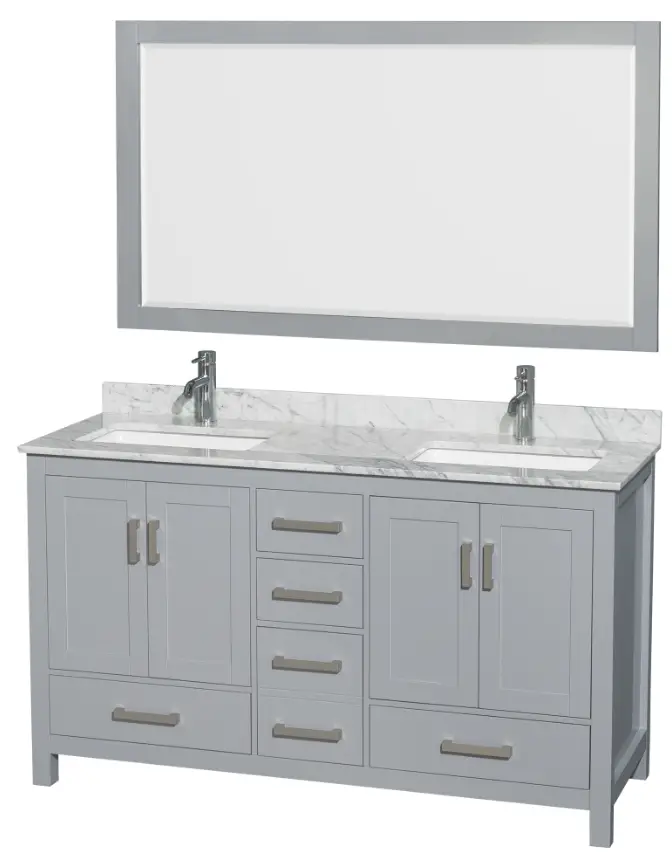

Wyndham Collection Wc-4141-60-dbl Sheffield 60 Inch Double Bathroom Vanity Installation Guide (+ PDF)

Home » Blog » Wyndham Collection Wc-4141-60-dbl Sheffield 60 Inch Double Bathroom Vanity Installation Guide

Contents hide

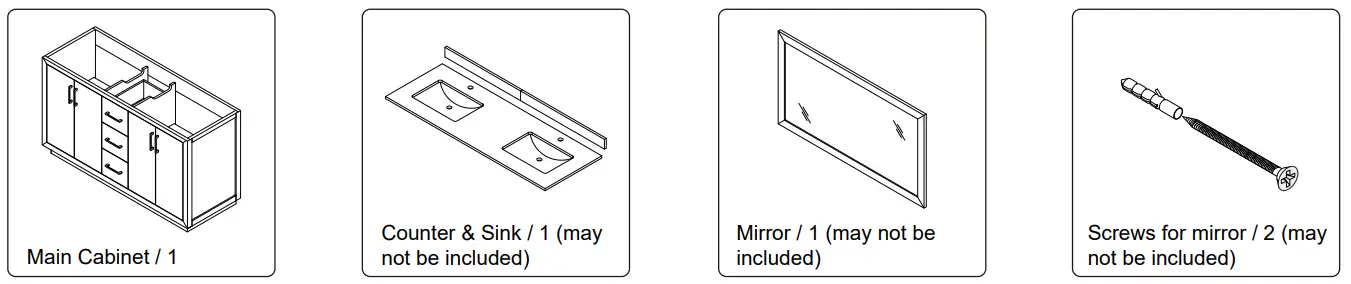

Prior to installation please check the received items against the “Packing List”.
Please report any missing items to your retailer immediately.
Protect all surfaces from sharp objects, high heat sources, direct prolonged sunlight, and chemical hazards.
Professional installation is recommended.

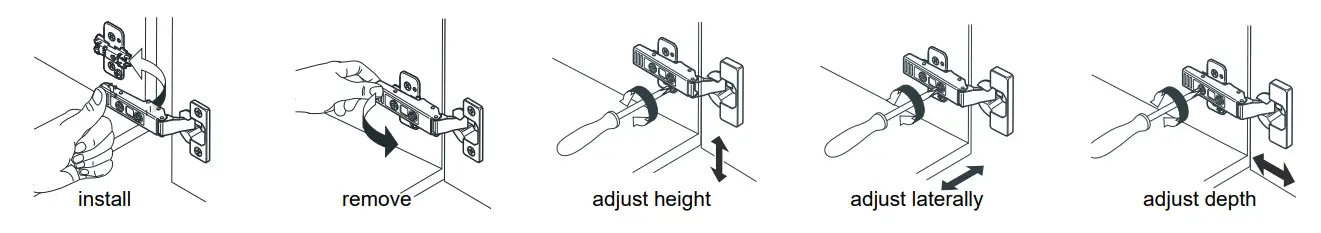

Please install on a level surface. If minor door and drawer alignment is required, please follow the easy directions below.
Backsplash comes in two pieces.

(Not all components may be included, depending upon your purchase)

(if required)

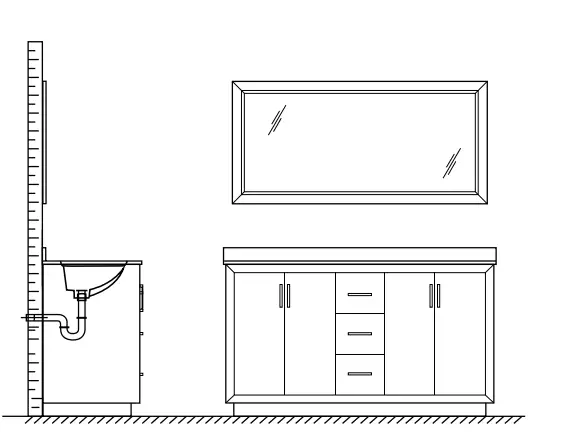

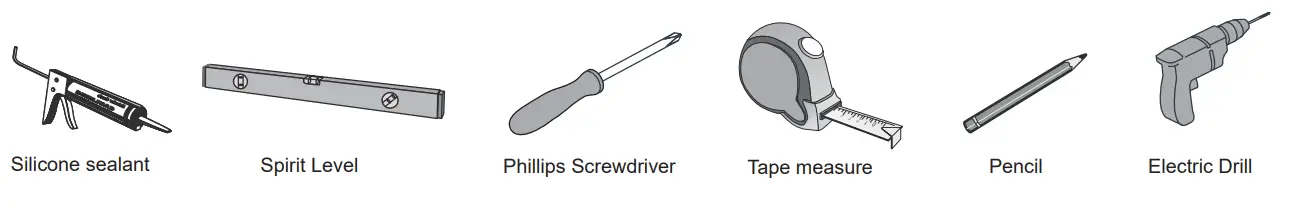

Install the counter. Seal around the top of the cabinet with clear silicone sealant. Do not over apply. Allow to dry 24 hours for proper curing.
Install the mirror: use a pencil to mark the placement of the screw holes on the wall, drill the holes and insert the plastic wall anchors.
Install the screws into the wall anchors, leaving enough of the screw exposed to hang the mirror – approx 1/4” -1/2”.

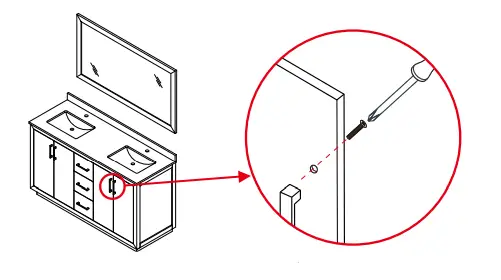

Remove the handles from inside the cabinet doors and drawers and reinstall on the outside. Do not over tighten when reattaching.

(if required)

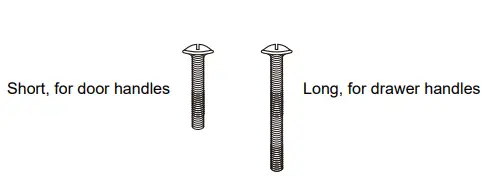

Short screws are for the door handles and long screws are for the drawer handles.

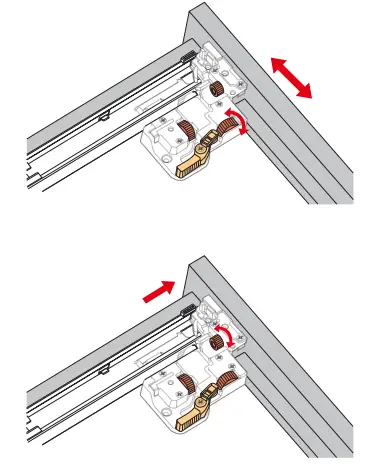

Side Adjustment

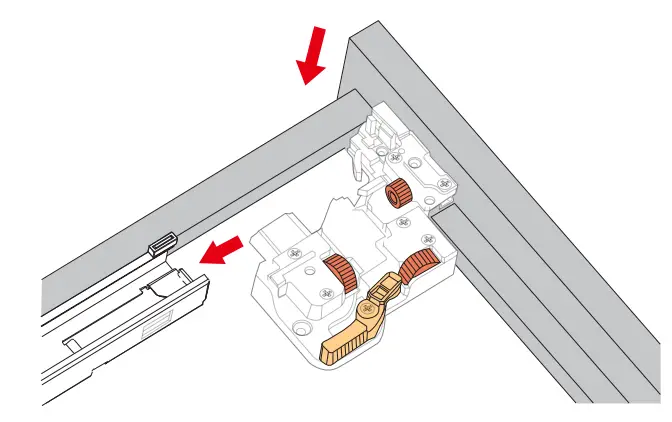

Depth Adjustment
Scan the QR code with your phone to watch detailed video instructions or visit www.wyndhamcollection.com/3dslides

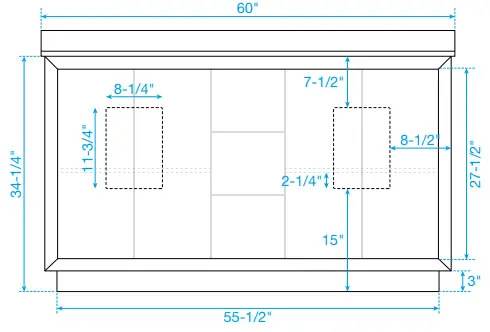

Note: All measurements are ± 1/4”.

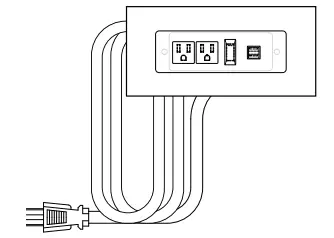

Easy to install
Long 5 foot plug-in cord
2 electrical outlets, 125V 15A
Tamper Resistant (TR) outlets
Power reset switch
2 USB ports, 5V 2.1A Max
Use with ground-fault circuit interrupter (GFCI) outlets only Residential use only
Follow all applicable electrical codes
ETL Listed
Conforms to UL Standard 962A
Certified to CAN/CSA Standard C22.2 No. 308
