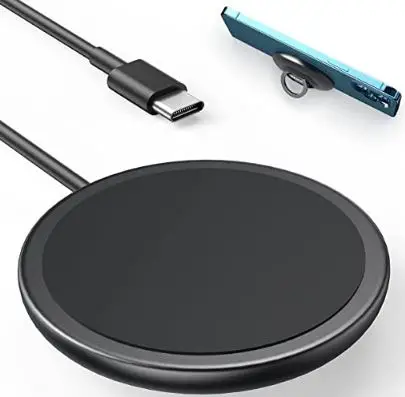

BOLLO DA1121 Wireless Charger
OVERVIEW
SPECIFICATIONS
| Categories | Specification | Remark |
| Product Name | FOURING BOLLO Wireless Charger | DA1121 |
| Certified By | WPC 1.2 | FOD (Foreign Object Damage) feature |
| Operating Frequency | 110 ~ 123kHz | WPC Operating Area |
| Input | DC9V / 1.67A | RX Power : 9W (Max) |
| Operating Temperature | -20℃ ~ +60℃ | – |
| Manufacturer | WLT Co., Ltd. | Made in China |
| Address | #205, 175, LS-ro, Gunpo-si, Gyeonggi-do, Korea | – |
| A/S | +82-70-7720-5900 | – |
PRECAUTIONS
- Do not use protective mobile cases more than3 mm thick.
- Use the endorsed AE film when attaching Alpha Ring
- For maximum charging efficiency, attach it to the rear center of the phone.
- Avoid using the product in wet conditions
INSTALLATION INSTRUCTION
- AE Film (Adhesion Enhanced Him) is a film that supports the adhesion of alpha rings by bonding to the silicon surface and AF waiting that ane less adhesive
- Attach the AE film to the rear center of the phone.
- Remove the protective film on the back of the alpha ring and attach on top of the AE film. Recommend using 1o minutes after the Alpha Ring application for maximum adhesion.
FCC STATEMENT
FCC Part 15.19
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation
CC Part 15.21
Any changes or modifications (including the antennas) to this device that are not expresly approved by the manufacturer may void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
- This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment.
- This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter
