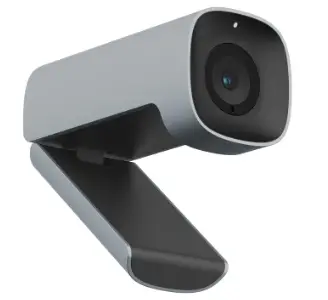

Angekis ATO-01 Torpedo 4K Webcam with 2x Digital Zoom

Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-product

Explanation

Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-fig-1

  • Optical Glass Lens
  • LED Indicator Light
  • Silicon Privacy Lens Cover
  • Microphone
  • Built-in Bracket Mount
  • Accessory Mounting Receiver
  • USB Type-C Port

Product Features

Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-fig-2

supports both Landscape and Portrait Video Displays. Flexibility to meet any application.

USB Type-C Port

A USB Type-C cable provides video output camera control, power supply, and program upgrades.

Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-fig-3

Connection

  1. Connect your computer to the webcam via the included USB Type-C cable (1m).
  2. Plug and play, no need to install any drivers. Supports standard UVC and UAC protocols.
  3. The LED will light up when the app is using the webcam.

Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-fig-4

Video Format

  1. Outputs both MJPG and YUY2 compression video
  2. capable of supporting 3840*2160@30fps and
  3. 1920″1080@60fps. Supports Windows, Mac OSX, Android
  4. Chrome and Linux operating systems.

MJPG

Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-fig-5Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-fig-6

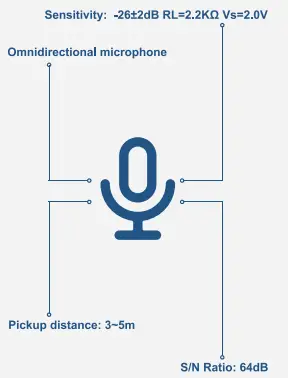

Mic Parameters
Built-in Microphone with Noise Cancellation.

Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-fig-7

Installation Mode

Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-fig-8

  1. The webcam is fixed on the tripod (sold separately).
  2. The webcam is fixed to the top of the display.

Size & Weight

  • Webcam Size: 89mmxq>45mm
  • Package Size: 110mm•70mmx93.5mm
  • Net Weight: 0.16kg
  • Gross Weight: 0.27kg

Angekis-ATO-01-Torpedo-4K-Webcam-with-2x-Digital-Zoom-fig-9
