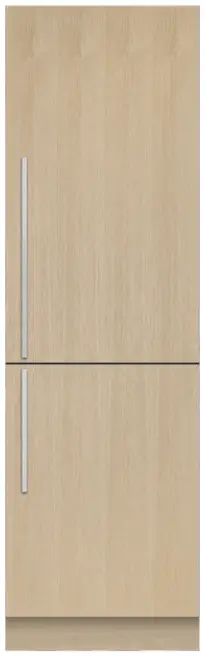

FISHER PAYKEL RB2470BRV1 24-Inch Integrated Refrigerator Freezer User Guide
Integrates seamlessly into surrounding cabinetry with a flush fit, and a reversible hinge to suit your kitchen design.
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel
- Spacious bottom freezer with easy-slide internal drawers to separate storage
- With an independently operating Variable Temperature drawer, which you can set to a temperature between 23°F and 37°F.
- 8 cu ft total capacity

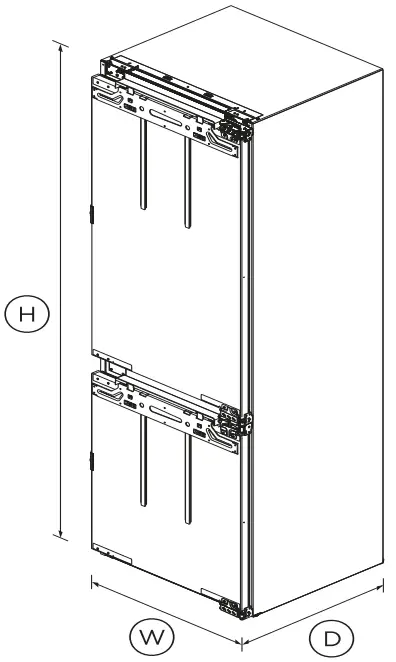

DIMENSIONS
Height 69 3/4″
Width 21 7/8″
Depth 21 1/4″
FEATURES & BENEFITS
No more gaps
Our integrated products are designed to fit flush into your cabinetry. Customize your appliance with your own cabinetry and handle or purchase a stainless steel door panel and handle kit accessories.
Variable temperature drawer
Designed to allow optimal storage of fresh meat, produce, deli and dairy products at their ideal temperatures. Operating separately from the fridge and freezer, the drawer operates from 23°F and 37°F, with 37°F ideal for fruit and vegetables, 30°F perfect for fresh meats, and 23°F for fast chilling – keeping your food fresher for longer.
Simple storage
This fridge is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Adjustable shelving in the main cavity and door provide flexible storage options.
Fast freezing
When freezing fresh food, the freshness, texture and taste are retained with rapid freezing. The Fast Freeze function boosts the freezing speed by dropping the freezer to its coldest temperature (11°F) for 12 hours ensuring food is fast and fully frozen. Plus, you never need to worry about defrosting your
fridge with the built-in frost-free function.
Beautiful Lighting
Bright LEDs light up the ceiling, shelves, bins and tray in both fridge and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Easy installation
Our integrated products are easy to install, whether you are renovating your kitchen or designing a new one. They are designed for minimal gaps with adjustable door panels that can be customized to match your kitchen.
Easy cleaning
Spill-safe secure glass shelves easily capture any drips or leaks and prevent them from falling on items below.
SPECIFICATIONS
Accessories
Contemporary round handle AHS-RD70B
Contemporary square handle AHD3-RD70B
Stainless Steel Door Panel Set (Left Hinge) RD2470BL, (Right
Sabbath mode •
Variable temperature •
Power requirements
Rated current 10A
Supply frequency 60Hz
Supply voltage 120V
Product dimensions
Depth 21 1/4″
Height 69 3/4″
Width 21 7/8″
Product information
Unpack aged weight 165lbs
Warranty
Parts and labor 2 years
Sealed system parts only 5 years
SKU 25381
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
