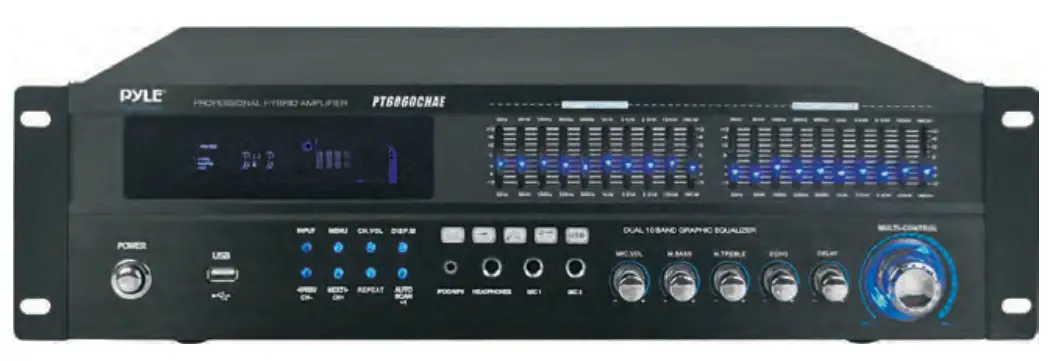

PYLE PT6060CHAE Channel Wireless BT Home Theater Amplifier User Manual

Contents hide

1 Front and Back Panel

2 Remote Control Functions

3 WIRELESS BT STREAMING OPERATION INSTRUCTION

4 Features

5 Wireless BT Connectivity:

6 What’s in the Box

7 Technical Specs

8 Documents / Resources

8.1 References

9 Related Posts

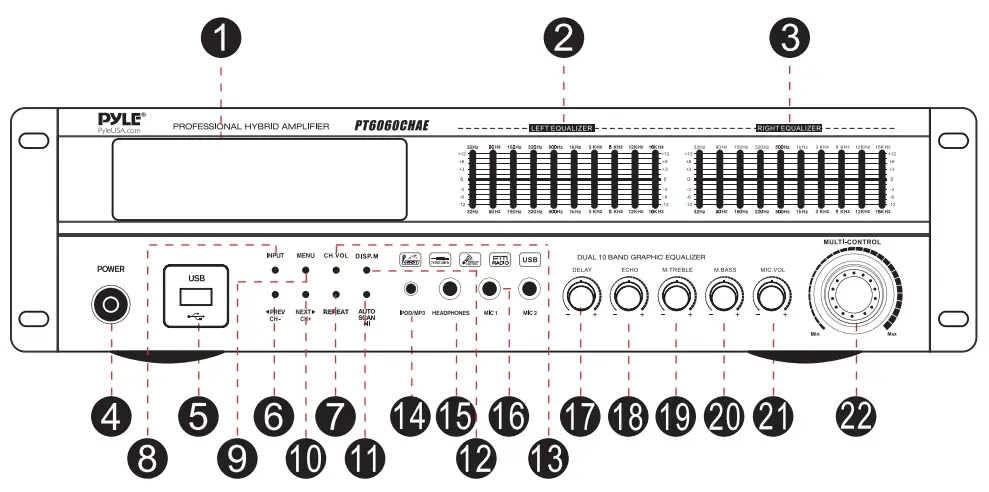

Front and Back Panel

LED Digital Display
Left Equalizer
Right Equalizer
Power ON/OFF Switch
USB Reader
Previous Song/Previous Station
Repeat Function
Input Selector
Next Song/Next Station
Menu
FM Mode: Auto scanAudio
Input Mode: Play/Pause
DISP. M
Channel Volume Control
IPOD/MP3 Inputs Jack
Headphones Input
Mic 1 & Mic 2 Input
Delay Control
Echo Control
Treble Volume Control
Bass Volume Control
Mic Volume Control
Master Volume Control

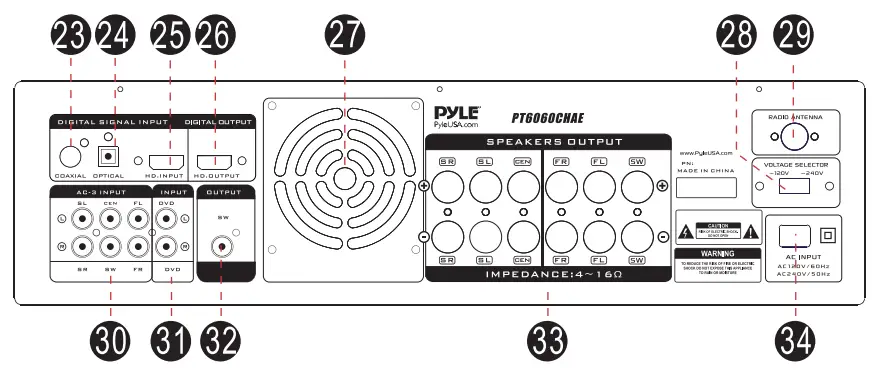

Coaxial Input Jack
Optical Input Jack
HDMI Input
HDMI Output
Cooling Fan
120V/240V Voltage Selector
FM Radio Antenna
AC-3 Inputs
DVD Input (L/R)
Subwoofer Output
Speaker Output
AC 120V/240V Input

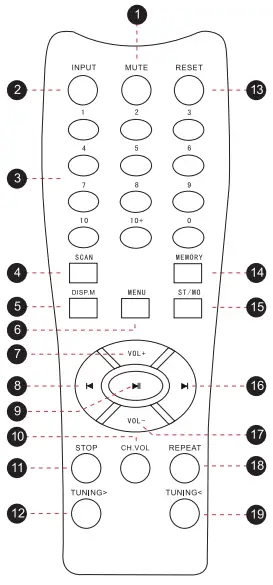

Remote Control Functions

Mute button
Input button: Switch between input sources.
Numeric key pad: In USB mode, use to manually select tracks. In radio mode use to manually select stored stations.
Scan button: Scan between stations.
Spectrum display mode.
Menu button: Controls function of Master Volume (Volume, Bass, Treble, Balance)
Master Volume + button: Increases volume level.
Previous button: Move back through tracks from USB Input
Play/Pause button: Play and pause music from USB Input
Channel mode volume
Stop button: Stops music playing from USB input
Tuning Forward button: Move forward through radio stations.
Reset button: Resets volume to 20dB
Memory button: Allows user to save selected stations.
Stereo/Mono button: Toggles between Stereo and Mono modes.
Next button: Move forward through tracks from USB input
Master Volume – button: Decreases volume level.
Repeat button: Repeats current track from USB Input
Tuning Back button: Move back through radio stations.

WIRELESS BT STREAMING OPERATION INSTRUCTION

External devices which have a built-in Wireless BT feature can be connected to this amplier wirelessly to play through the amplier’s speakers. If your amp is connected to speakers, you will hear audible tones which will help for connecting.

Press the “INPUT” button located on the front panel and select “BT” mode.
Turn ON the Wireless BT of your external device.
Search for available BT devices and make sure to be within range of your amp, and wait for your device to select “PT6060CHAE” on the pairing devices lists of Wireless BT networks.
The unit is automatically ready to pair with your devices when you hear audible tones.
Now you can play music on your external device through the amplier.

Features

Wireless BT Streaming Ability
Built-in USB Playback
VFD Display
FM Radio
IPOD/MP3(3.5mm) Input
MIC/HDMI/AC-3/DVD Inputs
BT Home Theater Amplier
Compact Home Theater-Stereo Receiver Style
Built-in BT for Wireless Music Streaming
Speaker Output
Optical/Coaxial Digital Signal Inputs
Multi-Channel Audio Input Selection
MP3/WAV Audio Files Support
Connect & Stream Audio from External Devices
Front Panel Audio Control Center
Radio Station Auto-Search Scan
Spectrum Mode Functions
Repeat Audio File Functions
Channel Volume Adjustable
Treble, Bass, Echo, Master & Microphone Volume Control

Wireless BT Connectivity:

Receives Wireless Signal for Audio Streaming
Simple & Hassle-Free Pairing Setup
Integrated Antenna for Extended Wireless Range
Works with All of Today’s Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.)
Wireless BT Version: 5.0
Wireless BT Network Name: ‘PT6060CHAE’
Wireless Range: 40’+ Ft.

What’s in the Box

Desktop Stereo Amplier
Remote Control
FM Antenna
Handles

Technical Specs

Power Output: 2000 Watts Peak Power
Operating Voltage: 120V/240V
Remote Control Battery: Need 2x ’AAA’ Battery (not included)
MAX Power Output: 80 Watt x6 (@ 4 Ohm)
RMS Power Output: 70W*3+50W*3 (@ 4 Ohm)
Tone Control: Bass, f=100Hz +/-12dB, Treble, f=10 KHz +/-12dB
Tone Control for Mic: Bass, f=100Hz +/-8dB, Treble, f=10 KHz +/-8dB
Frequency Response: 20Hz-20 kHz
Frequency Adjustment: +/-2dB
Signal to Noise Ratio: >75 dB
T.H.D.: <0.5%
Radio Station Presets: Up to 40 Stations
Separation Degree: >45dB
Power Supply: 120V/240V, Switchable
Dimensions (L x W x H): 16.93” x 11.81” x 4.72” -inches

WARNING:
This product can expose you to a chemical or group of chemicals, which may include “Lead (PB)” which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
