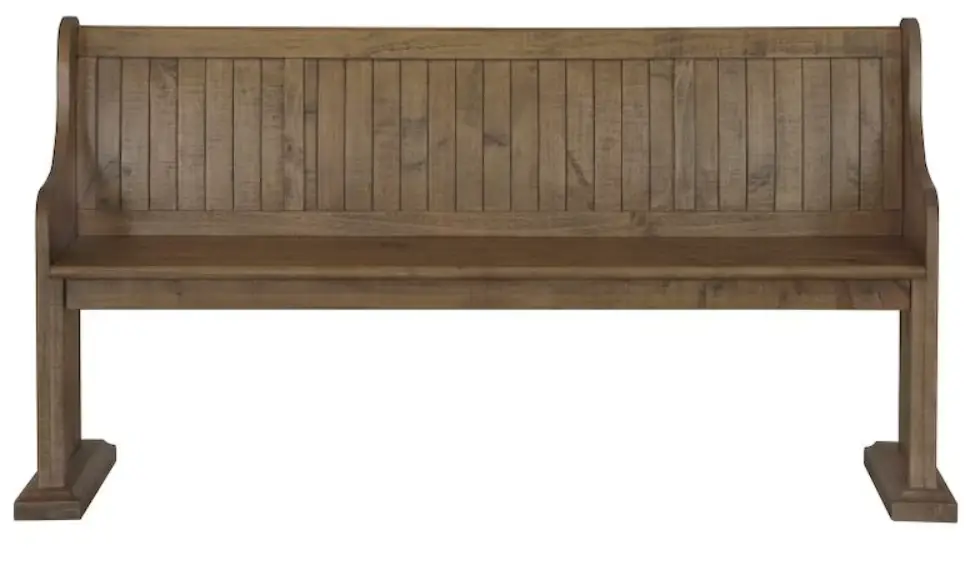

MAGNUSSEN HOME D4209 Dining Room Bench
CAUTION: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING THE ASSEMBLY OF THIS PRODUCT. THESE PIECES ARE HEAVY. IN ORDER TO PREVENT PERSONAL INJURY AND ENSURE THAT THIS PRODUCT IS NOT DAMAGED DURING THE ASSEMBLY PROCESS,IT IS STRONGLY RECOMMENDED THAT YOU ENLIST THE ASSISTANCE OF ONE OR MORE PEOPLE.

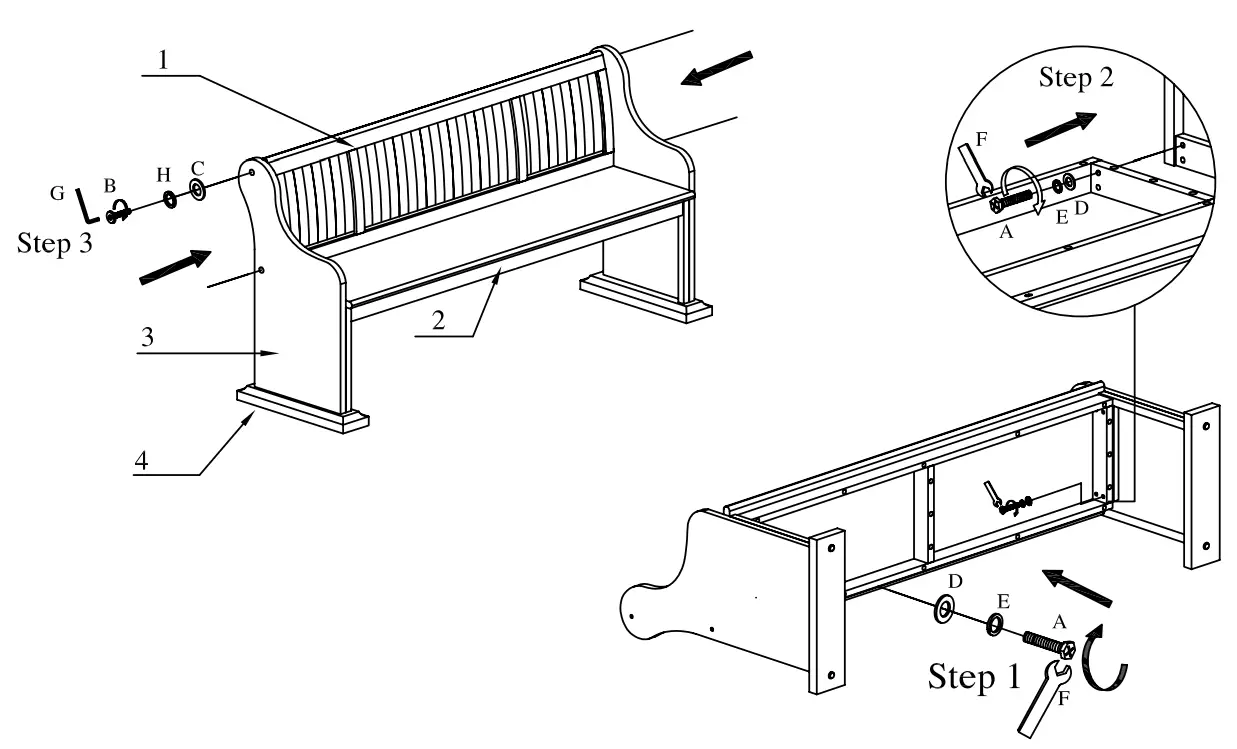

ASSEMBLY INSTRUCTIONS
LIST OF PARTS AND HARDWARE: | LIST OF PARTS AND HARDWARE: | ||||||||
| No. | Description | Q’ty | No. | Description | Q’ty | ||||
| 1 | Back frame | 1 | A |  | Bolt | Ф D5/16″* 50mm | 12 | ||
| 2 | Seat frame | 1 | B |  | Bolt | Ф D 1 /4″* 40mm | 4 | ||
| 3 | Left & Right legs | 2 | C |  | Flat washer | Ф D6/Ф D 19mm | 4 | ||
| 4 | Floor glide | 4 | D | | Flat washer | Ф D9/Ф D22mm | 12 | ||
| E |  | Lock washer | Ф D9/Ф D 11mm | 12 | |||||
| F |  | Wrench | 12mm | 1 | |||||
| G |  | Allen Key | 4mm | 1 | |||||
| H | | Lock washer | Ф D6/ФD9mm | 4 | |||||
