Lg Sn6y 420w 3.1-channel Soundbar System Owner's Manual

SIMPLE MANUAL
Wireless Sound Bar
MODEL
SN6Y

Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions for advanced features, visit http://www.lg.com and then download Owner’s Manual. Some of the content in this manual may differ from your unit.

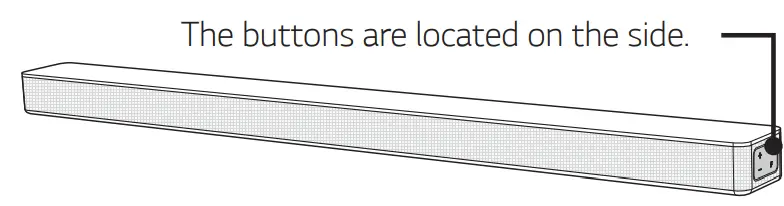

Front Panel

(Standby) · · · · · · · · · · · ·Switches the unit ON or OFF.
F (Function) · · · · · · · · · · · · · · · ·Selects function.
-/+ (Volume) · · · · · · · ·  · · · · · · · Adjusts volume.

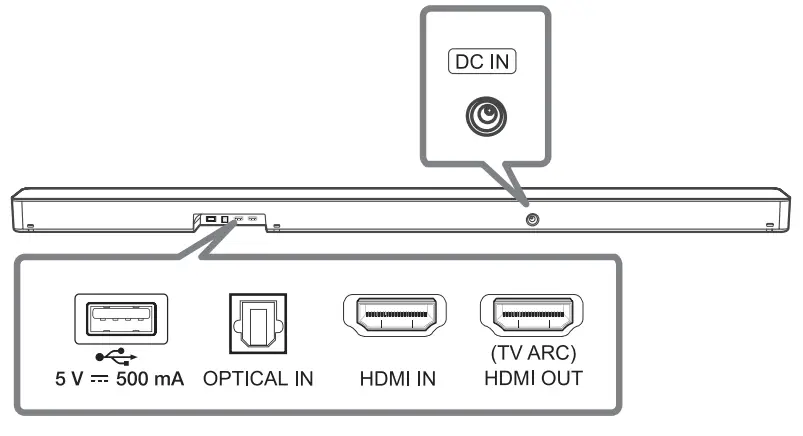

Rear Panel

DC IN · · · · · · · · · · · · · · · · · · · · · Connect to the AC adapter.
USB Port · · · · · · · · · · · · · · · · · · · ·Connect to a USB device.
OPTICAL IN · · · · · · · · · · · ·Connect to an optical device.
HDMI IN · · · · · · · · · ·Connect to device with HDMI OUT.
(TV ARC) HDMI OUT · · · · · · · · · · · · · · · Connect to a TV.

• It is recommended that you purchase a USB gender separately for the convenience of USB insertion and extraction. (Recommended USB gender type : USB 2.0 extension cable)
• Make sure to properly align and connect the optical cable; improper alignment may cause damage to the jack.

Subwoofer Connection

Place the wireless subwoofer near the soundbar and follow the steps below.

1. Connect the power cord of the soundbar and the wireless subwoofer to the outlet.
2. Turn on the soundbar.
   • The soundbar and wireless subwoofer will be automatically connected. The subwoofer’s green LED turns on.

Manual Subwoofer Connection
If the subwoofer does not make a sound, try to connect manually.

1. Press PAIRING on the rear of the wireless subwoofer.
   • The green LED on the rear of the wireless subwoofer blinks quickly. (If the green LED does not blink, press and hold the PAIRING.)
2. Turn on the soundbar.
   • Pairing is completed. The green LED on the rear of the wireless subwoofer turns on.

Keep the soundbar and the subwoofer away from the device (ex. wireless router, microwave oven, etc.) over 1 m to prevent wireless interference.

TV Connection

Connect the soundbar and TV using Optical (A ) or HDMI ARC (B ).

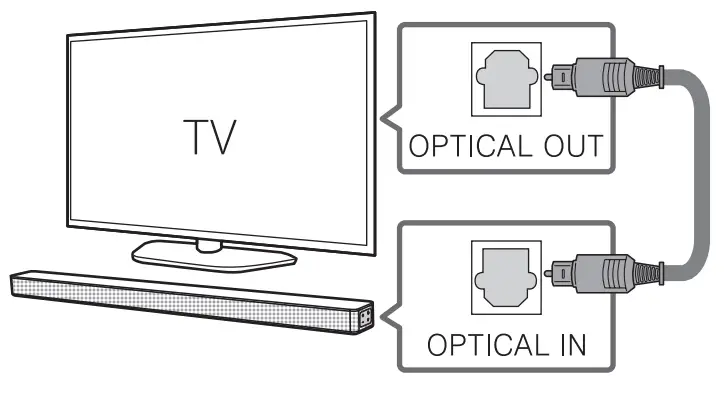

A Optical Connection

1. Connect the soundbar to the TV using an Optical cable.
2. Set up [External Speaker (Optical)] on your TV setting menu.

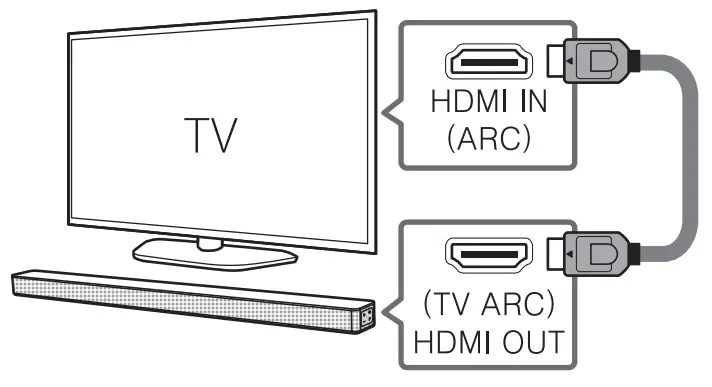

B HDMI (ARC) Connection

1. Connect the soundbar to the TV using HDMI cable.
2. Set up [External Speaker (HDMI ARC)] on your TV setting menu.

• HDMI connection is unavailable if your TV does not support HDMI ARC.
• If this unit is connected by OPTICAL and ARC at the same time, the ARC signal has a higher priority.

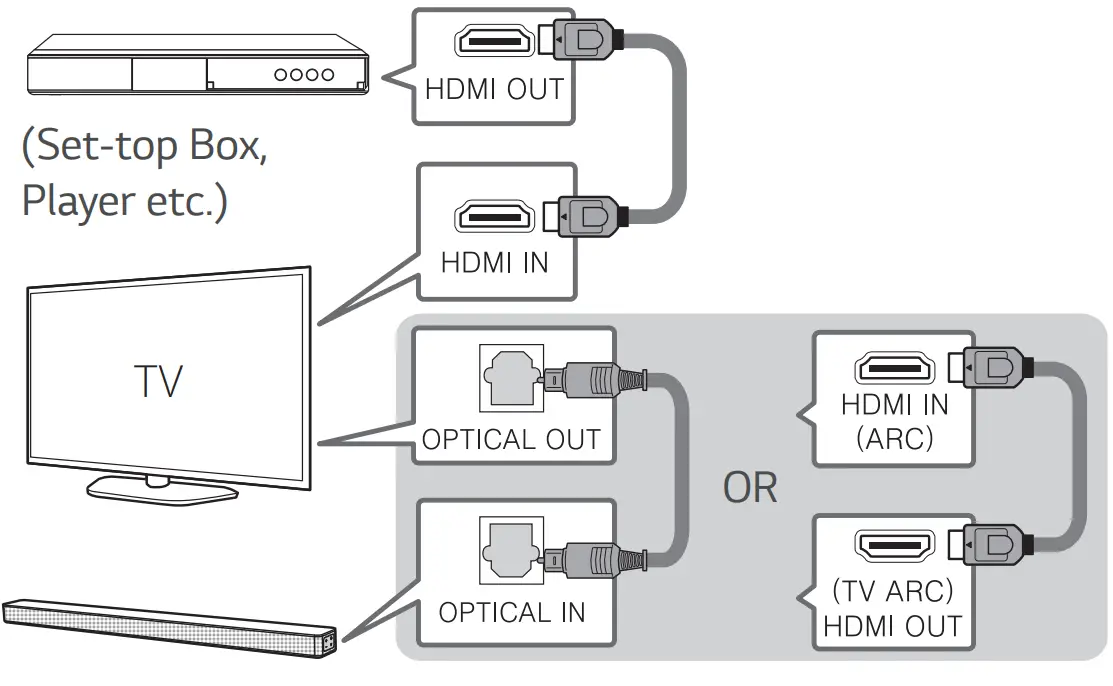

Additional Device Connection

1. Connect to the external device like as follow.

2. Set the input source by pressing F repeatedly.

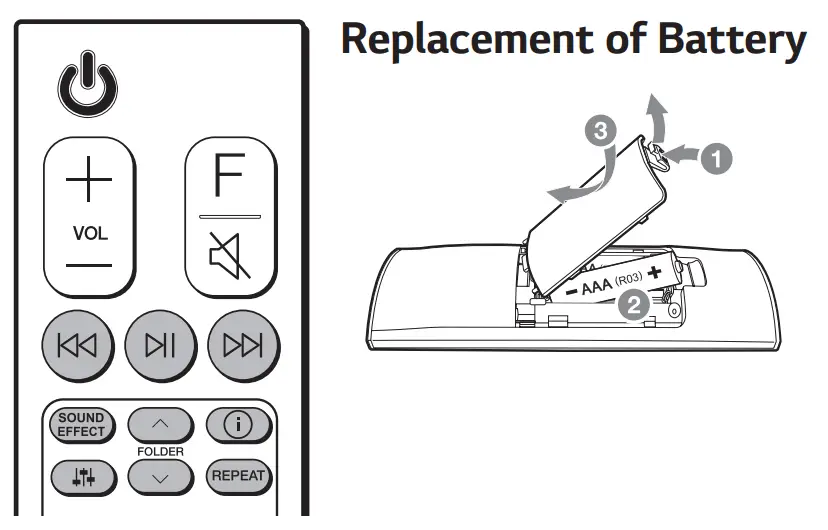

Remote control

: Skip/Search
: Play/Pause

– Bluetooth connection lock (BT LOCK): Select the Bluetooth function by pressing F repeatedly. Long press and press it again to limit Bluetooth connection to only BT and LG TV.
SOUND EFFECT: Selects a sound effect mode. – TV remote: Long press SOUND EFFECT and press it again to use TV remote control. FOLDER : Searches a folder.
: Displays the information of a file, an input source or connected Bluetooth device name.
– Auto Power ON/OFF: Long press and press it again.
: Adjusts sound level of each speaker.
– Surround sound: Long press and press it again.
REPEAT: Listens to your files repeatedly or randomly.

Additional Information

Specification

Power consumption	Refer to the main label.
	Networked standby: 1.0 W (If all network ports are activated.)
AC adapter	Model : DA-50F25 Manufacturer: Asian Power Devices Inc. Input :100 – 240 V∼50 – 60 Hz Output : 25 V 2 A
	Model : MS-Z2000R250- 050DO-P Manufacturer: MOSO POWER SUPPLY TECHNOLOGY CO., LTD. Input:100 – 240 V ∼50/60 Hz Output : 25 V 2 A
Dimensions (WxHxD)	Approx. 1060.0 mm X 57.0 mm X 85.0 mm With foot
Bus Power Supply (USB)	5 V 500 mA
Amplifier (Total RMS Output power)	420 W RMS

Design and specifications are subject to change without notice.

Rear Speakers Ready
Ready for surround sound with Rear Speakers Kit sold separately. (SPK8-S)

How to disconnect the wireless network connection or the wireless device
Set up the AUTO POWER ON/OFF function to off and turn off the unit.

OPEN SOURCE SOFTWARE NOTICE INFORMATION

To obtain the source code under GPL, LGPL, MPL, and other open-source licenses, that are contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers, and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected].
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Declaration of Conformity

Hereby, LG Electronics declares that the radio equipment type Wireless Sound Bar is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.lg.com/global/support/cedoc/cedoc#
For the consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
