Philips Htl1032 Soundbar Speaker Owner's Manual

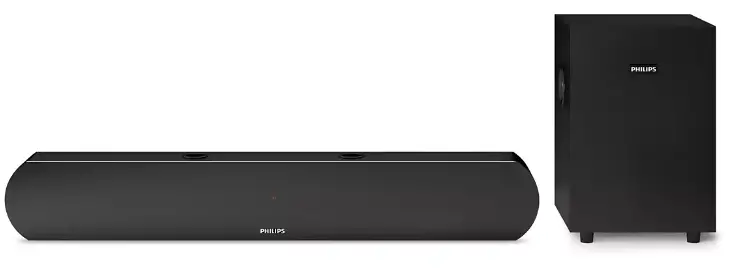

PHILIPS HTL1032 Soundbar Speaker

Music, Movies & Entertainment

Enhances the TV Viewing experience to the next level. It clear sound & Rich Bass.

Connect and enjoy all your entertainment

• Bluetooth wireless music streaming from your music devices
• Built-in FM tuner
• Enjoy MP3/WMA music directly from your portable USB devices
• Works with TVs, BD/DVD players, gaming consoles, MP3 players

Designed for simplicity

• Low-rise profile for the perfect fit in front of your TV
• Flexible placement on the wall or tabletop

Richer sound for watching TV and movies

• An external subwoofer adds thrill to the action

Soundbar speaker
2.1 CH wired subwoofer Bluetooth®, FM Tuner

Highlights

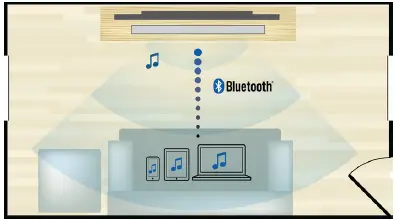

Bluetooth wireless streaming

• Bluetooth wireless music streaming from your music devices

Built-in FM tuner

• Built-in FM tuner

External subwoofer

• An external subwoofer adds thrill to the action

USB

• Enjoy MP3/WMA music directly from your portable USB devices

Works with multiple devices
Works with TVs, BD/DVD players, gaming consoles, MP3 players

Low-rise profile

• Low-rise profile for the perfect fit in front of your TV

Specifications

Sound

• Speaker output power: 20W RMS
• Subwoofer output power: 10W RMS
• Total Power RMS @ 30% THD: 30 W

Loudspeakers

• Loudspeaker types: Integrated with main unit
• Drivers per Soundbar: 2 X 3″
• Speaker freq range: 150 – 15K Hz
• Speaker Impedance: 4 ohm
• Subwoofer driver: 1 x 5.25″ woofer
• Subwoofer freq range: 40 – 450 Hz
• Subwoofer impedance: 4 ohm
• Subwoofer type: Passive

Connectivity

• Connections: AUX in, Fixed FM Antenna, USB
• USB: USB Mass storage class (Support up to 16GB)

Tuner/Reception/Transmission

• Tuner Bands: FM

Convenience

• Smart audio equalizer

Design

• Wall mountable
• Wooden cabinet

Power

• Power supply: 230VAC, 50Hz

Dimensions

• No. of sets per packaging: 2 sets
• Packaging (W x H x D): 825 x 526 x 320 mm
• Soundbar (W x H x D): 804 x 159 x 144 mm
• Subwoofer (W x H x D): 340 x 372 x 300 mm

Accessories

• Included accessories: Rowel plug and screw (x2), User manual, Remote control, 2RCA cable, Marker slip

Issue date 2022-05-15
Version: 2.1.1
12 NC: 8670 001 42363
EAN: 48 95185 65213 9
