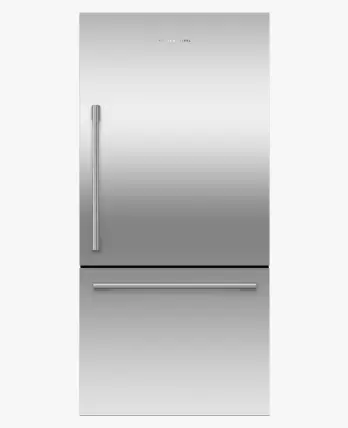

Fisher Paykel Rf170wrhjx1 Bottom Freezer Freestanding Refrigerator User Guide (+ PDF)

ActiveSmart™ technology helps to keep food fresher for longer by constantly maintaining the ideal temperature
Internal ice maker with boost for those busy times
Spacious bottom freezer with easy-slide internal drawers to separate storage
With SmartTouch control panel for ease of use

DIMENSIONS

Height 67 1/2″
Width 31 3/32″
Depth 27 3/8″

FEATURES & BENEFITS

ACTIVESMART™ FOODCARE
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart™ foodcare adjusts airflow to create a stable temperature, helping your food stay fresher for longer.

FLEXIBLE STORAGE
Adjustable shelves and door storage give you plenty of room to stack and pack all your groceries. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean.

HUMIDITY CONTROL
Your fruit and vegetables need different environments to stay fresh. Humidity control in each storage bin allows you to maintain a microclimate that helps to keep food fresher for longer.

DESIGN QUALITY
Our fridges are designed and built using quality materials. We use real stainless steel on our fridges and solid glass for shelving.

ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or boost ice production by up to 30% during busy times.

EASY CLEANING
No more stubborn dirty marks with our EZKleen feature for stainless steel fridges. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.

EASY TO USE
The SmartTouch control panel has been designed to be intuitive for ease of use and is conveniently placed near the front of the fridge.

SPECIFICATIONS

Accessories (sold separately)
Joiner kit 819264
Surround Kit (Joined left/right Part number 24476
Water filter replacement 847200

Capacity
Total gross capacity 17.1cu ft

Consumption
Energy usage 535kWh/year

Features
Adjustable door shelves 4
Adjustable glass shelves 4
Covered door shelves 2
Door alarm •
Front levelling feet •
Fruit and vegetable bins 2
LED lighting •
Rear rollers •
SmartTouch control panel •
Stackable bottle holders 4

Freezer Features
Automatic ice maker •
Bottle chill •
Door alarm •
Fast freeze •
Ice Boost •
Ice bin and scoop •

Performance
ActiveSmart™ Foodcare •
Adaptive defrost •
Frost free freezer •
Humidity control system •
Inverter controlled compressor •
Sabbath mode •

Power requirements
Rated current 3.5A
Supply frequency 60Hz
Supply voltage 110 – 120V

Product dimensions
Depth 27 3/8″
Height 67 1/2″
Width 31 3/32″

Warranty
Parts and labor 2 years additional
Sealed system parts and labor 3 years

SKU 26609

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
