OSRAM logo

BATTERYstart
Lithium Jumpstarter with powerbank function and LED light. *

OSRAM OBSL200 Lithium Jump Starter with Powerbank

BATTERYstart 200BATTERYstart 300
OSRAM OBSL200 Lithium Jump Starter with Powerbank -Symbol12V / ≤ 3.0L Petrol12V / ≤ 6.0L Petrol, ≤ 3.0L Diesel
6000 mAh13000 mAh
a: 150A(3s) / b: 500A(0.1s)a: 300A(3s) / b: 1500A(0.1s)
5V, 2.4A / 9V, 2.0A5V, 2.4A / 9V, 2.0A / 12V, 1.5A
-20°C…40°C-20°C…40°C
300g490g

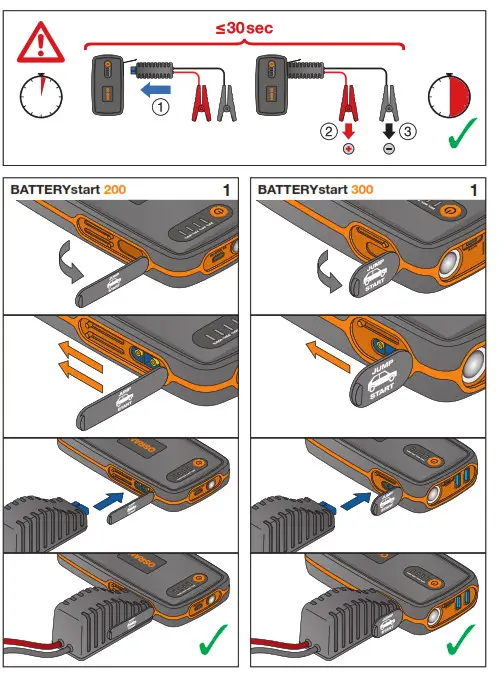

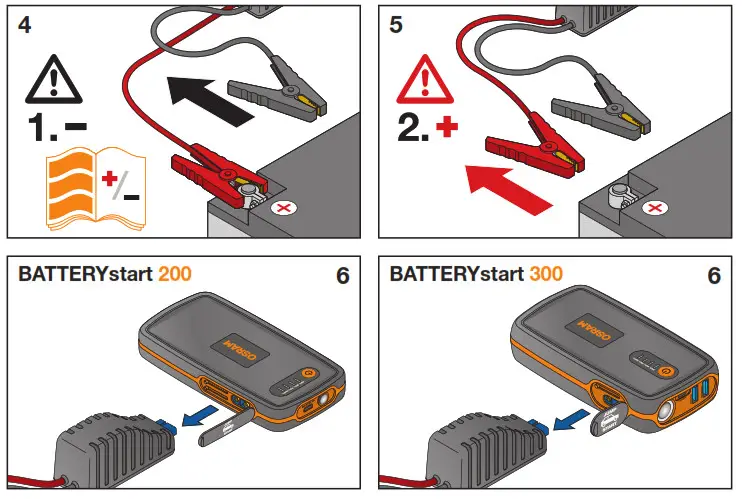

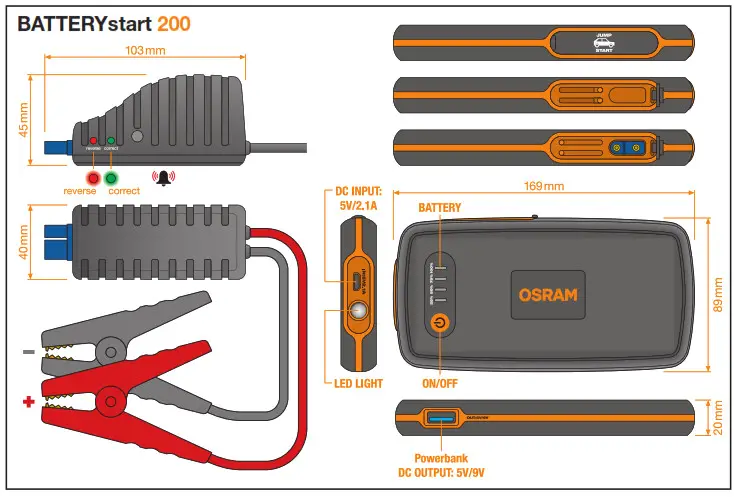

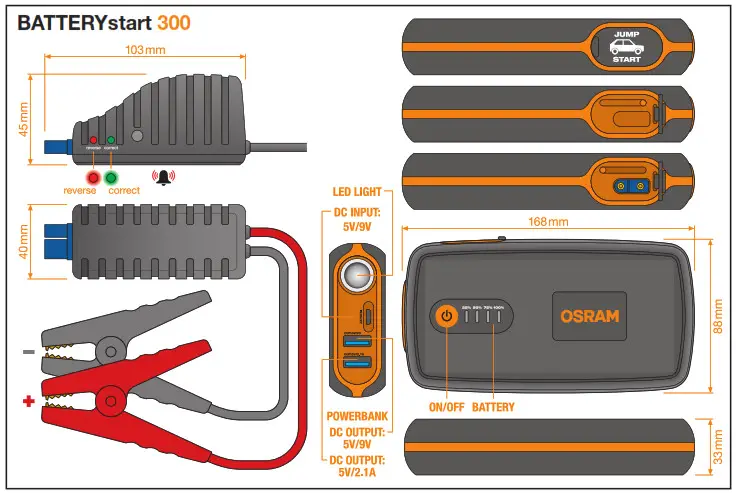

OSRAM OBSL200 Lithium Jump Starter with Powerbank - 1OSRAM OBSL200 Lithium Jump Starter with Powerbank - 2OSRAM OBSL200 Lithium Jump Starter with Powerbank - 3OSRAM OBSL200 Lithium Jump Starter with Powerbank - 4OSRAM OBSL200 Lithium Jump Starter with Powerbank - 1.1OSRAM OBSL200 Lithium Jump Starter with Powerbank - 2.1OSRAM OBSL200 Lithium Jump Starter with Powerbank - 5

OSRAM OBSL200 Lithium Jump Starter with Powerbank - extreme heatDo not use in extreme heat.damage cablesDo not damage cables.
extreme coldDo not use it in extreme cold.damage cables 2Do not use a damaged cable.
No drinksNo drinks/liquids.moving partsKeep cables away from moving parts.
No smokingNo smoking/vaping.Do not carryDo not carry by cables.
Keep awayKeep away from children.Risk of fireRisk of fire.
Do not dropDo not drop.electric shockRisk of electric shock.
Do not exposeDo not expose to moisture.hazardous materialsRisk of hazardous materials.
Do not chargeDo not charge a frozen battery.ventilated areaUse in a well-ventilated area.
clamps togetherDo not touch clamps together.emit fumesBattery may emit fumes.
Keep away 2Keep away from tools and jewelry.Surrounding itemsSurrounding items may emit fumes.

Lithium Jumpstarter with powerbank function and LED light

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. For indoor use only. Charging only rechargeable Batteries. Disconnect the supply before making or breaking the connections to the battery. WARNING: Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging, the battery must be placed in a well-ventilated area.
WARNING: Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric shock or injury. Store the manual in a safe place.

www.osram.com/am-guarantee

OSRAM OBSL200 Lithium Jump Starter with Powerbank - Symbol 2

OSRAM GmbH
Nonnendammallee 44
13629 Berlin
Germany
www.osram.com
