UMJOG05-23LITUS Jogger Pushchair

Product Information:

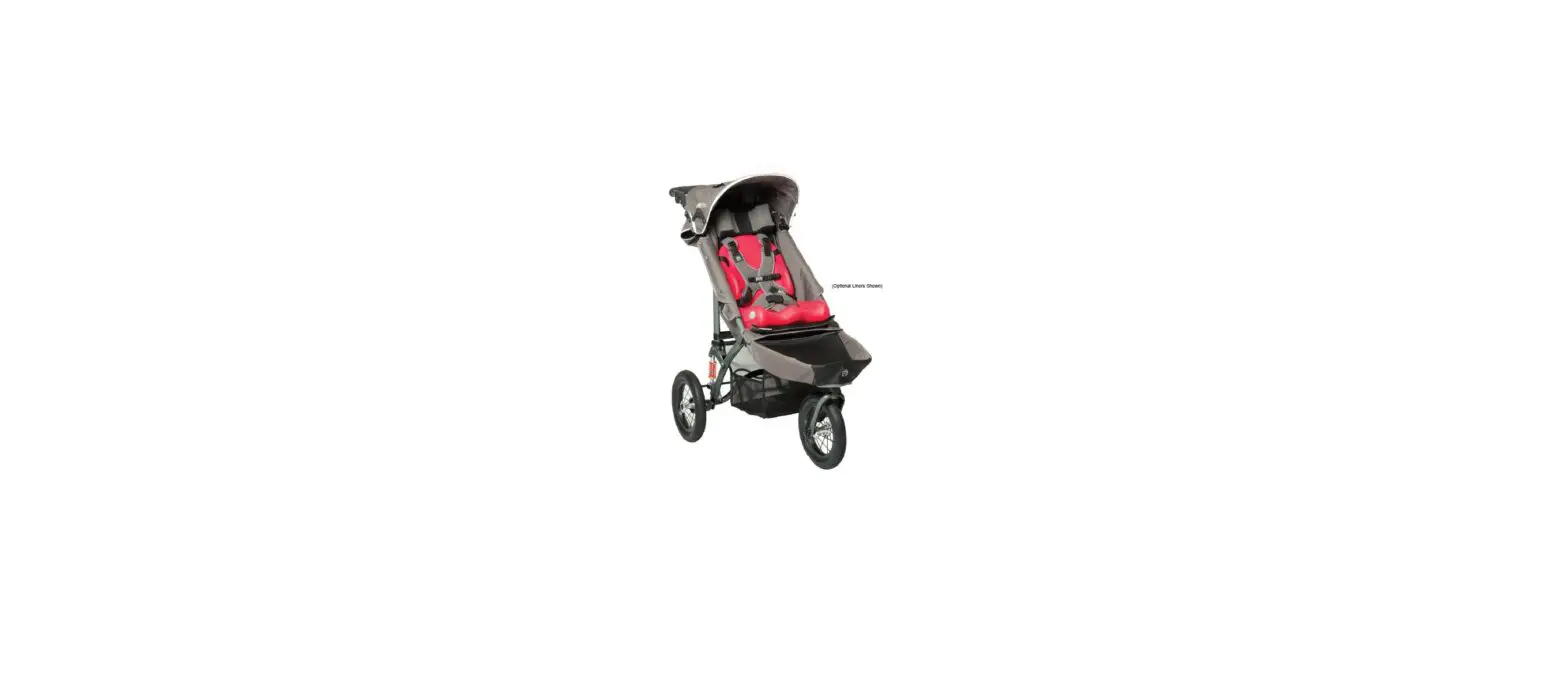

The Special Tomato Jogger Pushchair (ITEM# 62009900
UMJOG05-23LITUS) is a jogger designed to provide mild to moderate
positioning support for children with special needs. It features a
sturdy frame and large wheels, making it suitable for both indoor
surfaces and outdoor trails. The jogger offers various adjustment
options, accessories, a brake mechanism, user safety tether, and
the ability to fold for easy transport. The EU version also
includes a front wheel cable operated disk brake.

Product Usage Instructions:

Intended Use: The Special Tomato Jogger
Pushchair is specifically designed for children with special needs,
providing them with mild to moderate positioning support.
Environment of Use: Avoid exposing the jogger
to open flames, extreme heat or cold, direct sunlight, and saunas.
Always check the temperature of the chair before use.
List of Parts Included and Optional
Accessories: The jogger comes with the necessary parts
included. Optional accessories, such as liners, can be separately
purchased.
Important Warning Information:
- Always use the seat harness to prevent serious injury from
  falling or sliding out. Never leave the child unattended.
- Keep these instructions for future reference and follow them
  carefully. The safety of the child is the user’s
  responsibility.
- Use the attendant strap whenever the jogger is occupied by a
  child.
- The maximum weight capacity for this jogger is 110 lbs or 50
  kg.
- The front wheel must be kept in-line for exercise.
- Children should always be harnessed in and should never be left
  unattended. The harness and seat belt are not substitutes for
  proper adult supervision.
- Ensure the harness is correctly fitted and adjusted for the
  child’s safety and the stability of the jogger.
- Do not use the jogger when ascending or descending stairs,
  escalators, or other forms of transport.
- Always apply the brake when parking the jogger.
- Do not carry additional children, goods, or accessories in or
  on the pushchair, except as permitted in the manual. This may cause
  instability or stress on the jogger, leading to breakage.
- Overloading, incorrect folding, and the use of non-approved
  accessories can damage or break the jogger. Damage caused by
  non-approved accessories is not covered by the warranty.
- Do not allow children to stand on the footrest.
- The jogger should open and fold easily. Avoid forcing it. If
  necessary, re-read the instructions.
- Negotiate curbs and rough ground carefully to prevent damage to
  the pushchair.
- Avoid placing items on top of the hood as it may cause damage
  to the canopy.
- Ensure children are kept clear of moving parts while making
  adjustments, folding, or unfolding the jogger. Pinch points and
  scissoring actions are unavoidable during these operations.

* Resistance to ignition of upholstered parts complies to BS-EN
1021-1 and -2

View Fullscreen

User Manual ITEM# 62009900 UMJOG05-23LITUS
(Optional Liners Shown)

UMJOG05-23LITUS

Table of Contents
Intended Use………………………………………………………….. 3 Environment of Use……………………………………………….. 3 List of Parts Included and Optional Accessories…….. 3 Important Warning Information ………………………………. 3 Cleaning & Maintenance ………………………………………… 4 Dimensions……………………………………………………………. 5 Assembly & Fitting ………………………………………………….. · Front Wheel Installation ………………………………………… 6 · Front Wheel In-line Locking …………………………………… 7 · Rear Wheel Installation …………………………………………. 7 · Safety Harness…………………………………………………….. 7 · Rear Wheel Parking Brake ……………………………………. 8 · Reclining Seat ……………………………………………………… 9 · Removing Seat Fabric…………………………………………… 9 · Shopping Basket ………………………………………………… 10 · Canopy Installation……………………………………………… 10 · Handle Height………………………………………………………11 · Folding………………………………………………………………..11 · Attendant Strap ………………………………………………….. 12 Optional Accessories · Seat & Back Liners……………………………………………… 12 · Head Rest …………………………………………………………. 13 Washing ………………………………………………………………. 13 Lifting ………………………………………………………………….. 14 Limited Warranty………………………………………………….. 14

UMJOG05-23LITUS

Intended Use
The Special Tomato Jogger Pushchair is a jogger that provides mild to moderate positioning support for children with special needs. Its large wheels and sturdy frame make it ideal for both smooth indoor surfaces and rugged outdoor trails. It offers typical features for a lightweight jogger, including several adjustment options, accessories, a brake mechanism, user safety tether and the ability to fold for easy transport. The EU version features a front wheel cable operated disk brake.

Environment of Use
The Jogger Pushchair is intended for both indoor and outdoor use, in the home and community. If used in the rain, wipe off excess water with a soft cloth. If the chair is splashed with mud or corrosive substances like road salt, the chair should be washed clean with water, wiped dry, and a hypoallergenic and biodegradable lubricant reapplied to the moving parts. Contact with seawater should be avoided, as it will corrode areas that cannot be washed clean. When going from outside to inside, clean any excess dirt or mud from the wheels to prevent soiling of inside environment.

Warning: Avoid open flames* and prolonged exposure to extreme heat or cold, including direct sunlight and saunas. Check temperature of chair before use.

List of Parts Included and Optional Accessories

Parts Included

Optional Accessories

· 1 Folded Jogger Pushchair (pre-assembled) · 1 Jogger Front Wheel, 2 Jogger Rear Wheels · 1 Attendant Tether Strap

· Jogger Rain Cover · Soft-Touch Seat and Back
Liners

· Soft-Touch Sitter · Medical Necessities Bag · Jogger Head Support

Important Warning Information

WARNING: Avoid serious injury from falling or sliding out. Always use the seat harness. Never leave child unattended.

IMPORTANT: Keep these instructions for future reference and folllow all instructions carefully. A child’s safety is your
responsibility. This jogger is suitable for one child. Always use the attendant strap while jogger is occupied by a child. Maximum weight for this jogger is 110lbs or 50 kg.

Front wheel must be kept in-line for exercise.
Children should be harnessed in at all times and should never be left unattended. The harness and seat belt are not a substitute for proper adult supervision
It is important for your child’s safety that the harness be correctly fitted and adjusted. If not adjusted correctly in accordance with the instructions, the stability of the Jogger will be compromised.
Never leave child in the Jogger when ascending or descending stairs or escalators or when travelling on other forms of transport.
Apply brake when parking the Jogger.

Do not carry additional children, goods or accessories in or on this Pushchair except as permitted in this manual. They may cause the Jogger to become unstable or place unneeded stress on the Jogger that could lead to breakage.
Overloading, incorrect folding and the use of accessories, e.g. child seats, bag hooks, rain covers, buggy boards, etc., other than those approved by the manufacturer may damage or break this Jogger.
Any damage caused by the use of accessories not supplied by manufacturer will not be covered by the terms of our warranty.
Never allow children to stand on the footrest.

The Jogger should always open and fold easily. Do not force it. It may be necessary to re-read the instructions.
Negotiate curbs and rough ground carefully. Repeated impact will cause damage to the Pushchair.
Do not place items on the top of the hood as it may cause damage to the canopy.
The child should be clear of moving parts while making adjustments. It is important that care is taken to ensure that children are kept clear of the Jogger when folding or unfolding. Pinch points and scissoring actions are unavoidable during these operations

UMJOG05-23LITUS

* Resistance to ignition of upholstered parts complies to BS-EN 1021-1 and -2

Cleaning & Maintenance

Cleaning

· Clean frame with a damp cloth and a mild detergent and dry thoroughly.
· The canopy may be sponged lightly using a damp cloth and a mild detergent. The seat cover, head cushion, lateral pads and harness pads may be washed. Line dry thoroughly before reuse. Gray Harness can be placed in a mesh bag and machine washed on gentle cycle only.

· You can machine wash the Jogger seat fabric in cold water with a mild detergent. To minimize shrinkage, simply reattach the seat fabric to the frame to dry. (DO NOT put seat in the dryer)
· Be sure to unzip and remove all three rigid board from the seat before washing.

· Do not fold or store the product while wet and never store in a damp environment; this can cause mildew to form.

Maintenance

This Wheelchair requires regular maintenance by the user. Before each use, check all rivets and connecting devices for tightness and security. Inspect all brakes, wheels, and tires and replace or repair if necessary. Check all safety devices for correct operation. Never continue to use a product that is not structurally sound. The following maintenance procedures should be conducted on a regular basis:

· Tire air pressure should be checked weekly, since low · In the event of a flat tire, remove wheel from frame,

air pressure may affect brake ability.

remove tire & inner tube from rim and patch hole using

standard bicycle repair kit.

· Axles and moving parts should be wiped off weekly

with a slightly moist cloth to remove dust, dirt and mud. · Repair or replace loose, worn, bent, missing or dam-

Sparingly apply a high quality Teflon spray after each

aged parts before using the chair. Only manufacturer

cleaning. DO NOT USE WD-40, silicone sprays or other

replacement parts should be used. It may be unsafe to

lubricant sprays as they will attract dust and dirt.

use parts not supplied by manufacturer.

Maintenance Chart

Weekly

Rims, tires, and tire pressure

Wheel locks and hand brakes

Accessories

Front and rear wheel axles

Cleaning/lubricating all moving parts1

Belts, zippers, and hook-and-loop closures

Seat/back upholstery2 and tautness

Armrests & foam

Frame

Contacting a Special Tomato dealer for service or repair3

Every 3 months
· ·

Every 6

months necessary

· ·
·

Note: Do NOT use WD-40 or other silicone-based spray as a lubricant. Follow cleaning instructions for appropriate user hygiene

3 Note: Repair or replacement of non-removable, worn, or broken parts must be performed by a qualified service facility.

UMJOG05-23LITUS

Dimensions

Jogger Sizing Chart Maximum Weight Capacity
Seat Width Seat Depth Crotch Strap Depth from Seat Back Seat Back Height Shoulder Strap Height Seat to Footwell Handle Height to Floor Seat Recline Range Overall Dimensions (width x length x height)
Weight of Jogger Folded Dimensions (w/o rear wheels)
Manufacture Date Code

Dimensions 110 lbs. (50 kg)
14 (35 cm) 12″ (30 cm) 7.5 or 11.5″ (19 or 29.2 cm) 25″ (62.5 cm) 11, 14 or 17″ (28 35.6 or 43.2 cm) 15″ (37.5 cm) 35″ – 43″ (87.5 – 107.5 cm)
100-140° 26″ x 42″ x 43″ (65 x 105 x 107.5
cm) 27 lbs. (12 kg) 33″ x 21″ x 16″ (82.5 x 52.5 x 40
cm)

Note: Serial # located on inner metal frame near rear tire.

UMJOG05-23LITUS

Assembly & Fitting (Unpack Jogger from Box and set wheels aside)

1. Push foot plate of Jogger away from handle by pushing curved crossbar up and out.

2. Audible click will be heard when Jogger frame is completely unfolded.

3. Flip Jogger to upright position and clip lower belting around frame to secure seat fabric.

Note: Check our YouTube channel for instructive and informative videos!

Front Wheel Installation

Lay Jogger on its back with handle and rear axle are touching the floor.
5. Place red Safety Retainers onto each side of the wheel axle as shown, then slide the frontwheel into the front-fork slots.

6a. Install M5 bolt and washer through fork into the threaded hole on red Safety Retainer as shown. Repeat on opposite side with second M5 bolt and washer.
6b. Insert skewer through wheel and install black skewer nut. Tighten by turning the skewer lever.

6c. Close the skewer lever making sure that it is flush with the tubing. Be sure not to over tighten.

UMJOG05-23LITUS

Front Wheel In-line Locking

Front wheel must be kept in-line for exercise

7. The in-line locking mechanism is 8. Image now shows the wheel locked located behind the front wheel pivot point. in-line. Pull and rotate mechanism to Pull and rotate knob to lock and unlock. unlock. Image shows unlocked.
Rear Wheel Installation

9. To install, gently slide the rear wheel’s 10. To remove, simply push down the

axle into the frame’s supporting axle hole spring lock tab while pulling out on the

until you hear it click into place.

wheel.

Safety Harness

11b

11a. To adjust Safety Harness, unclip hooks.
11b. Remove fleece lining by lifting Velcro tabs as shown.

11a

UMJOG05-23LITUS

Safety Harness (continued)

NOTE:

Once fitting

is complete,

reassemble

the fleece

13a

lining.

13b

12. Unthread harness straps from fleece 13a. Insert shoulder straps through loops

lining.

for desired shoulder height.

13b. Fine tune strap length for secure fit.

14a

For additional instruction, refer to video guide found at this link: bit.ly/ JP6X482 14b

14a. Clip shoulder strap buckle to chest 14b. To adjust the length of the center

harness.

strap, move the plastic guide up and

down.

Rear Wheel Parking Brake

15. To apply the parking brake, press down 16. To disengage the brake, pull up on

on the foot bar. 8

the foot bar.

UMJOG05-23LITUS

Reclining Seat

17. Simply adjust the recline strap length 18. Unlock the buckle shown in Figure 17

to desired degree of recline.

for maximum recline.

Removing Seat Fabric

20a

19. Using a Phillips head screw driver 20. Unsnap fasteners on both sides of

unscrew hardware from the frame.

jogger.

20a. Unlock seat strap from frame,

buckle is suspended across the back of

the jogger.

NOTE: REMOVE ALL RIGID PARTS BEFORE WASHING
Joggers are shipped with Seat pre-assembled. Assembly/Removal instructions are given if any preassembly items are removed for cleaning or replacement, refer to page 8 for additional information.

21. Unloop Velcro Strap through the D-ring, underneath the foot well.

UMJOG05-23LITUS

Shopping Basket (optional)

22a

22. Secure front basket flap by snapping around the lower foot-well crossbar.

22a. Detail of front shopping basket snaps.
Canopy Installation

24a

23. Wrap rear basket straps around the frame and loop back through the D-ring. Secure the Velcro strap.
NOTE: The D-ring loops are at the rear of the basket.
24b

24a. Fasten the canopy to the portion 24b. Hook the wire on the back side of of the upper frame that is not covered the canopy mechanism and then close by fabric. Small holes in the crest of the lever by pressing it to the frame. DO the frame tubing accept the canopy. Be NOT FORCE TO CLOSE! Double check sure there are NO obstructions between for obstructions and be sure nipple is the canopy clip and the frame. There inserted into frame. is a small plastic nipple on the canopy mechanism that fits into the hole in the frame.

UMJOG05-23LITUS

Handle Height

25a

25. Adjust handle height, then re-lock. 25a. Adjust handle height, then re-lock.

Folding

To ease Jogger Folding:

· Fully recline seat back

· Disengage Velcro Between Canopy & Seat Back

· Push handle all the way up

· Unlock front wheel swivel lock

· Undo 5 point harness

26. Squeeze folding mechanism located below the handle.

26a

26b

NOTE: Folding mechanism appears on both sides.

26a. Fold jogger back.

26b. Secure Jogger in folded position with recline strap.

UMJOG05-23LITUS

Attendant Strap
27

27. Make sure safety wrist strap is secured properly around your wrist whenever your child is in the jogger.

Optional Accessories: Seat & Back Liners

28a

28c

28b

28. Using the provided straps with the Seat & Back Liners, 28c. Clip the straps for both the Seat &

feed the straps through the slots in Jogger seat & back. Back Liners to each other on the back

side of the jogger and tighten until secure.

28a. Place the Back Liner Straps into the slot at the height

where you want the laterals will provide support.

NOTE: The Jogger Chest Harness should

lay over the top of the Back Liner for

28b. The Seat Liner Straps will go through the lowest slots. correct positioning. The Jogger 3-Point

lap belt can be fed through the 3 holes

of the Seat Liner for optional positioning.

UMJOG05-23LITUS

Optional Accessories: Head Rest

29a

29b

29c

29a. Use the strap provided with the 29b. Thread the straps 29c. Clip the straps together

Optional Head Rest to secure it to the through the slots on the on the back side of the Jogger

Jogger.

and tighten to secure it.

Washing
30

30 30a

30 30c

30b

30. You can machine wash your Jogger seat in cold water with a mild detergent. To minimize shrinkage, simply reattach the seat to the frame to dry. Be sure to remove all THREE (3) the rigid boards from the upholstery before washing. Unzip all THREE (3) zippers to remove the rigid boards.
30a Rigid Board #1
30b Rigid Board #2
30c Rigid Board #3
NOTE: Do NOT put seat in the dryer. You may clean the Jogger frame using a soft, dry cloth.

UMJOG05-23LITUS

Lifting
WARNING: Never lift the Pushchair with a child in it. To lift the Pushchair, firmly grasp the plastic portion of the front tube frame beneath cross section on both sides of Jogger.

Limited Warranty

Your Pushchair is guaranteed to be free from any manufacturing defects for a period of 2 years from the date of purchase under normal use and provided it is used in compliance with the operating instructions. This warranty extends only to the original retail purchaser and is only valid when supplied with proof of purchase. Please retain proof of purchase with this Limited Warranty.

Should a repair be needed please contact the retailer from whom the product was purchased. Please note that the warranty will not be applicable if:

A fault is caused by misuse or poor maintenance.
Repairs are carried out by a third party.
The Jogger is faulty due to general wear and tear which is the result of everyday use.

The Jogger is damaged as a result of an accident.
The manufacturer is not satisfied that the stated warranty terms and conditions have been met.

Bergeron Health Care 22 South Second Street Dolgeville, NY 13329
Global Carehab
HOLMSTRUPGAARDVEJ 11 8220 BRABRAND DENMARK
+45 24 65 55 50

International: 1-315-429-8407 Fax: 1-315-429-8862
© 2023 Bergeron Health Care The information contained herein is subject to change without notice.

UMJOG05-23LITUS
