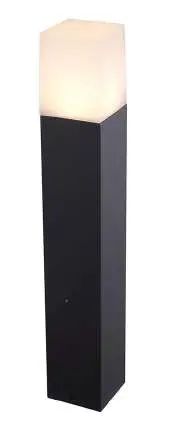

V-tac Vt-7614 Bollard Lamp Installation Guide

INSTALLATION INSTRUCTION
BOLLARD LAMP

TECHNICAL DATA:

INTRODUCTION & WARRANTY

Thank you for selecting and buying the V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at your best. The warranty is valid for 3 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours of Daily operation. Usage of product for 24 hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING!

1. Please make sure to turn off the power before starting the installation.
2.  Installation must be performed by a qualified electrician

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

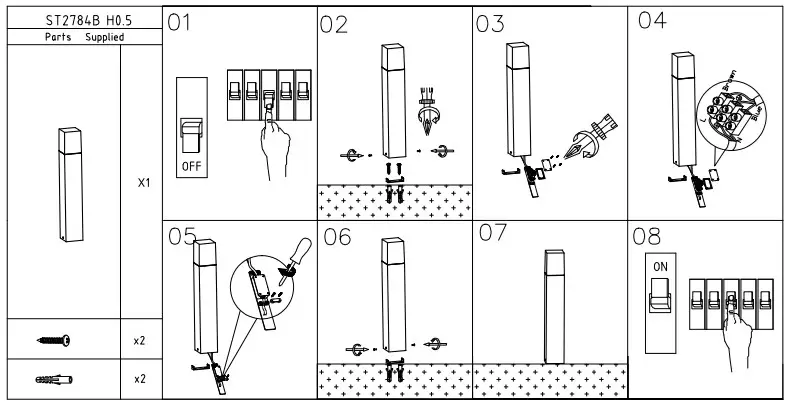

INSTALLATION DIAGRAM:

INSTALLATION INSTRUCTION

1. Switch off the main power
2. Drill two holes on the floor and insert two plastic expansion bolts in it.
3. Fix the base on the plastic expansion piece with self-tapping screws.
4. Connect the supply leads with the terminal.
5. Fix the lamp body on the plate and tighten the screws.
6.  To fit the Light, Rotate the top cover clockwise and place the Light on the holder.
7.  Place the top cover back by rotating anti-clockwise
8. Switch on and test the light.

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
