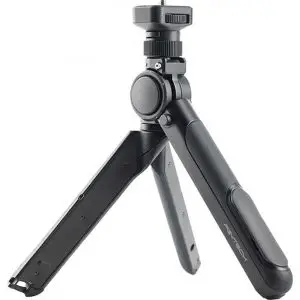

PGYTECH MANTISPOD PRO P-CG-020 Instruction Manual
Specification
The Product Name: PGYTECH MANTISPOD PRO
Sku: P-CG-020
Material: magnesium, aluminium alloy, silicone, TPU

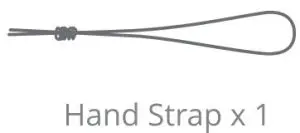

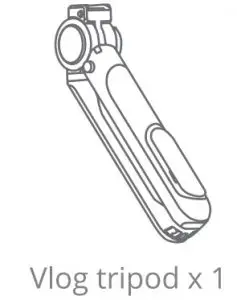

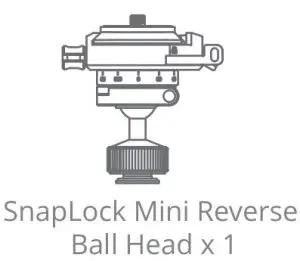

In the Box

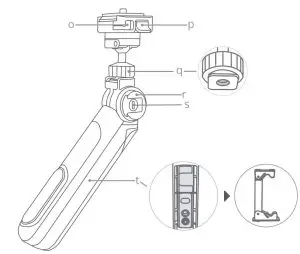

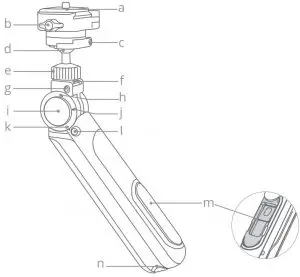

Get to know your vlog tripped
- a.SnapLock Plate is Arca-Swiss compatible
- b. The Panorama Knob
- c. The Ball Head Lock
- d.Ball Head
- e. Dovetail cold shoe mount knob
- f. Dovetail cold shoe mount
- g. Anti-slip button
- h. The Third Gear Position
- i. The button for tilting upwards and downwards
- j. The Second Gear Position
- k. The First Gear Position c
- I. The lock to deploy the tripod
- m. Dovetail cold shoe mount for Extended Mode
- n. Hanging Position for Hand Strap
- o. Extra Lock for SnapLock Plate
- p. Button for Removing the SnapLock Plate
- q. 1/4 Inch Screw Hole and Dovetail cold shoe mount.
- r. Damping Adjustments
- s. The cold shoe mount on the side
- t. The Built-in Mini Phone Holder
Quickly Attach/Detach SnapLock Mini Reverse Ball Head
How to operate
Quickly Mount the SnapLock Plate

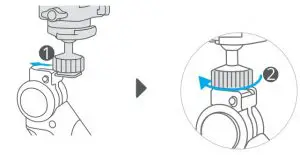

Quick tripod installation

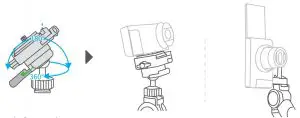

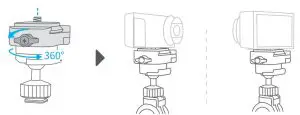

Quick angle adjustment

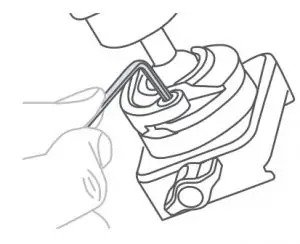

Note:The size of ball head damping can be adjusted according to your needs

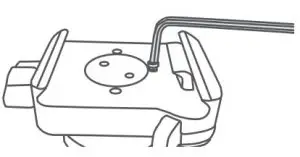

Note: change the locking position to accommodate more ARCA-Swiss quick plates
How to disassemble

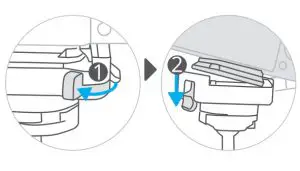

How to disassemble the SnapLock Plate from ARCA-Swiss slot.

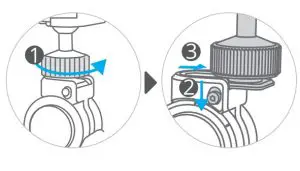

How to disassemble the SnapLock Mini Reverse Ball Head from tripped.
Allround vlogging tripod

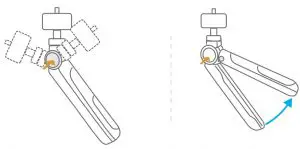

- How to use the button

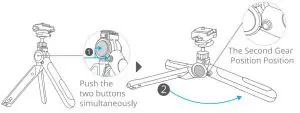

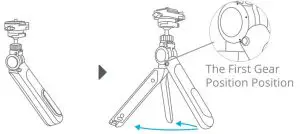

- The Tripod Mode

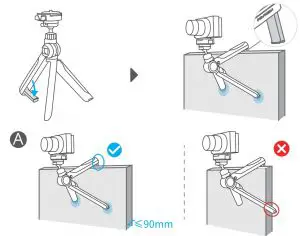

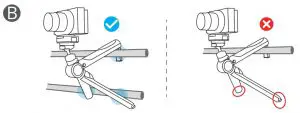

- MantisPod Mode

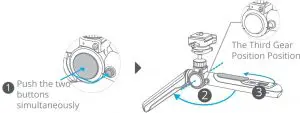

Note: Please avoid using Mantis mode on moving objects such as vehicle, boats, etc. - Extended Mode

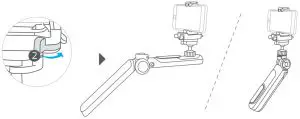

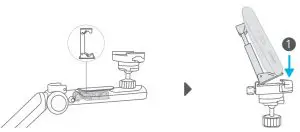

- Mobile Vlogging Mode
How to use the Mini Phone Holder
Scan the QR code to watch detailed tutorials
MantistPod Pro has a three- year warranty. For more details by visiting our
website: www.pgytech.com
