INSTALLATION INSTRUCTION
Installation Step:
Surface Mounting
Step1: Secure the provided brackets onto the ceiling by buying the provided accessories and screws.
Step2: Screw the covers at the outlet of the back of the housing. (Figure b)
Step3: Wire to main power through the junction box (figure c)
Step4: Then clip the brackets to the slots of the fixture(figure d)
Field-Adjustable Wattage & CCT
The end users may adjust the color temperature and lumen output respectively by the two DIP switch buttons integrated into the driver. Each DIP switch is accommodated with 3 options (left, middle, and right ), corresponding to 3 color temperatures and 3 powers respectively, which can perform the desired color temperature and lumen output combination.
Factory Settings: 34W,3500K

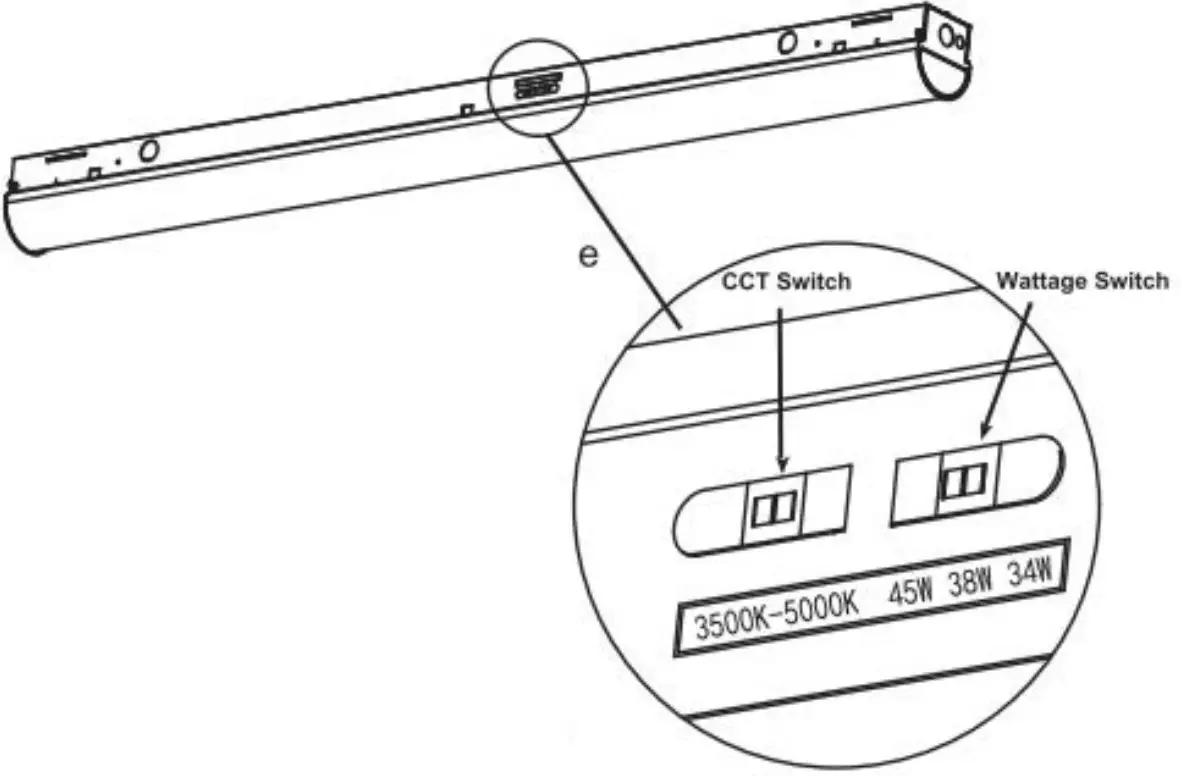

- DIP switches are located on the side of the fixture. (see Fig. e)
- Select a wattage and color temperature by sliding the switch left or right respectively to the desired value. (see Fig. e)
