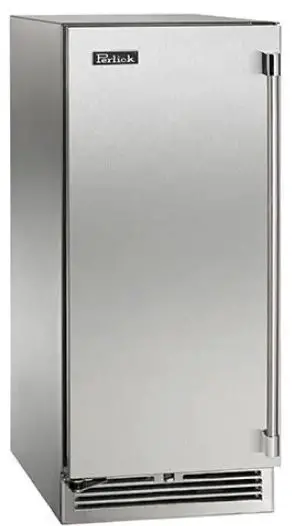

Perlick HP15RS-4-1R/L Indoor Signature Series Refrigerator Solid Stainless Steel Door
DESCRIPTION
| MODELS | DESCRIPTION |
| HP15RS-4-1R/L | Indoor Signature Series Refrigerator Solid Stainless Steel Door |
| HP15RS-4-2R/L | Indoor Signature Series Refrigerator Solid Panel Ready Door |
| HP15RS-4-3R/L | Indoor Signature Series Refrigerator Stainless Steel Glass Door |
| HP15RS-4-4R/L | Indoor Signature Series Refrigerator Panel Ready Glass Door |
| HP15RO-4-1R/L | Outdoor Signature Series Refrigerator Solid Stainless Steel Door |
| HP15RO-4-2R/L | Outdoor Signature Series Refrigerator Solid Panel Ready Door |
| HP15RO-4-3R/L | Outdoor Signature Series Refrigerator Stainless Steel Glass Door |
| HP15RO-4-4R/L | Outdoor Signature Series Refrigerator Panel Ready Glass Door |
| HP15RM-4-1R/L | Marine Signature Series Refrigerator Solid Stainless Steel Door |
| HP15RM-4-2R/L | Marine Signature Series Refrigerator Solid Panel Ready Door |
| HP15RM-4-3R/L | Marine Signature Series Refrigerator Stainless Steel Glass Door |
| HP15RM-4-4R/L | Marine Signature Series Refrigerator Panel Ready Glass Door |
KEY PRODUCT FEATURES AND BENEFITS
- 1000 BTU/hr capacity delivers industry’s most energy-efficient cool down, indoors or outdoors
- Up to 70% faster cooling speeds than leading competitor
- Variable speed compressor minimizes sound; up to 30% quieter than competitors
- Commercial-grade all stainless steel interior and exterior provide superior durability and easy cleaning
- Perlick Anti-Condensation System™ eliminates condensation from forming on the cabinet (Outdoor and Marine models only)
- Marine & Coastal Grade with Perlick Armor™ upgrades stainless steel, fasteners, and refrigeration system to the highest blend of corrosion resistance and food safety
Quick Features:
- Full extension shelving provides faster and safer product access with no reaching in the back of the cabinet; shelves fully extend on vibration dampened stainless steel ball bearing glides
- Industry’s best full 6 year warranty for owner ease of mind
- Available with stainless steel or panel ready door to match your design style
- Audible door alarm warns user if door is held open
- Selectable blue or white LED lighting
- R600a Natural Refrigerant offers maximum energy efficiency with zero ozone depletion potential
- Storage for up to 66 cans
MODEL NUMBERS
| MODEL NUMBERS | HP15RS | HP15RO | HP15RM | |
| MODEL DESCRIPTION | 15” Indoor Refrigerator | 15” Outdoor Refrigerator | 15” Marine/Coastal Refrigerator | |
| ATTRIBUTES | ||||
| Perlick Anti-Condensation System | NO | YES | YES | |
| Perlick Armor™ | NO | NO | YES | |
| OVERALL DIMENSIONS | Width – in. (mm) | 14-7/8” (378 mm.) | 14-7/8” (378 mm.) | 14-7/8” (378 mm.) |
| Depth – in. (mm) | 24” (610 mm.) | 24” (610 mm.) | 24” (610 mm.) | |
| Height – in. (mm) | 34-1/4” (870 mm.) | 34-1/4” (870 mm.) | 34-1/4” (870 mm.) | |
| STANDARD OPENING DIMENSIONS | Width – in. (mm) | 15” (381 mm.) | 15” (381 mm.) | 15” (381 mm.) |
| Depth – in. (mm) | 24-7/8” (632 mm.) | 24-7/8” (632 mm.) | 24-7/8” (632 mm.) | |
| Height – in. (mm) | 34-1/2” (876 mm.) | 34-1/2” (876 mm.) | 34-1/2” (876 mm.) | |
| INTERNAL VOLUME Net. Cu. Ft. | 2.8 cu. ft. | 2.8 cu. ft. | 2.8 cu. ft. | |
| SHIPPING WEIGHT Lbs. (kg.) | 150 lbs (68.04 kg) | 150 lbs (68.04 kg) | 150 lbs (68.04 kg) | |
|
ELECTRICAL SPECIFICATIONS | Electrical Supply | 115 VAC/60 Hz/1 Ph | 115 VAC/60 Hz/1 Ph | 115 VAC/60 Hz/1 Ph |
| Running Load Amps | 1.7 amps | 1.7 amps | 1.7 amps | |
| Electrical Connection | Cord connected | Cord connected | Cord connected | |
| Cord Plug Type | NEMA 3 Prong 5-15P | NEMA 3 Prong 5-15P | NEMA 3 Prong 5-15P | |
| Cord Length | 6’ | 6’ | 6’ | |
| Defrost Initiation | Automatic | Automatic | Automatic | |
| Defrost Type | Off cycle | Off cycle | Off cycle | |
| Thermostat | Digital | Digital | Digital | |
| Lighting Type | LED | LED | LED | |
|
REFRIGERATION SPECIFICATIONS | Refrigerant | R600a (44g) | R600a (44g) | R600a (44g) |
| Expansion Device | Capillary Tube | Capillary Tube | Capillary Tube | |
| Temperature Settings F°(C°) | 33° (0.5°) – 48° (8.8°) Factory Set Point 36° (2.2°) | 33° (0.5°) – 48° (8.8°) Factory Set Point 36° (2.2°) | 33° (0.5°) – 48° (8.8°) Factory Set Point 36° (2.2°) | |
| Heat Rejection (at 75°F) | 300 BTU/hr | 300 BTU/hr | 300 BTU/hr | |
| Pull Down Capacity | 1000 BTU/hr | 1000 BTU/hr | 1000 BTU/hr | |
| Front Vented | Yes | Yes | Yes | |
| PLUMBING | None Required | None Required | None Required | |
Installation Notes: To achieve 24” install depth, place electrical connection adjacent to the installation cavity.
ACCESSORIES
| MODEL NOS. | DESCRIPTION |
| (L) | Factory Installed Lock |
| 67990-L/R | Stacking Kit for HP15 models |
| 66736-15 | Caster Kit for HP15 models |
Perlick accessories are available for purchase through an authorized Perlick dealer. For a full list of accessories and to find a dealer near you, visit perlick.com.
PRODUCT SPECIFICATION SHEETS
| CUSTOMER MODEL NUMBER | REGULATORY MODEL NUMBER | Hinge Side | Lock | |
| INDOOR | HP15RS-4-1L | HP15RS4C-00-SLF0R | Left | No |
| HP15RS-4-1R | HP15RS4C-00-SRF0R | Right | No | |
| HP15RS-4-2L | HP15RS4C-00-PL00R | Left | No | |
| HP15RS-4-2R | HP15RS4C-00-PR00R | Right | No | |
| HP15RS-4-3L | HP15RS4C-00-TLF0R | Left | No | |
| HP15RS-4-3R | HP15RS4C-00-TRF0R | Right | No | |
| HP15RS-4-4L | HP15RS4C-00-RL00R | Left | No | |
| HP15RS-4-4R | HP15RS4C-00-RR00R | Right | No | |
| HP15RS-4-1LL | HP15RS4C-00-SLFLR | Left | Yes | |
| HP15RS-4-1RL | HP15RS4C-00-SRFLR | Right | Yes | |
| HP15RS-4-2LL | HP15RS4C-00-PL0LR | Left | Yes | |
| HP15RS-4-2RL | HP15RS4C-00-PR0LR | Right | Yes | |
| HP15RS-4-3LL | HP15RS4C-00-TLFLR | Left | Yes | |
| HP15RS-4-3RL | HP15RS4C-00-TRFLR | Right | Yes | |
| HP15RS-4-4LL | HP15RS4C-00-RL0LR | Left | Yes | |
| HP15RS-4-4RL | HP15RS4C-00-RR0LR | Right | Yes | |
| OUTDOOR | HP15RO-4-1L | HP15RO4C-00-SLF0R | Left | No |
| HP15RO-4-1R | HP15RO4C-00-SRF0R | Right | No | |
| HP15RO-4-2L | HP15RO4C-00-PL00R | Left | No | |
| HP15RO-4-2R | HP15RO4C-00-PR00R | Right | No | |
| HP15RO-4-3L | HP15RO4C-00-TLF0R | Left | No | |
| HP15RO-4-3R | HP15RO4C-00-TRF0R | Right | No | |
| HP15RO-4-4L | HP15RO4C-00-RL00R | Left | No | |
| HP15RO-4-4R | HP15RO4C-00-RR00R | Right | No | |
| HP15RO-4-1LL | HP15RO4C-00-SLFLR | Left | Yes | |
| HP15RO-4-1RL | HP15RO4C-00-SRFLR | Right | Yes | |
| HP15RO-4-2LL | HP15RO4C-00-PL0LR | Left | Yes | |
| HP15RO-4-2RL | HP15RO4C-00-PR0LR | Right | Yes | |
| HP15RO-4-3LL | HP15RO4C-00-TLFLR | Left | Yes | |
| HP15RO-4-3RL | HP15RO4C-00-TRFLR | Right | Yes | |
| HP15RO-4-4LL | HP15RO4C-00-RL0LR | Left | Yes | |
| HP15RO-4-4RL | HP15RO4C-00-RR0LR | Right | Yes | |
| MARINE & COASTAL | HP15RM-4-1L | HP15RM4C-00-MLF0R | Left | No |
| HP15RM-4-1R | HP15RM4C-00-MRF0R | Right | No | |
| HP15RM-4-2L | HP15RM4C-00-PL00R | Left | No | |
| HP15RM-4-2R | HP15RM4C-00-PR00R | Right | No | |
| HP15RM-4-3L | HP15RM4C-00-NLF0R | Left | No | |
| HP15RM-4-3R | HP15RM4C-00-NRF0R | Right | No | |
| HP15RM-4-4L | HP15RM4C-00-RL00R | Left | No | |
| HP15RM-4-4R | HP15RM4C-00-RR00R | Right | No | |
| HP15RM-4-1LL | HP15RM4C-00-MLFLR | Left | Yes | |
| HP15RM-4-1RL | HP15RM4C-00-MRFLR | Right | Yes | |
| HP15RM-4-2LL | HP15RM4C-00-PL0LR | Left | Yes | |
| HP15RM-4-2RL | HP15RM4C-00-PR0LR | Right | Yes | |
| HP15RM-4-3LL | HP15RM4C-00-NLFLR | Left | Yes | |
| HP15RM-4-3RL | HP15RM4C-00-NRFLR | Right | Yes | |
| HP15RM-4-4LL | HP15RM4C-00-RL0LR | Left | Yes | |
| HP15RM-4-4RL | HP15RM4C-00-RR0LR | Right | Yes | |

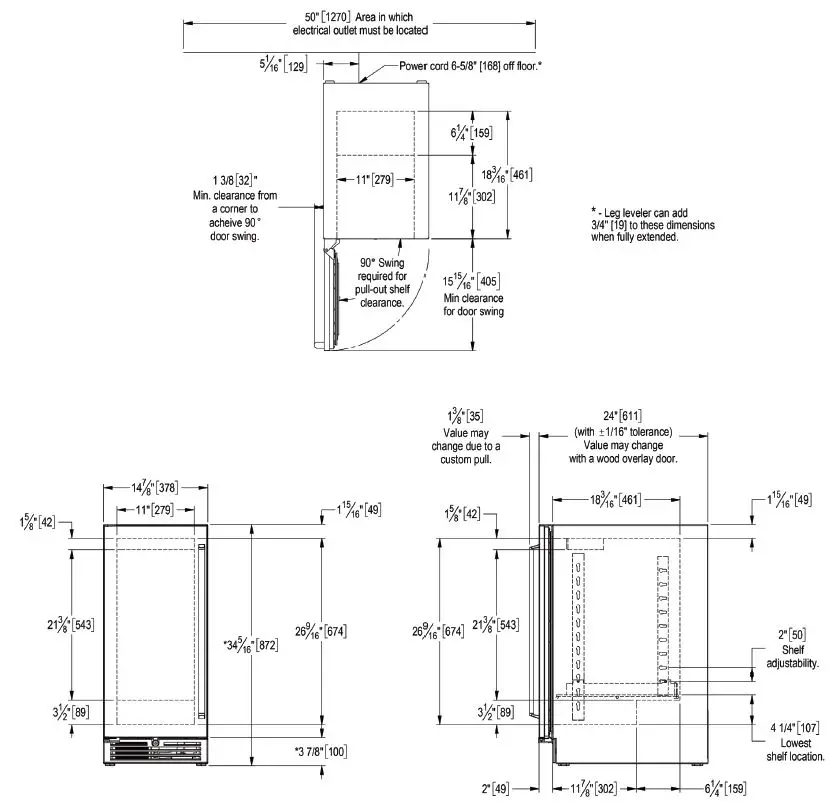

DIAGRAM
