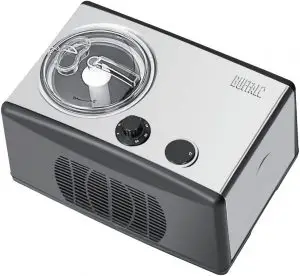

Buffalo Ice Cream Maker Instruction Manual

BUFFALO Ice Cream Maker Instruction Manual

Safety Instructions

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.
• Consult Local and National Standards to comply with the following:
  • Health and Safety at Work Legislation
  • BS EN Codes of Practice
  • Fire Precautions
  • IEE Wiring Regulations
  • Building Regulations
• Warning: Fill with potable water only.
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT immerse the appliance in water.
• DO NOT use the appliance outside.
• DO NOT attempt to mix items that this machine is not designed for. This can damage the machine.
• DO NOT bypass the safety interlocks.
• DO NOT place hands near the rotating attachments when in use. This can result in injury.
• Never leave the appliance unattended when in use.
• Always switch off and disconnect the power supply to the unit before cleaning.
• This appliance must only be used in accordance with these instructions and by persons competent to do so.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• BUFFALO recommend that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.
• BUFFALO recommend that this product is connected to a circuit protected by an appropriate RCD (Residual Current Devi)

Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.
• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging and remove the protective film from all surfaces.
2. To optimize performance and longevity, ensure a minimum clearance of 2.5cm is maintained between the unit and walls and other objects, with a minimum 5cm clearance on the top. NEVER LOCATE NEXT TO A HEAT SOURCE.

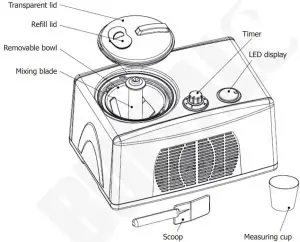

Getting To Know Your Ice Cream Maker

Before First Use

Before use, thoroughly wash all parts that will come into contact with the ice cream (including the removable bowl, blender blade, transparent lid, refill lid, measuring cup and scoop).

Using Your Ice Cream Maker

• Place the removable bowl, with ingredients, into the machine.
• For fastest results ingredients should be pre-chilled.

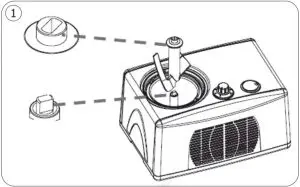

• Fix blender blade to machine ensuring that the blade connects well with the motor axis (Figure: 1).

  Figure: 1
• Fit the transparent lid onto the machine and lock into place.

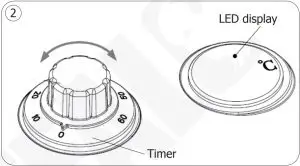

• Turn the timer to the desired time setting. The blender blade will start to turn. After a short delay the compressor will start and the bowl will start to chill. The LED display shows the temperature (Figure: 2).

  Figure: 2
• When the machine is running you can increase/decrease the operating time by turning the timer.
• You can stop the machine at any time by turning the timer anticlockwise to the “0” position.

Warnings

• If produce becomes frozen, blade will stop turning. Switch off the machine immediately to protect blade motor.
• To avoid overflow and waste, please make sure that the ingredients do not exceed 60% of the capacity of the removable bowl (ice cream expands when being formed).

Cleaning, Care & Maintenance

• Unplug the appliance and wait for it to completely cool down before cleaning.
• Wipe over the outside surface of the unit with a dampened cloth and polish with a soft dry cloth.
• Wipe any excess food from the power cord.
• Wash the removable bowl and accessories in warm soapy water and wipe dry.

Storage Of Ice Cream

Transfer finished ice cream into another container using a plastic scoop or a wooden spoon and store in freezer. Do not use a metal scoop to avoid scratching the inside of the removable bowl.

Troubleshooting

Technical Specifications

Electrical Wiring

This appliance is supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

This appliances is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the BUFFALO helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

Caterlite parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

Caterlite products have been approved to carry the following symbol:


All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.
Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

DECLARATION OF CONFORMITY

The undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).
