FUSION2 Wireless Earbuds
User Manual

Contents hide

10 Documents / Resources

11 Related Posts

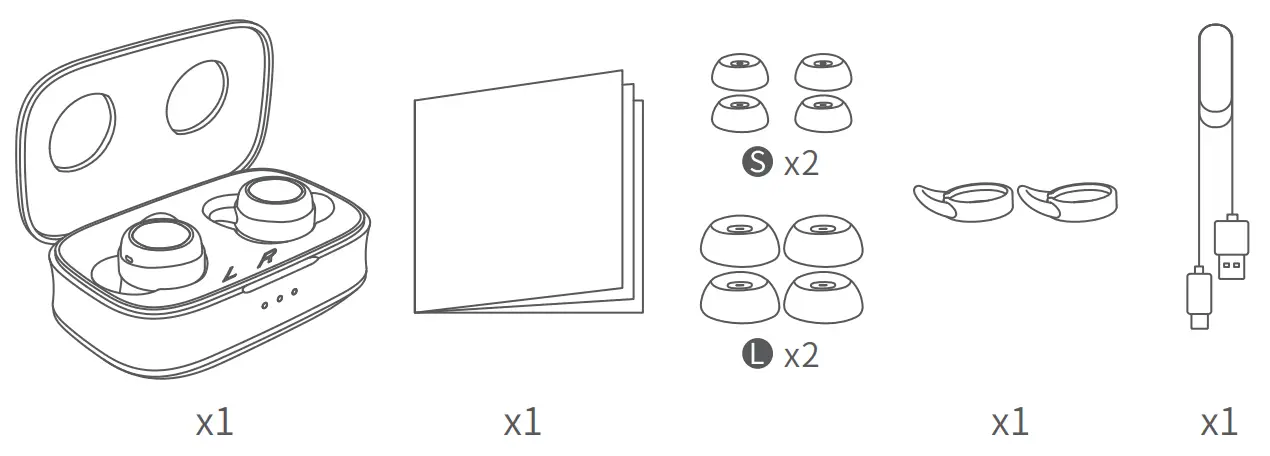

Packing List

Product Overview

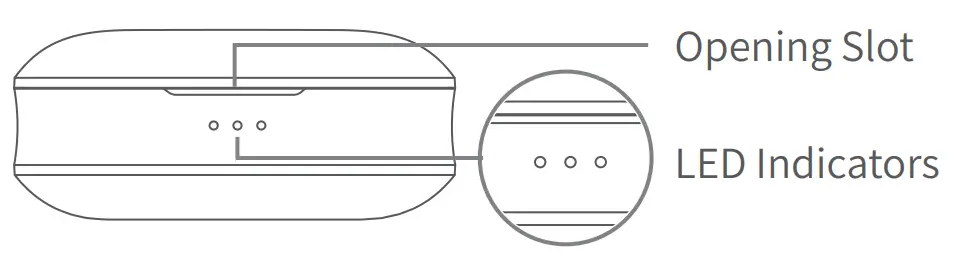

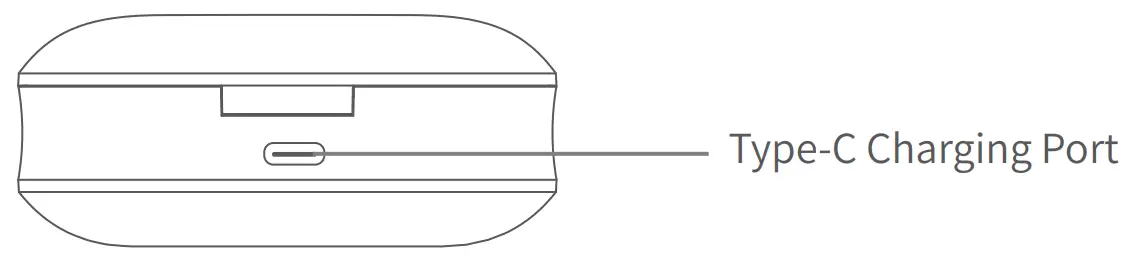

Charging Case

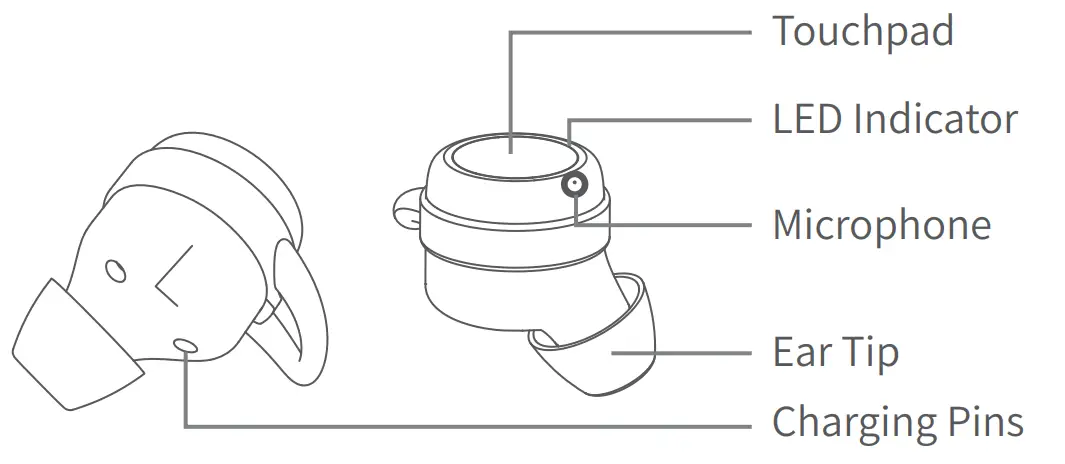

Earbuds

Charge

Fully charge the Charging Case and earbuds before your first use.

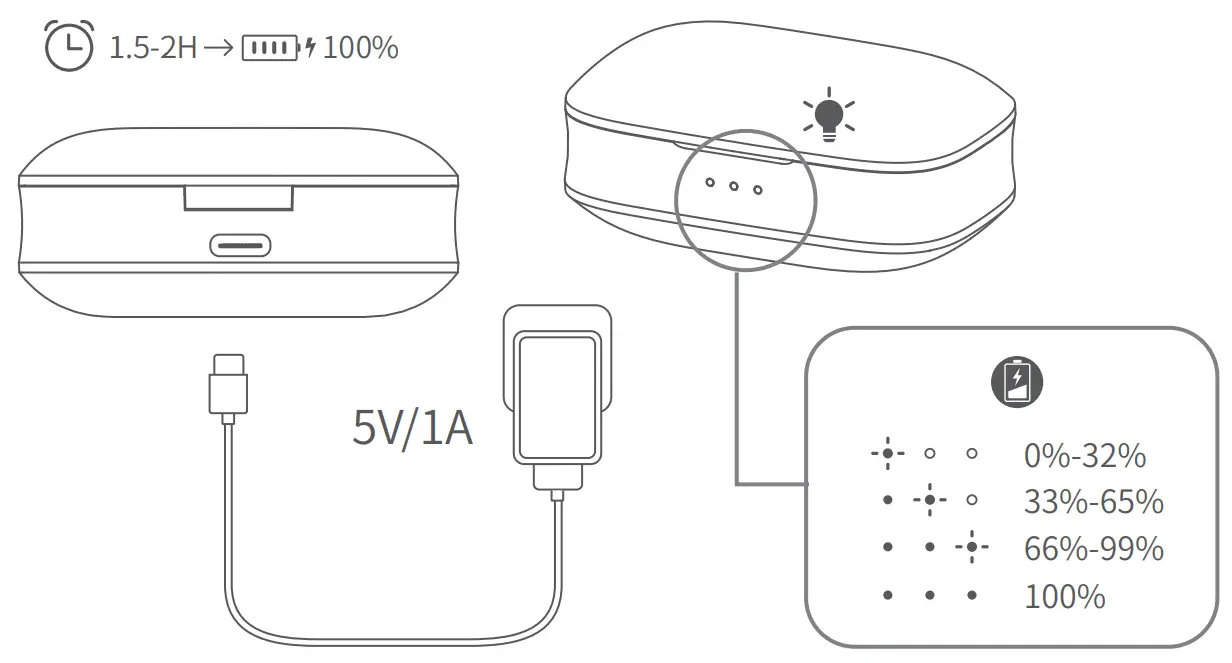

Charging Case
Option 1
Connect the Charging Case to a compatible adapter (not included) with the Type-C cable, then plug the adapter into a socket.

Option 2
Put the Charging Case on the wireless charger (not included) and it will be charged.
Earbuds

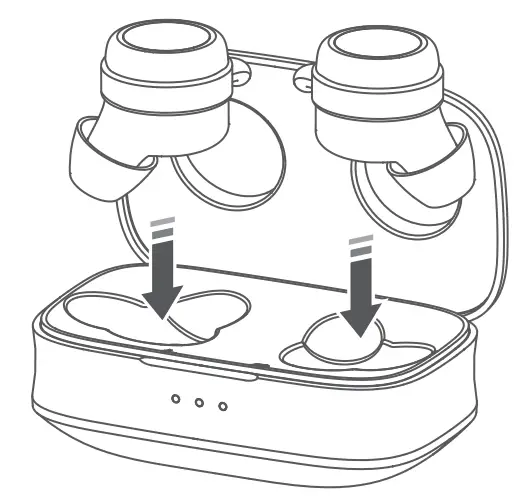

Align the Charging Pins on the earbuds with those in the case, then place the earbuds into the case until it magnetically snaps into the Charging Slot.

Charging: pulse blue
Fully Charged: solid blue for 5 seconds, then be off
Low Battery: flash blue twice for every 3 seconds

Power On

Option 1

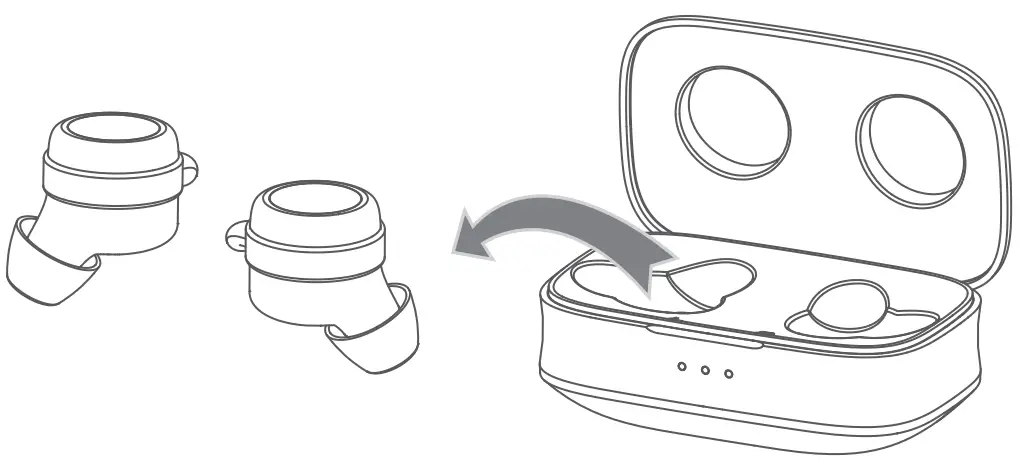

Open the Charging Case and take the earbuds out to power on.

Option 2

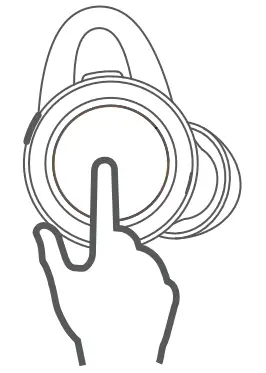

When the earbuds are not in the case and in power-off status, touch and hold the Touchpad for 1 second to power on.

Pair

Step 1

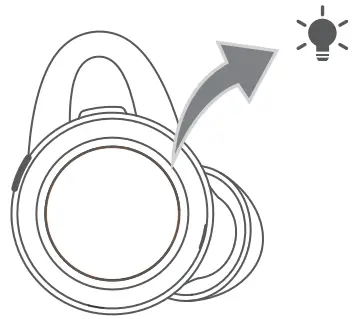

When the LED Indicator on one earbud flashes blue quickly, and the other flashes blue once every 5 seconds, pair the earbuds with your mobile device within 60 seconds.
Tip: If there is no earbud flashing blue quickly, place the earbuds back into the case and take them out again.
Step 2

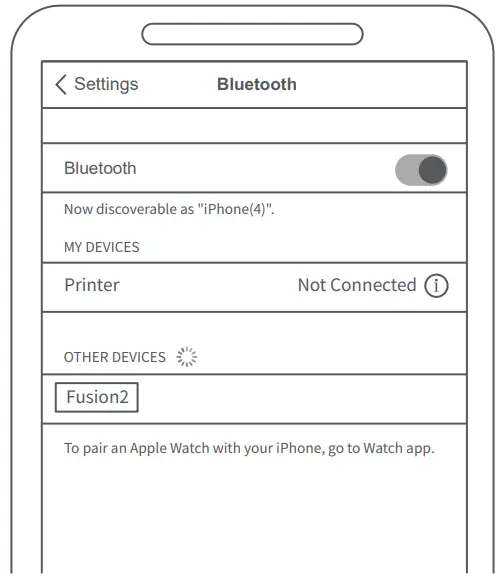

Enable Bluetooth on your device, search and connect to Fusion2.
The LED Indicators on the earbuds pulse blue for every 3 seconds and you will hear “Connected” from the earbuds if the connection is successful.

Wear the Earbuds

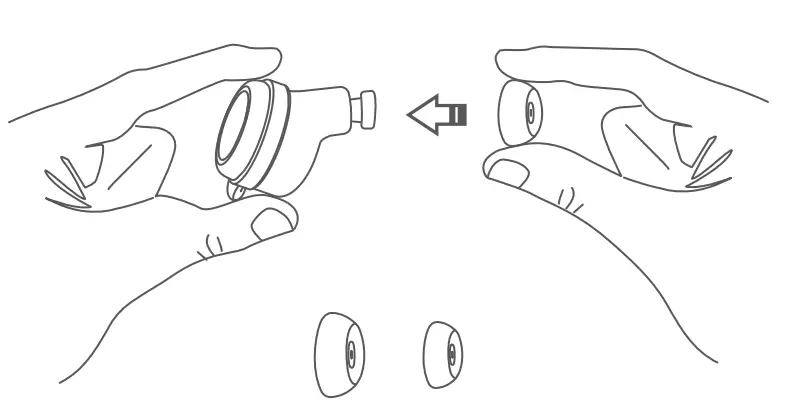

If the ear tips don’t fit your ears, you can replace them with the new ones we provided.

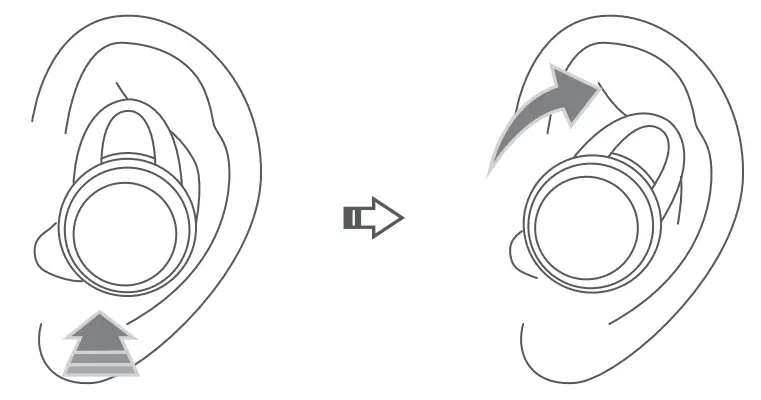

Fit the earbuds into your ears.

Functions

Volume

Volume Up	Tap the Touchpad of the Right(R) Earbud twice
Volume Down	Tap the Touchpad of the Left(L) Earbud twice

Music

Play/Pause	Tap the Touchpad of either earbud once
Previous	Touch and hold the Touchpad of the Left(L) Earbud for 2 seconds
Next	Touch and hold the Touchpad of the Right(R) Earbud for 2 seconds

Call

Accept/End	Tap the Touchpad of either earbud once
Decline	Touch and hold the Touchpad of either earbud for 2 seconds

Activate Voice Assistant
When you’re not listening to music or watching videos, tap the Touchpad of either earbud 3 times to wake up the voice assistant.

Power Off

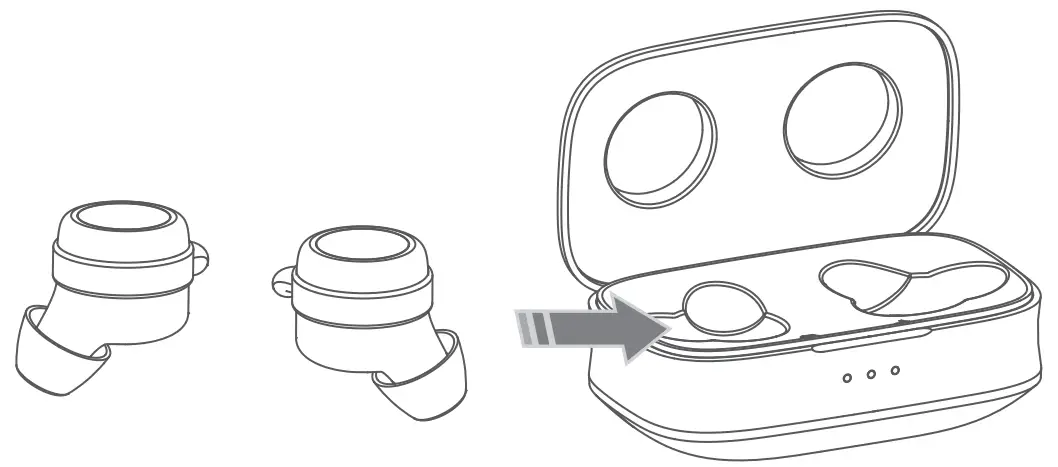

Option 1 Place the earbuds back into the case to automatically power off.
Option 2 Touch and hold the Touchpad for 5 seconds to power off the earbuds.
Option 3 If there is no connection with a Bluetooth device within 3 minutes after powering on, the earbuds will automatically power off.

Reset
When your mobile phone can’t be paired with the earbuds, place two earbuds into the Charging Case, then simultaneously touch and hold the Touchpad of two earbuds for 5 seconds until the LED Indicators are off for 1 second, which indicates the earbuds have been reset successfully.

Specification

Power Supply	5V 0.5A
BT Version	V5.0
Frequency Range	2402∼2480MHz
Transmit Power (EIRP)	<8d Bm (for CE)
Battery Capacity of the Charging Case	400mAh
Charging Time for the Earbud	1 Hour
Charging Time for the Charging Case	1.5-2 Hours
Playtime	Up to 8 Hours (with 50% volume)

FCC Caution

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC ID:2AQ3A.FUSION2

ISEDC Warning
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
The device is in compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).
The symbol indicates DC voltage
RECYCLING
This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
NOTES:

High Sound Pressure
Hearing Damage Risk
Do not listen at high volume levels for long periods.
Manufacturer: Shenzhen VanTop Technology & Innovation Co., Ltd. Manufacturer address: 502, 5th Flr. BLDG 4, MinQi Technology Park, No. 65 Lishan Road, Taoyuan Street, Nanshan District, Shenzhen, China
