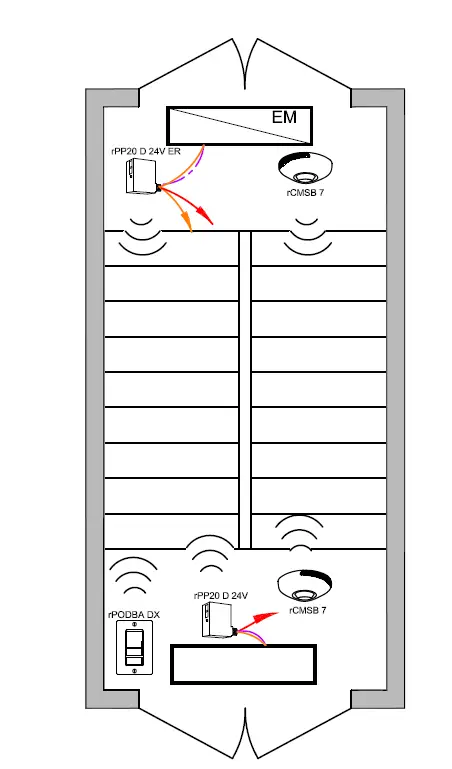

Acuity Brands Stairwell 0-10 nLight
SEQUENCE OF OPERATION:
LIGHT FIXTURES:
- ALL FIXTURES ARE DIMMABLE
- ALL FIXTURES CAN BE CONTROLLED TOGETHER OR INDEPENDENTLY
- THE MAXIMUM LEVEL CAN BE TASK TUNED TO ANY PERCENTAGE VIA PROGRAMMING
OCCUPANCY CONTROL:
- FIXTURES AUTOMATICALLY TURN OFF OR OPTIONALLY CAN BE CONFIGURED TO DROP TO LOW DIM SETTING OF AT LEAST 50% WHEN SPACE BECOMES VACANT
DAYLIGHT CONTROL:
- NOT REQUIRED IF ROOM HAS< 24 FT2. OF GLAZING OR
- LIGHTING LOAD< 120W IN THE SKYLIT AND THE SIDELIT DAYLIT ZONE
- SMOOTH CONTINUOUS DIMMING
- CUSTOM GROUPING OF FIXTURES INTO SEPARATE DAYLIGHT ZONES (MAX. NUMBER OF ZONES = NUMBER FIXTURES)
MANUAL CONTROL:
- ON/OFF & RAISE/LOWER CONTROL OF FIXTURES ADDITIONAL OPTIONS:
- ROM CAN BE CONNECTED TO NIGHT BACKBONE TO ENABLE NETWORK CONTROL, TIME SCHEDULES AND AUTOMATED DEMAND RESPONSE (OPENADR 2.0A)
- HVAC CONTROL AVAILABLE THROUGH THE SYSTEM-WIDE BACNET® INTERFACE OPTION ON THE ECL YPSE® CONTROLLER
- WIRELESS FIXTURE EMBEDDED CONTROL AND OCCUPANCY/DAYLIGHTING SENSOR OPTIONS AVAILABLE, PLEASE SEE THE FIXTURE SPECIFICATION SHEET
