Translation of the
original instructions
LS 18-0
58417

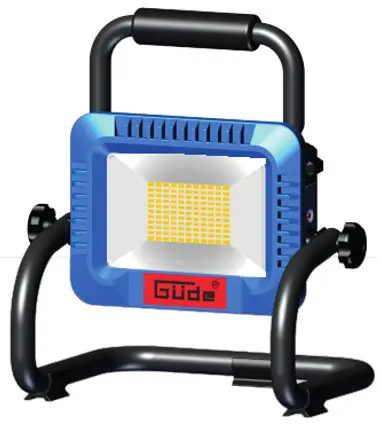

LS 18-0 LED Spotlight Battery
Please read the instructions carefully before starting the machine.

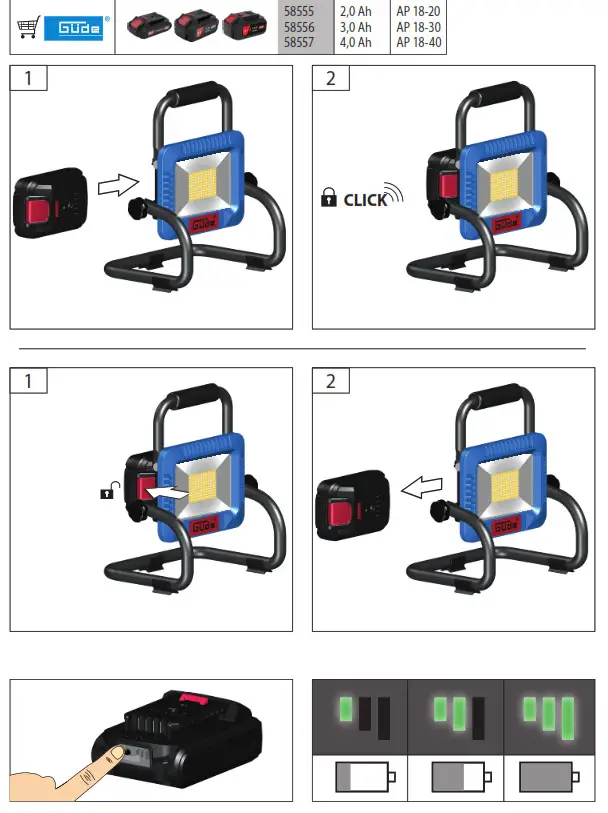

Scope of delivery
Scope of delivery
AP 18-20, AP 18 -30, AP 18 -40
 |  |
 |  |
Technical Data
| LED spotlight battery | LS 18-0 |
| Art. No | 58417 |
| Rated voltage | 18 V  |
| Rated power | 50 W |
| LED type | SMD |
| Number of LEDs | 100 Stk. |
| Light strength I | 4800 lm |
| Light strength II | 2000 lm |
| Color temperature | 6500 K |
| Color rendering index | > 80 Ra |
| Safety class | III |
| Weight without battery (Net/gross) | 0,8 kg / 0,72 kg |
Read and understand the operating instructions before using the appliance. Familiarise yourself with the control elements and how to use the appliance properly. Observe all the safety measures listed in the instructions. Behave responsibly towards other people.
The operator is responsible for accidents or risks to third parties.
In case of any doubts about connection and operation refer please to our customer center
Specified Conditions of Use
The LED spotlight is intended for mobile use around the house, in the workshop, or garage.
Do not use this product in any other way than stated for normal use. Not observing general regulations in force and instructions from this manual does not make the
manufacturer liable for damages.
Residual Risk
Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.
Despite the observance of the operating instructions there still may be some hidden residual risks.
Symbols
Warning / Caution!
Read the operating instructions to reduce the risk of injury.
Please never look directly into the light.
Keep dry at all times. Never expose the tool to rain.
Keep the machine out of reach of children.
Protect against cold
Safety class III
CE marking
Any damaged or disposed of electric or electronic devices must be delivered to appropriate collection centers.
Take the replaceable battery from the appliance before any extension, cleaning, or servicing works.
Safety instructions for LED spotlights
This appliance may emit hazardous radiation. Do not look into the lamp when it is switched on. This can be harmful to the eye.
The device and packaging are not toys!
Do not cover the device directly after use or place in a cabinet.
Covering the device poses a fire hazard!

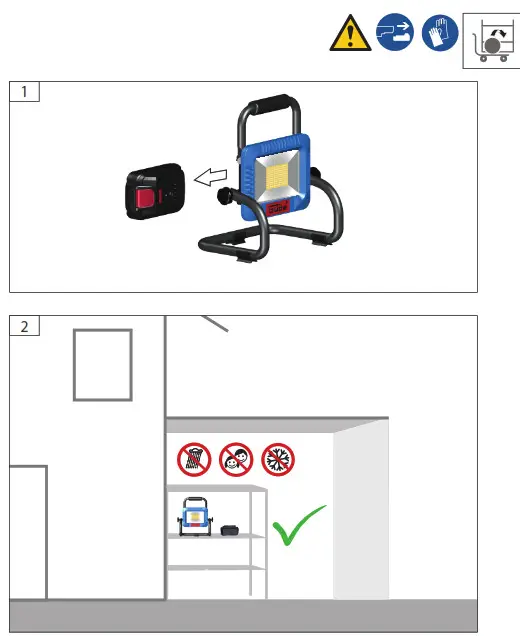

Maintenance
Take the replaceable battery from the appliance before any extension, cleaning or servicing works.
Repairs and works specified in these instructions may only be performed by qualified authorized staff.
Use only original accessories and original spare parts.
Keep the device, in particular the air vents, clean at all times. Never spray water on the device’s body!
Keep the device, in particular the air vents, clean at all times. Never spray water on the device’s body! Never clean the machine and its components with solvents, flammable or toxic liquids. Use only a damp cloth for cleaning.
Apply environment-friendly oil to all moving parts.
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries. If necessary, a list of spare parts can be found at www.guede.com. The machine to be stored in a dry place.
Disposal
Any damaged or disposed of devices must be delivered to appropriate collection centers.
Transport packaging disposal
The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environmental aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packaging (e.g. foils, styropor®) can be dangerous for children.
Risk of suffocation!
Keep parts of the packaging out of reach of children and dispose of them as soon as possible.
Guarantee
The warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.
The guarantee solely covers inadequacies caused by ma- material defects or manufacturing defects. An original payment voucher with the date of the sale needs to be submitted for any claim in the guarantee period.
The guarantee does not cover any unauthorized use such as appliance overloading, use of violence, or damage as a result of any unauthorized interference caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.
Important information for the customer
Please note that returns within or outside the warranty period should always be in the original packaging. This measure effectively avoids unnecessary transport damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing.
Service
Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you without needles bureaucracy on our web pages at www.guede.com in the Servicing part. Plea- se help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.
Tel.: +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
E-Mail: [email protected]
LED spotlight battery
58417
L 18-0
Appropriate EU Directives
 | 2014/35 EU | | 2014/30/EU |
 | 1935/2004/EC | | 1907/2006/EC |
| 2011/65/EU&2015/863EU | | 2016/426/EU |
| 2016/425/EU (PPE) | | 2019/1784/EU |
| 2015/1188/EU | | 2014/29/EU |
| 2006/42 EC | |
Annex IV
| No: | Name: |
| Notified Body | Address: |
Type Ex. Cert.-No.: 97/68/EC_&2016/1628/EU
Emission No.: 2000/14/EC_2005/88/EC
Method of compliance assessment
16/04/2021
Harmonized standards used
EN 60598-1:2015/A1:2018
……………………………………………………….
EN 60598-2-4:2018
………………………………………………………..
EN 60598-2-5:2015
………………………………………………………
EN 62493:2015
………………………………………………………..
AfPS GS 2019:01 PAK
…………………………………………………………..
EN 55015:2013/A1:2015
…………………………………………………………
EN 61547:2009
………………………………………………………….
Guaranteed sound power level
| LAW | dB (A) |
Measured sound power level
| LAW | dB (A) |
Managing Director
Güde GmbH & Co. KG, Birkichstraße 6, 74549 Wolpertshausen, Germany
Authorized to compile the technical file
GÜDE GmbH & Co. KG
Birkichstrasse 6
74549 Wolpertshausen
Deutschland
Tel.: +49-(0)7904/700-0
Fax.: +49-(0)7904/700-250
Email: [email protected]
TN 58417 2021-07-15
