Owner’s Manual
RC‑1572MKII
Stereo Control Amplifier
 | CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN |  |
| WARNING : SHOCK HAZARD-DO NOT OPEN | ||
CAUTION: TO PREVENT ELECTRIC SHOCK. MATCH WIDE BLADE OF PLUG TO WIDE SLOT INSERT FULLY

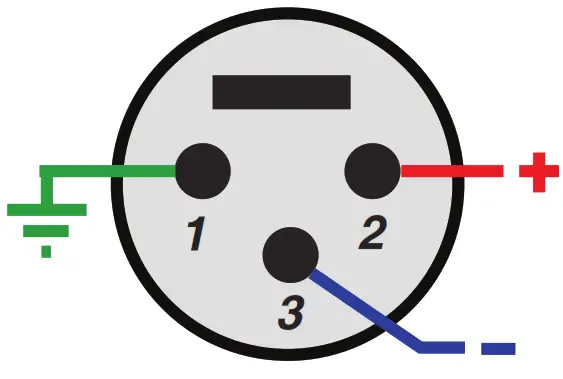

Pin 1: Ground/Screen
Pin 2: Фаза / +ve / Hot
Pin 3: -ve / Cold

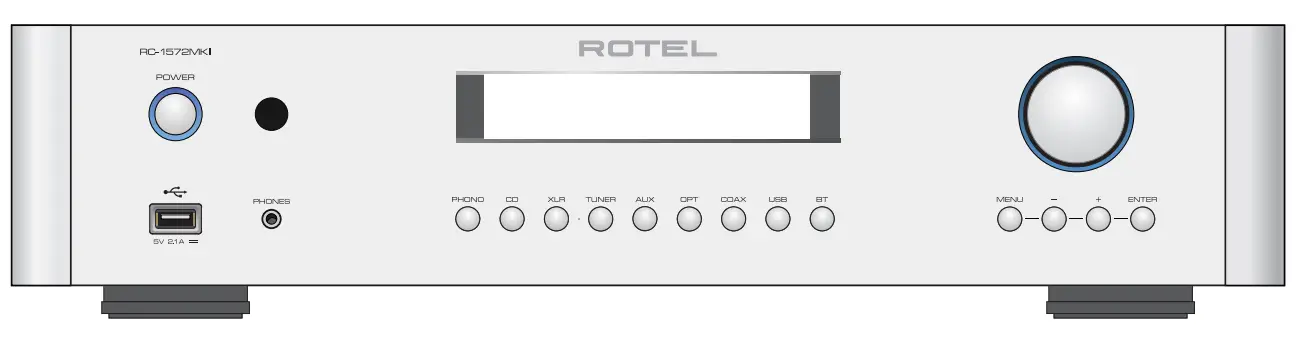

RC-1572MKII Stereo Control Amplifier

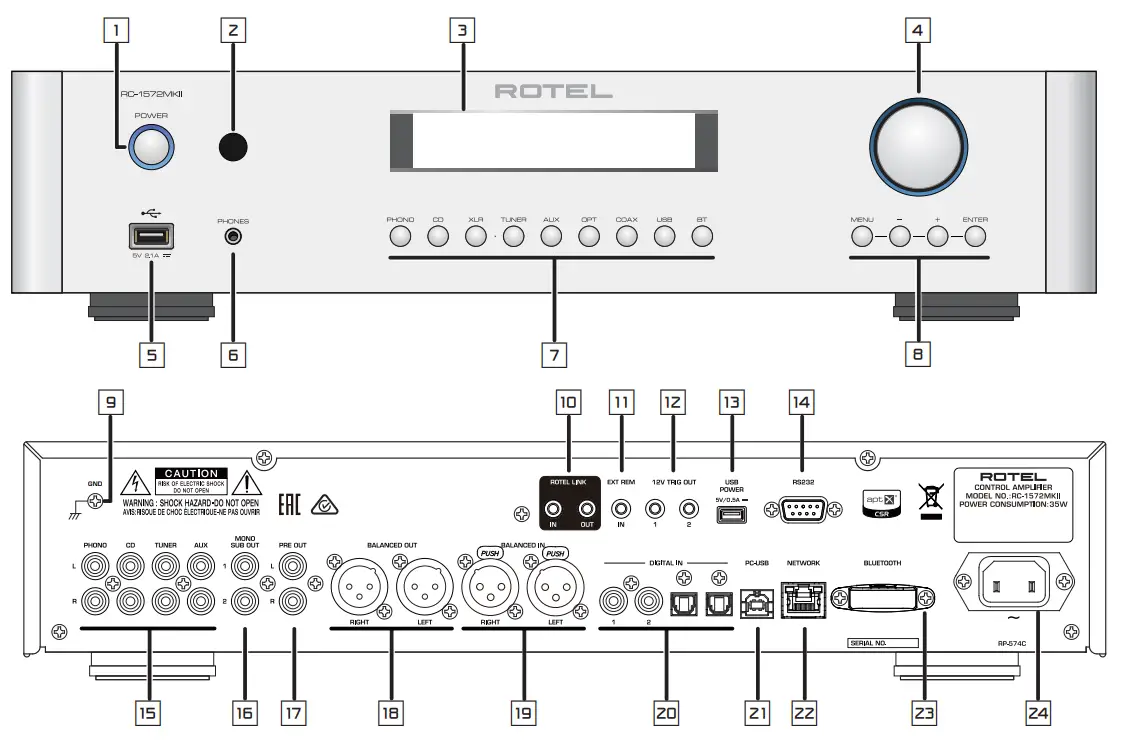

Figure 1: Controls and Connections
Figure 2: RR‑AX93 Remote Control

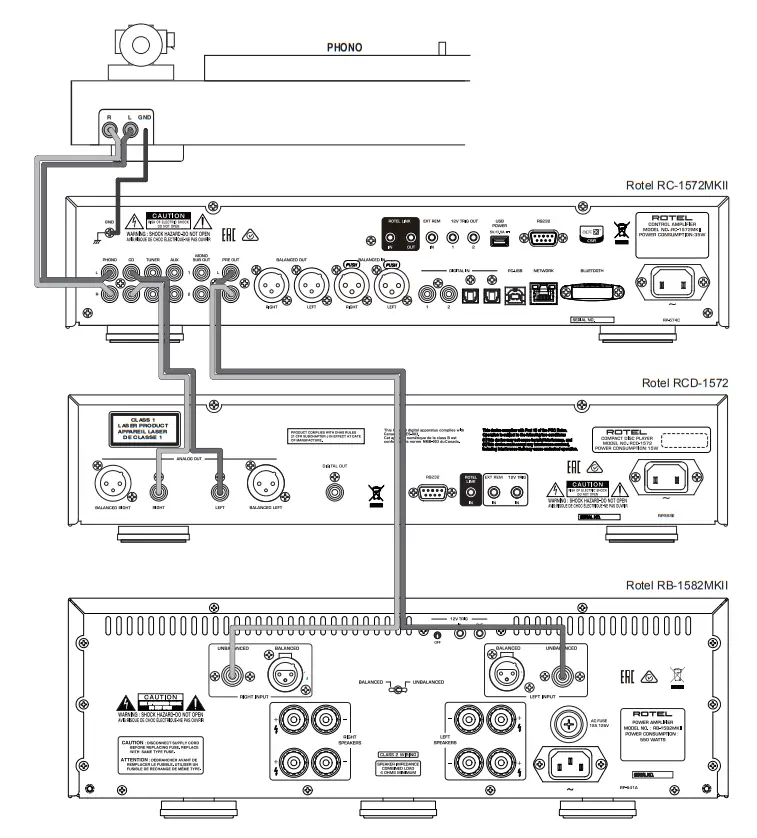

Figure 3: Analog Input and Output Connections

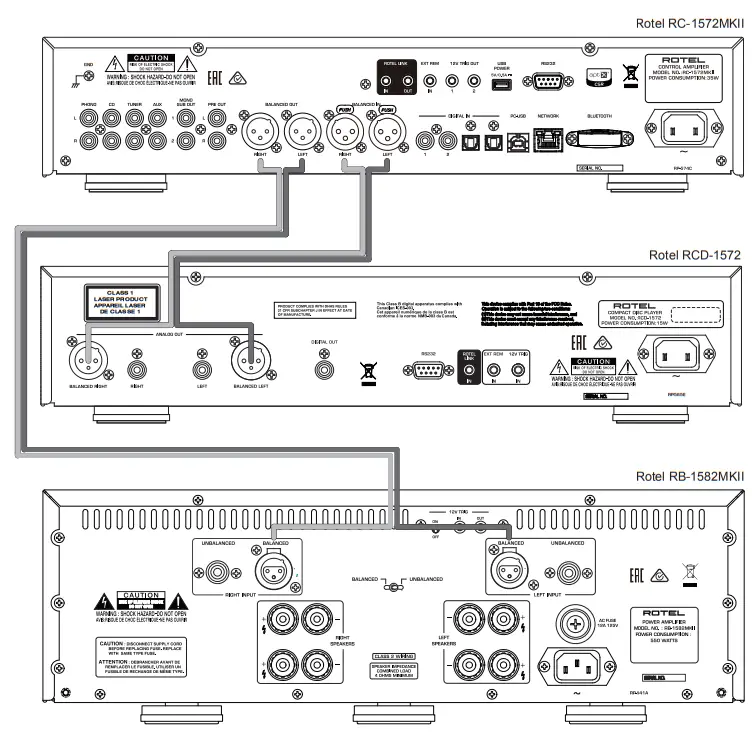

Figure 4: Balanced (XLR) Input and Output Connections

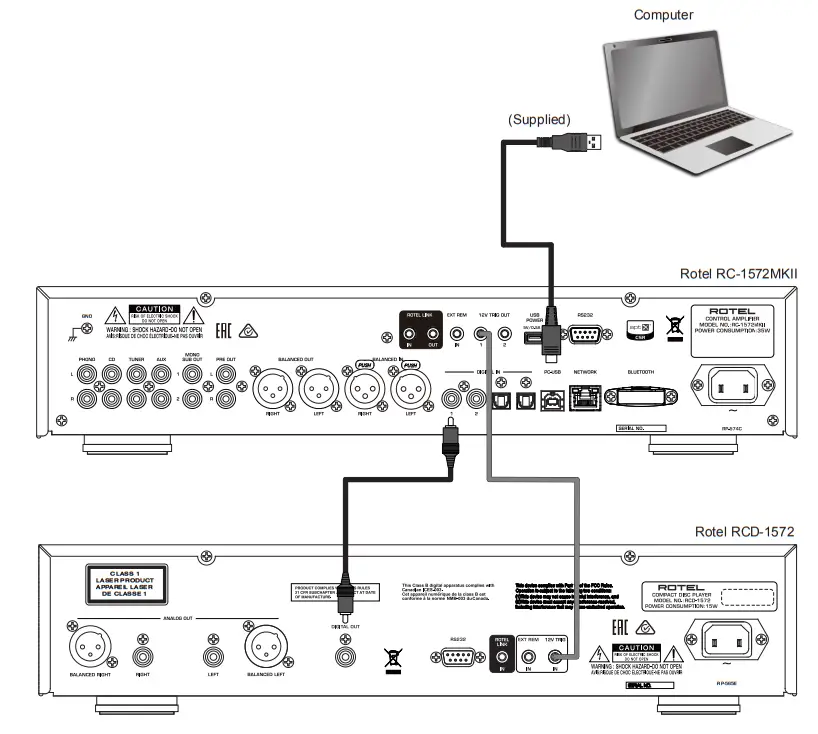

Figure 5: Digital Input and 12 Volt Trigger Out Connections
Important Notes
When making connections be sure to:
Turn off all the components in the system before hooking up any components, including loudspeakers. Turn off all components in the system before changing any of the connections to the system.
It is also recommended that you: Turn the volume control of the amplifier all the way down before the amplifier is turned on or off.
