Elvita Cdm5600v Dishwasher User Manual

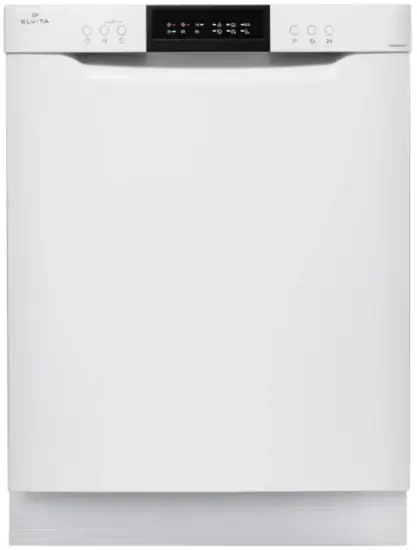

ELVITA CDM5600V Dishwasher User Manual

Before using this product, please read the user manual carefully. Save the user manual for future reference.

Installation Instructions

STEP 1
If height of feet need more than 50 mm, you need to change two feet.

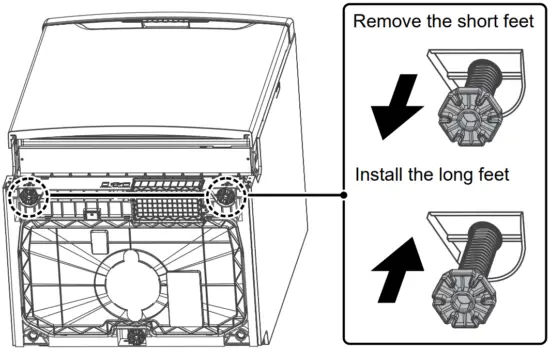

1. Pull down the appliance carefully, change two of front shorter feet to longer one (110mm).

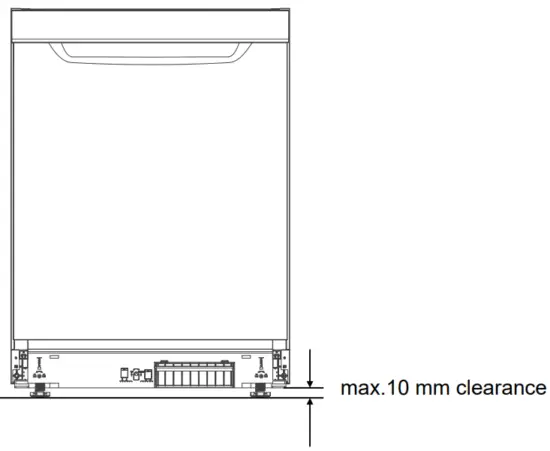

2. Be sure that the height of feet are less than 10 mm before raising the appliance.

3. Level the appliance according to the section ”Position the appliance” in the instruction manual.

STEP 2. INSTALL THE BASEBOARD

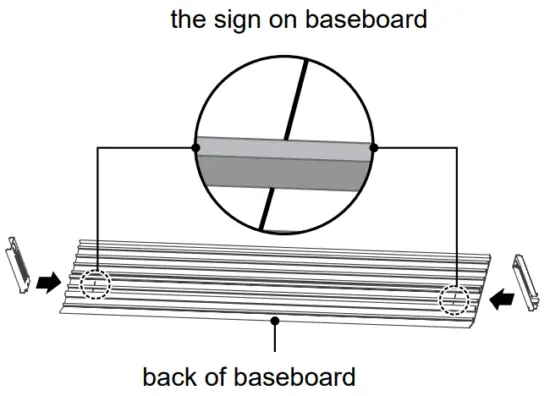

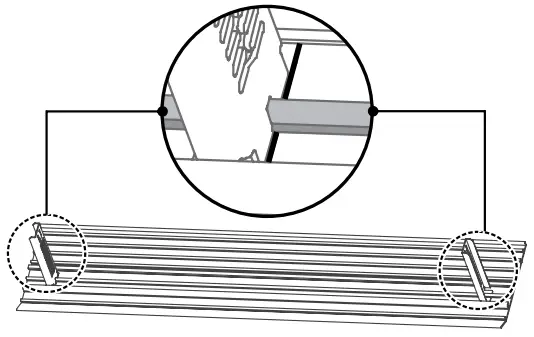

1. Fit the brackets to the baseboard, and align with the sign on the back of baseboard.


2. Break off the baseboard, depending on the height of the appliance.

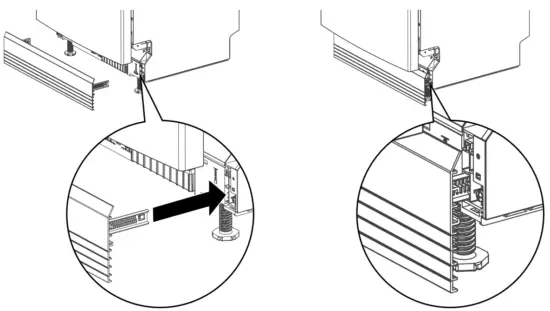

3. Fit the baseboard on the appliance.


WARRANTY

Guarantee of quality for the consumer (does not include wear parts).
