QUICK REFERENCE GUIDE > HC90PLX4
Wall Rangehood, 90cm, Pyramid Chimney
Stainless Steel
User Guide

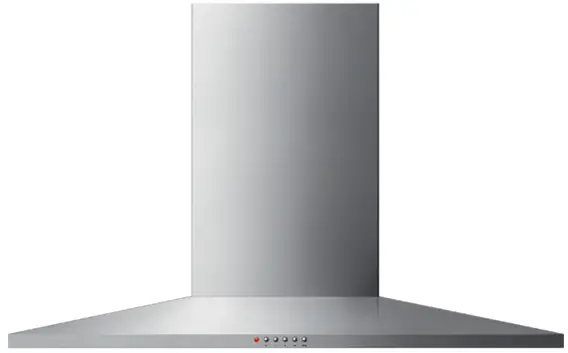

HC90PLX4 90cm Pyramid Chimney Wall Rangehood
With powerful extraction, this rangehood effectively captures and eliminates cooking odours, vapour and steam. It is the perfect partner to our cooktops, featuring a low profile and finished with sleek brushed stainless steel. The wall chimney rangehood has contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.
- 3 fan speeds
- Optional recirculated ducting
- Maximum decibel rating – 65dBA
DIMENSIONS
| Height | 610 – 1050 mm |
| Width | 898 mm |
| Depth | 500 mm |
SPECIFICATIONS
| Accessories | |
| Aluminium filter | 792527 |
| Chimney extension | 792492 (Cover duct extension |
| Eave ducting kit | PD-RHK15OE |
| Light bulb | 792461 |
| Recirculation carbon filter | 792481 |
| Roof ducting kit | PD-RHK150T |
| Side wall ducting kit | PD-RHK15OW |
| Fan ratings | |
| Maximum air movement | 780m³/hr |
| Maximum sound rating | 65dBA |
| Installation and cleaning | |
| Air outlet size | 120 – 150mm |
| Dishwasher safe filters | 3 |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Two piece height adjustable flue | • |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
| Power requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 500 mm |
| Height | 610 – 1050 mm |
| Width | 898 mm |
| Product information | |
| Control type | Push button |
| Ventilation features | |
| Light type | LED 2 x 3.5W |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 500070 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
