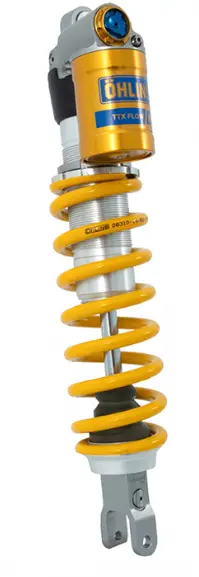

OHLINS Crystal Fire TTX Flow Shock Absorber
Note!
Please note that there can be small differences between your product and the images in these instructions.
Note!
Please note that during storage and transport, especially at high ambient temperature, some of the oil and grease used for assembly may leak and stain the packaging. This will not cause damage to the product, wipe off the excessive oil or grease with a cloth.
| Kit Contents | ||
| Description | Part No | Pcs |
| Shock absorber | DMX0305 | 1 |
| Owner’s manual | 07253-05 | 1 |
| Sticker Öhlins | 1 | |
| Spring clip | 15087-08 | 1 |
| Sticker service schedule MX fork & shock | 15211-01 | 1 |
Note!
No spring is included in this kit. See the spring guide in this folder or contact an Öhlins dealer for advice.
Note!
Before you install this product, check the kit contents. If anything is missing, please contact an Öhlins dealer.
Warning!
Before you install this product, read the Öhlins Owner’s manual. This product is an important part of the vehicle and the vehicle’s stability.
TTX Flow shock absorber for Beta RR 2T/RR 4T/ RR 2T Racing/ RR 4T Racing DMX 0305
MOUNTING INSTRUCTIONS
Install the Shock Absorber
Warning!
We strongly recommend letting an Öhlins dealer install this product.
Warning!
If you work with a lifted vehicle, make sure that it is safely supported to prevent it from tipping over.
Note!
When you work with this product, see the vehicle service manual for vehicle-specific procedures and important data.
Note!
Before you install this product clean the vehicle.
- Put the motorcycle on a work stand so that the rear wheel barely touches the ground.
- Refer to the vehicle manual to install the Öhlins shock absorber.
- Use the OEM screw when installing the lower end of the shock absorber.
Note!
Torque to 40 Nm and do not apply Loctite.
Note!
Lower the vehicle so that the suspension is slightly compressed before you tighten the screws.
Caution!
Make sure that you tighten all screws to the correct torque and that nothing fouls or restricts movement of the shock absorber/front fork/ steering damper when the suspension is fully compressed or extended.
SETUP DATA
| Length | 474 | mm |
| Stroke | 132 | mm |
| Spring preload approx. | 10 (5) | mm (turns) |
| Compr. low speed | 6 | clicks |
| Compr. high speed | 8 | clicks |
| Rebound | 9 | clicks |
| Free Sag and Ride Height | ||
| R1-R2 | 35±5 | mm |
| R1-R3 | 105±5 | mm |
SPRING GUIDE
| RR 2T/ RR 2T Racing 125/200/250/300 | ||
| Rider’s weight* kg/pounds | Spring part no | Spring rate N/mm |
| 60/132 | 06310-07 | 46 |
| 65/143 | 06310-08 | 48 |
| 70/154 | 06310-08 | 48 |
| 75/165 | 06310-09 | 50 |
| 80/176 | 06310-09 | 50 |
| 85/187 | 06310-10 | 52 |
| 90/198 | 06310-10 | 52 |
| 95/209 | 06310-11 | 54 |
| 100/220 | 06310-11 | 54 |
| 105/231 | 06451-12 | 56 |
| 110/242 | 06451-13 | 58 |
| 115/253 | 06451-14 | 60 |
| RR 4T/ RR 4T Racing 350/390/430/480 | ||
| Rider’s weight* kg/pounds | Spring part no | Spring rate N/mm |
| 60/132 | 06310-08 | 48 |
| 65/143 | 06310-09 | 50 |
| 70/154 | 06310-09 | 50 |
| 75/165 | 06310-10 | 52 |
| 80/176 | 06310-10 | 52 |
| 85/187 | 06310-11 | 54 |
| 90/198 | 06310-11 | 54 |
| 95/209 | 06451-12 | 56 |
| 100/220 | 06451-12 | 56 |
| 105/231 | 06451-13 | 58 |
| 110/242 | 06451-14 | 60 |
| 115/253 | 06451-15 | 62 |
Rider’s weight: Rider wearing proper riding gear. Make sure you know your total weight with riding gear. Riding gear weighs between 5 and 15 kg.
