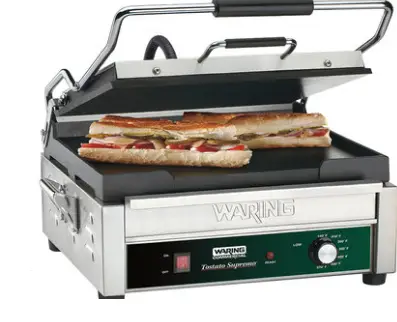

Waring Commercial Ribbed Top & Flat Bottom WDG250 tostato supremoUnit Information

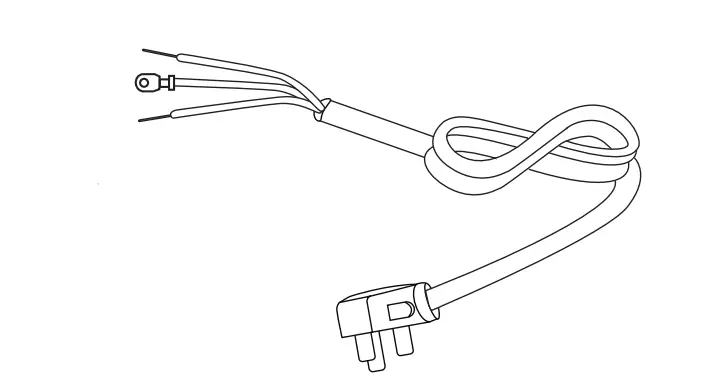

WFG250, WPG250 1800 Watts – 120 vol NEMA 5-15 NEMA 6-20

Watts – 208 volt NEMA 5-20
WFG250C, WPG250C 1800 Watts – 120 volt NEMA 5-20

The grill takes about 10 minutes to warm up. The WPB250B will heat-up and recover 32% faster than the WPG250 14.5 x 11 Cooking Surface Flat, Ribbed or Flat & Ribbed Cast Iron Plates

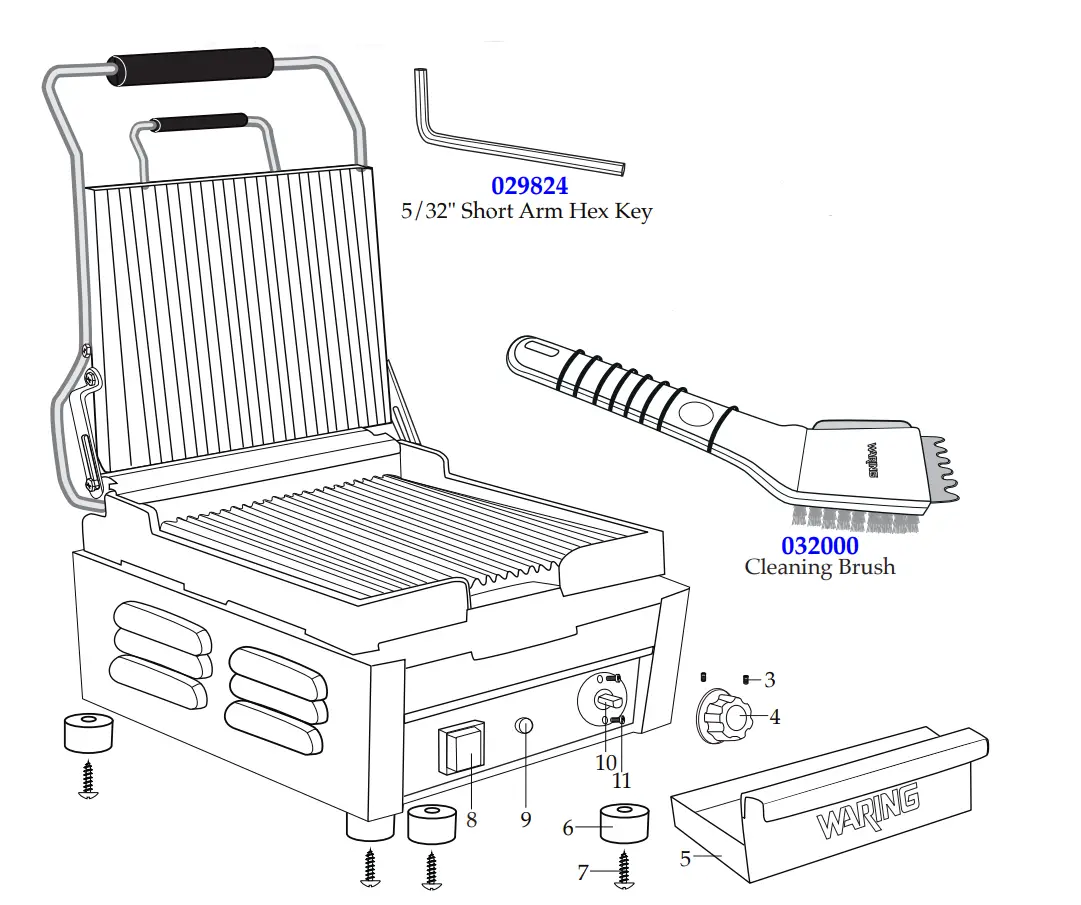

Base Unit Components

Catalog/Model

WDG250
WDG250C
WFG250
WFG250C
WPG250
WPG250C
WPG250B

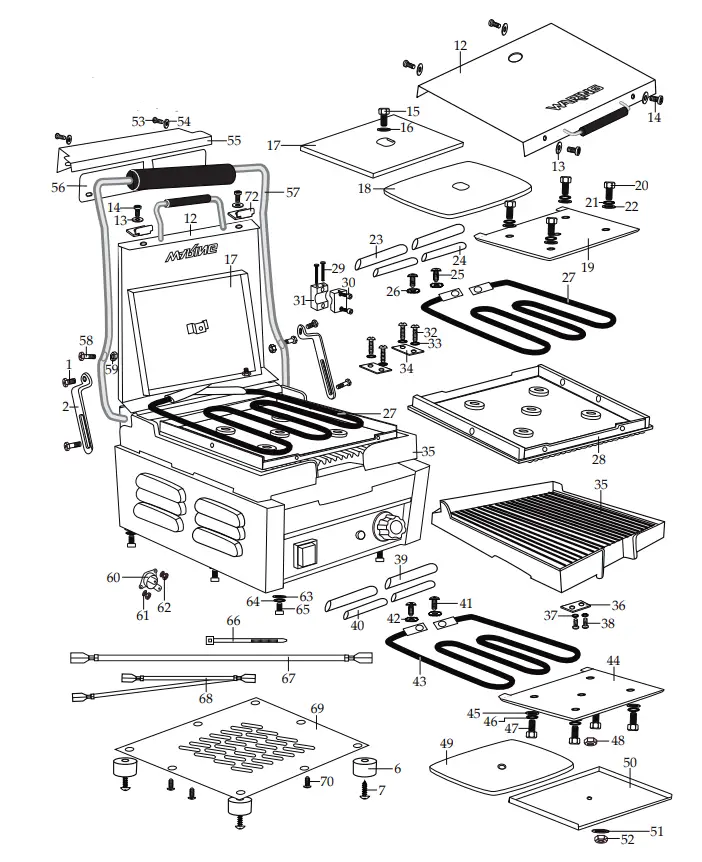

Illustration#	Part#	Description
1	028625	Pivot Bracket Screw Set (1 large & 1 small 2 sets required)
2	028624	Pivot Bracket (2 required)
3	028627	Set Screw (2 required)
4	028626	Control Knob
5	029503	Drip Tray
6	028622	Foot (4 required)
7	028623	Foot Screw (4 required)
8	029477	On-Off Switch
	029478	WPG250B On-Off Switch
9	029941	Indicator Light
	030018	WPG250B Indicator Light
10	029942	Thermostat
	030013	Thermostat for WPG250B
11	029943	Thermostat Screw (2 required)
12	029945	Cover
13	029946	Washer (4 required)
14	035012	Screw (4 required)
15	029950	Hex Head Bolt
16	029951	Washer
17	029953	Top Insulation Plate
18	029949	Top Insulation
19	029955	Top Element Plate
20	029962	Hex Head Bolt (4 required)
21	029963	Spring Washer (4 required)
22	029964	Washer (4 required)
23	029956	Fiber Sleeve (2 required)
24	029957	Plastic Sleeve (2 required)
25	029958	Screw (2 required)
26	029959	Washer (2 required)
27	029961	6 Amps Top Element
	030020	WPG250B Top Element

Illustration#	Part#	Description
28	029967	Ribbed Top Grill Plate
	029968	Flat Top Grill Plate

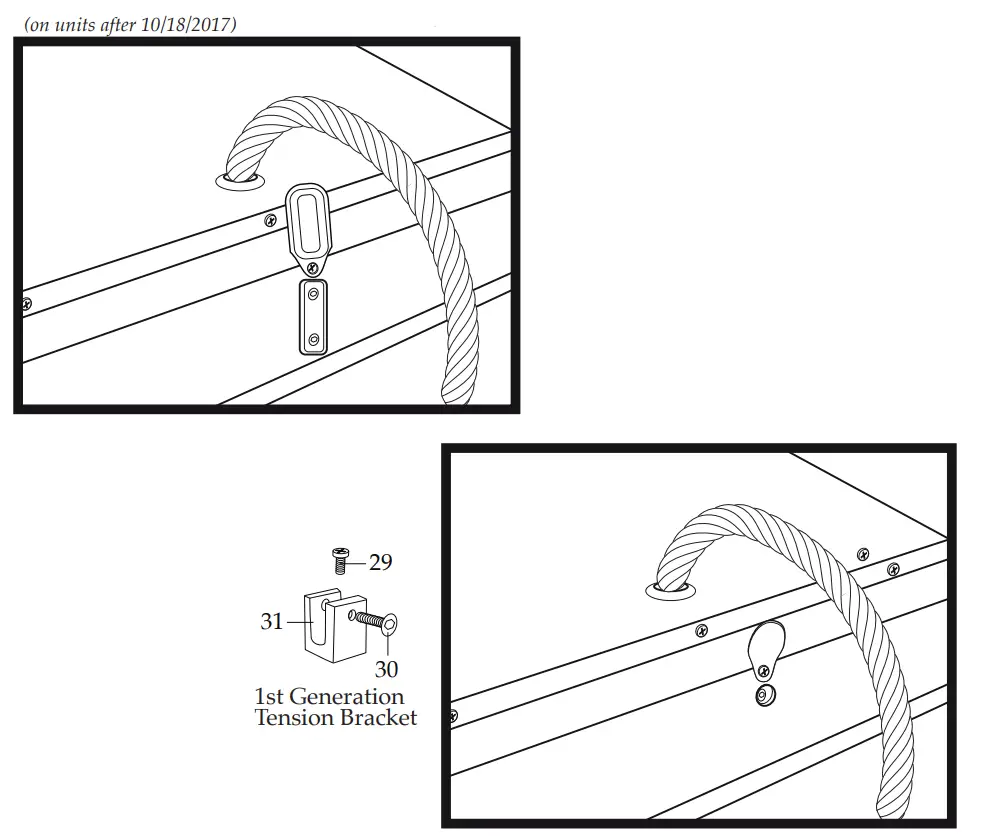

29	036549	Screw (2 required on units after 10/18/2017)
	030054	Screw
30	036550	Tension Bolts (2 required on units after 10/18/2017)
	030055	Tension Screw
31	036548	2 Piece Tension Bracket (on units after 10/18/2017)
	030056	Tension Bracket
32	029992	Screw (4 required)
33	029993	Spring Washer (4 required)
34	029995	Large Handle Bracket (2 required)
35	036554	Ribbed Bottom Grill Plate (on units after 10/18/2017)
	029971	Ribbed Bottom Grill Plate
	036553	Flat Bottom Grill Plate (on units after 10/18/2017)
	029972	Flat Bottom Grill Plate
36	029973	Thermostat Bracket
37	029974	Washer (2 required)
38	029975	Screw (2 required)
39	029956	Fiber Sleeve (2 required)
40	029957	Plastic Sleeve (2 required)
41	029958	Screw (2 required)
42	029959	Washer (2 required)
43	029977	8 Amps Bottom Element
	030021	WPG250B Bottom Element
44	029979	Bottom Element Plate
45	029964	Washer (4 required)
46	029963	Spring Washer (4 required)
47	029962	Hex Head Bolt (4 required)
48	029980	Nut
49	029982	Bottom Insulation
50	029984	Bottom Insulation Plate
51	029951	Washer
52	029980	Nut

Illustration#	Part#	Description
53	029985	Screw (2 required)
54	029986	Washer (2 required)
55	036551	Rear Cover with Tension Cover (on units after 10/18/2017)
	030007	Rear Cover with Tension Cover
56	036552	Rear Cover Plate with Tension Hole (on units after 10/18/2017)
	030008	Rear Cover Plate with Tension Hole
57	036547	Large Handle (on units after 10/18/2017)
	030009	Large Handle
58	029990	Hex Head Screw (2 required)
59	029991	Nut (2 required)
60	029996	Thermal Cut-off
	030014	WPG250B Thermal Cut-off
61	029997	Washer (2 required)
62	029998	Nut (2 required)
63	029999	Washer (4 required)
64	030000	Spring Washer (4 required)
65	030001	Bolt (4 required)
66	013731	Wire Tie (7 required)
67	030003	17″ Red Lead
68	030004	Joined Red & White Lead
69	030002	Bottom Housing Plate
70	030006	Screw (4 required)
